1:10 Scale 8x8 Independent Suspension RC Remote Control Military Truck for Climbing, Drifting, and Hauling (Not for Off-Road Use)

1/10 Scale 8x8 Independent Suspension RC Remote Control Military Truck Crawler Drift Tow Camper Kit

The drivetrain's stressed components use universal differential gears, drive shafts, and steering C-hub cups found in vehicles like the HSP 94111, a Pinus Yuedi 1002 3-speed gearbox, and 90mm shock absorbers

8-wheel independent suspension, 8-wheel steering, the front shock absorber bracket integrates an 895 motor mount and an output shaft stabilizer

Compared to the previously released suspension part, the steering arm has been optimized and slightly thickened, otherwise, there is no difference and it is universal

Added a small middle bucket, if it doesn't look good, you can choose not to print it, the wheel hubs are suitable for 2.2 inch tires, the wheel hubs have vent holes in the middle, if you don't want them to vent, you can plug them with hot glue, it is recommended to print the wheel hubs with materials like PETG for stronger layer adhesion

The whole thing doesn't have many parts, anyone with hands should be able to assemble it

20251112 uploaded an assembled suspension STL for easy assembly reference

20250213 additionally updated the print parts for the cab shell

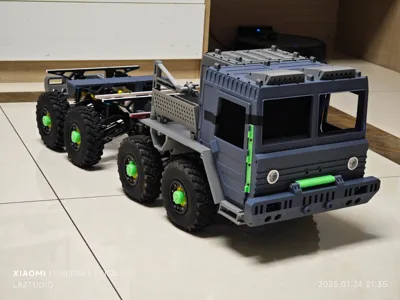

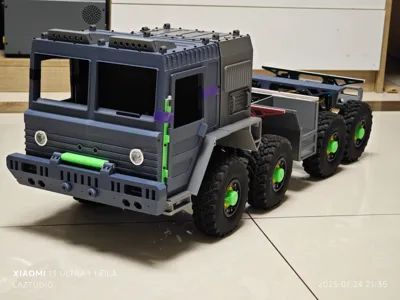

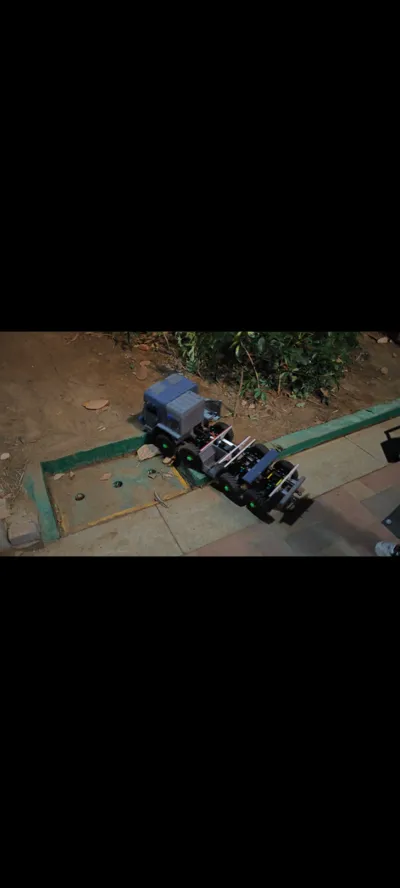

The final test results can be seen on Bilibili under the same username, it runs quite fast, the vehicle's appearance was roughly copied from a Mad Max truck cab picture, it's passable, it should be enough for an FPV carrier to deliver packages, right
