Easy Test Lead or USB Cable Holder (with 36 STL)

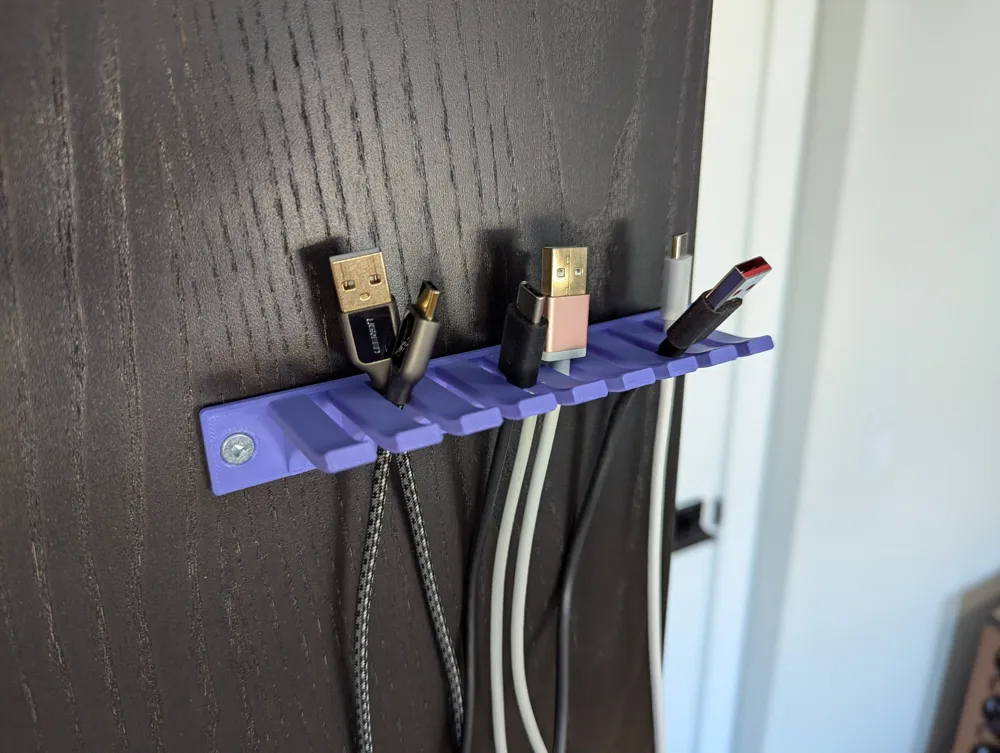

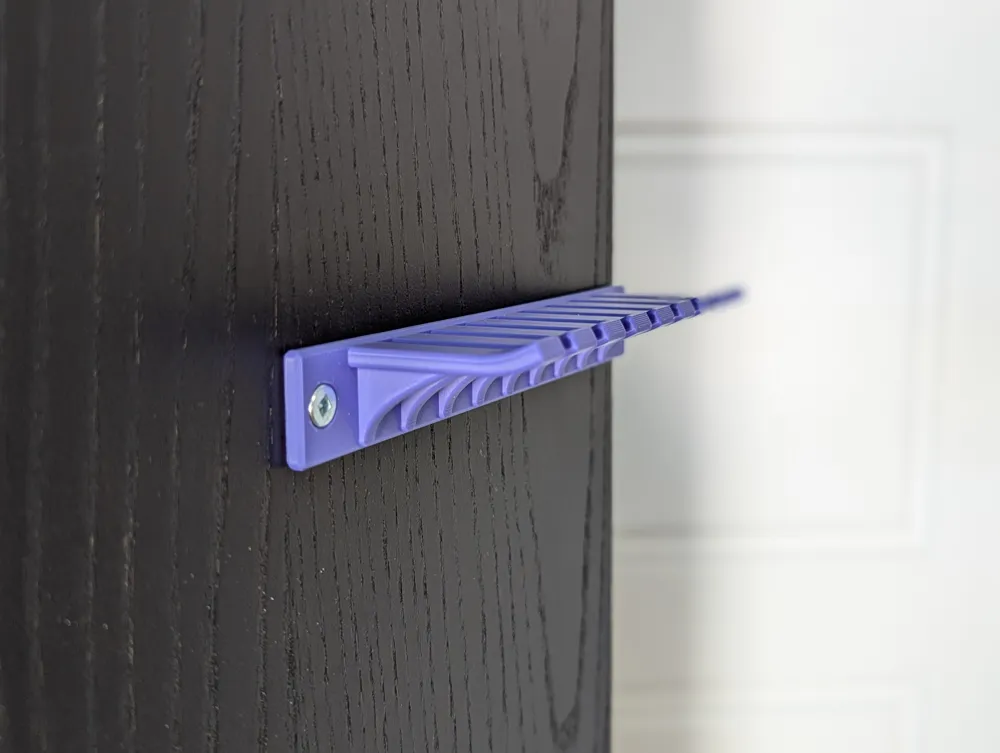

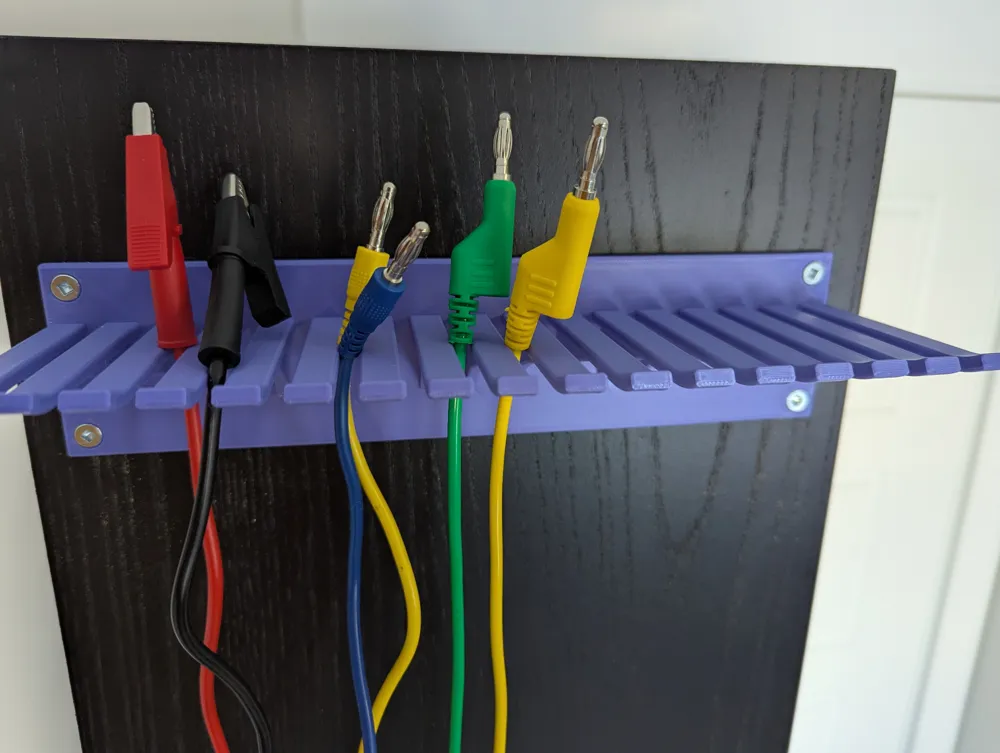

Easy Test Lead or USB Cable Holder is a wall mount / surface mount holder for cables. It has individually spaced brackets sized to hold cables.

It is a parametric model written in OpenSCAD. It is completely configurable to create any size of holder needed. Adjustable options include:
- STL files for 36 different holder configurations are included if you don't want to bother with OpenSCAD.
- choose the number of brackets needed. This automatically adjusts the baseplate (dimensions are shown).
- choose preset default holder sizes as regular or small. Adjust bracket dimensions as needed. Both are completely configurable.

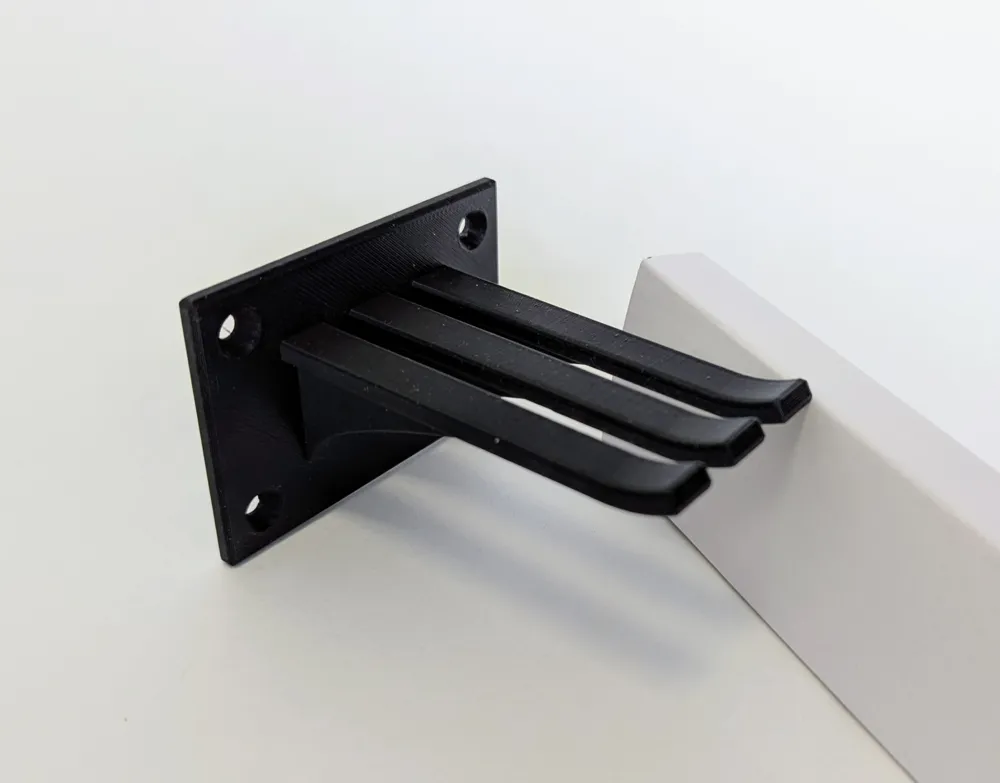

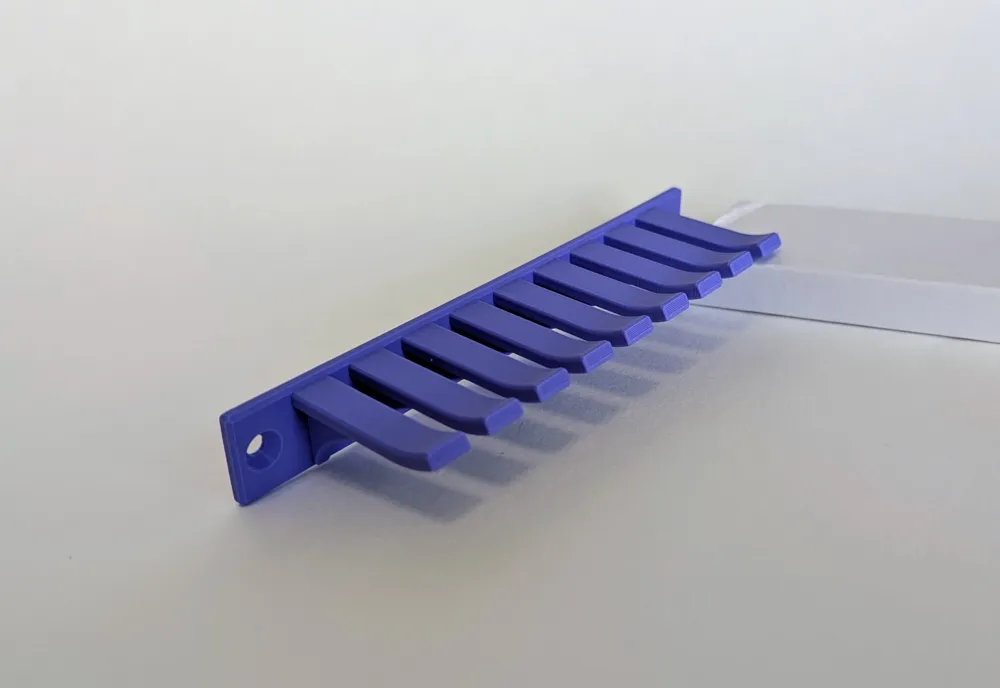

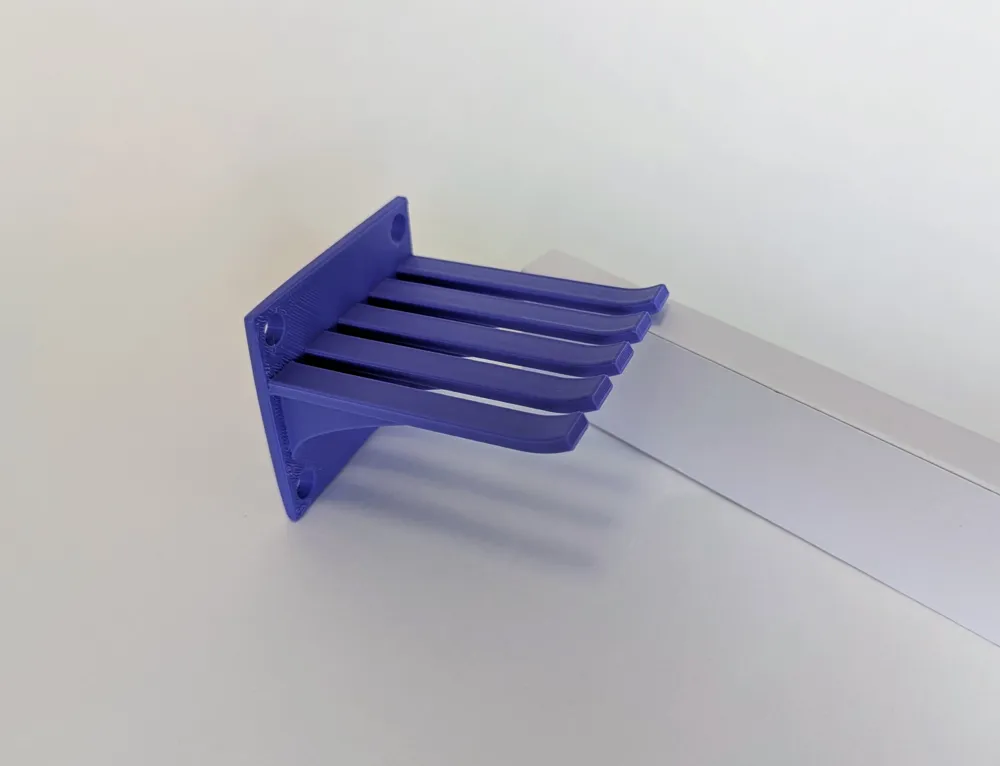

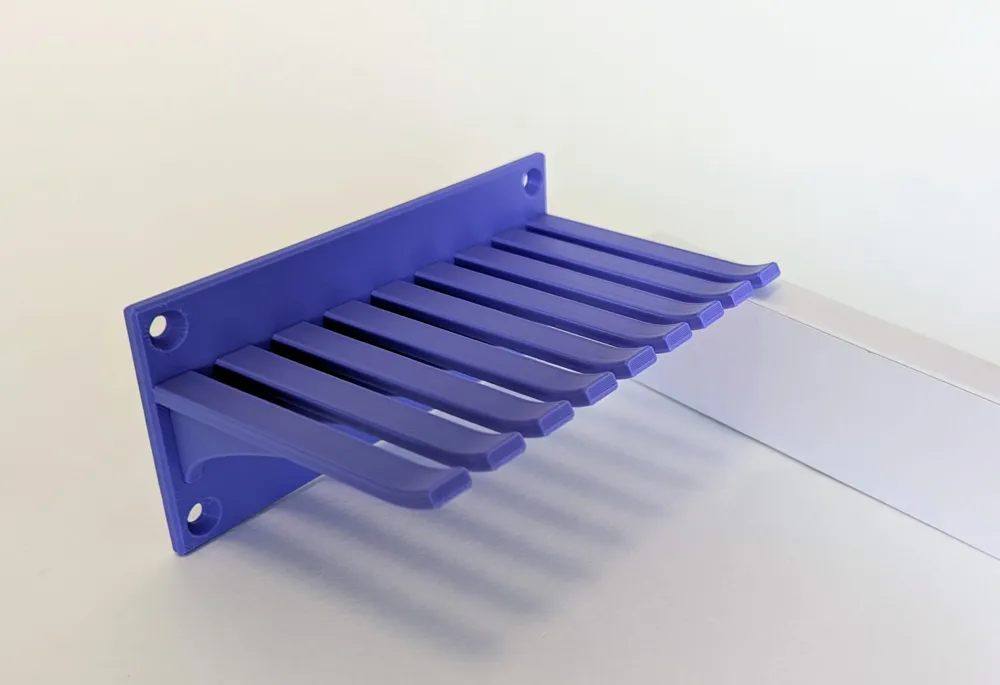

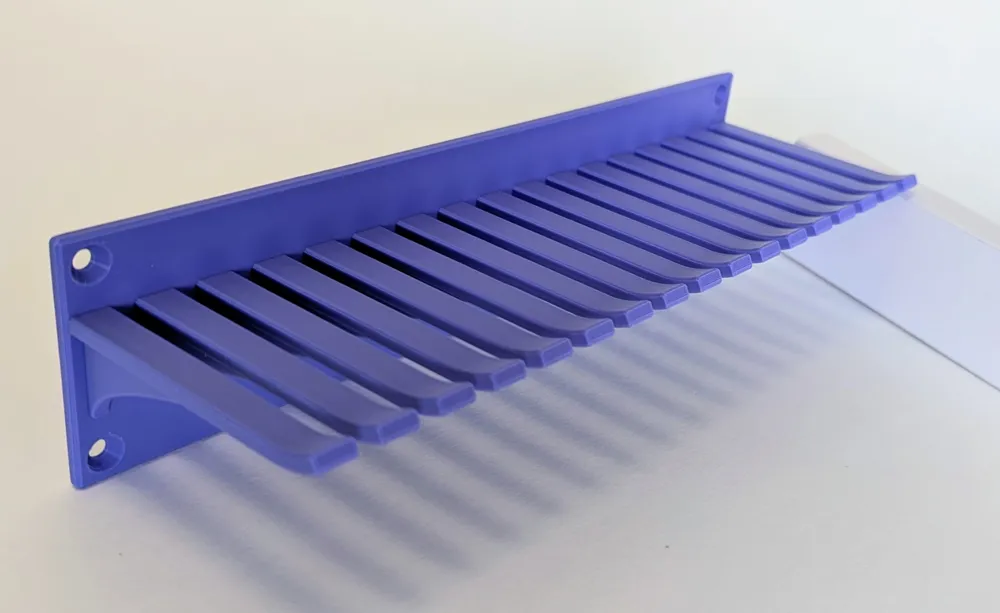

- the regular size holder has four mounting holes and the small size holder has two holes.
- four different sizes of screw holes are available from the dropdown list: (M3 or #4), (M3.5 or #6), (M4 or #8), (M5 or #10)
- the default screw size is (M4 or #8) which is what is used in the uploaded Print Profile.
- screw holes are tapered for common wood screw dimensions.
- select a drilling template that can be exported to PDF to help drill mounting holes for the screws. Full baseplate dimensions are also printed out.

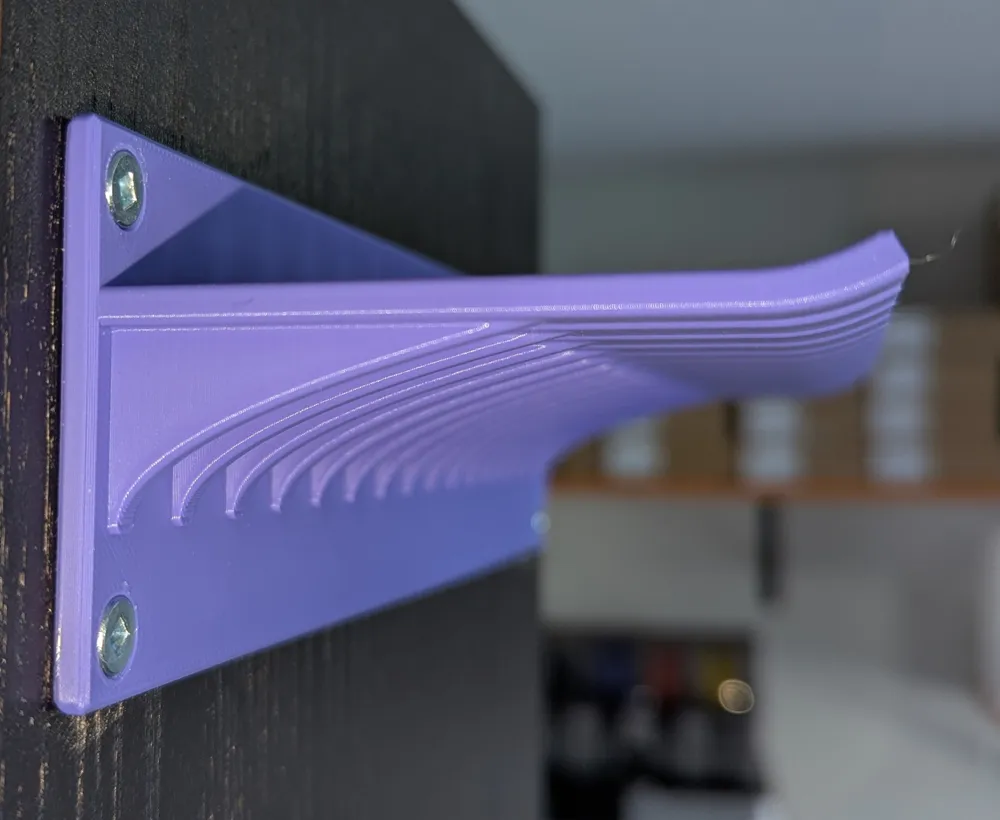

- the bracket models have bracing and edges are chamferred.

Recommend printing with 3 Wall Loops and 25% infill for strength. The uploaded profile uses Adaptive Cubic infill but other styles should be fine. All other settings are default.
