P1S P1P X1 indicator attachment for bed leveling
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
40 min
1 plate
Open in Bambu Studio
Boost
48
128
24
7
114
65
Released

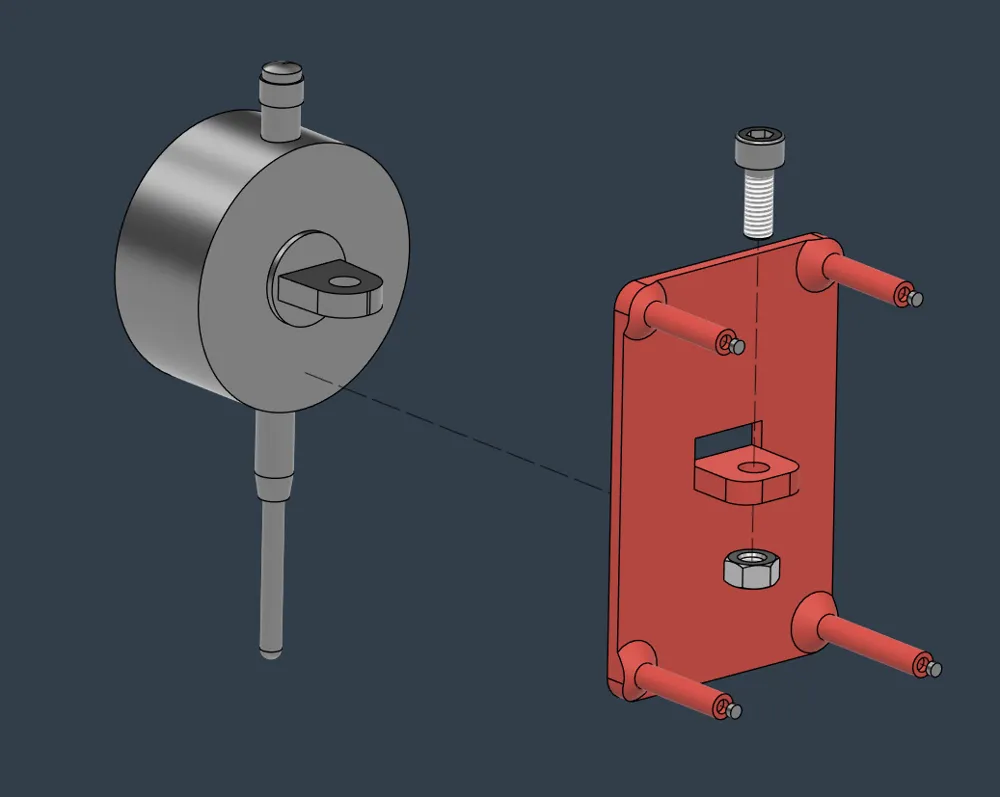

Bill of Materials
List other parts
- Magnet3x1,5mm x 4:
- Screw_M16x16mm x 1:
- Hexnut_M6 x 1:
- Neoteck_TL338_Indicator x 1:
Description

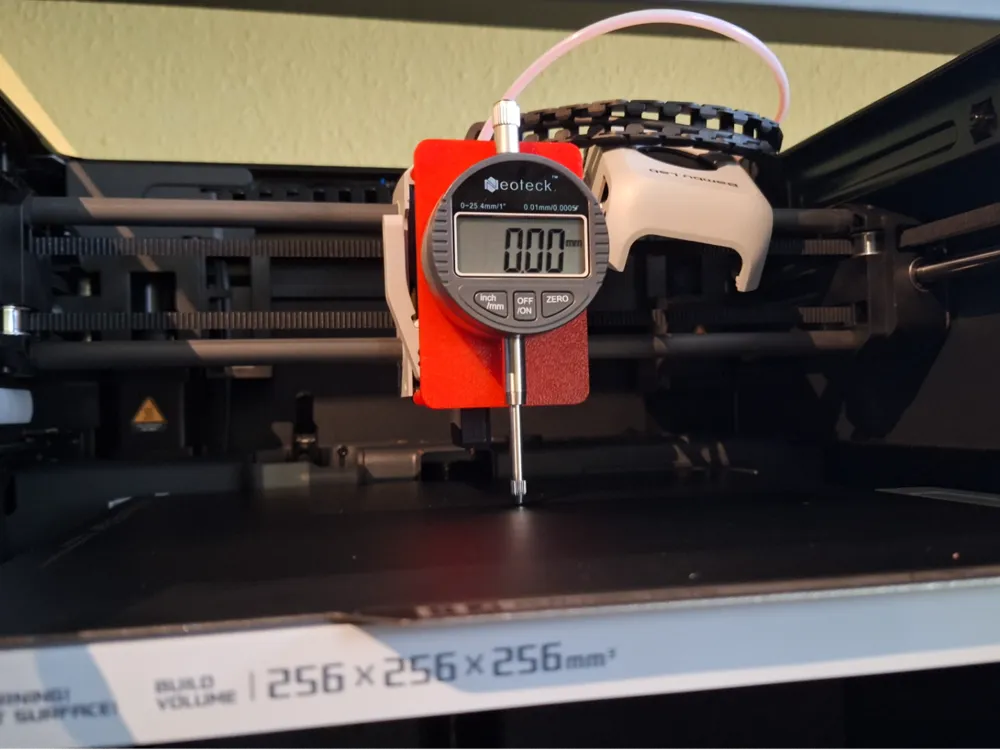

Magnetic bed tramming tool for standard indicators. (I used the Neoteck TL 338)
It fits the position of the extruder cover. I recommend fully removing the cover to level your bed.
Works best with a smooth build plate, so you can manually move the print head with the built in controls in X-Y without having to lower the z-axis.
If you have no idea what you are doing, don't fiddle with the bed level.
And a reminder for all, who think they know what they are doing: Always to a manual adjustment with a hot print bed.
The magnets are superglued in. The holes may need manual drilling due to the bad tolerances on most magnets.
STEP files are included, if you need to adjust the magnet hole dimensions for other magnets.
