Description
This is a customizable magnetic turn rotation chart. The default text is for family home evening events. You can use the included Fusion 360 Model file to customize all the text and add more lines if needed!

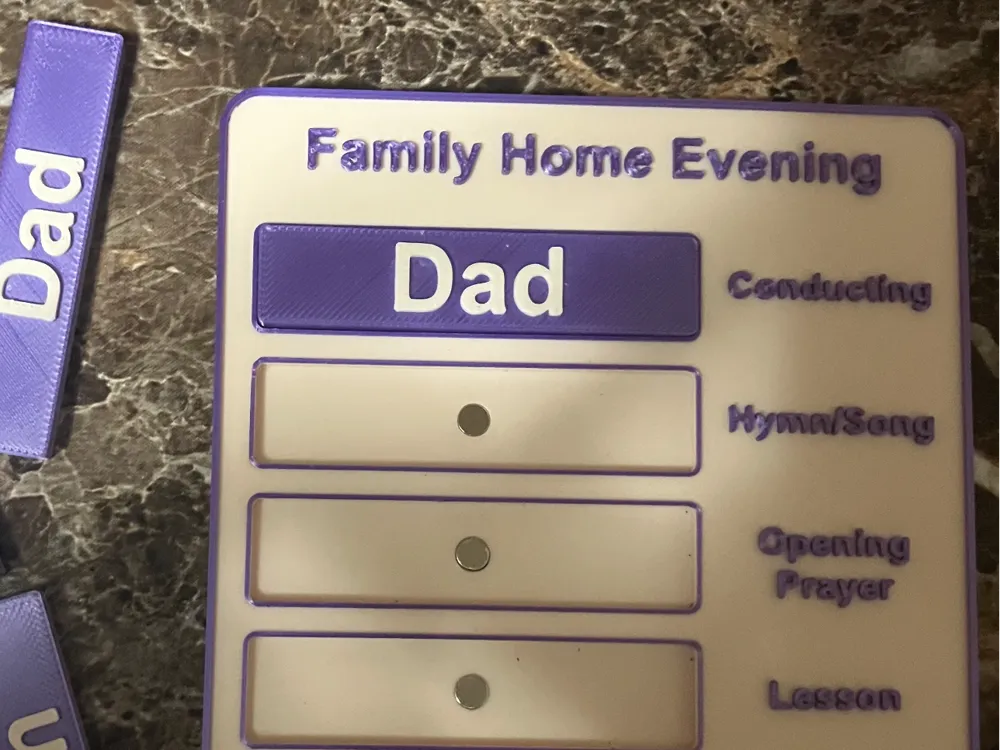

The photos are of the old iteration of the chart, the revision that is posted here has larger text in the board title and line descriptions.

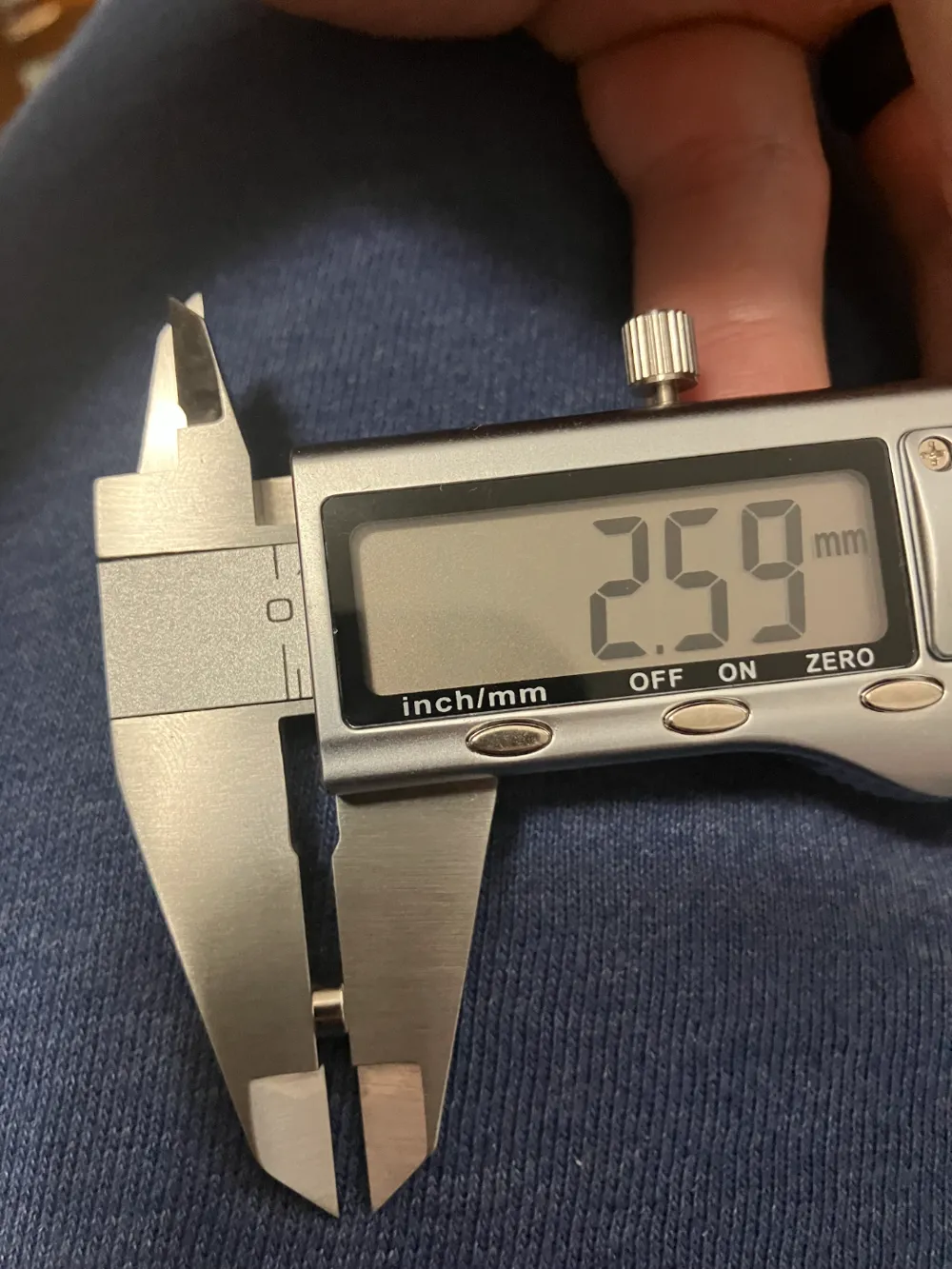

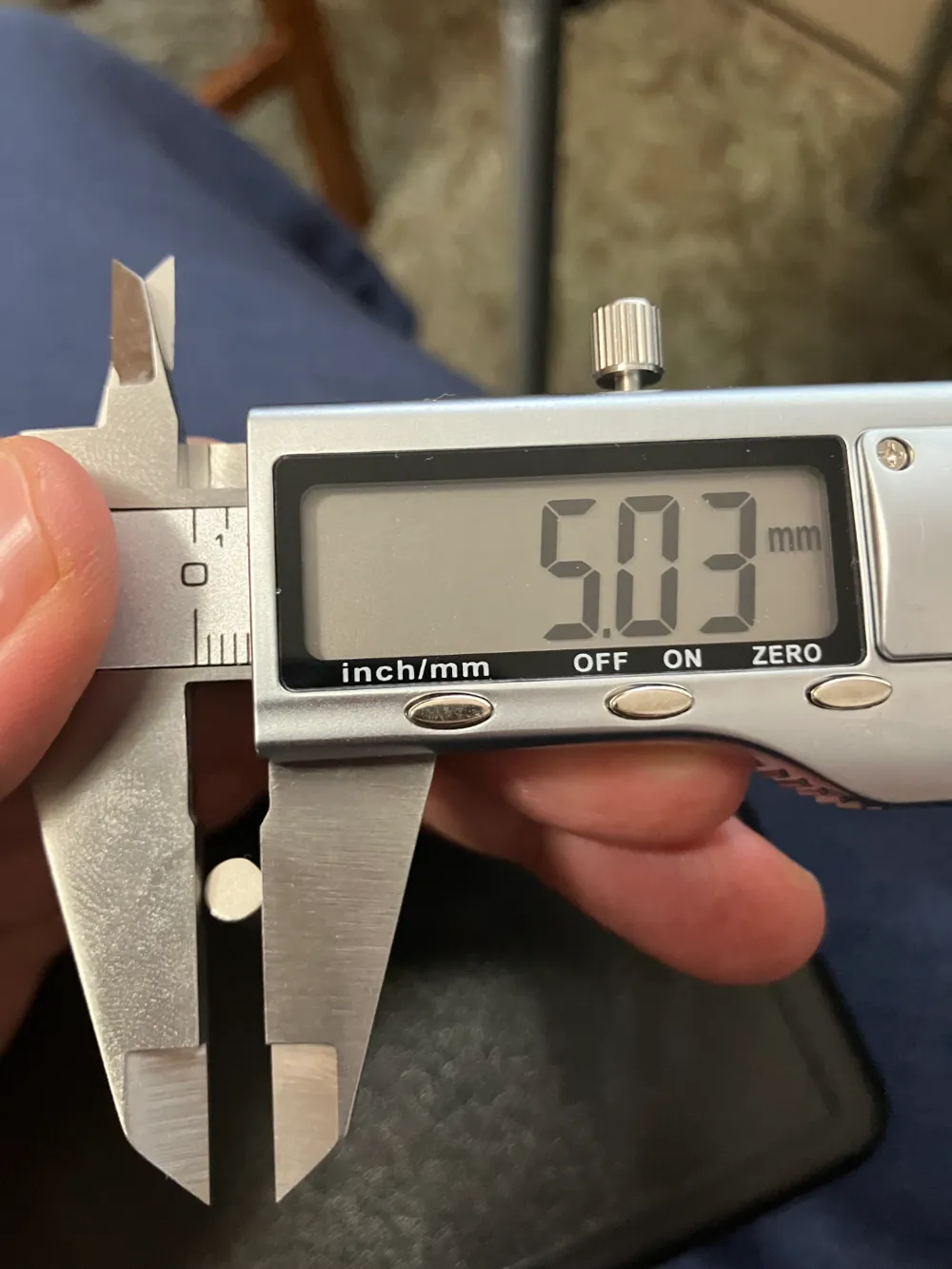

It uses 5mmx3mm diameter magnets (https://a.co/d/eGjTkmk).

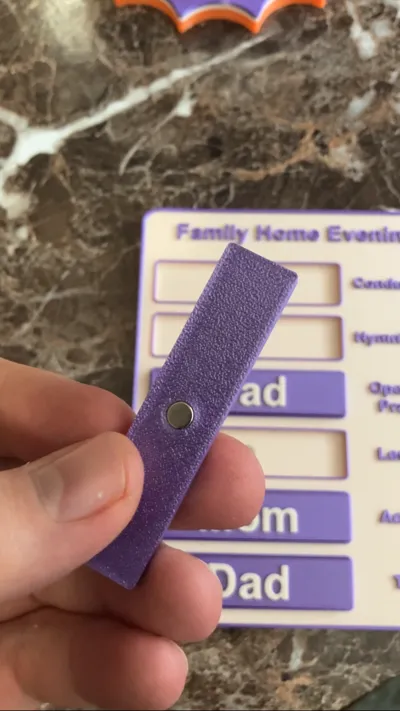

The magnet holes are “press fit” I used a bolt and hammer to tap them into the holes.
NOTE: Make sure you have the magnet polarity right before tapping them into the nameplates because it is hard to get them out once they are in!
