MFT Toggle Clamp GH225D Bench Dog + T-Track Base
Print Profile(1)
Bill of Materials
- M5x12screw x 4: fixation
- M5nut x 4: fixation
- M6nut x 1: forMFTuse
- M6screw x 1: forMFTuse
Description
Boost Me (for free)
Please consider a boost if u like my work!

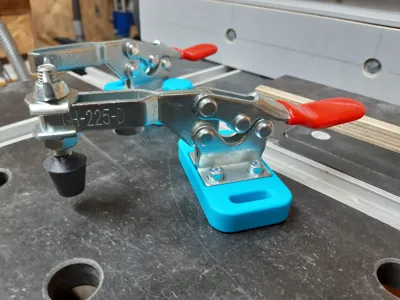

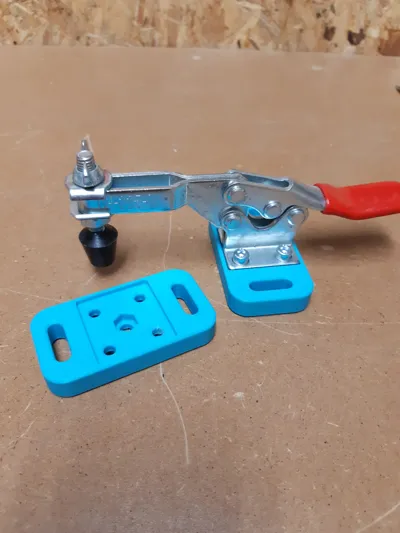

Base fits GH 225 D Toggle Clamp with a basesize of 38x36mm.

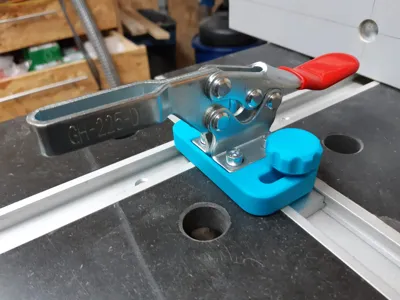

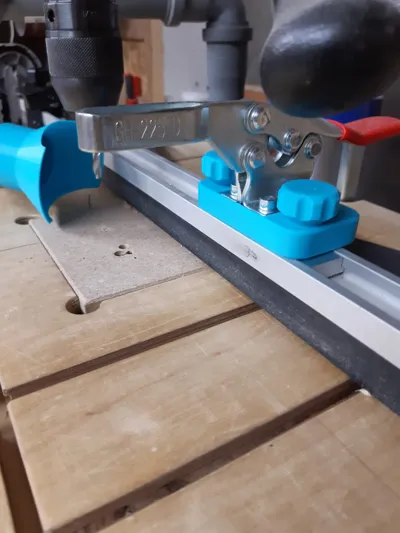

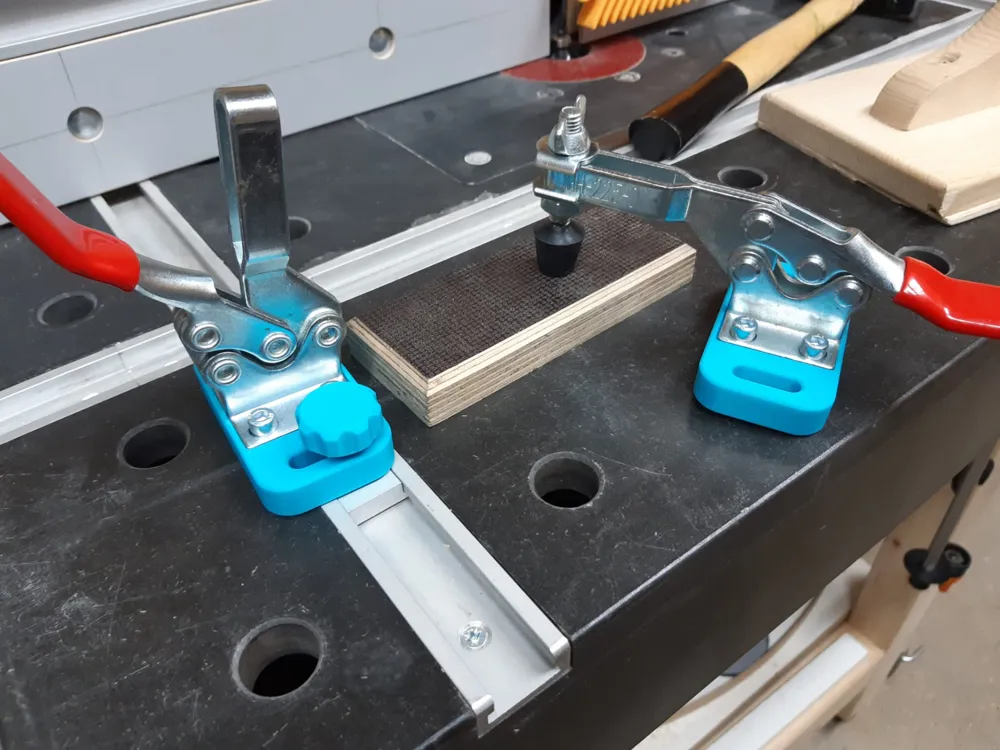

Features slots with a distance of 80mm for use in T-track with M6 screws

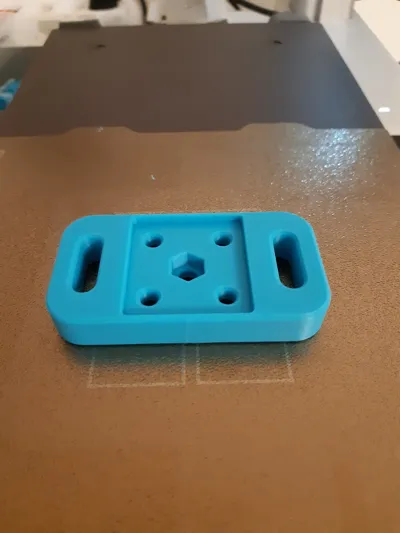

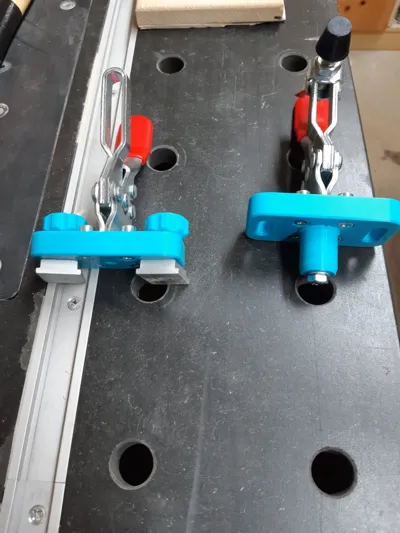

Additionally an M6 screw or nut can be used in the center hole to fit an Ultimate Bench dog for use with an MFT, either 20 or 19mm holes.
Ratings and Boosts highly appreciated!

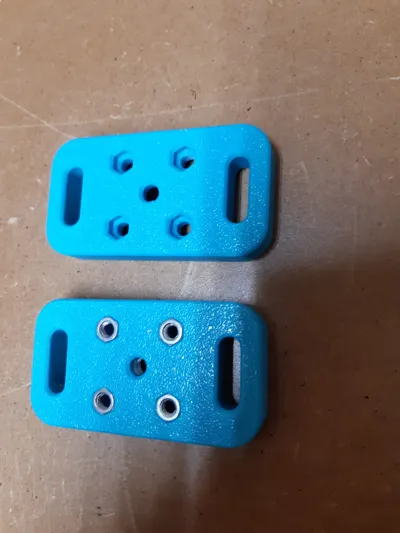

Hardware for fixation of toggle clamp
4x M5x12 Cylinder screw
4x Washers for M5
4x M5 nuts
Alternative:
directly tap the printed holes with M6 thread and use M6x10 cylinder screws
