Dishwasher Hose Hanger Clip

Copy of the original, as created and uploaded by Max on Printables.com (Thanks Max!)

This clip fits standard dishwasher drain hoses (23 mm). There are two, countersunk holes for mounting (3 mm).

A nice, simple design.

This helped me easily/permanently fix an error on my Samsung dishwasher (the flashing “Heavy” light).

I printed mine in Bambu Black PETG HF filament. PLA would likely work just fine in most situations.

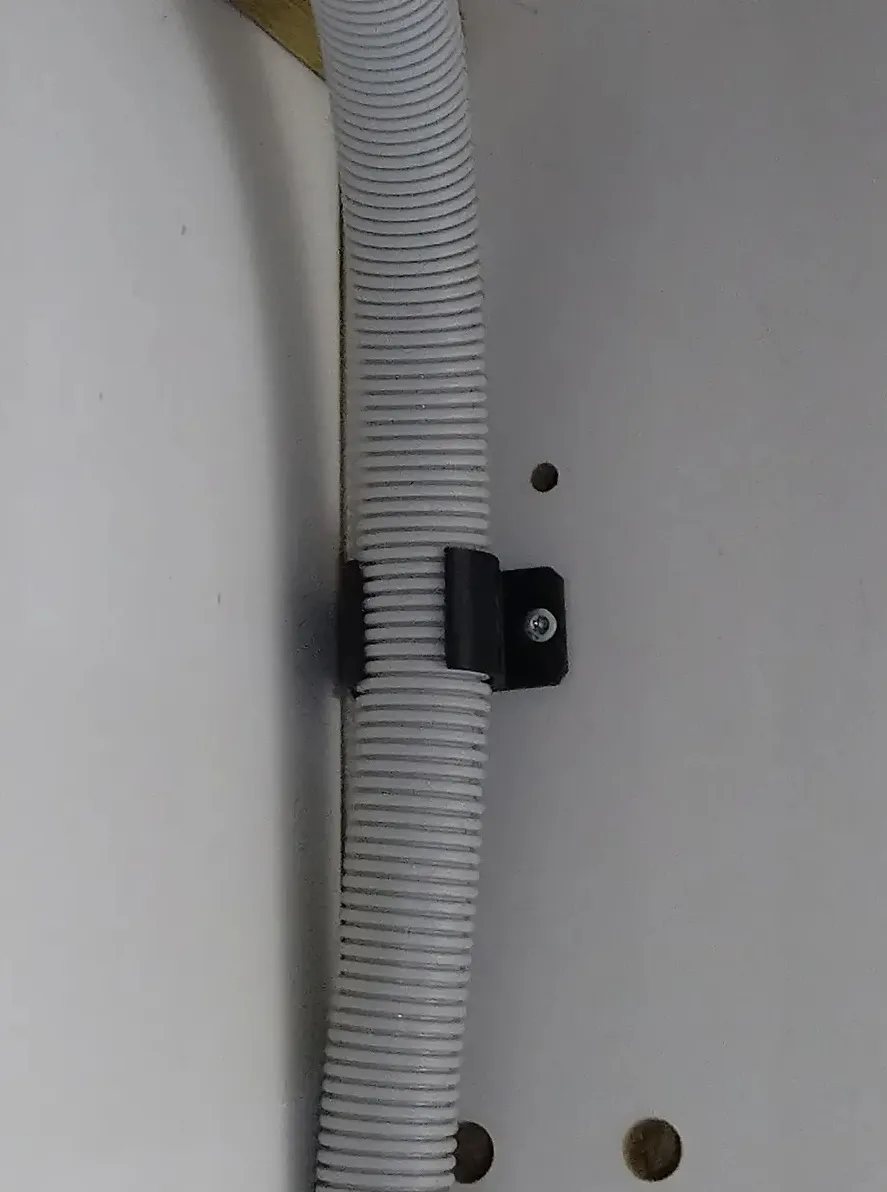

Take a look at the pictures… you can use this hose hanger to directly clip a dishwasher hose to almost any surface, OR you can use it like I did; to gently suspend the hose without the risk of sharply kinking it.

Suspending the hose:

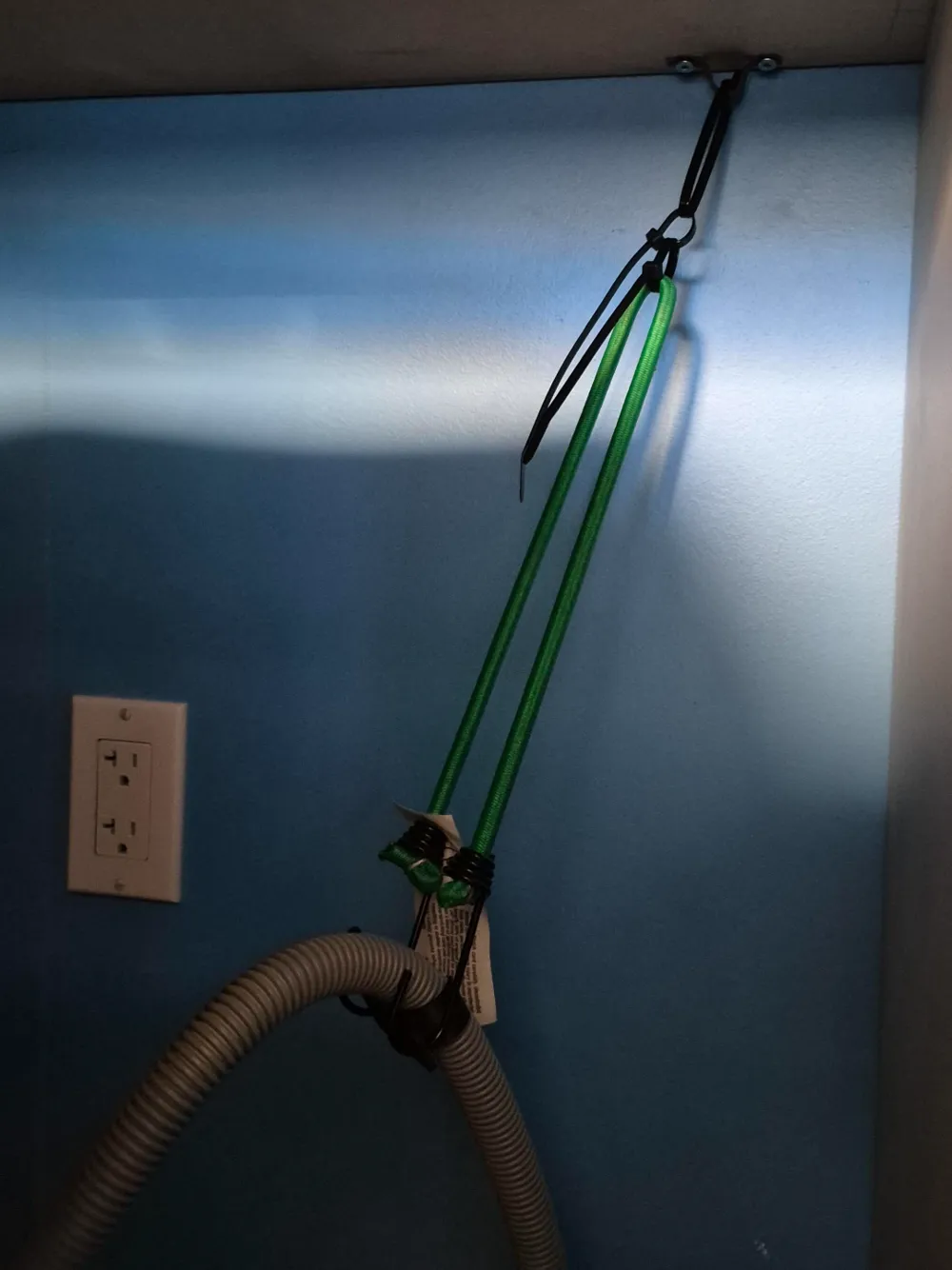

Because I was using this inside of an enclosed, under-cabinet void-space, with a very limited length of hose, I needed to hack this solution a bit... so that the hose would remain suspended AFTER I slid the dishwasher back-in, close to the wall. I used this printed clip on the hose directly (upside down), then hooked a cheap bungee cord onto each side of the clip. A couple of inches of steel strapping anchors this hose-hanger assembly to the wooden sub-counter (above). I used 3 zap-straps (electrical ties) to connect the bungee cord to the steel strapping, then tightened the zap-straps until I had the desired amount of upwards force being applied to the hose.

While this might seem a bit elaborate, it was a relatively easy fix that I was able to install without disconnecting the dishwasher, using things I had laying around. I was *just* able to reach my arm into the dishwasher cavity far enough to connect everything up. The clip works great and I am not worried at all about the hose getting a sharp kink/bend.
