Model rocket optimised for apogee
Print Profile(1)
Description
Model Rocket : Rocket-2 (check out my other rockets here)
Key Specifications:
- Total Length: 431.50 mm
- Loaded Weight (with parachute): 196 g
- Motor Weight: 40 g
- Body Diameter: 35 mm
- Launch Lug Diameter: 4 mm
- Max Motor Diameter: 20.5 mm
- Max Motor Length: 86.5 mm
- Recommended Motor Class: D or E
- Stability: 1.74 cal

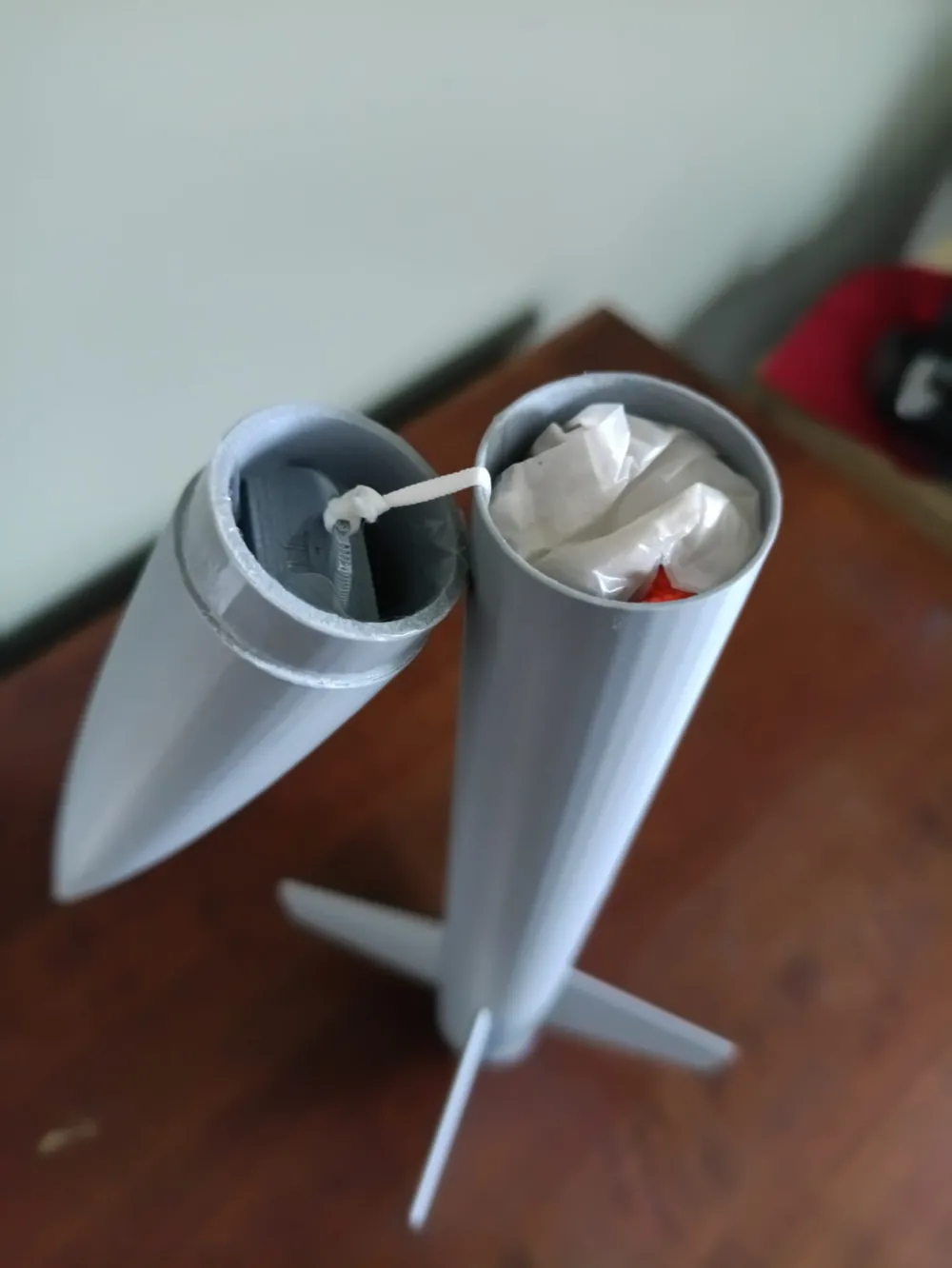

Recovery System Details:
- Max Parachute Length: 117.35 mm
- Inside Diameter for Parachute Storage: 33 mm
- Max Parachute Volume: 100.37 cm³

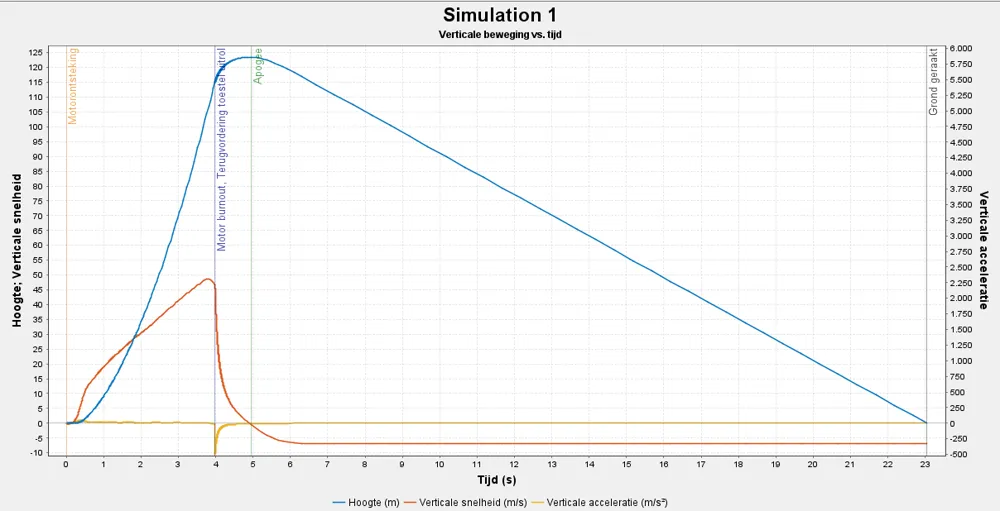

Performance:

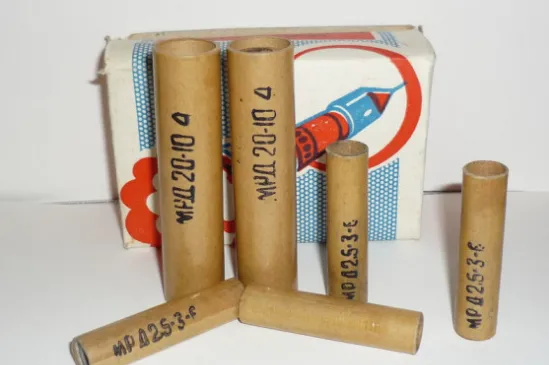

Apogee: 124 m (using MRD 20-10 4 engine)
Designed in SolidWorks 2024
Boost Me (for free)
Boosting my model would be much appreciated. Thank you in advance. :)
Printable on the A1 mini
