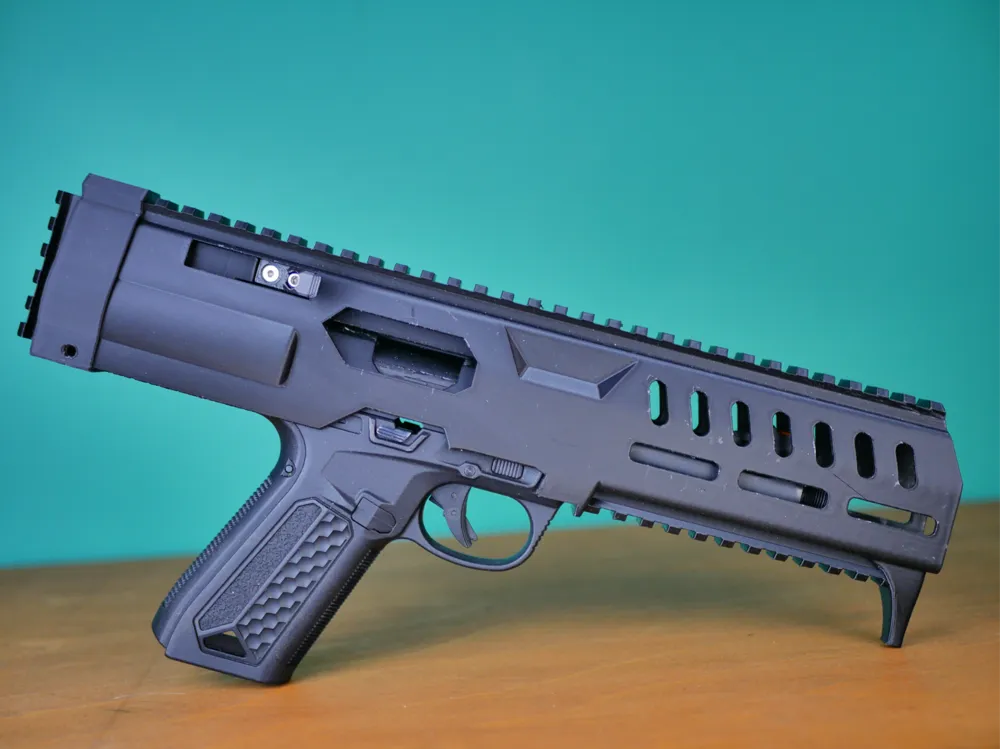

This is a printable bodykit for the Action Army AAP-01. It is loosely based on the H&K MP7, and is designed to easily fit over your pistol and be secured with only a few bolts. The reciprocating bolt allows easy cocking of the weapon, and the picatinny rail on the rear allows for attaching of various stocks.
To print the part "main body" you need a printer capable of printing objects 332mm tall, if you have a smaller printer this part has been split into two parts that will fit on all Ender 3 sized printers.
The bolts required and assembly instructions are as follows:
Attach "charging handle base" to the bolt of the gun - 1 M5x10 Button head
Place the nuts into the hexagon holes in "charging handle base" - 2 M3 Nyloc
Slide the AAP-01 into the bodykit
Attach "main body" to AAP-01 with the top bolts - 2 M3x20 Cap Head
Attach "charging handle" - 1 M3x12 Countersink - M3x20 Cap Head

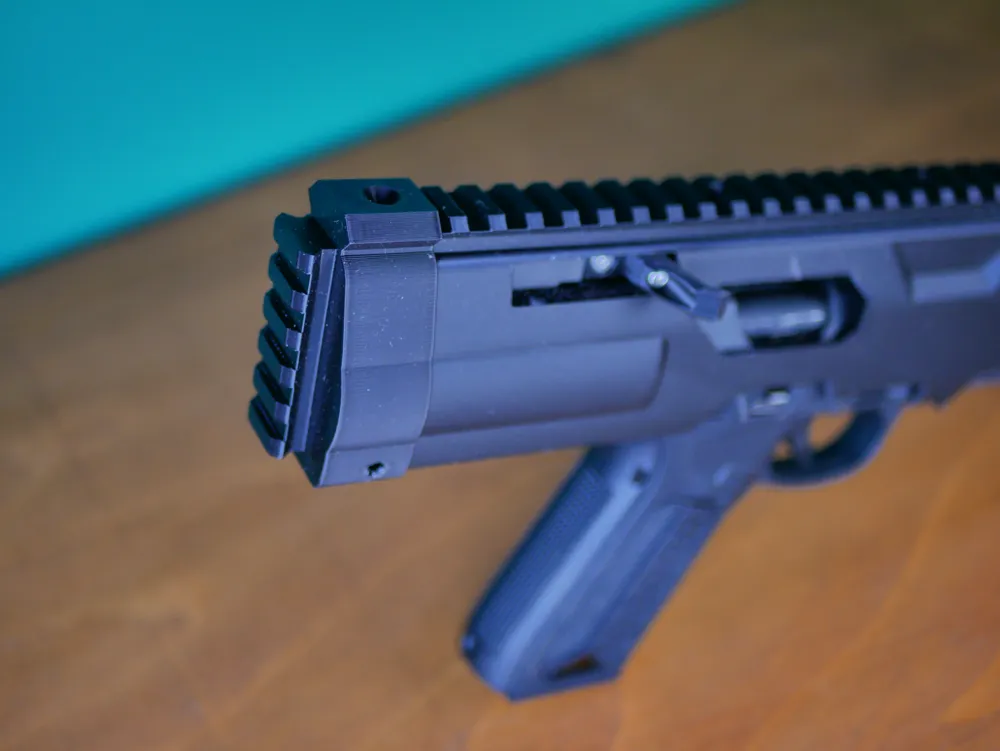

To Attach rear stock plate, use 1 - M4x10 Countersink in the top, and 2 - M4x16 Cap heads each side
If you download this kit and get stuck with the assembly, please feel free to message, I'll probably make a short assembly video explaining the steps in more detail
