Drill Holder Wall Mount (No Shelf Required)
Print Profile(6)
Description

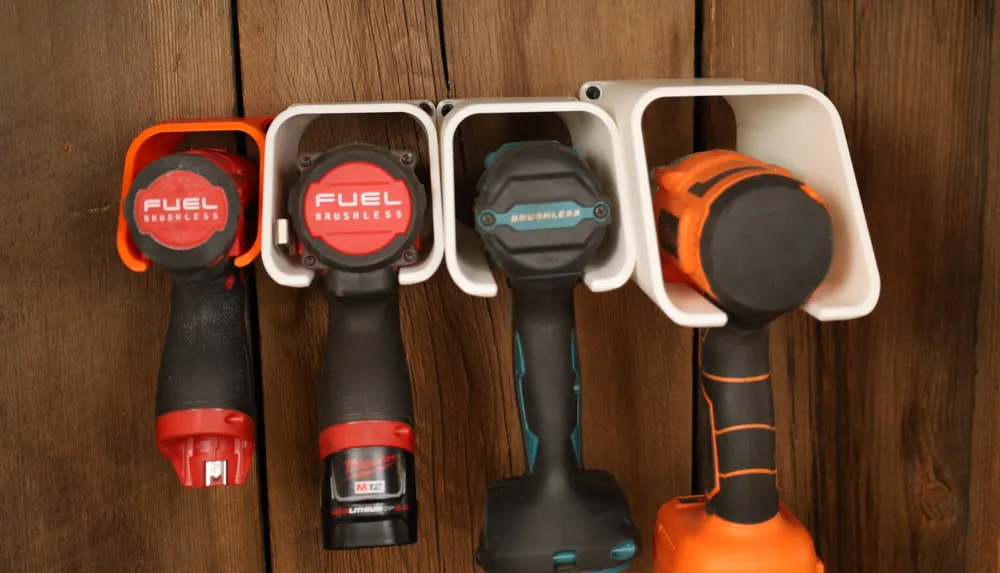

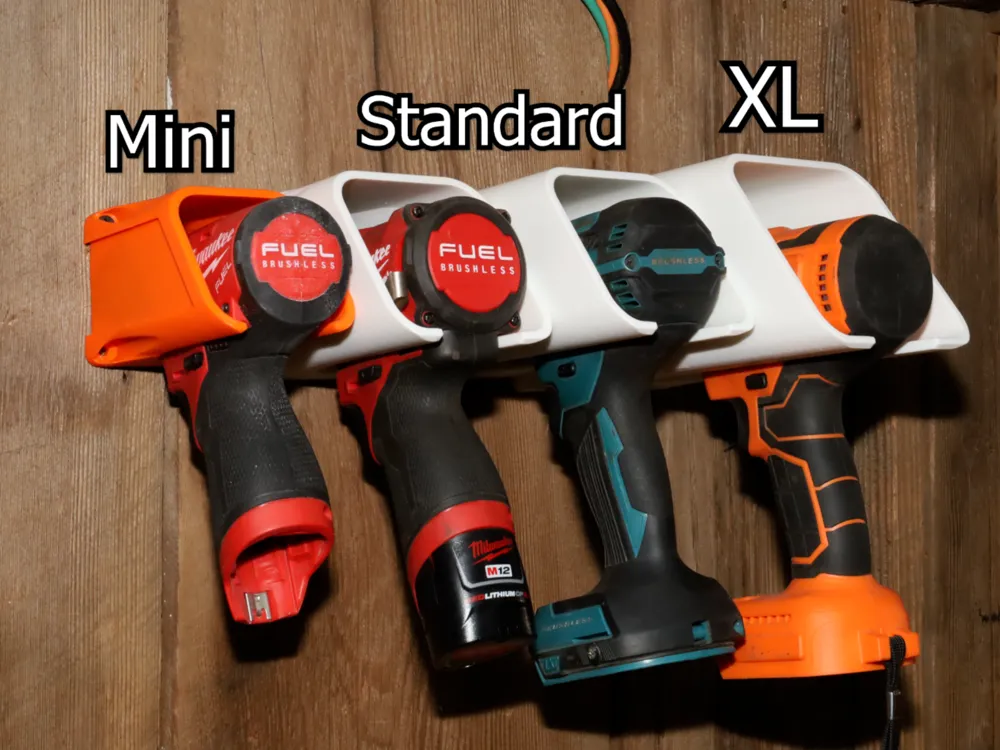

Check the dimensions before printing to verify your tool will fit in the hole:

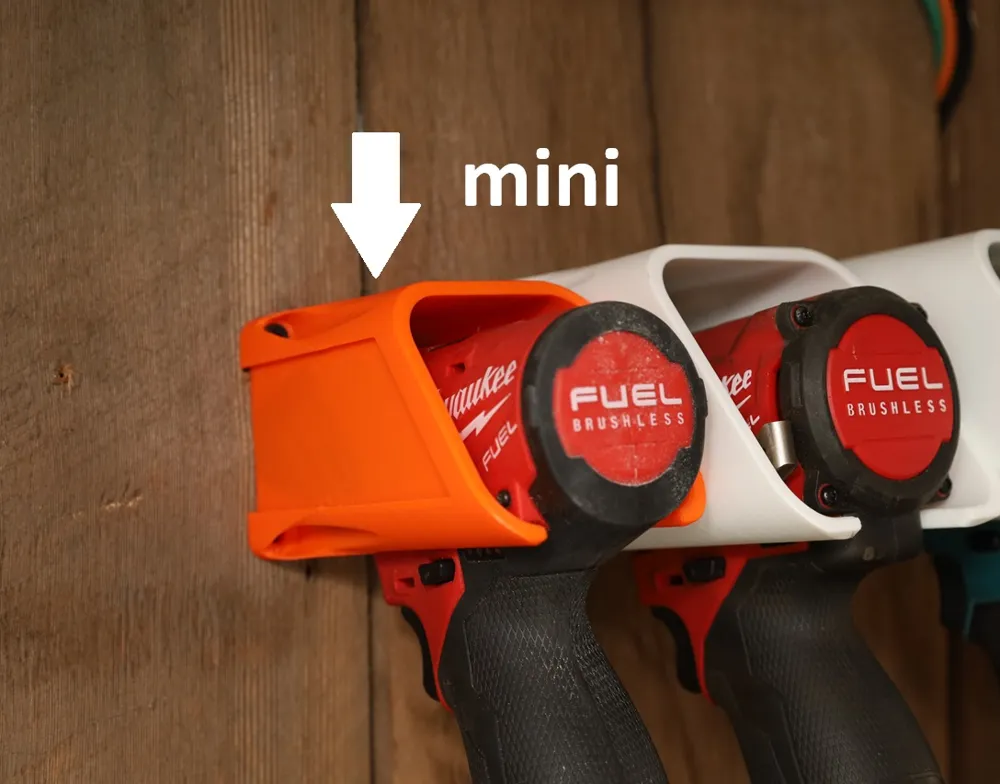

- Mini is good for subcompact drivers

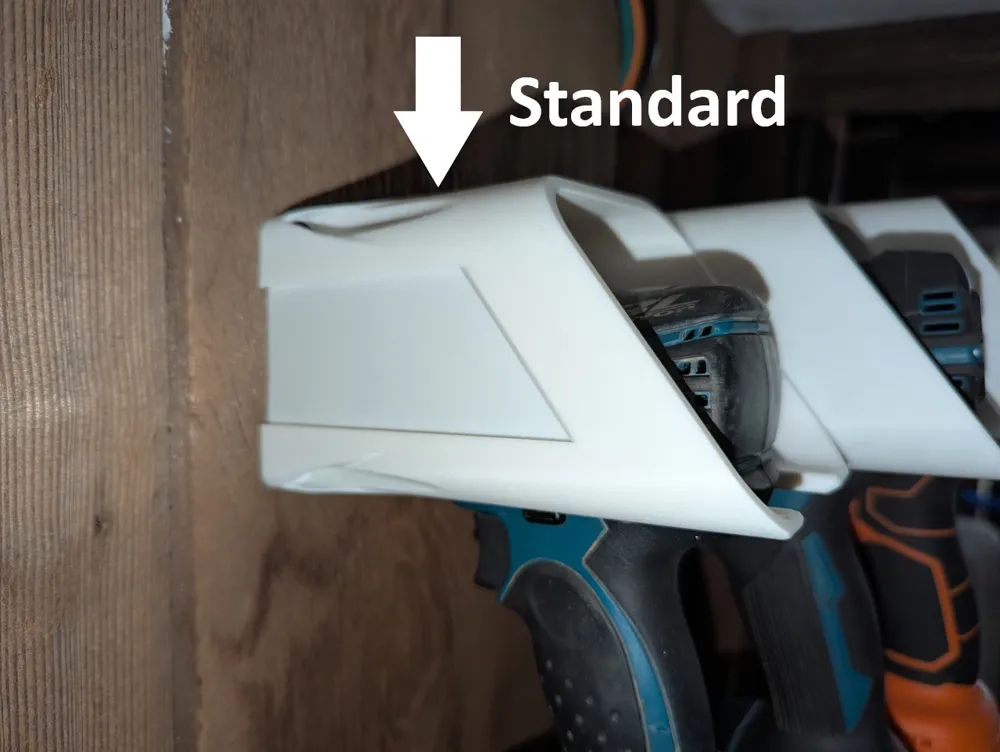

- Standard is good for impact drivers and drills

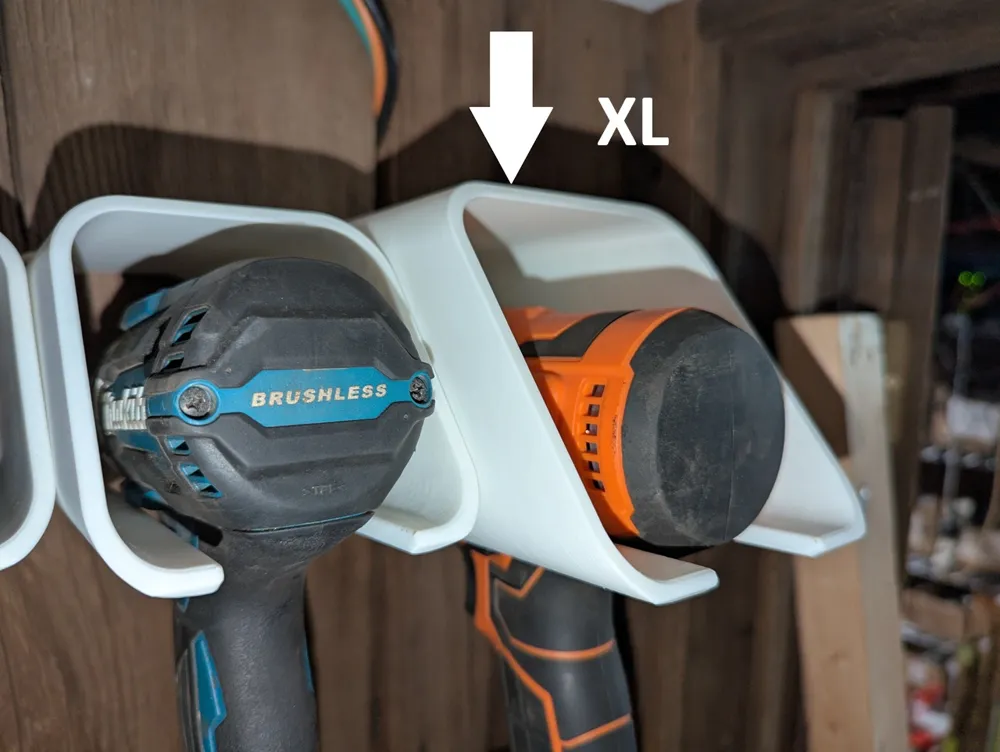

- XL is good for high-torque impacts
- Deeper holders are good for drills or drivers with bits installed

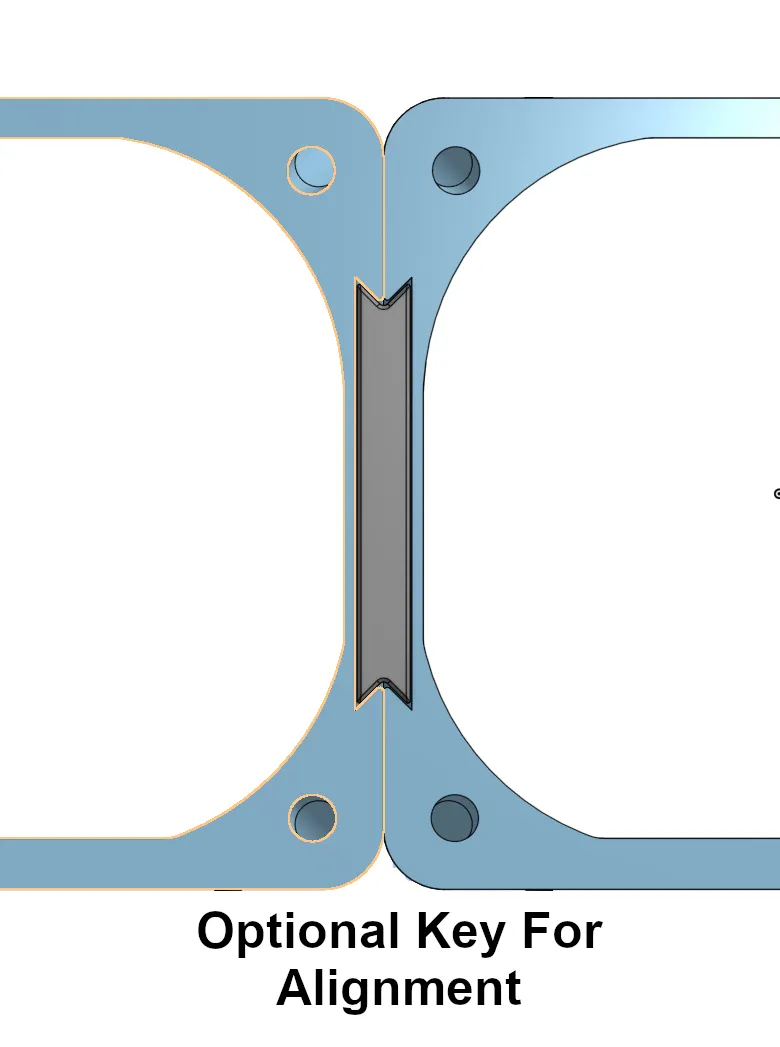

Key: All sizes can be joined together with the same “key” part file. Insert the key into one or both sides of the first holder before attaching it to the wall. Subsequent holders will slide onto the key and line up nicely. Repeat as necessary with more keys and holders.
Inside dimensions
- Mini: 61.6W x 60.4H x 135D,160D,200D Slot width is 40mm
- Standard: 75.6W x 74.4H x 160D,200D Slot width is 40mm
- XL: 91.6W x 90.4H x 235D Slot width is 40mm
Outside dimensions
- Mini: 70W x 70H x 135D,160D,200D
- Standard: 84W x 84H x 160D,200D
- XL: 100W x 100H x 235D
Screw heads should be no more than 10.5mm diameter

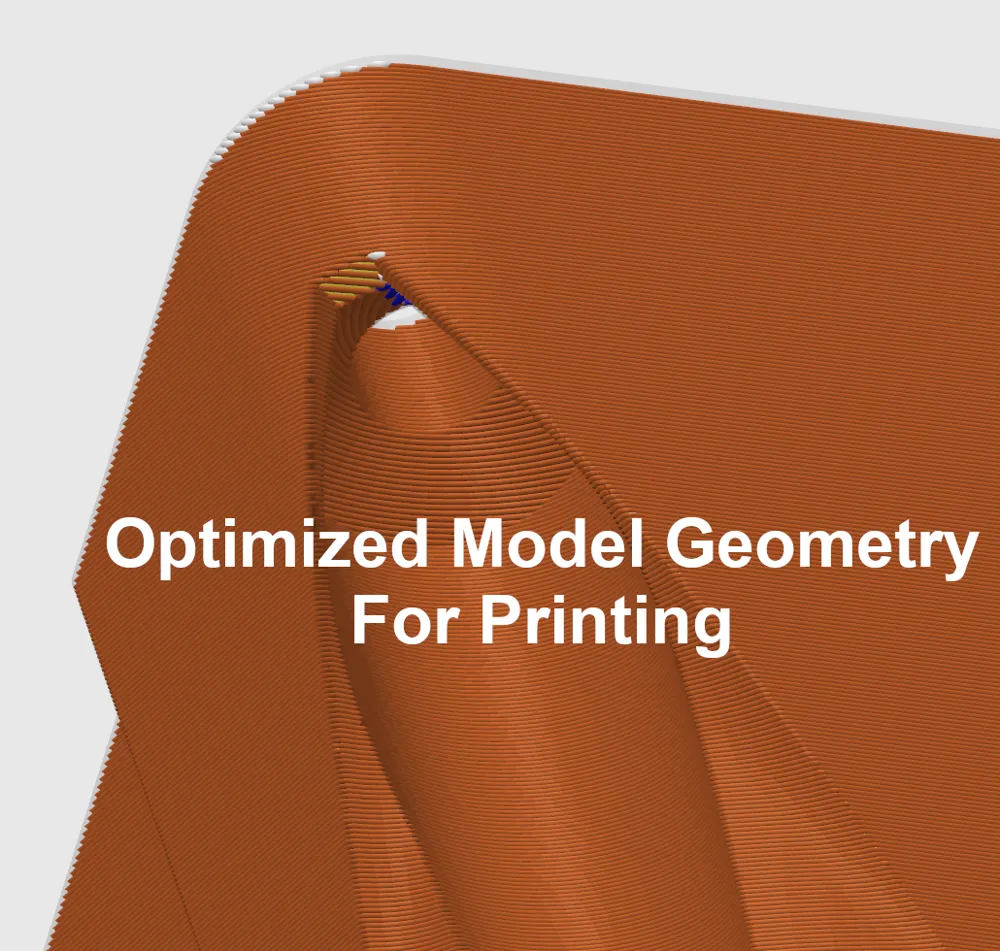

The first 3 print profiles is oriented on the diagonal face for maximum strength. Use the Easy print profile if you have build plate adhesion issues.
REV NOTES
Mar 26th 2025 Updated the models on this page to reflect revisions in compliance with the exclusive model program. Other model pages have been made private. Old versions of model files have been retained in a folder for you to download if you need them.

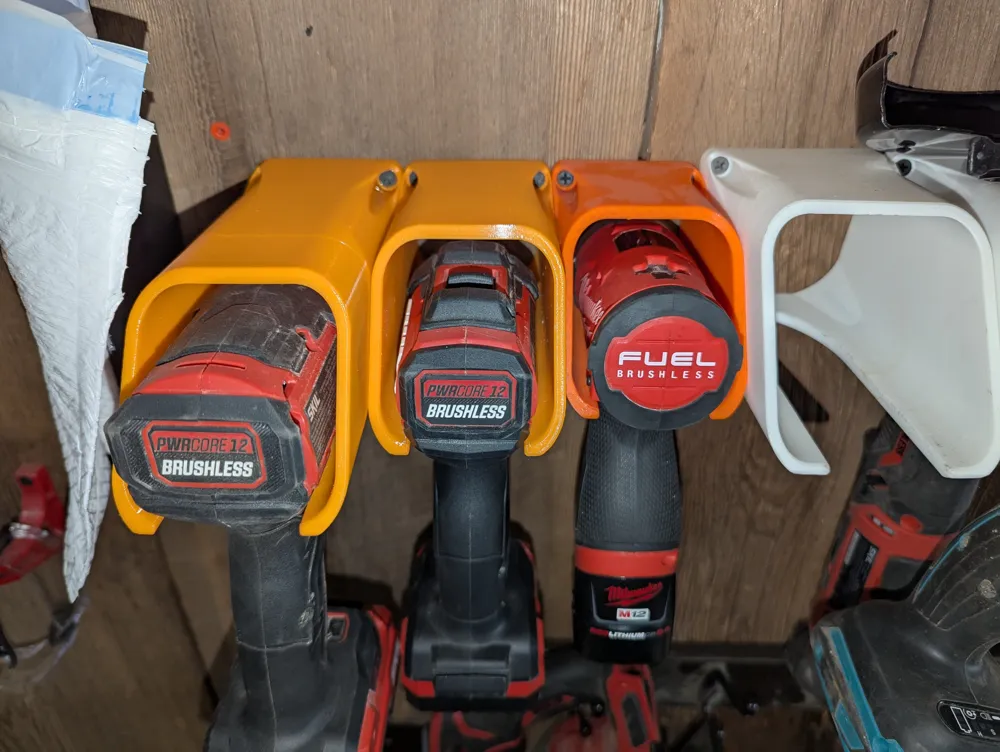

Aug 18th 2025 Added 2 more deeper mini sizes, rearranged, labeled, and cleaned up print profiles.
