21700 2S1P Battery Case
Print Profile(1)
Description

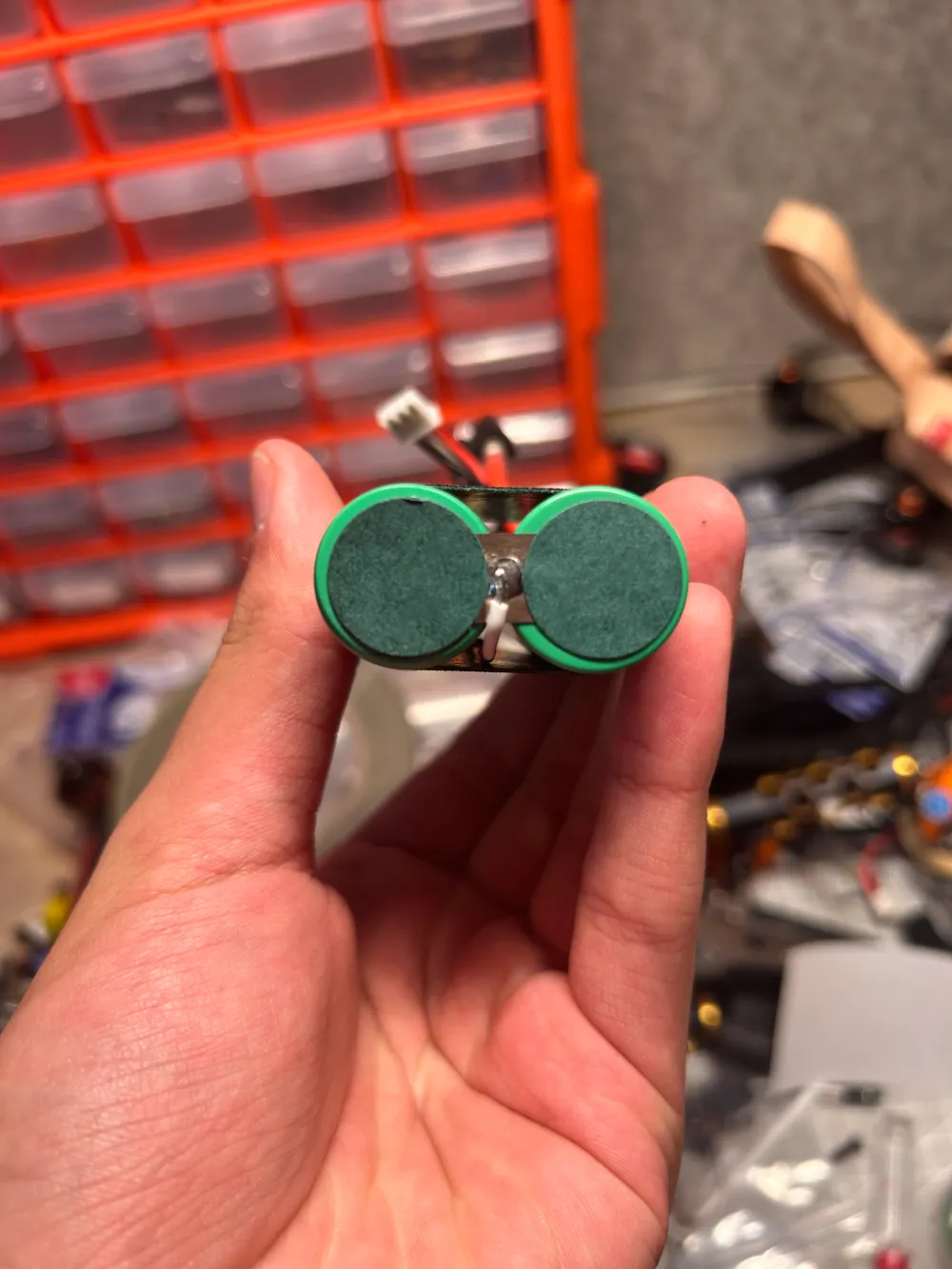

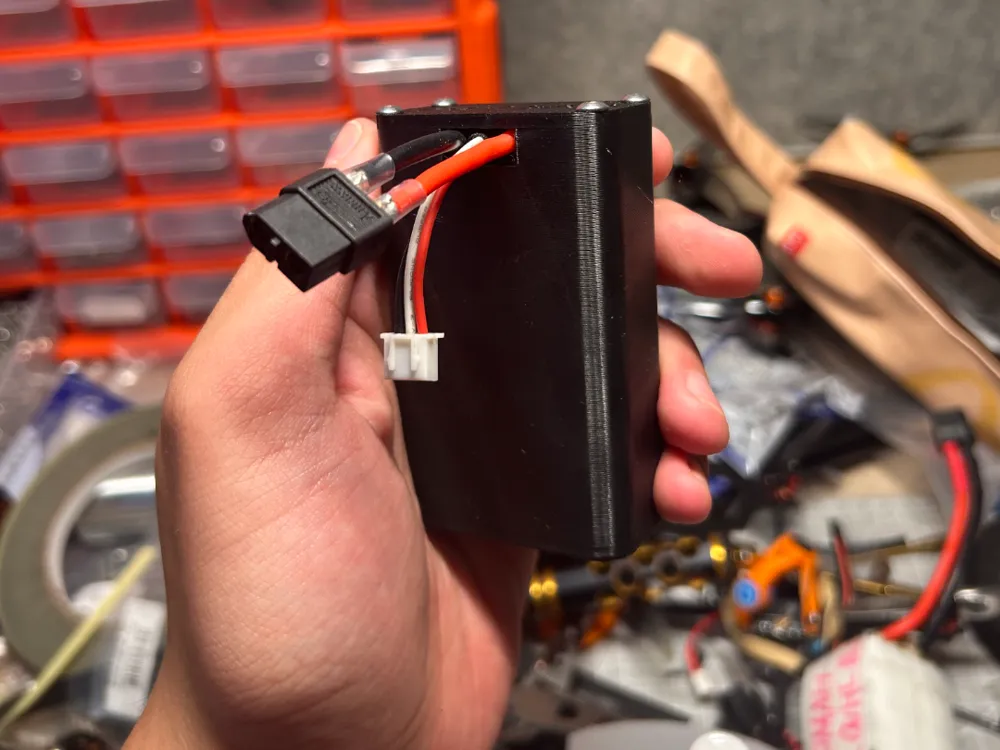

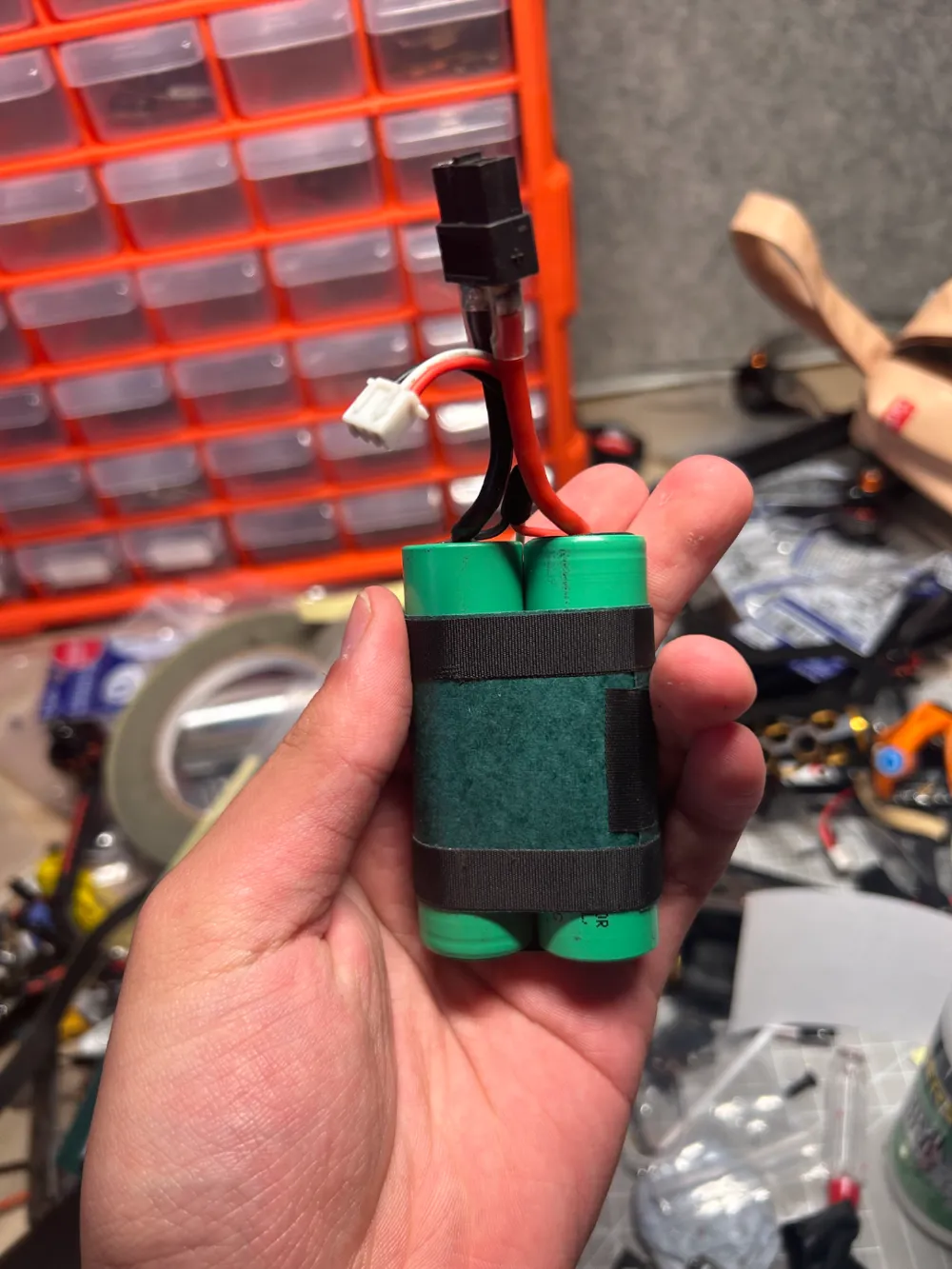

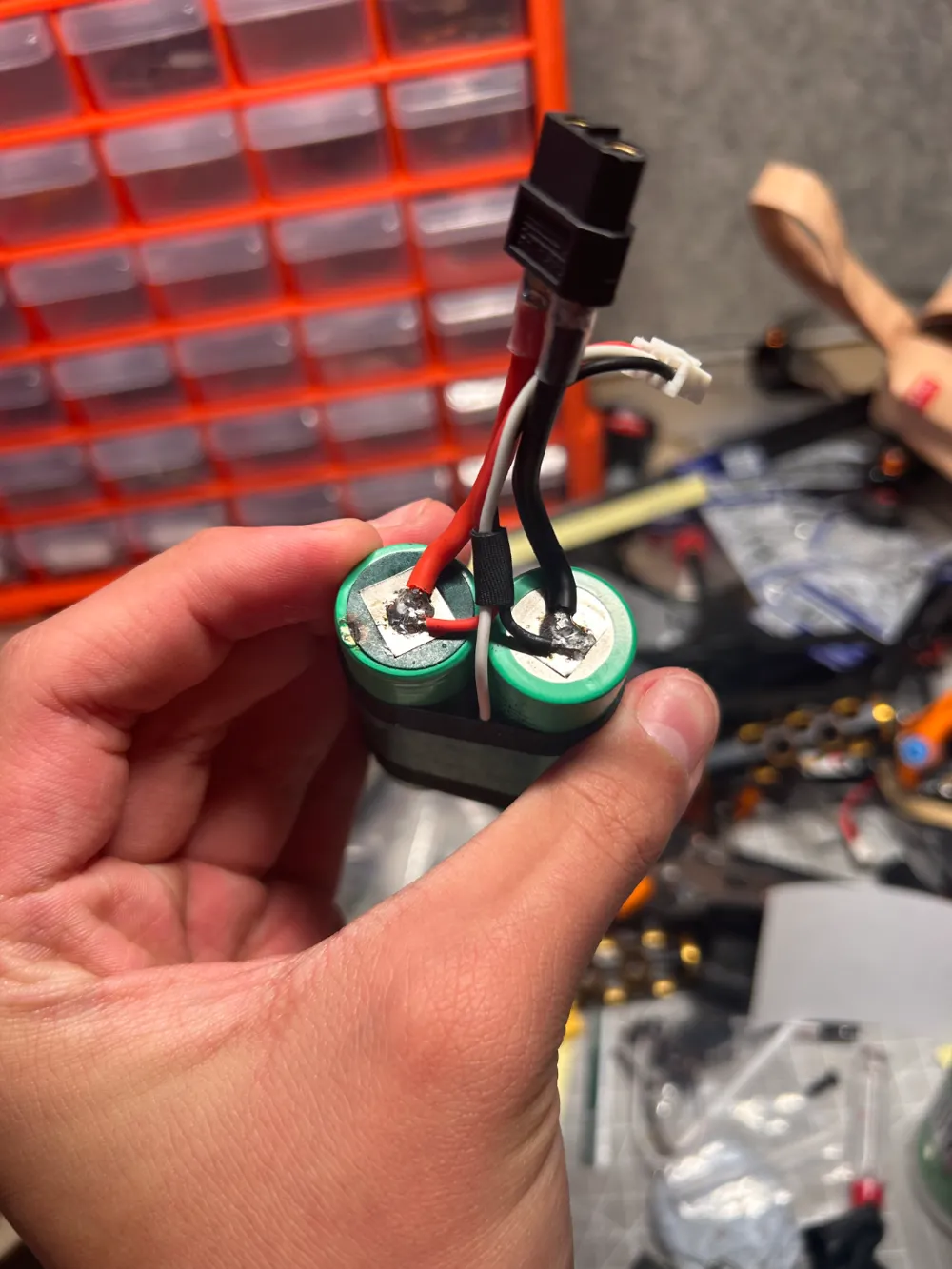

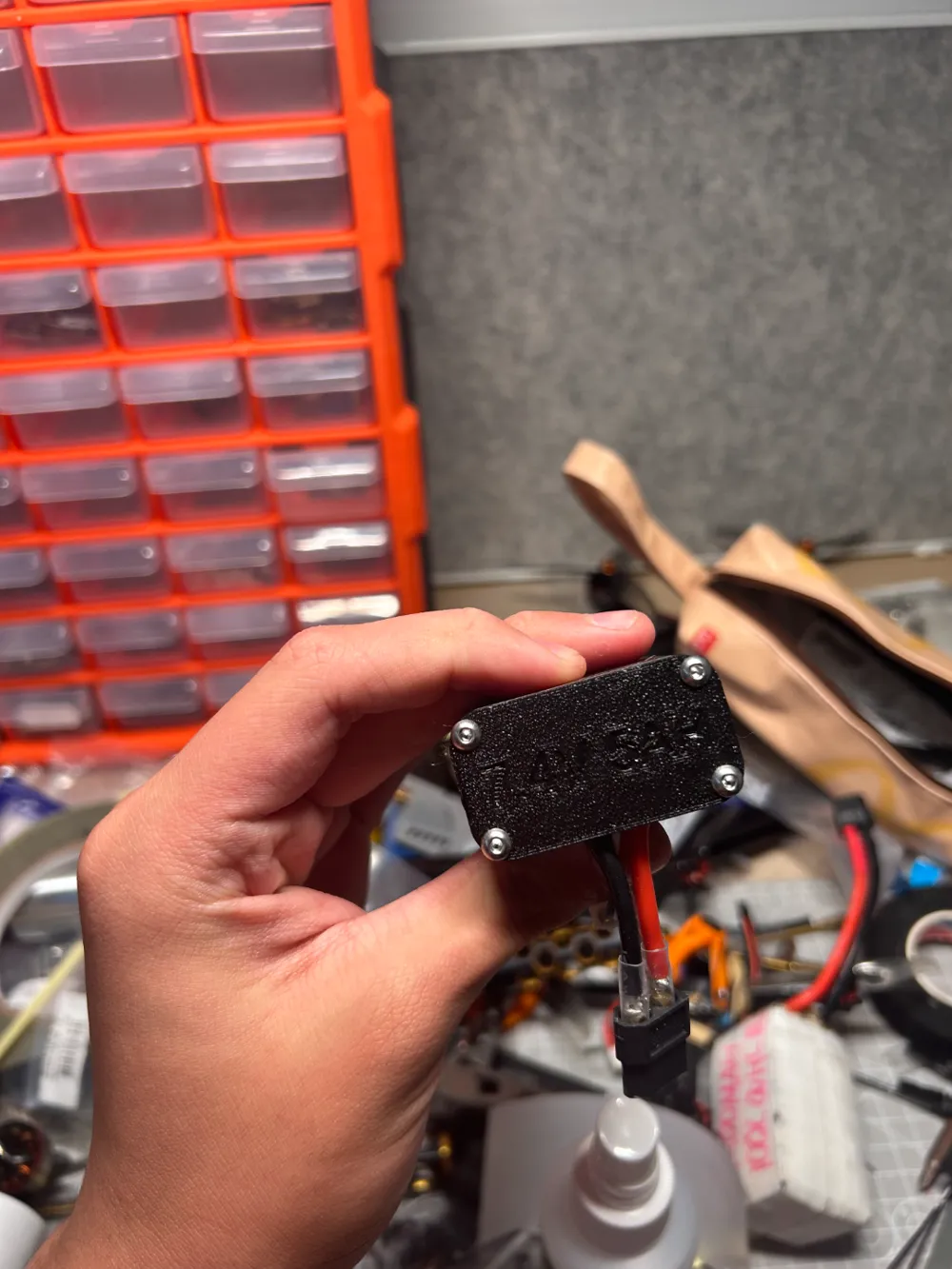

this is a battery case originally designed for samsung 50g 21700 cells, but can be used with the photo instructions. check model pictures of how i build it. the green tape isnt even needed really, just wrap a few layers if the 2 welded batteries and fitting loosely. use 14/16AWG wires as 12+ AWG wires are too thick to fit. use 6/8/10mm m3 screws to screw in. i used 10 but 8 is also reccomended as 6mm is too short to hold. sand down or otherwise the opening parts, as they may be protruding depending on how bambulab print profiles are.
any questions please feel free to ask, reccomended to print with petg/petg infused.
planning to upload one with a clip for pockets/ belts.
