Filament Quick Swap Adapter (Direct Connect MMS)

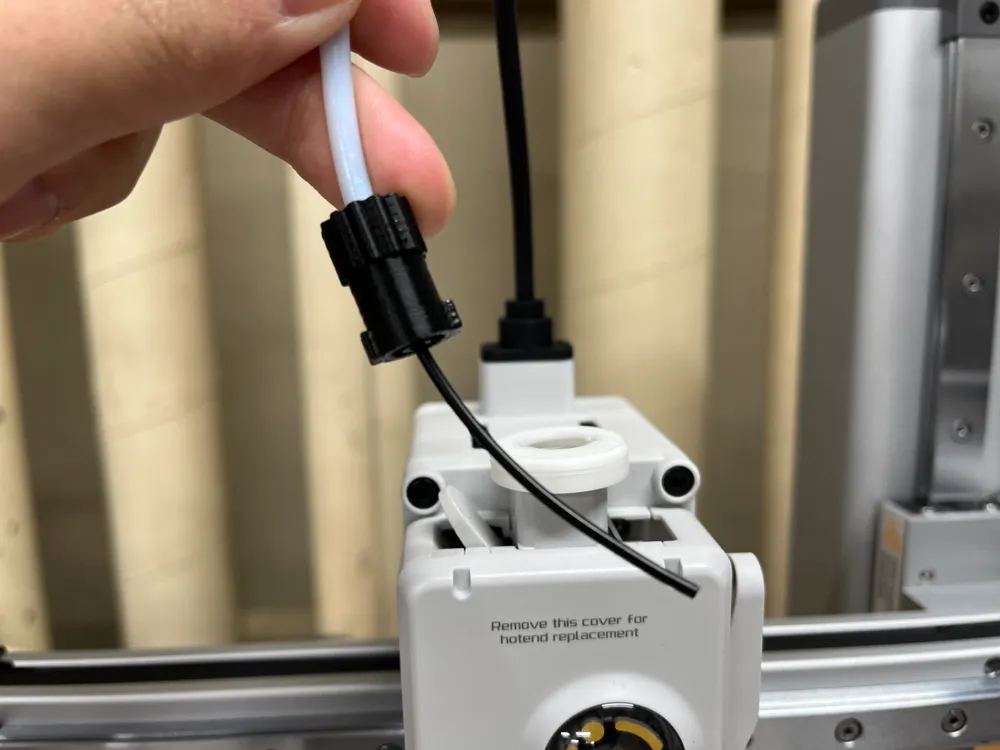

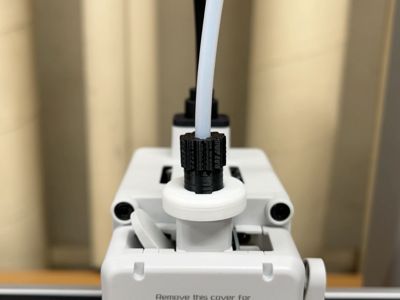

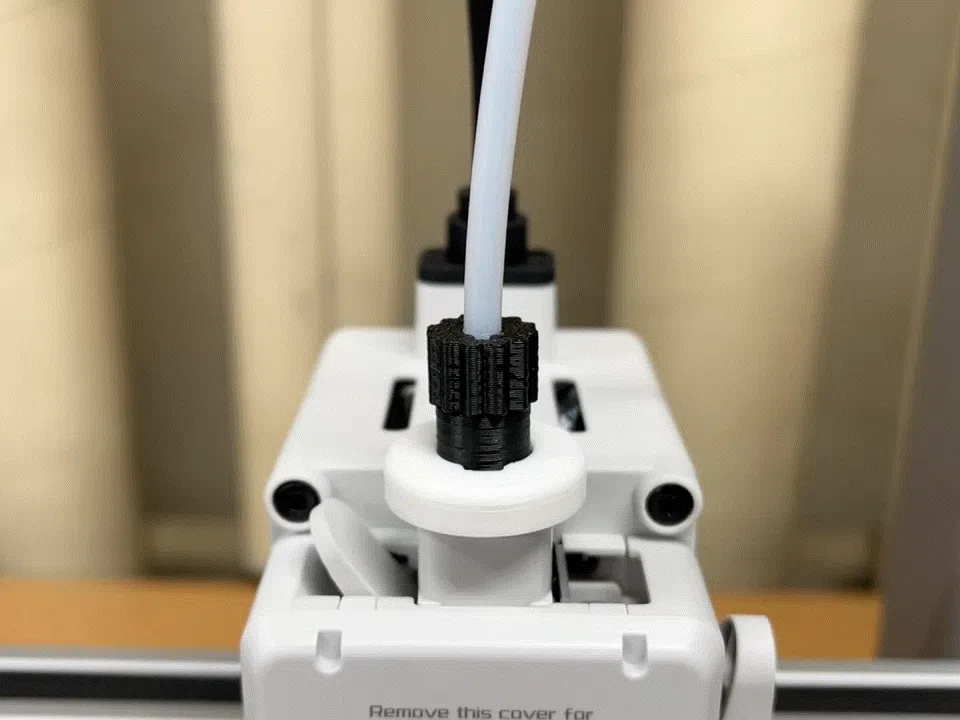

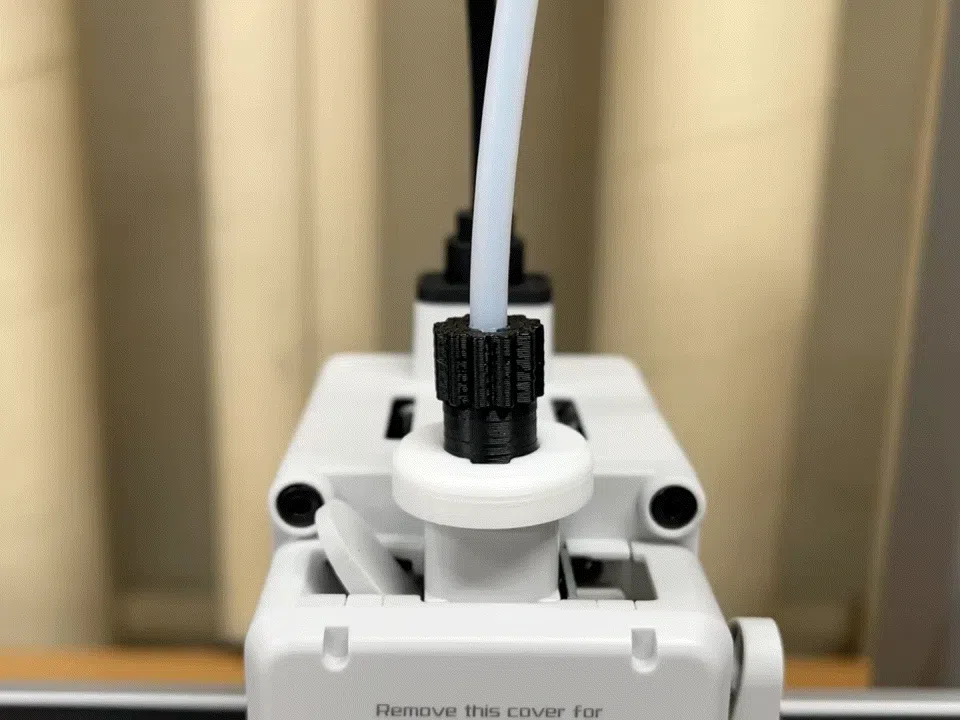

This is a convenient quick-release adapter for using the A1/A1 mini without the AMS lite.

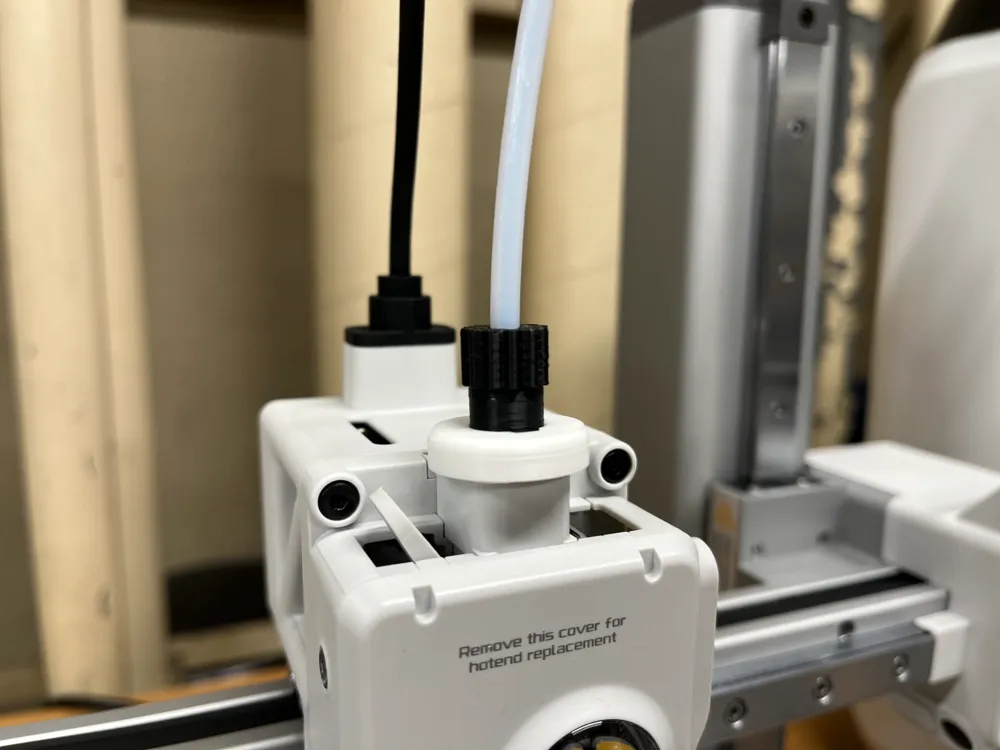

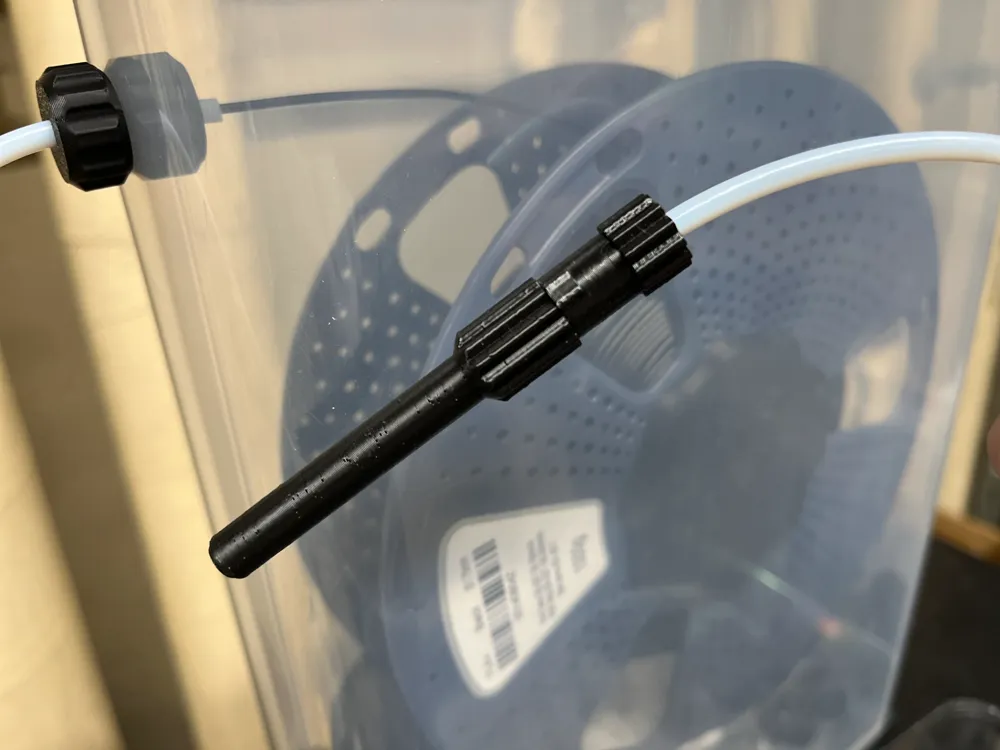

It allows direct connection of the PTFE tube extending from the dry box to the extruder.

Unlike the conventional MMS, direct connection is achieved without using the Filament Hub, enabling switching even with five or more dry boxes. Furthermore, opening the dry box is unnecessary except when changing empty spools.

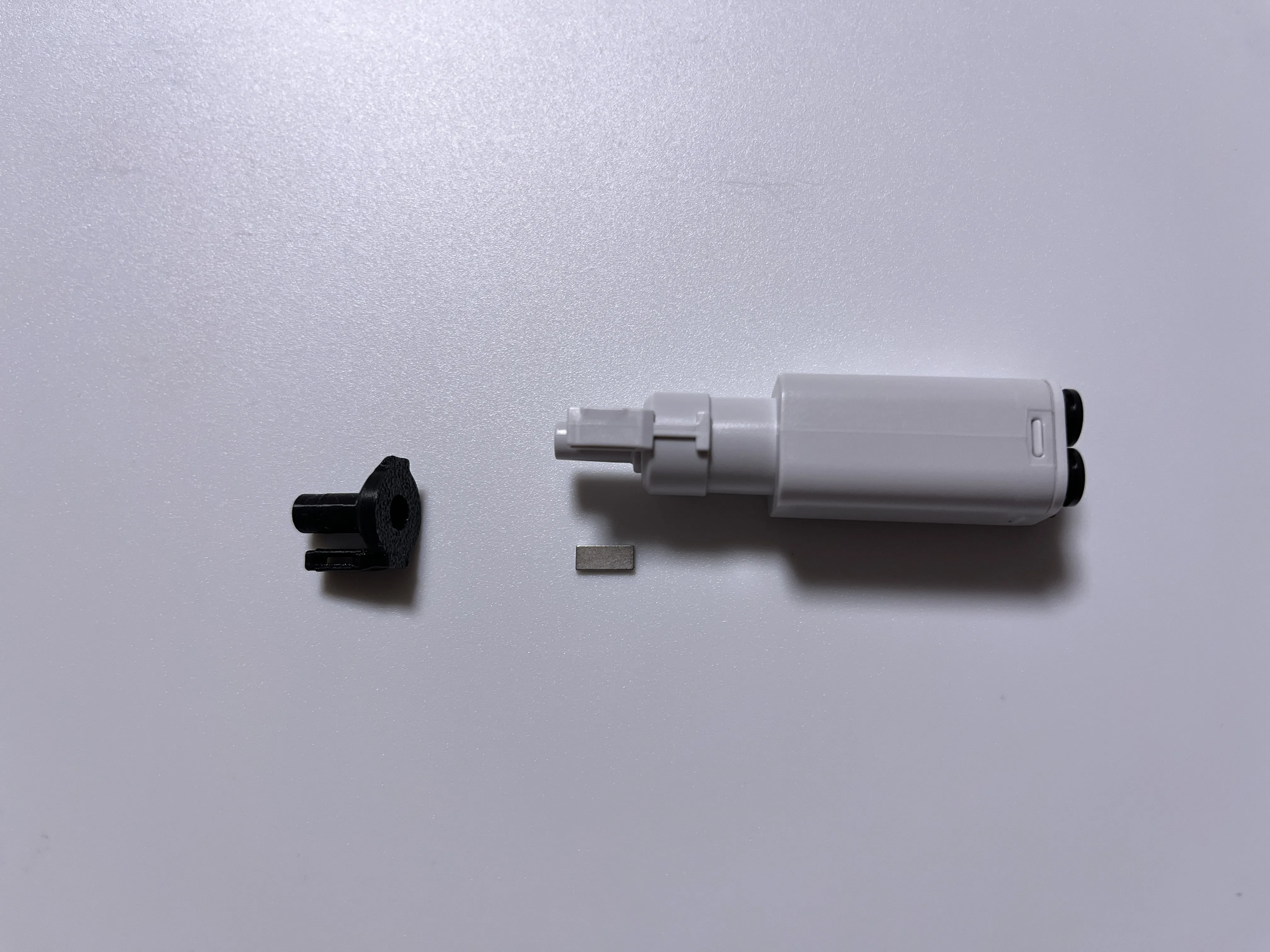

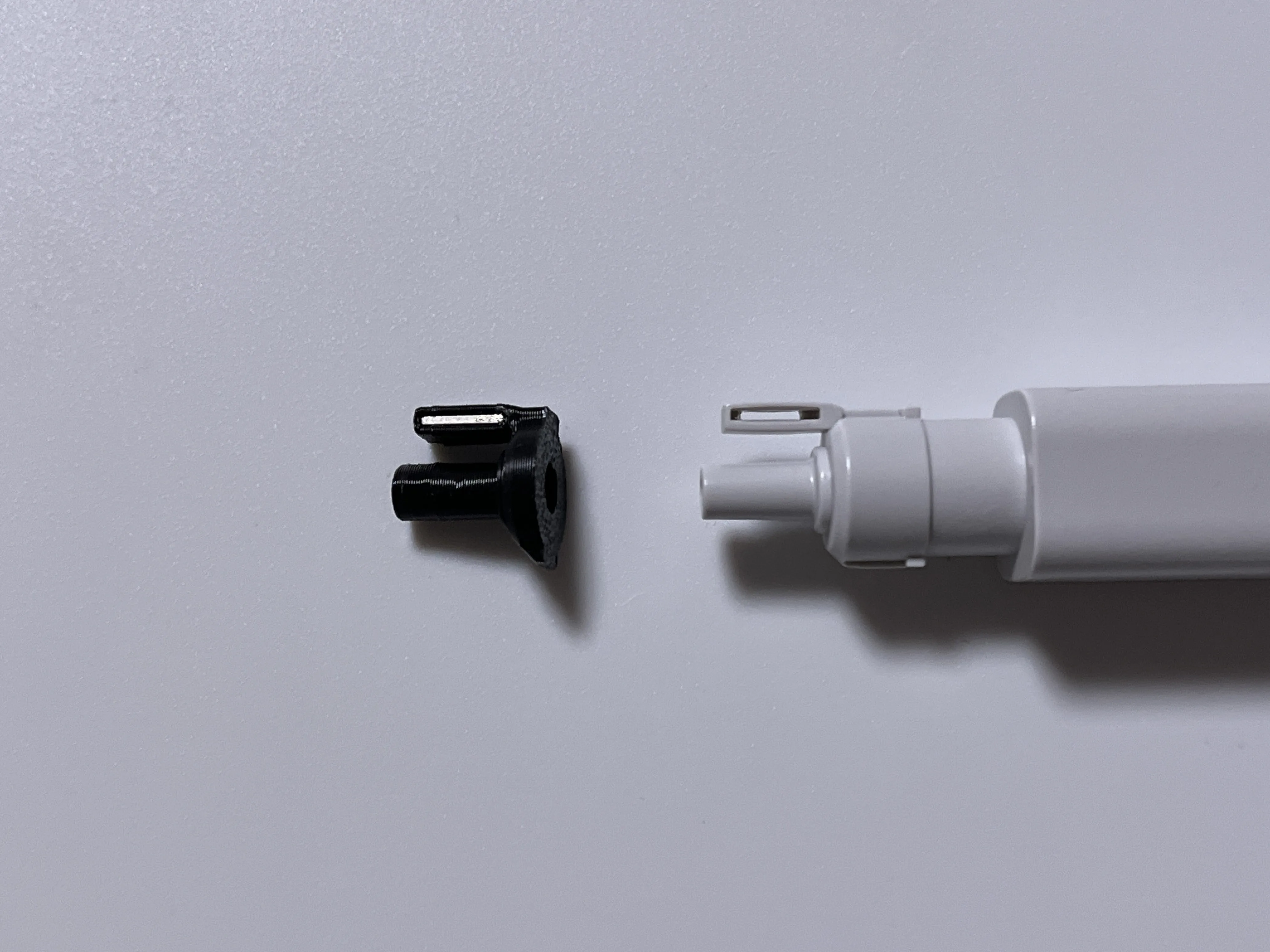

The filament entanglement detection function can be maintained by removing the Filament Hub magnet and attaching it to a dummy part. (The magnet's orientation likely doesn't matter.)

Before installation, remove the cover and Filament Hub according to the official guide.

https://wiki.bambulab.com/en/a1/maintenance/filament_hub_cleaning

For manual multi-color printing, please refer to this Reddit page.

Print multi-colour without AMS from Bambu Studio - easy
