DJI O3 front mount - Apex micro 150mm - 15-30deg

IP Report

Print Profile(1)

All
A1
P1S
P1P
X1 Carbon
X1E
X1
A1 mini
H2D
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.16mm layer, 2 walls, 15% infill
0.16mm layer, 2 walls, 15% infill
Designer
55 min
1 plate
5.0(1)

Open in Bambu Studio
Boost
21
34
5
0
73
37
Released

Description

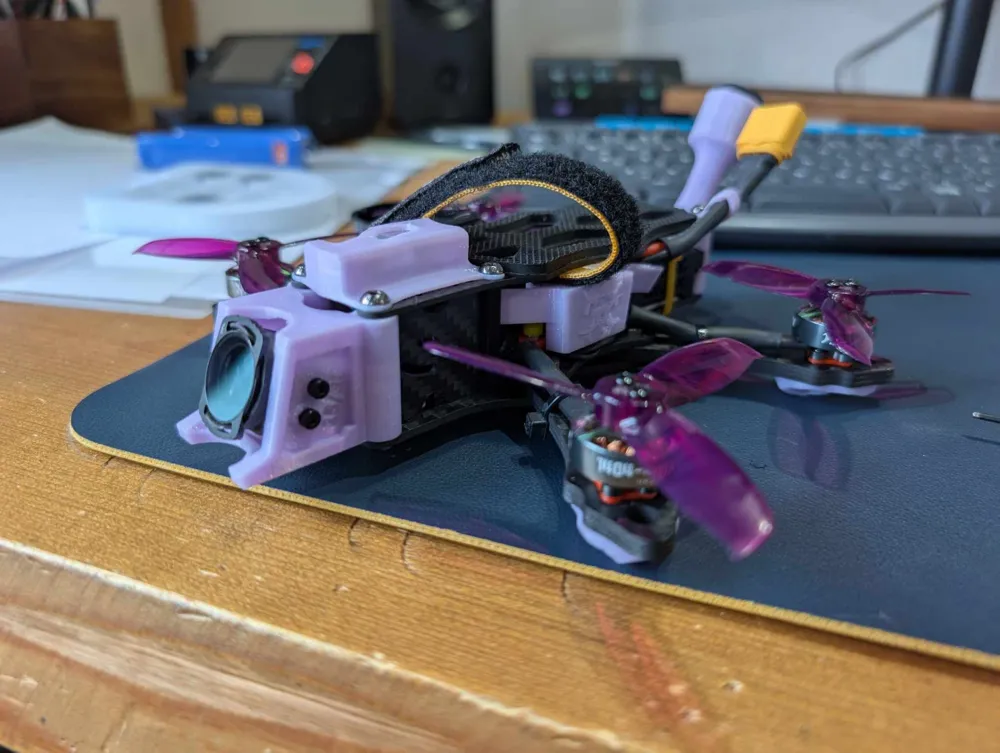

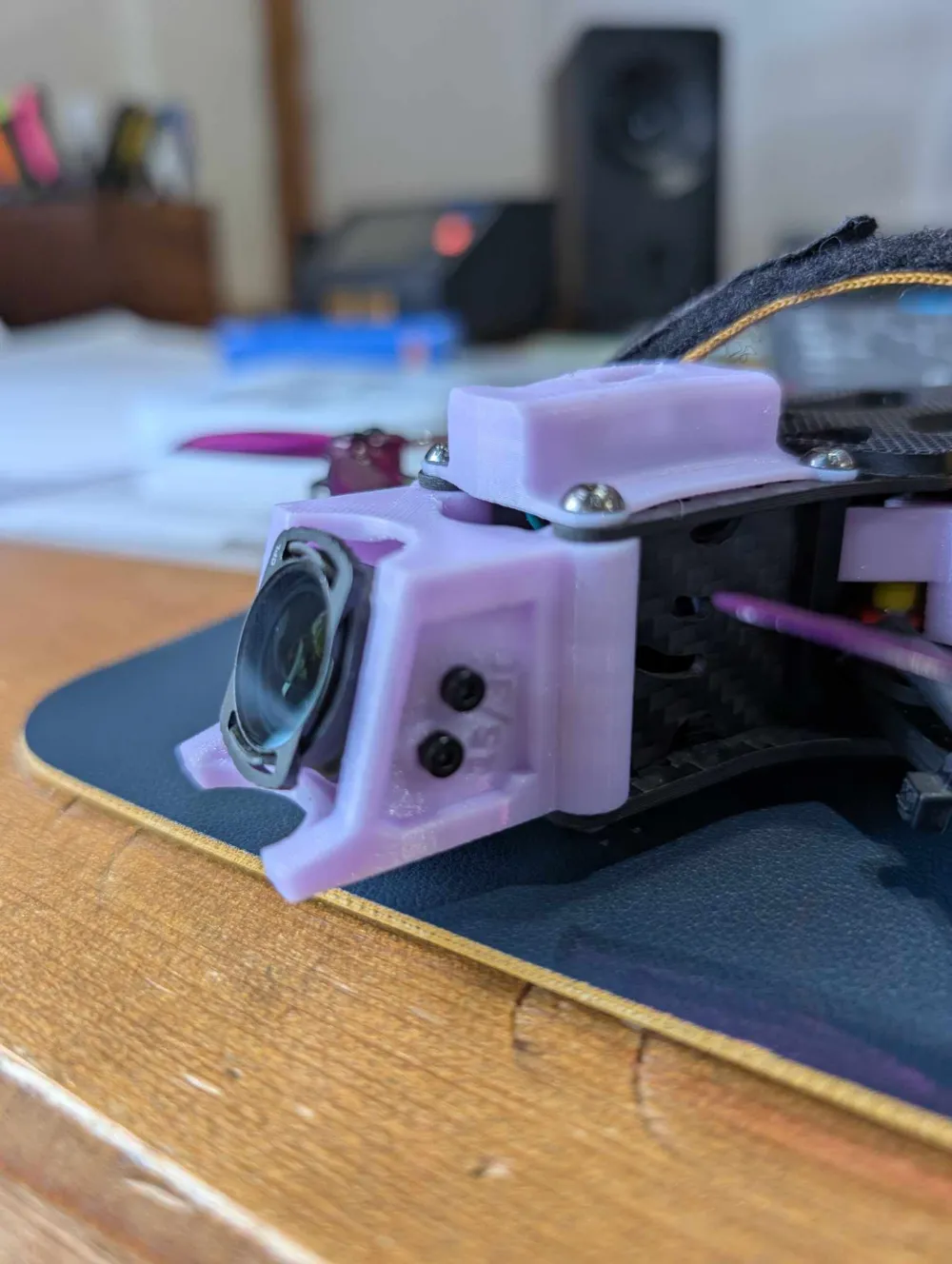

I tried a lot of different DJI O3 mounts for my Apex 3 inch an none were what I was looking for.
I decided to design my own and I am sharing the file.

the original file is for 5.7mm standofff, 26mm tall and 24mm spacing.
but you can use the Fusion file to create your own and it could fit a wide variety of drones.

I printed on hard TPU, and it works perfect.
design is adjustable between 15 and 30 degree but you can also modify the fusion file.
It can fit a regular ND filter.

I hope it could work on someone else drone.

cheers
