CNC Coordinate Cube
Print Profile(1)
Description

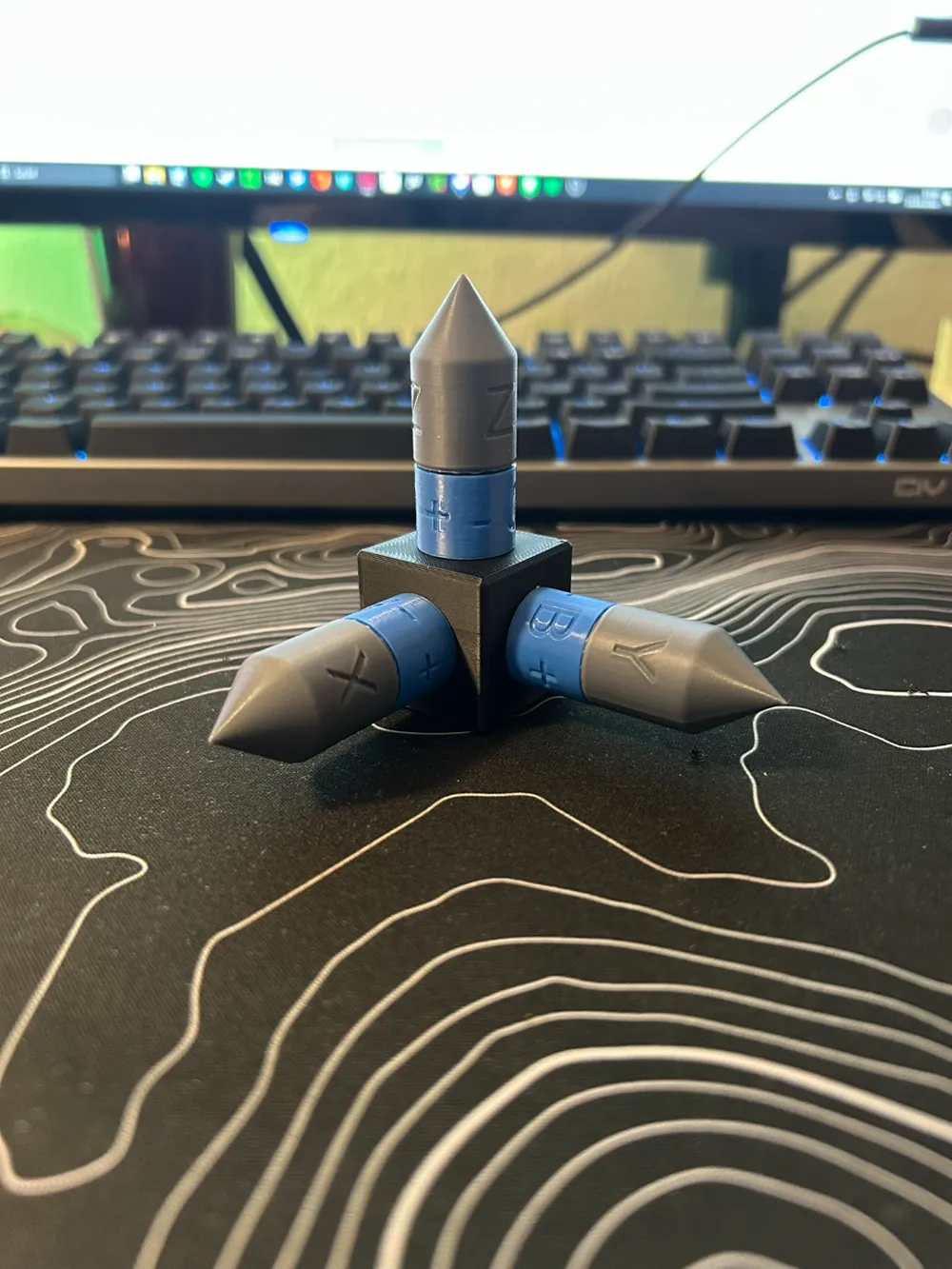

The coordinate cube is a three-dimensional model used to illustrate geometric relationships and spatial orientation within the Cartesian coordinate system. With X, Y, and Z axes, it offers an intuitive representation for mathematics, physics, and engineering. Furthermore, the coordinate cube is ideally suited for use in manufacturing, particularly with milling machines, and in metrology. It facilitates the precise visualization and planning of workpieces and measurement processes. Perfect as a learning tool, reference model, or for optimizing technical processes.
Assembly Instructions for the Coordinate Cube:

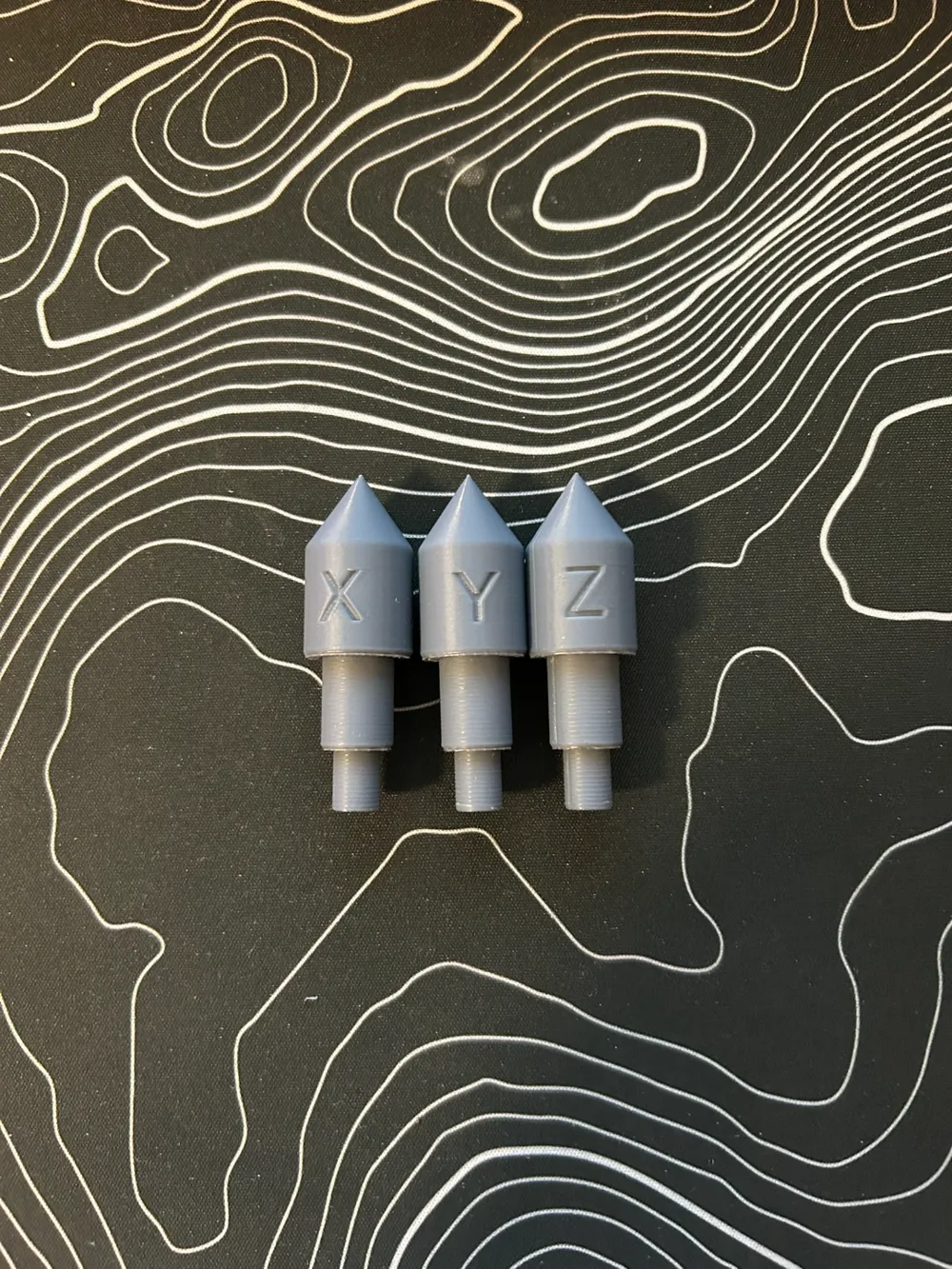

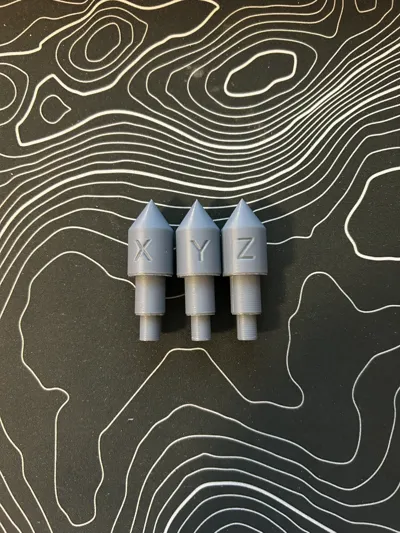

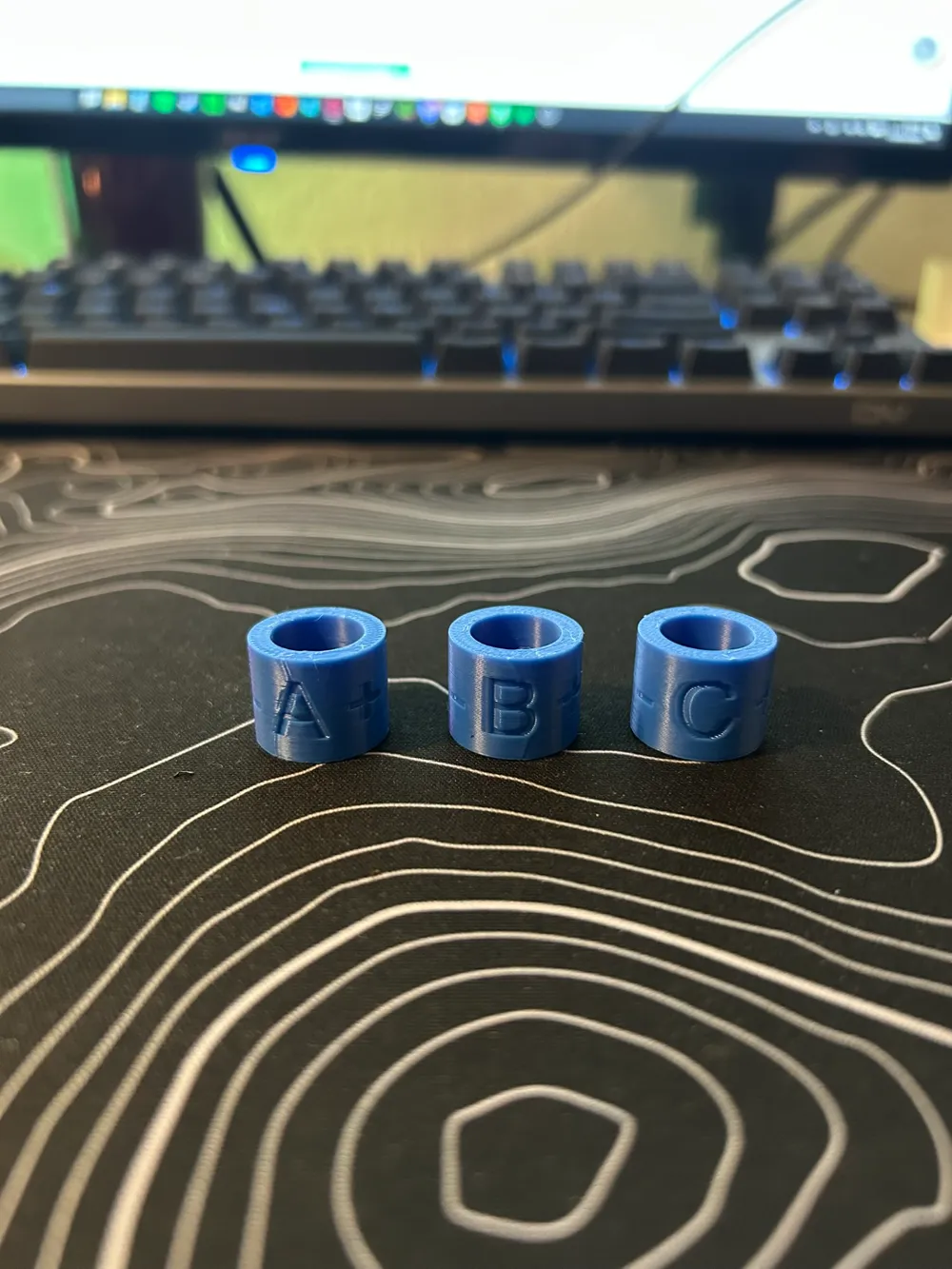

- Attaching the Rings to the Axes: Begin by sliding the rings onto their corresponding axes:
- Ring A onto Axis X
- Ring B onto Axis Y
- Ring C onto Axis Z
No adhesive is required for this step. Ensure the rings remain freely movable.

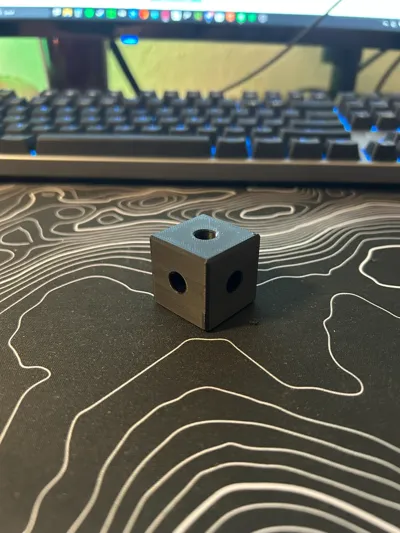

- Gluing the Axes into the Base: Position the axes, with the already attached rings, into the base. Carefully glue the axes in place so that they are stable and precisely positioned. Be sure not to fix the rings with adhesive to maintain their mobility.

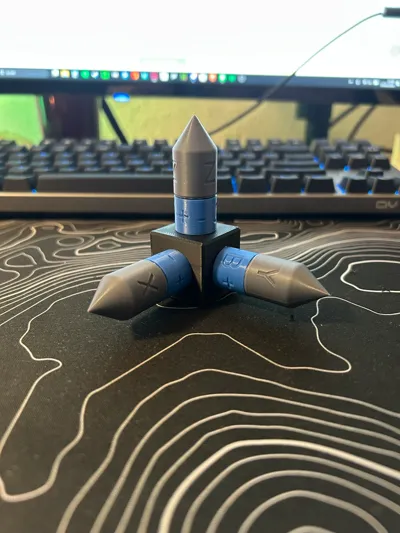

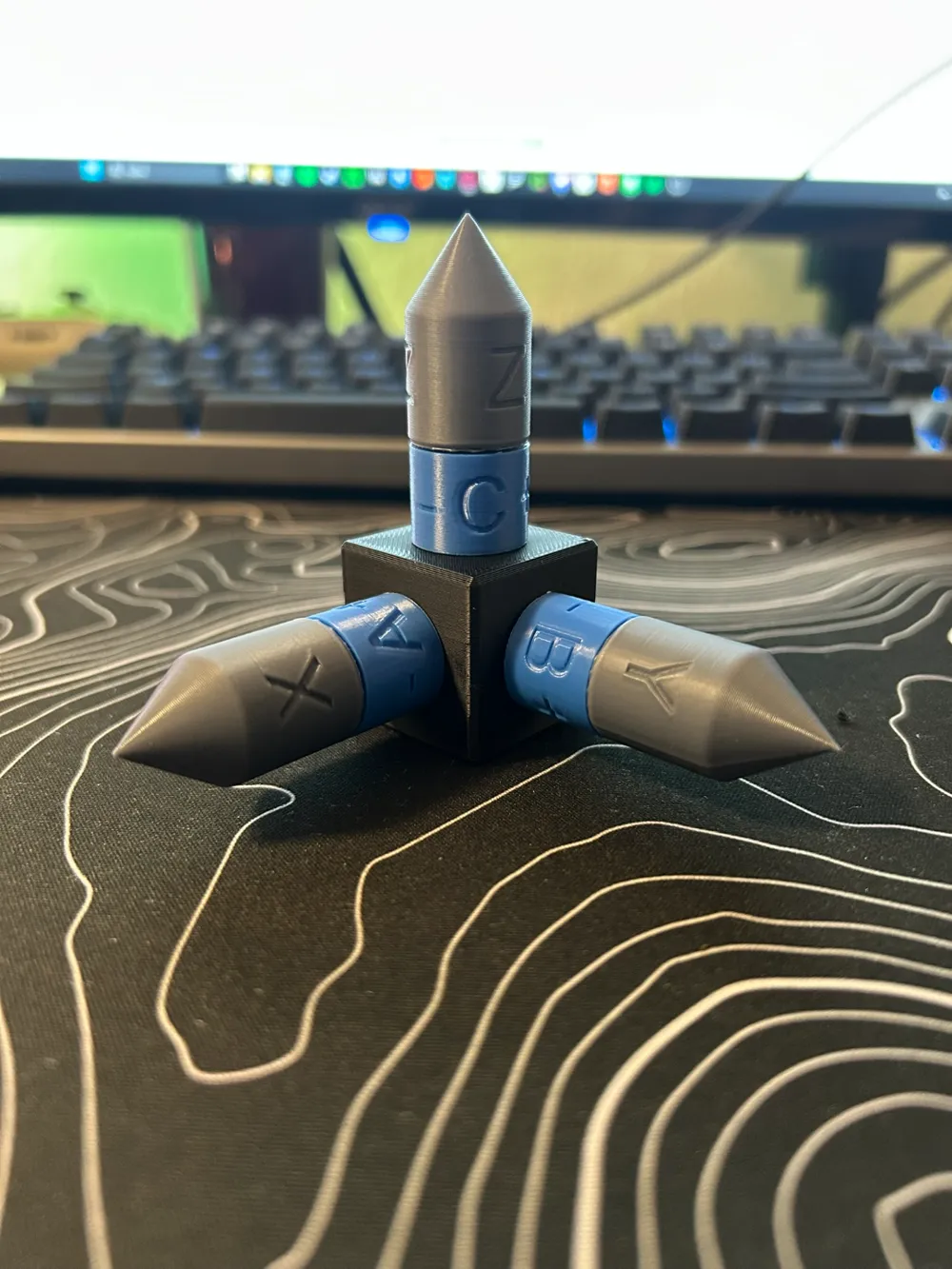

- Completion: Check the coordinate cube for stability and the mobility of the rings. Your coordinate cube is now ready for use!
