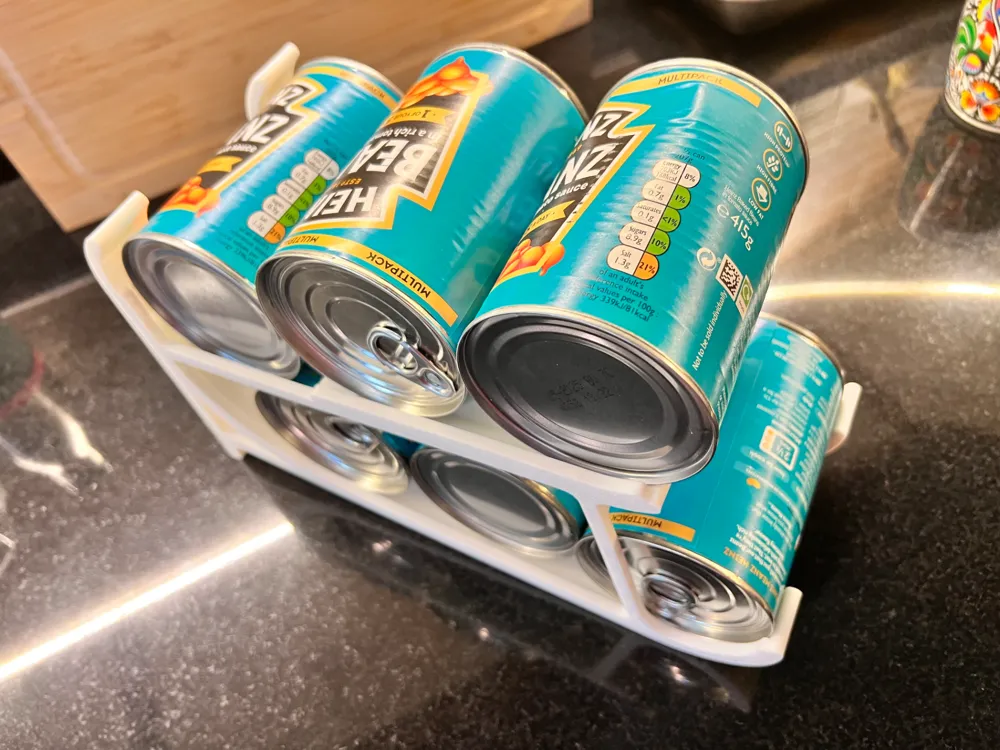

Simple modular can dispenser

Licence disclaimer

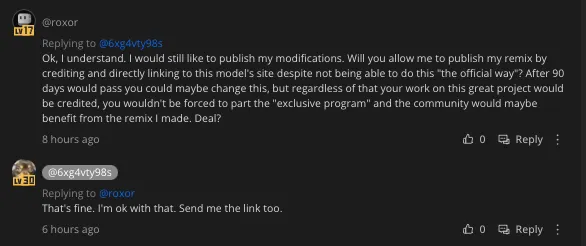

This model is based on Campbell's Soup Can Dispenser by Zzz3DSelkirk who allowed me to publish this model despite license non-conformity (please the comments thread by the original model for more information).

Thank you Zzz3DSelkirk for letting me publish this model man, bless you!

Differences against the original

• faster print time, around 4:30 hours
• less material used
• fits cans with height 110mm or 120mm (more to come on demand)

What to print

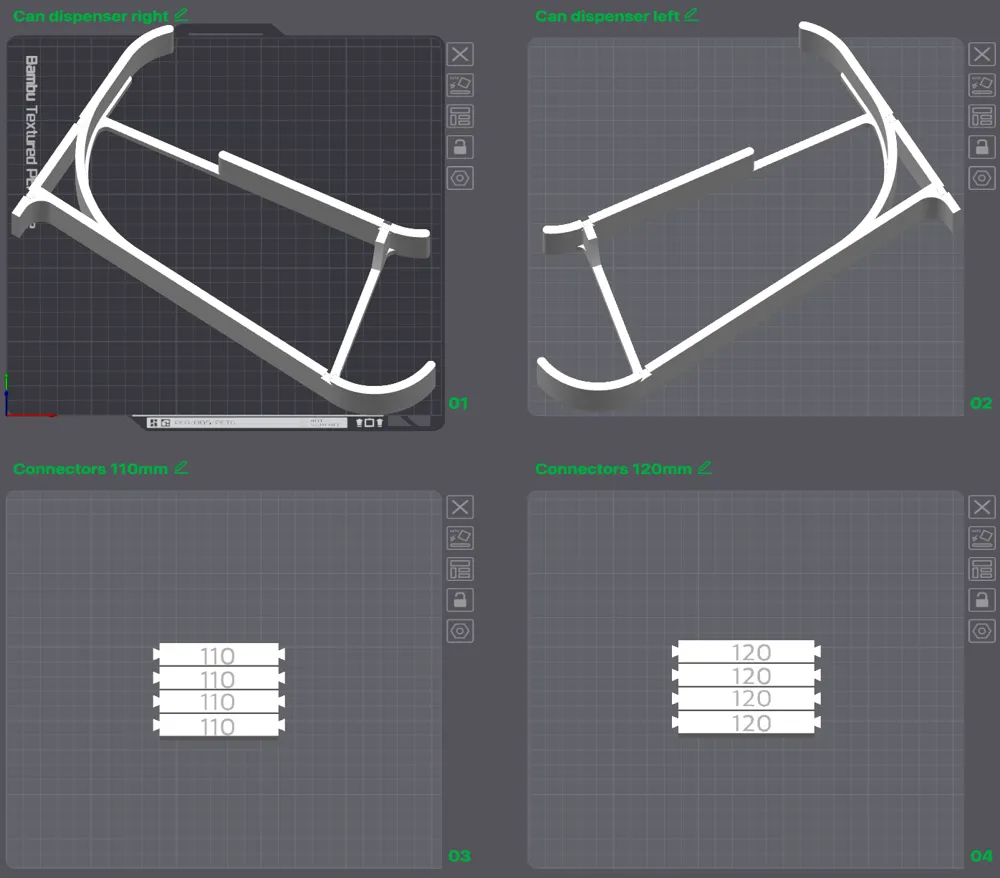

For the can dispenser to work for you left (Can dispenser right) and right (Can dispenser left) sides need to be printed out. Next - depending on your cans height (110mm or around 120mm) you also need to print out the corresponding connectors (Connectors 110mm or Connectors 120mm). After that you need to assemble the dispenser.

Assembly

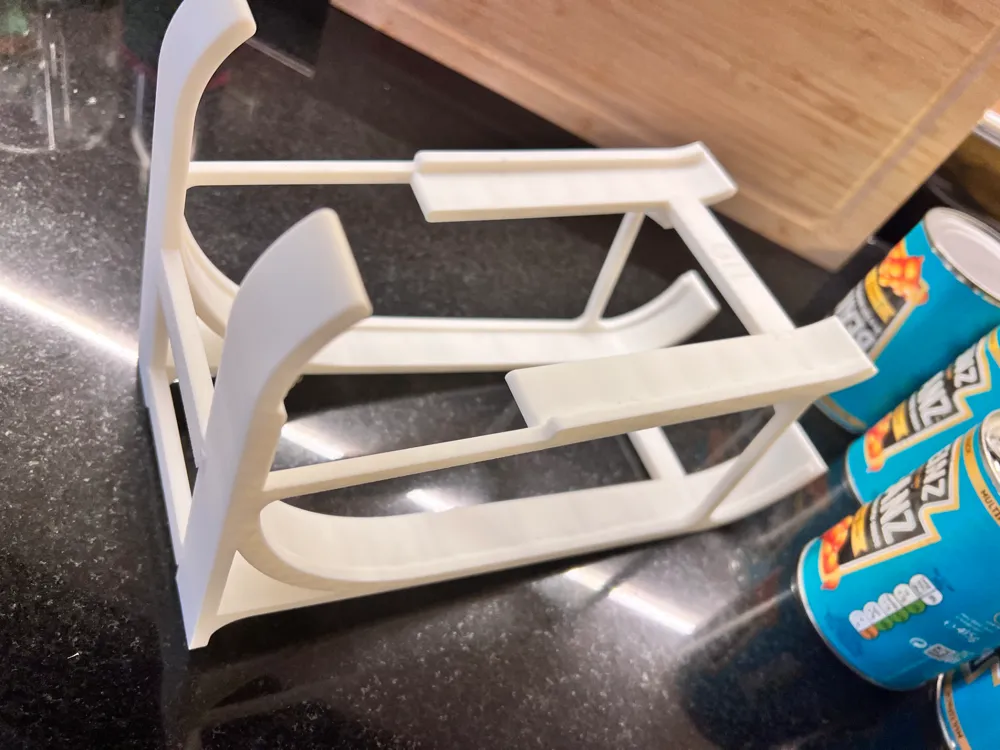

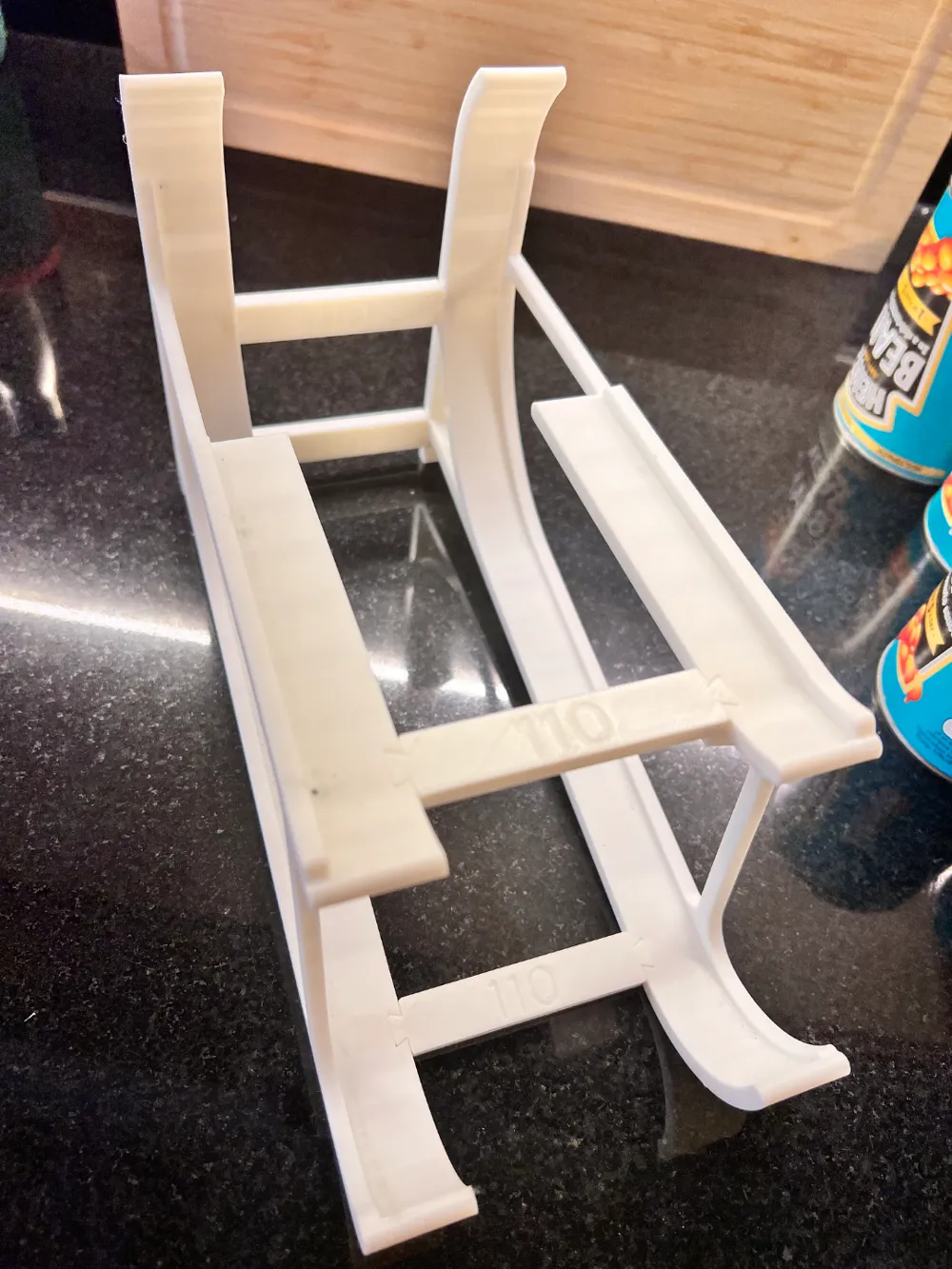

Start from the back of the dispenser then connect the bottom front rails finally joining top front rails. That's all.
