DJI Osmo Pocket 3 Peak Design Capture Clip Mount
Print Profile(2)
Description
*credit for Pocket 3 holding part to @marco_rc_arena *
@marco_rc_arena: https://makerworld.com/de/@marco_rc_arena
Model: https://makerworld.com/de/models/744621?from=search#profileId-683070
----------------------------------------------
Boost Me (for free)
If you find this model to be useful, any Boost would be greatly appreciated :)
----------------------------------------------
STL-File has to be scaled to 102 % the BambuLab File is already scaled as needed
----------------------------------------------
If the Mount only goes on very thightly i recommend sanding/filing down the protruding Parts a tiny bit. Its a bit of work but its woth it so that the mount fits such that it doesnt rattle in the Clip giving annoying Audio
----------------------------------------------
i recommend attaching the 1/4"-Adapter to the bottom of the Camera which is an extra level of protection against it sliding out.

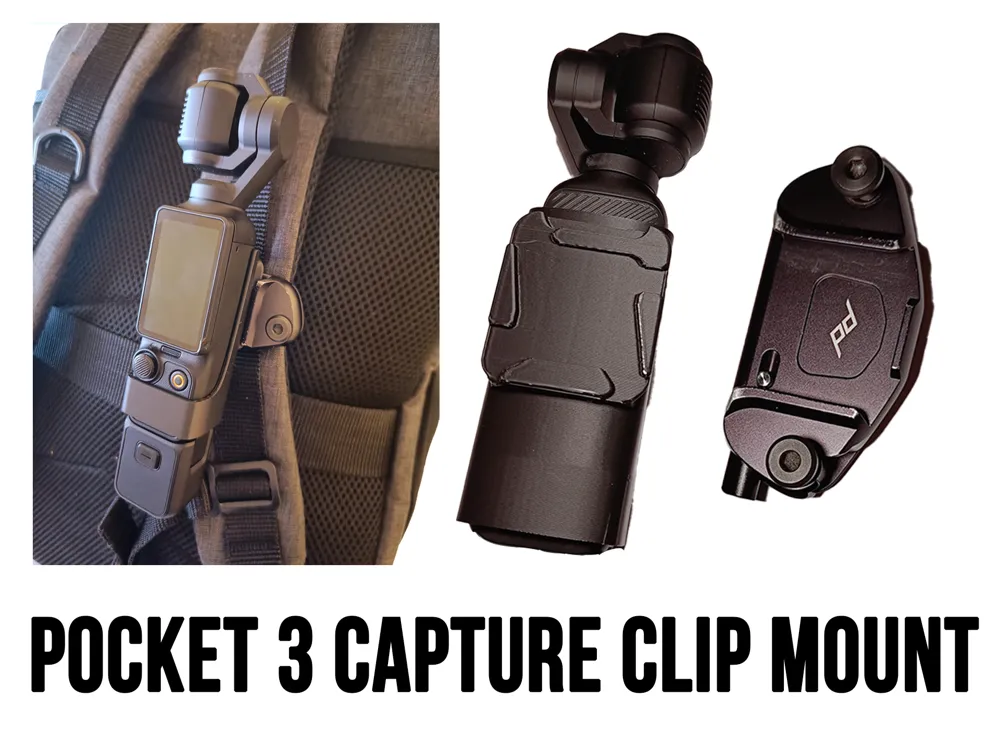

This is designed to mount the DJI Osmo Pocket 3 in the PeakDesign Capture Clip V3 so it can be used to take POV video.

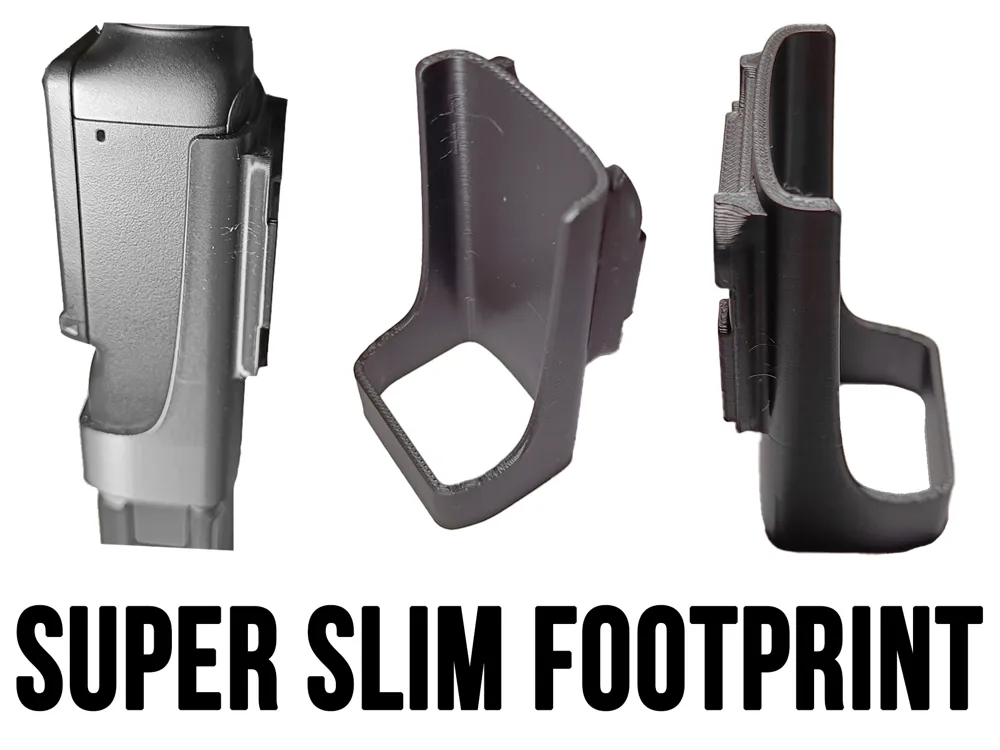

Compared to mounting it via a cage with adapters etc. it is super flat to the Capture clip.
its also flat enough that it can be left mounted on the Camera and still have it be comfortable to Handhold making it into a practicle mount for quick access as the CaptureClip is designed to do.

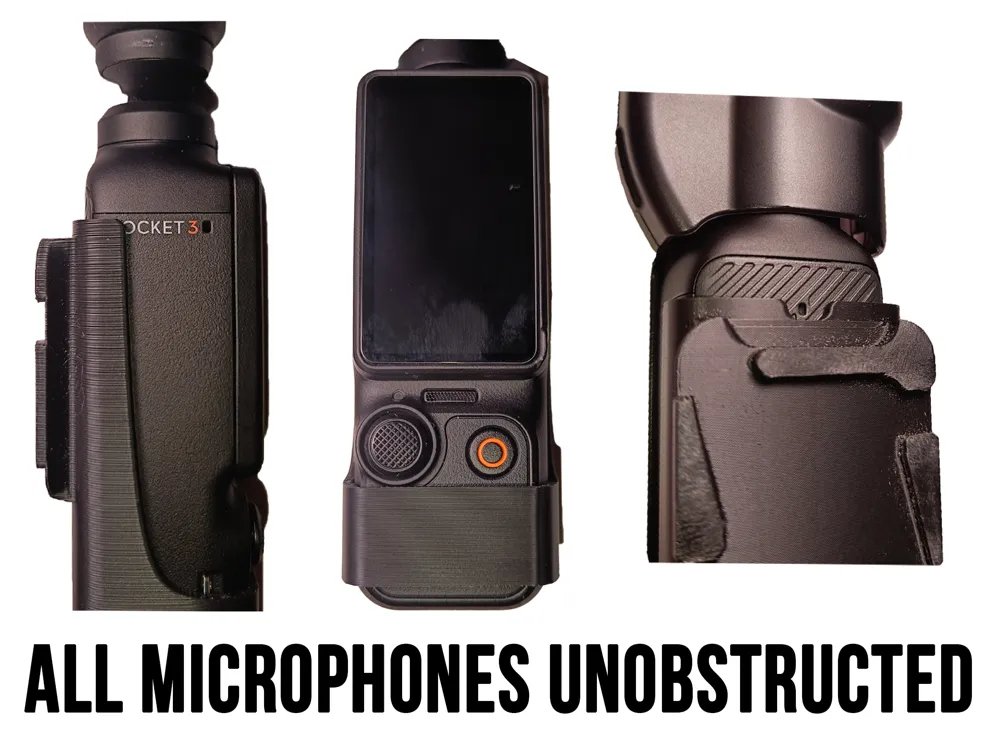

On the Backside theres also a small cut-out so that the Microphone isnt blocked.
