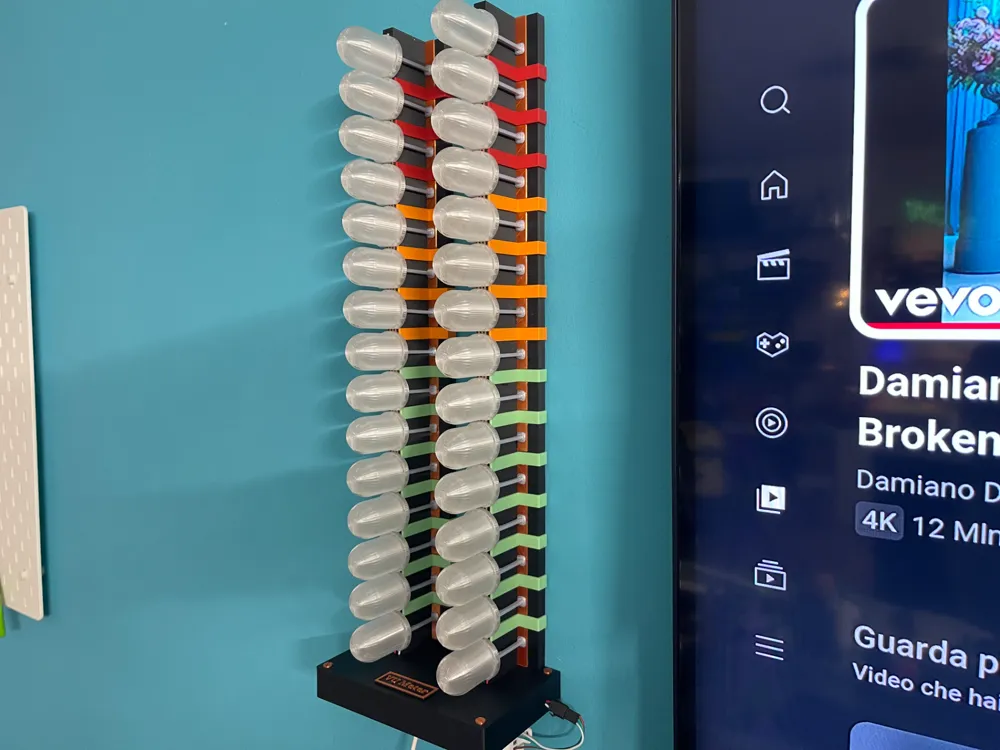

GIANT LED VU METER NO AMS A1 MINI
IP Report
Print Profile(4)
BOX_0.2mm layer, 2 walls, 15% infill
Designer
3.6 h
1 plate
Component_7Plate_0.2mm layer, 2 walls, 15% infill
Designer
5.3 h
7 plates
LEDx15_0.28mm layer, 2 walls, 15% infill
Designer
3.9 h
1 plate
BARRA_0.2mm layer, 2 walls, 15% infill
Designer
5.7 h
1 plate
Open in Bambu Studio
Boost
5
16
3
1
20
5
Released
Description
Content has been automatically translated.
Boost Me (for free)
I'd love to see your prints! Please share your photos in the comments, and don't forget to Boost if you like the results! Happy printing! 🚀 🙏
Project Materials
- WS2812B LED strip 30led/m

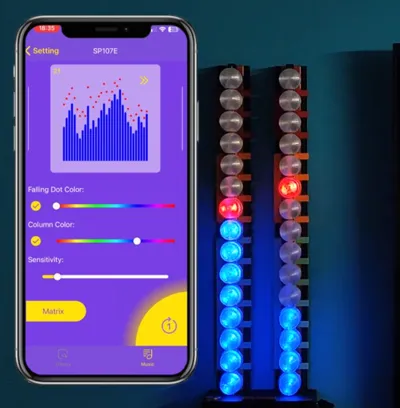

- SP107E LED music controller with built-in microphone
- 5v 1a power supply
- Super Glue to adhere the three bar components, the graduated scale, and the LED pins
- Eight 6x3mm magnets for the box lid
The box was designed to internally house an ESP32 (WLED software) as a controller, but lacking a suitable microphone, I utilized the readily available SP107E with its integrated microphone. Unfortunately, this requires external connection to the box.
_______________________________________________________________________________
If you like my work, you can support me with a coffee ☕️
🙏 thanks!!!
