(This is a project born from a lovestruck mind)

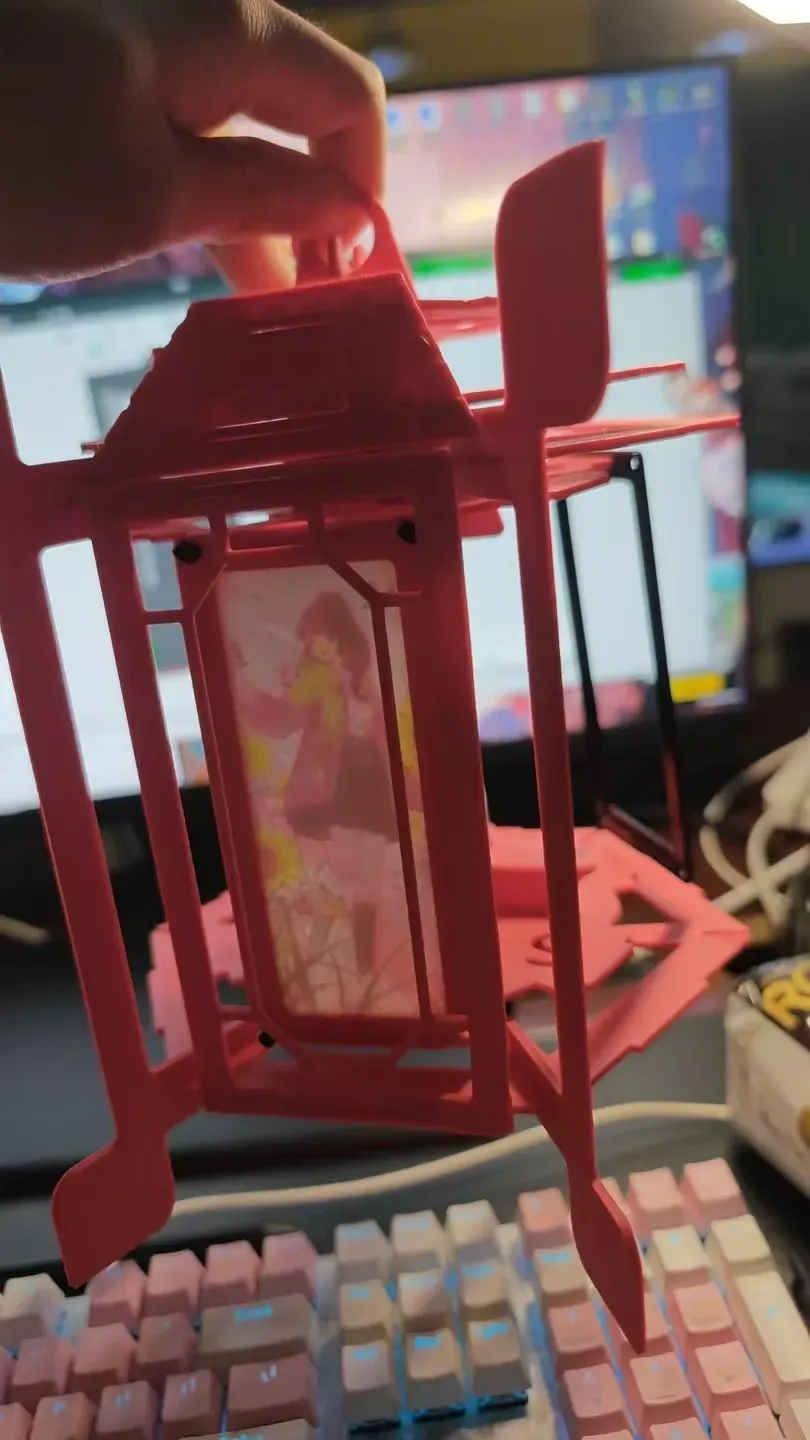

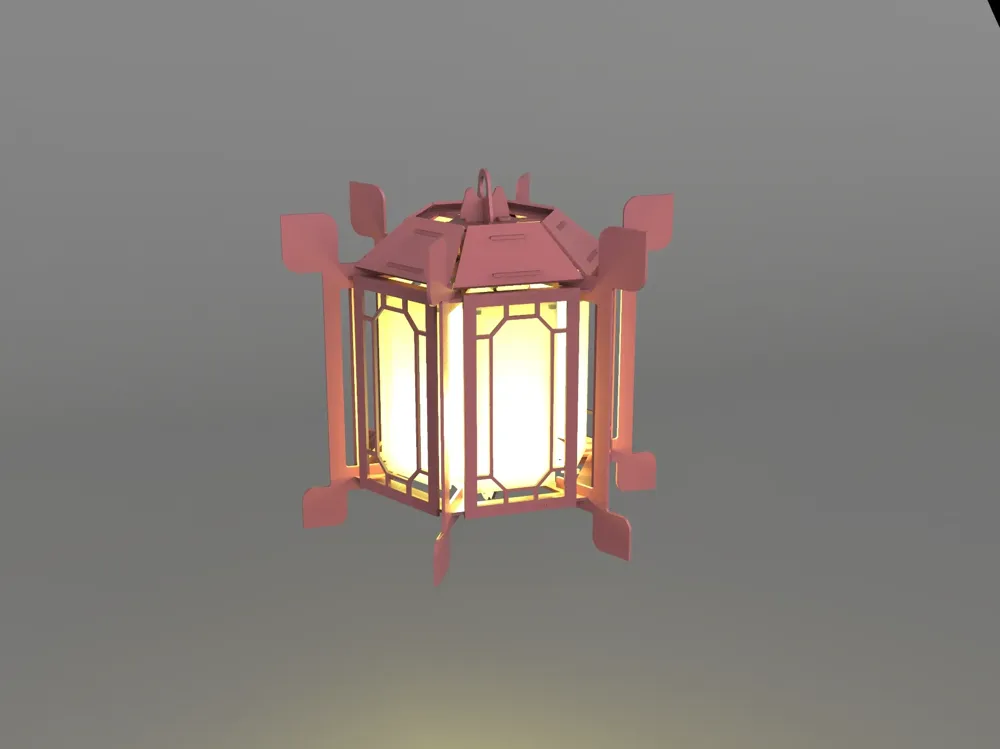

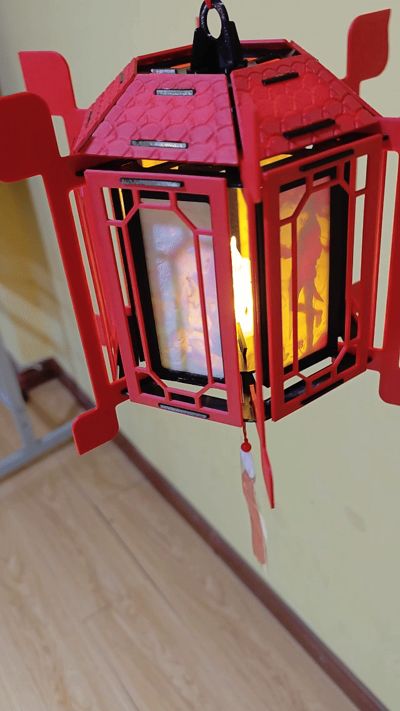

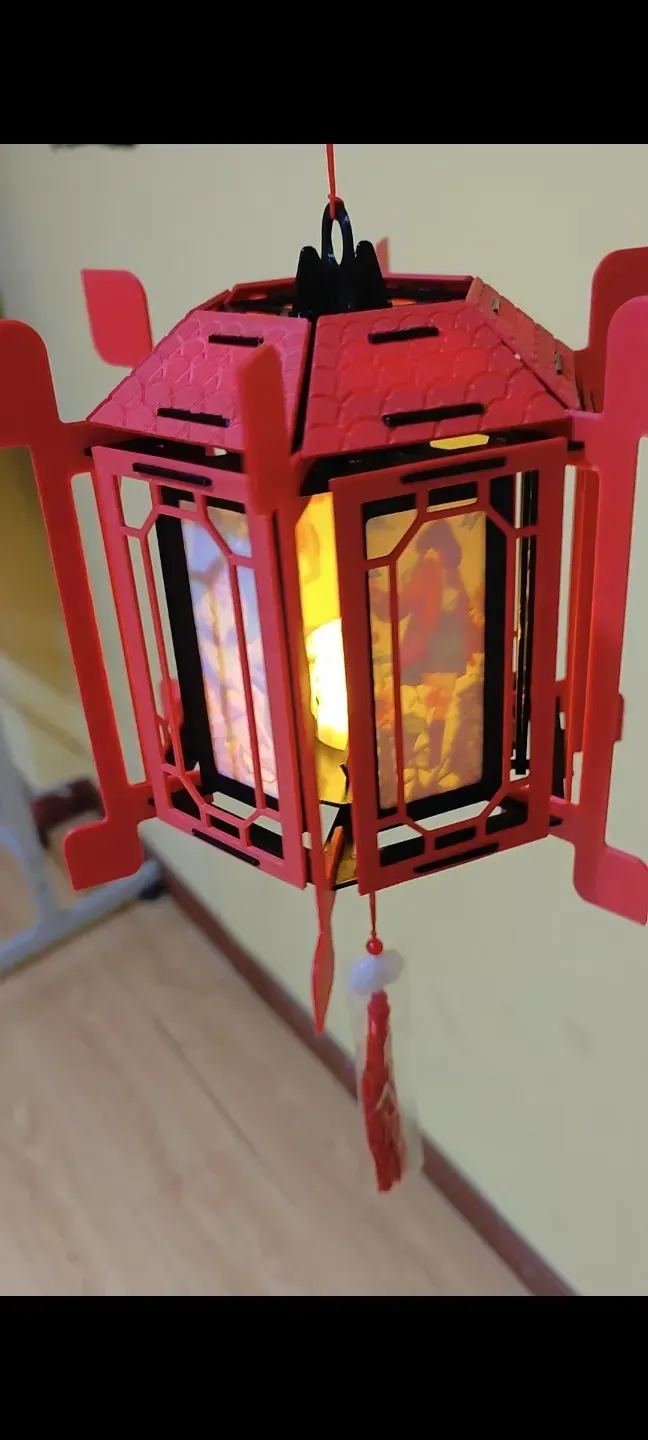

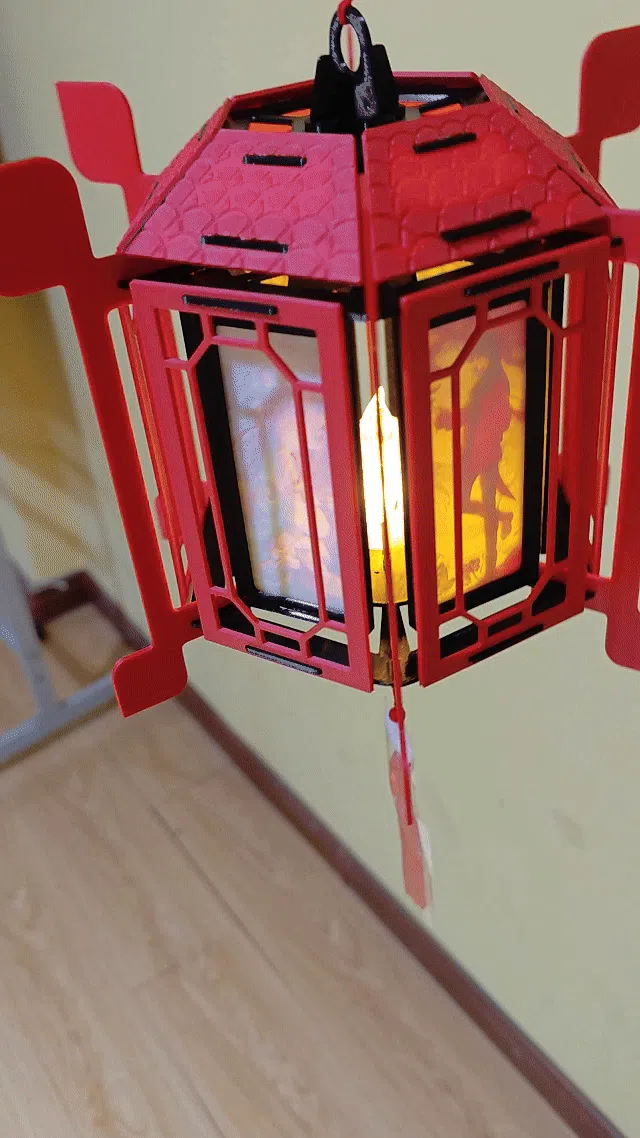

Assembled Translucent Lithophane Hanging Lamp
Composed of three parts
1. Lantern Body
The print file indicates the number of printing plates
PETG material is recommended for its resilience
Red exterior, black interior—exceptionally stylish
2. Translucent Lithophane
Use the Tuozhu Makerlab Translucent Lithophane Generator; monochrome or color lithophanes are both possible (depending on personal configuration; color lithophanes require AMS and CMYK filaments)
Tutorial below

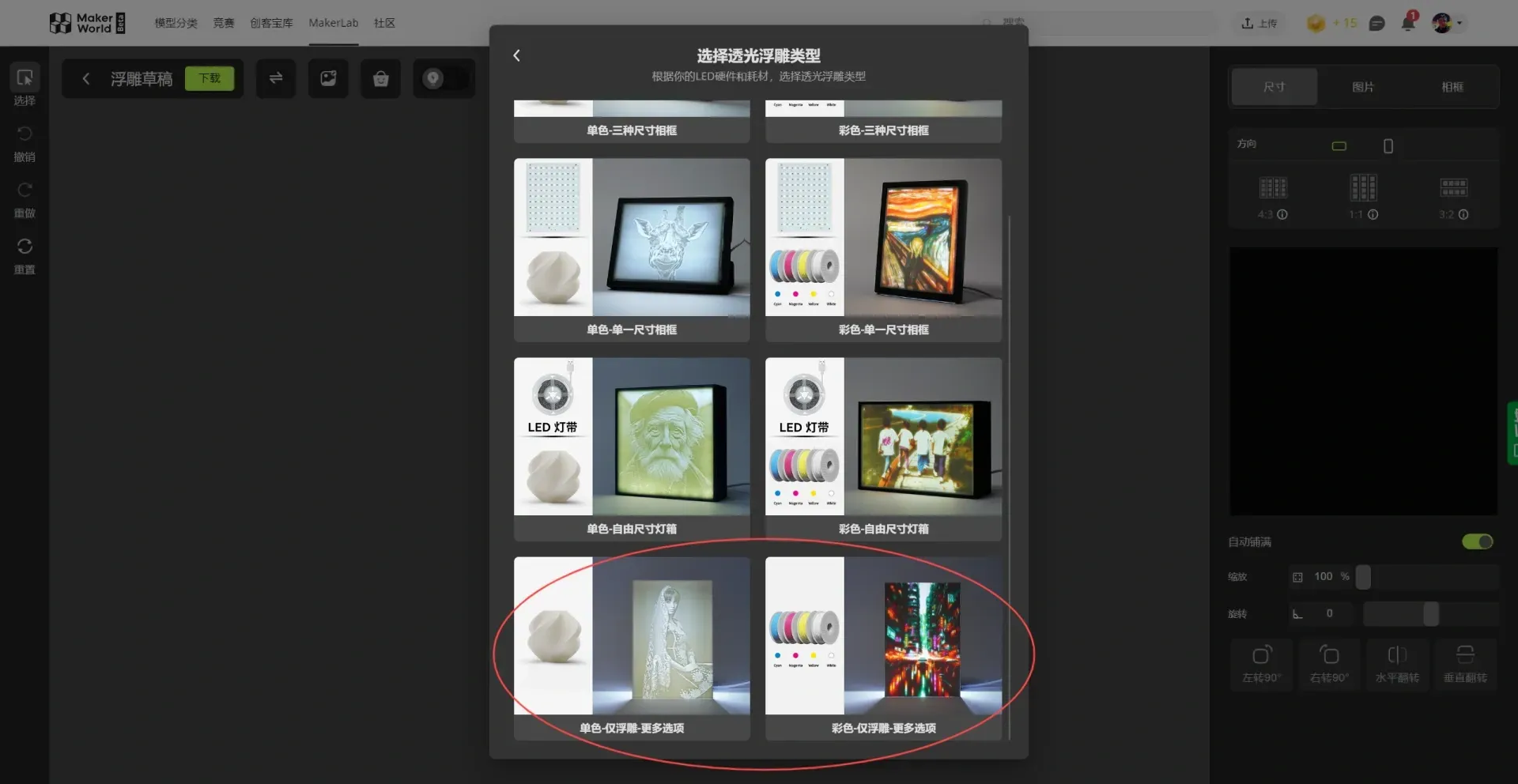

Open Lab and select monochrome or multicolor
After selecting an image, modify the margin to 2.5mm and the margin thickness to 2mm in the properties

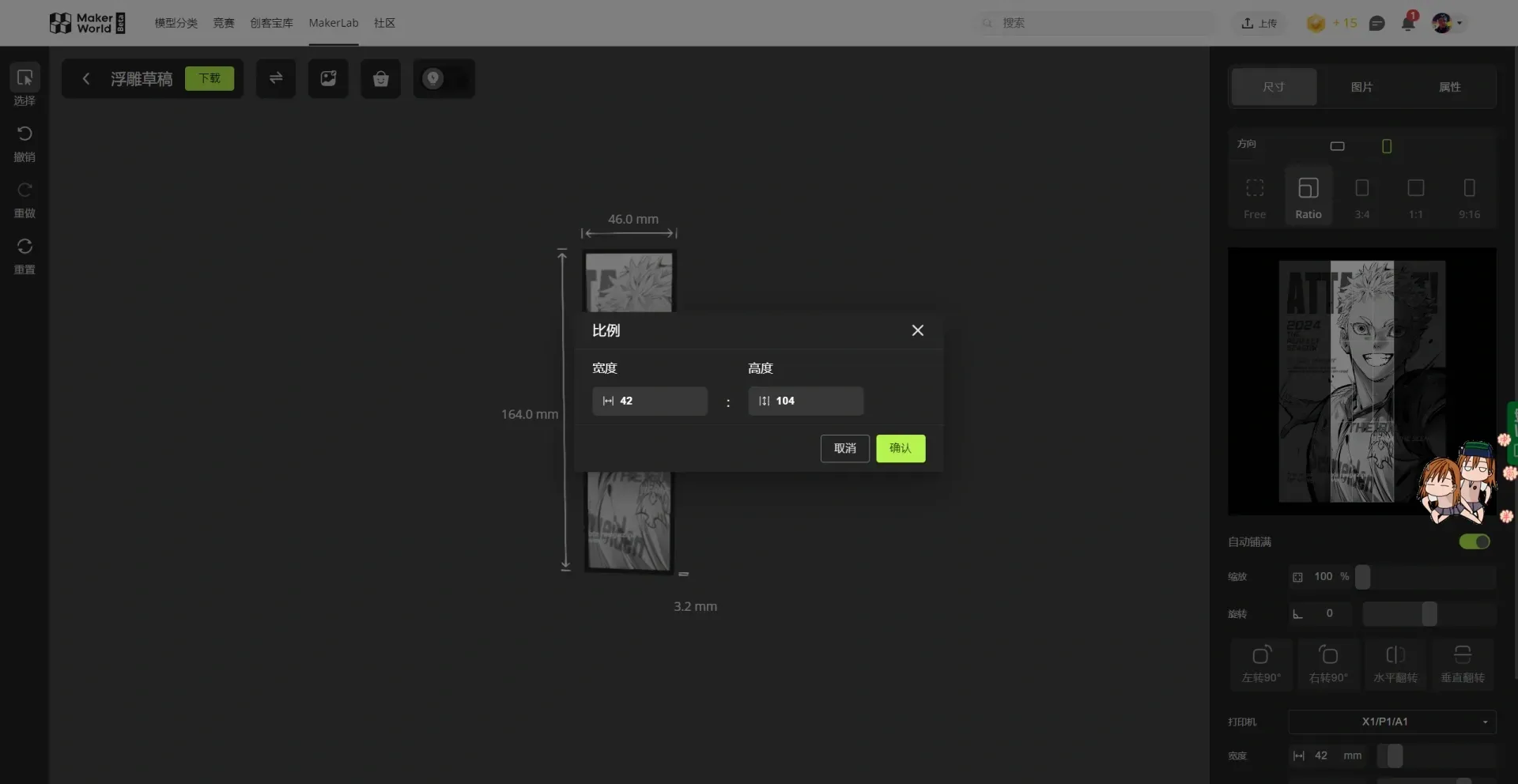

Set the orientation to portrait, select Ratio, and adjust the length and width as shown
Then adjust the length and width below until 42*104
Download and print *6
3. Candle Light and Hanging Cord
Available on Taobao and JD.com

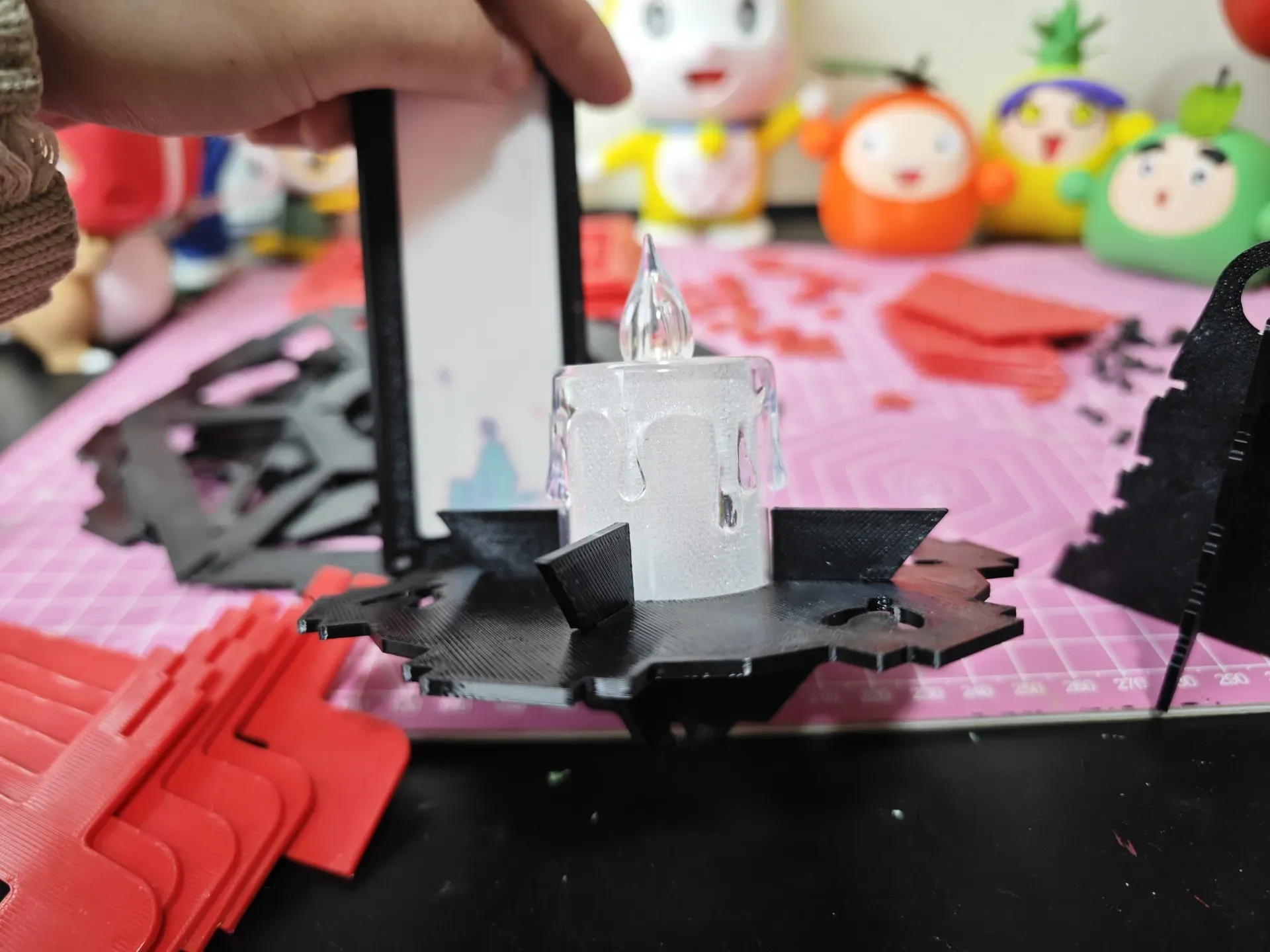

36-37mm diameter candle light (36mm is best). Tuozhu Maker's Supply candle lights are slightly shorter, potentially affecting the lighting effect. Some users may wish to experiment and leave feedback
The finished product uses a 3.6*4 candle light
Some areas may be too tight or loose depending on the filament used; consider using glue or wire cutters as needed. A degree of manual dexterity is required

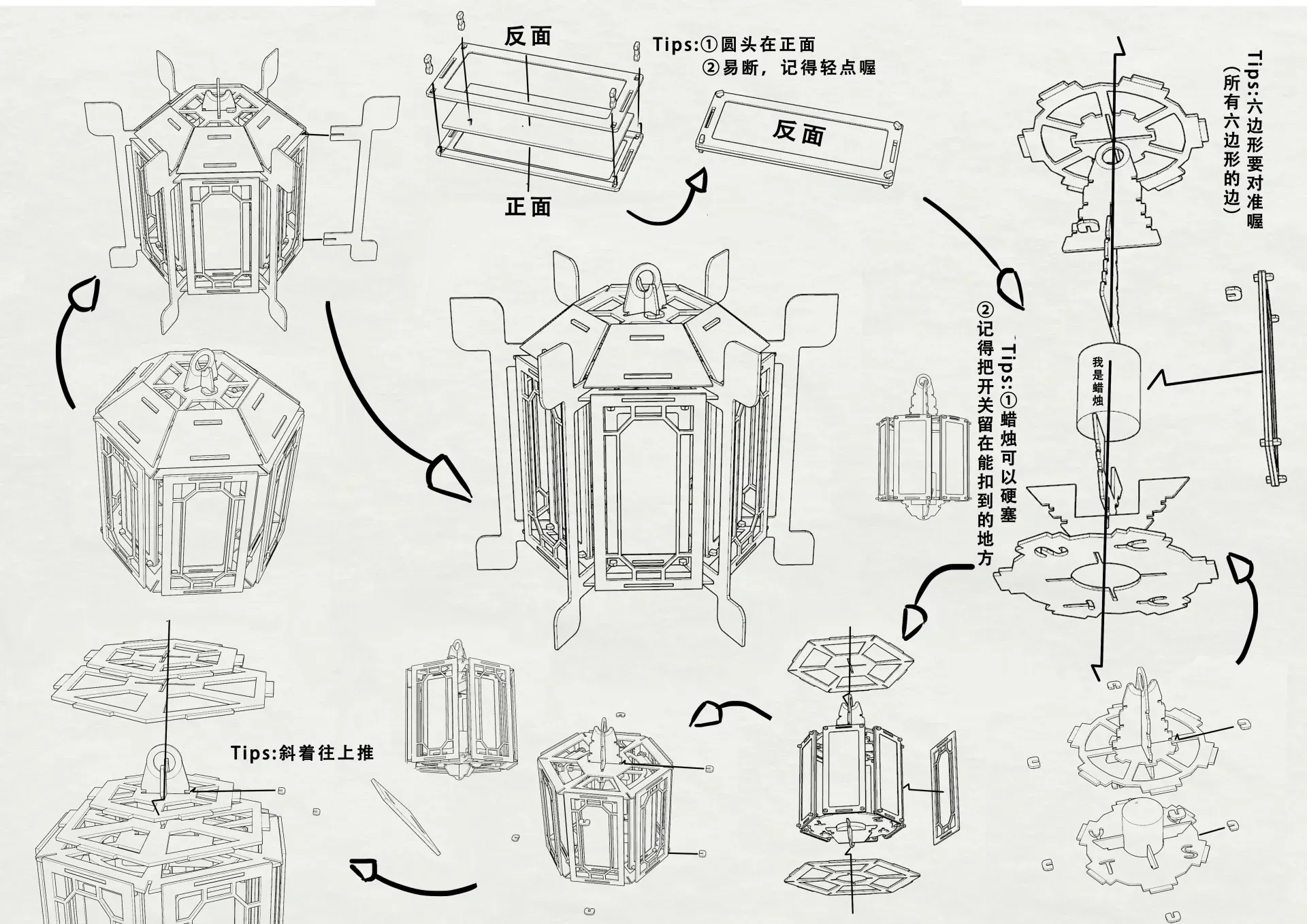

Overall assembly diagram below
An assembly video will be uploaded in a few days. Wishing you all successful prints! Happy New Year!
(Lovestruck, so be it)

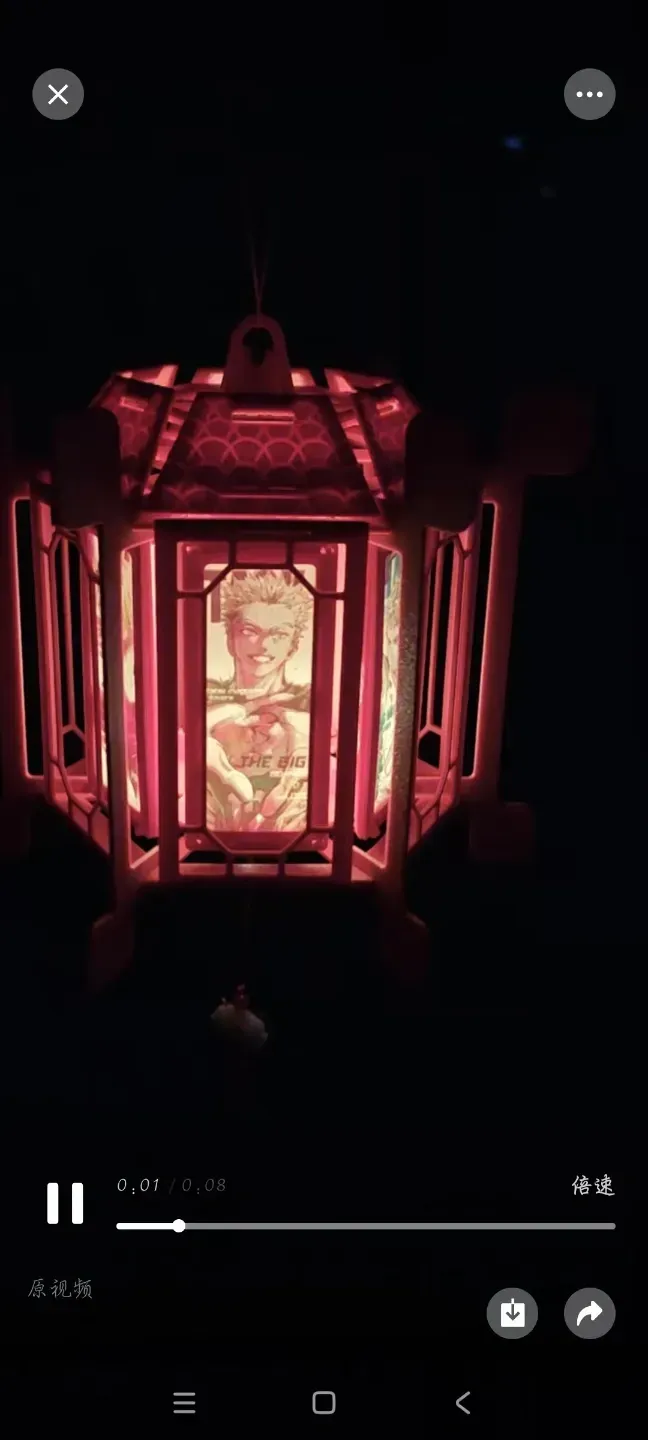

Video here!
