Leveling attachment for XTool RA2
IP Report
Print Profile(1)
0.12mm layer, 2 walls, 15% infill
Designer
3.5 h
1 plate
Open in Bambu Studio
Boost
196
635
29
16
586
288
Released

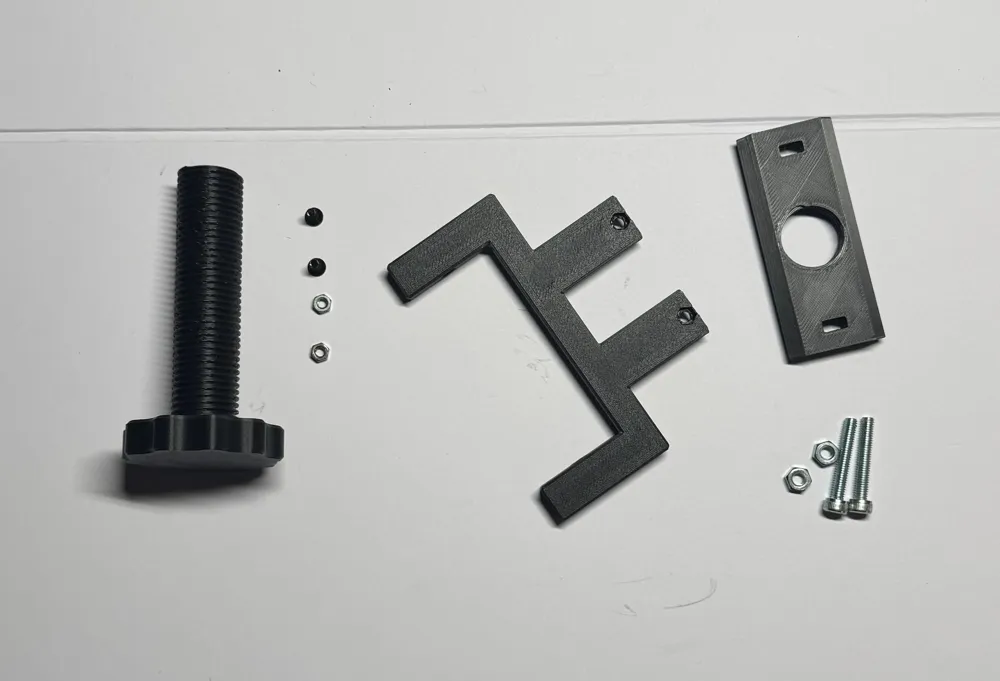

Bill of Materials
List other parts
- M3Mutter x 2:
- M4MutterSelbstichernd x 2:
- M4Schraube x 2:
Description
Content has been automatically translated.

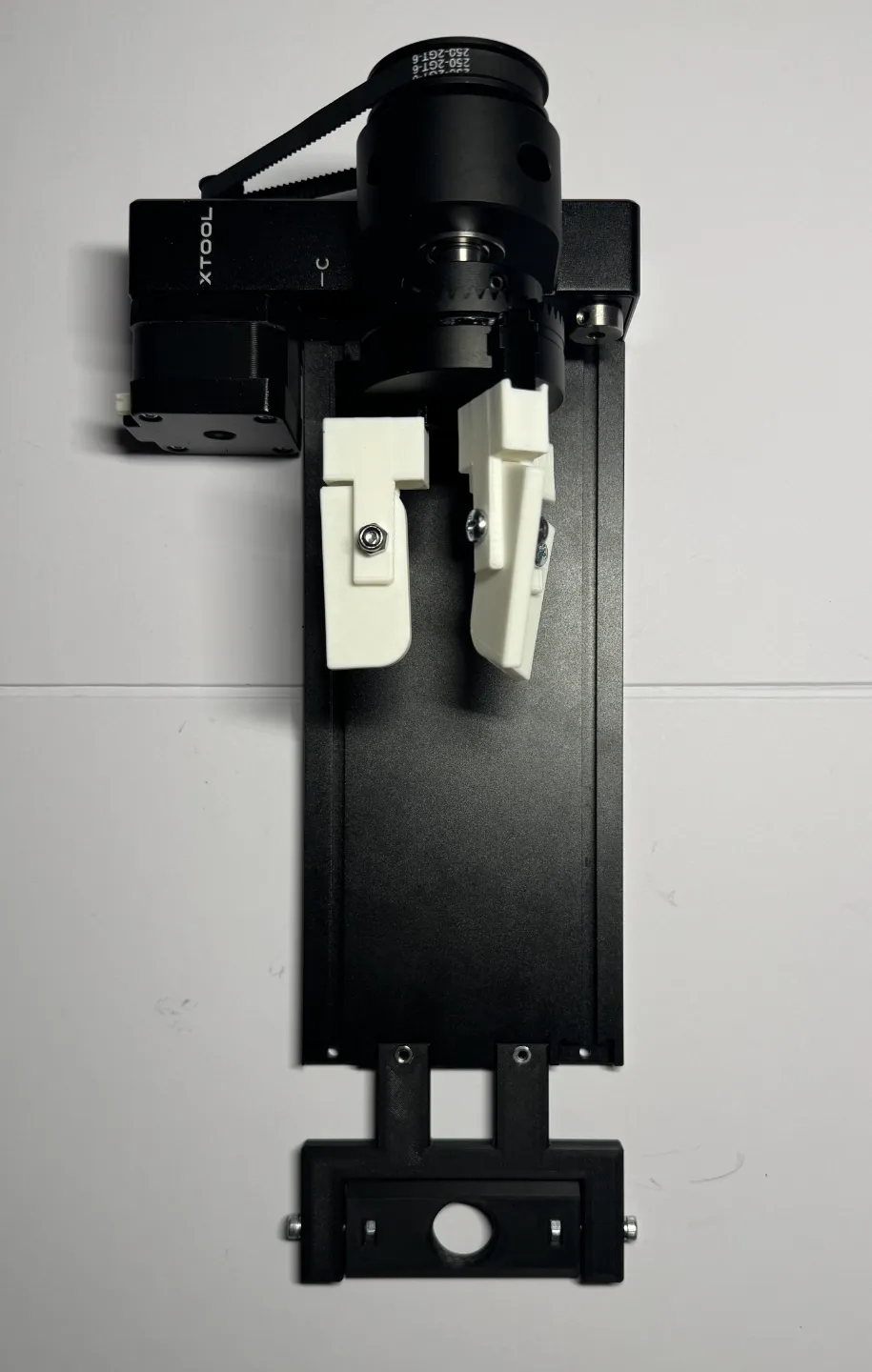

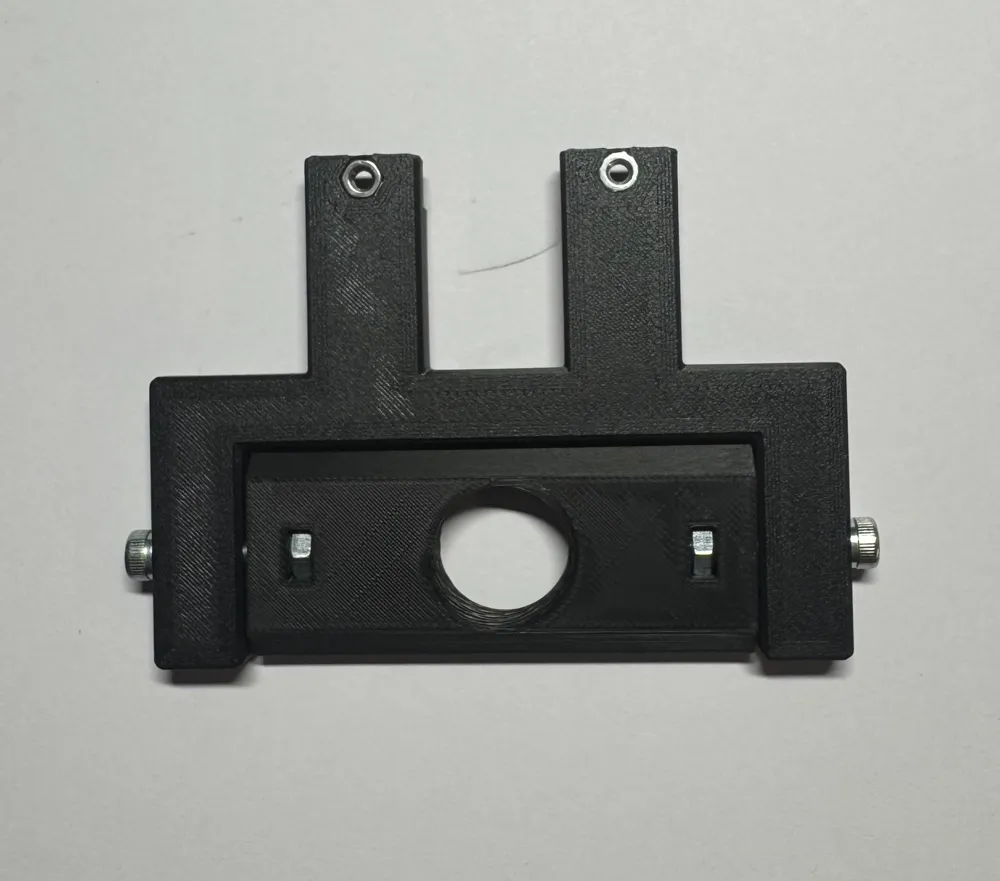

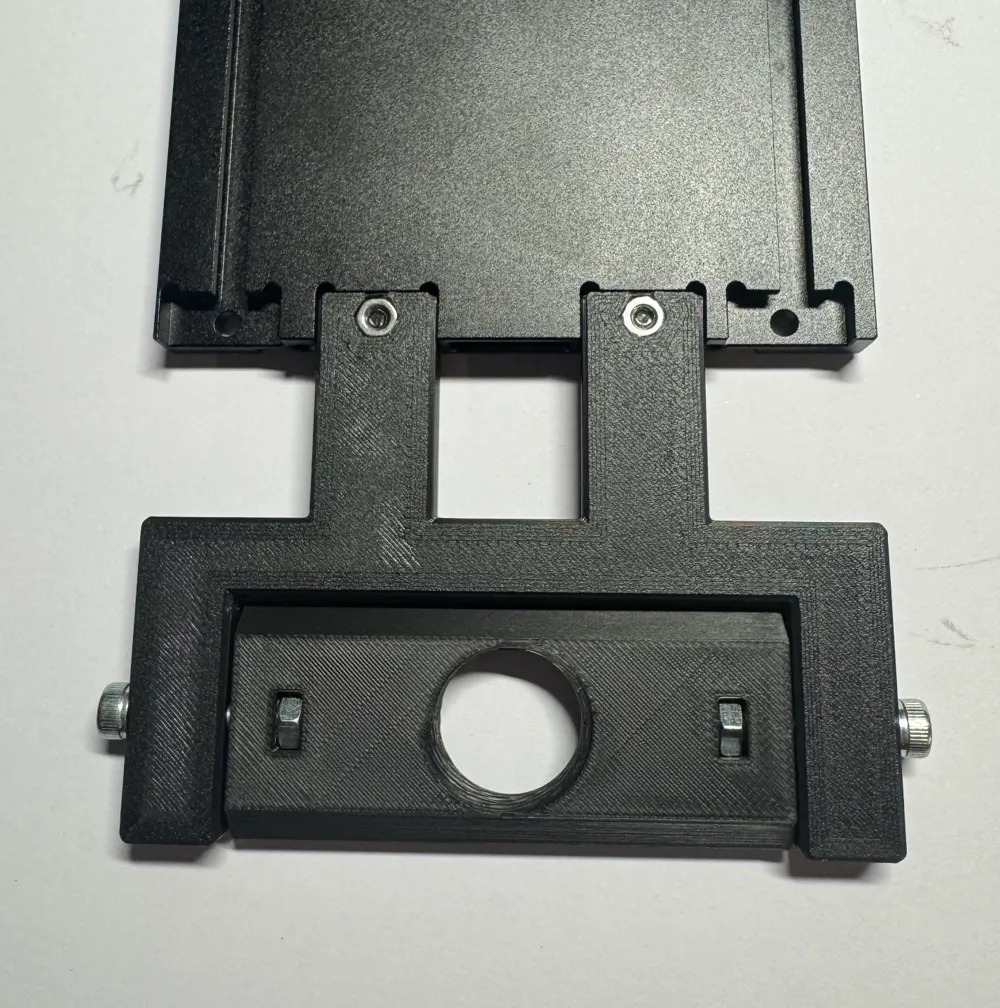

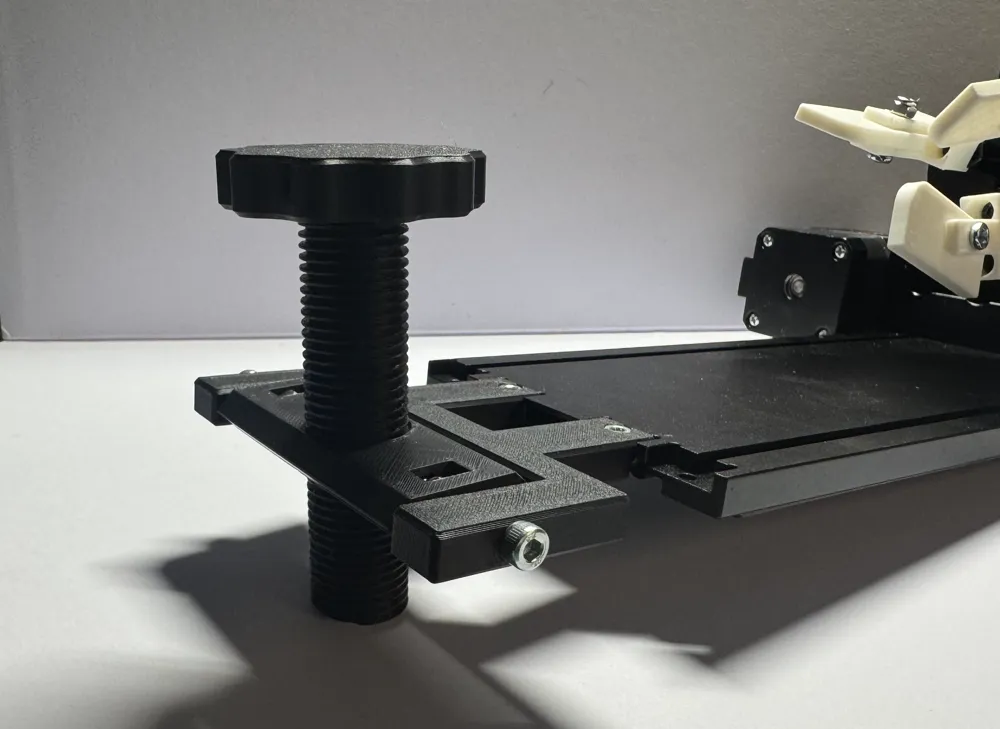

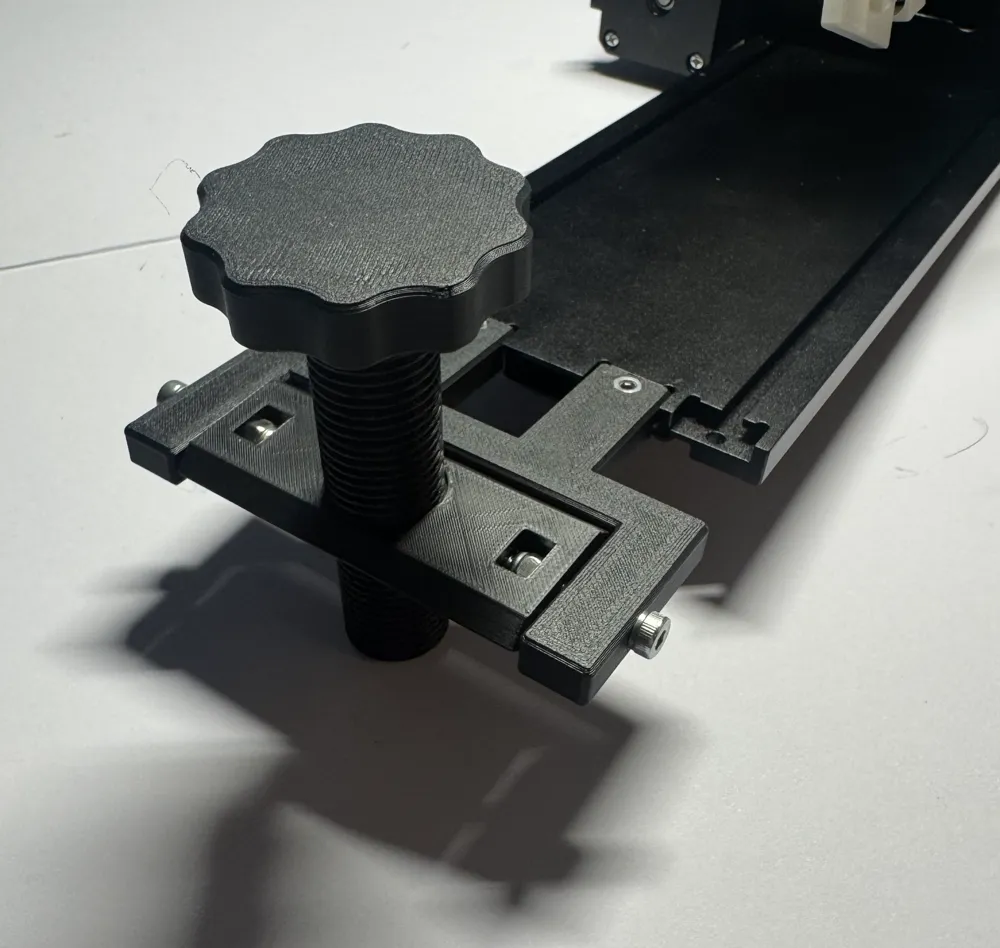

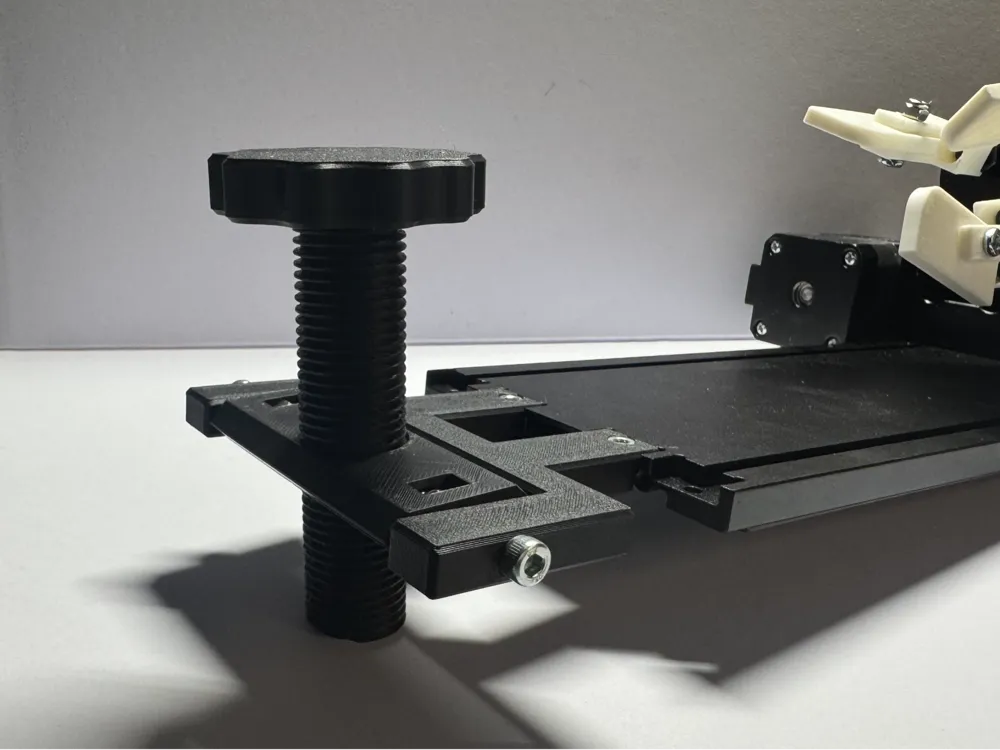

Leveling attachment for the XTool RA2 rotary tool. Conical objects can be easily leveled with this attachment. Even with the leveling attachment mounted, the counter-bearing can still be mounted to the base. The thread of the adjusting screw is designed for good printability and functionality after printing. Two additional M3 nuts are required, which are pressed into the Leveling_NutBody. The Leveling_NutBody is rotatably mounted by two M4 screws, which are held with self-locking nuts.
