Avengers Logo Hueforge - ChromaLink

This is the first Hueforge I've attempted to make and my first upload. It's designed to use the ChromaLink frame made by Superseaslug. It can be printed on it's own  but it's meant to be hung up using the kit found here. If you are using it in the ChromaLink kit please follow the instructions they provided. When loaded into the kit, the colour swaps will need to be added back manually with 18 added to all the layer numbers.

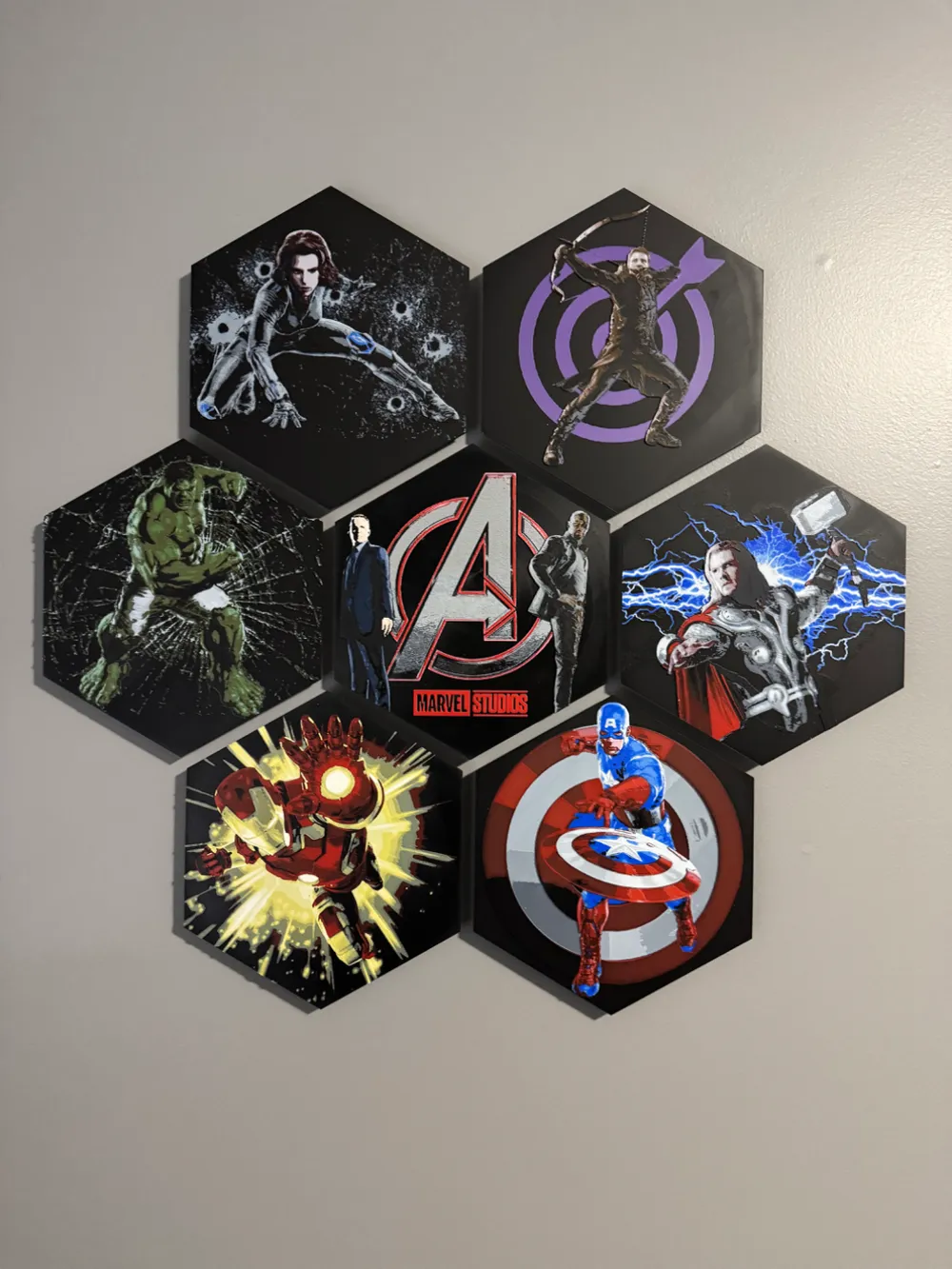

I'll be uploading the rest of the panels as I go. I've already printed the first 7 and plan to keep going until I run out of room on my wall. For the most part I think they turned out alright but I'm sure they could be improved later once I get better at using Hueforge or have access to more colours. I'll be making them all work with a single AMS unit so no more then 4 colors. You can still print it without the AMS but you will need to add pauses whenever there is a colour change. For the filaments I used mostly basic colours so the brand shouldn't matter.

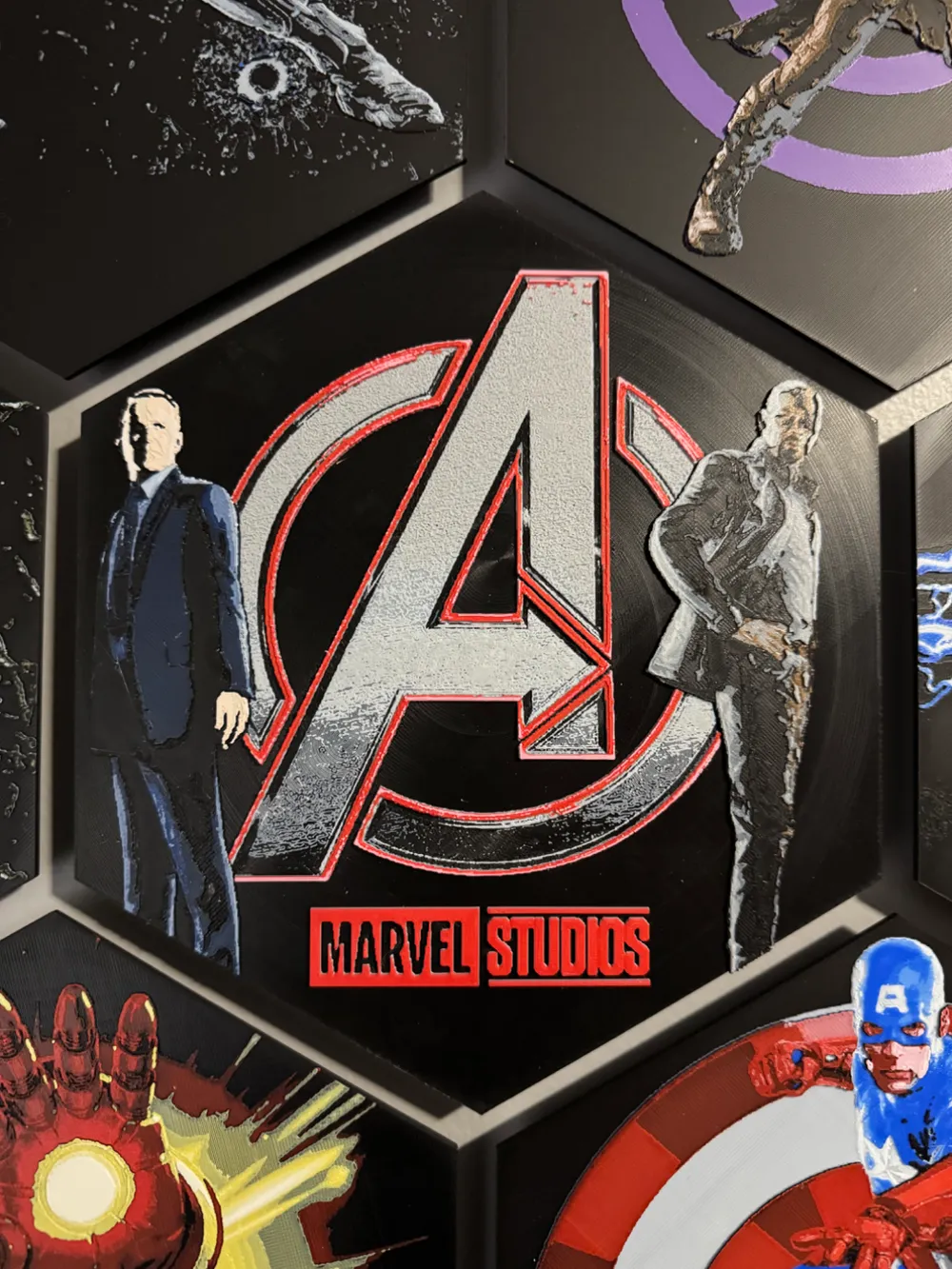

This main logo is the most complicated of the panels so far. It had to be split into 3 parts and glued together to keep the colour count down.

Colors and Filaments

Main Logo:

Filaments Used:
    PLA+ Duramic Black Transmission Distance: 0.6
    PLA BambuLab Basic Jade White Transmission Distance: 5
    PLA+ Duramic Grey Transmission Distance: 2.5
    PLA BambuLab Basic Red Transmission Distance: 3.8
This print uses 4 unique filaments

Swap Instructions:
    Start with Black
    At layer #4 (0.4mm) swap to Jade White
    At layer #7 (0.64mm) swap to Grey
    At layer #12 (1.04mm) swap to Red
    At layer #20 (1.68mm) swap to Jade White for the rest.

Fury:

Filaments Used:
    PLA+ Duramic Black Transmission Distance: 0.6
    PLA+ Esun Brown Transmission Distance: 1.5
    PLA BambuLab Basic Jade White Transmission Distance: 5
    PLA+ Duramic Grey Transmission Distance: 2.5
This print uses 4 unique filaments

Swap Instructions:
    Start with Black
    At layer #5 (0.48mm) swap to Brown
    At layer #6 (0.56mm) swap to Jade White
    At layer #7 (0.64mm) swap to Brown
    At layer #9 (0.8mm) swap to Black
    At layer #14 (1.2mm) swap to Grey
    At layer #19 (1.6mm) swap to Jade White for the rest.

Coulson:

Filaments Used:
    PLA+ Duramic Black Transmission Distance: 0.6
    PLA BambuLab Basic Blue Transmission Distance: 2.5
    PLA BambuLab Basic Jade White Transmission Distance: 5
    PLA PolyLite Pro Army Beige Transmission Distance: 1
This print uses 4 unique filaments

Swap Instructions:
    Start with Black
    At layer #6 (0.56mm) swap to Blue
    At layer #8 (0.72mm) swap to Jade White
    At layer #11 (0.96mm) swap to Army Beige
    At layer #15 (1.28mm) swap to Jade White for the rest.
