Kove 800x dashboard navigation adaptor for phone
Print Profile(1)
Bill of Materials
- stock TFT extension cable x 1:
- 5mm closed cell foam x 1:
Description

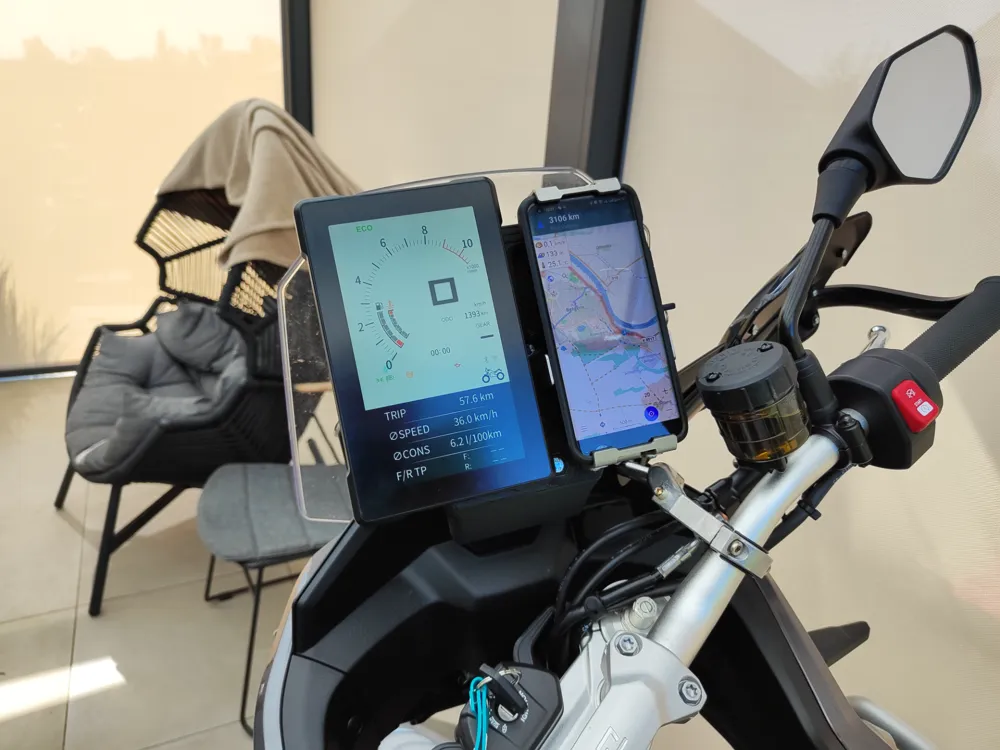

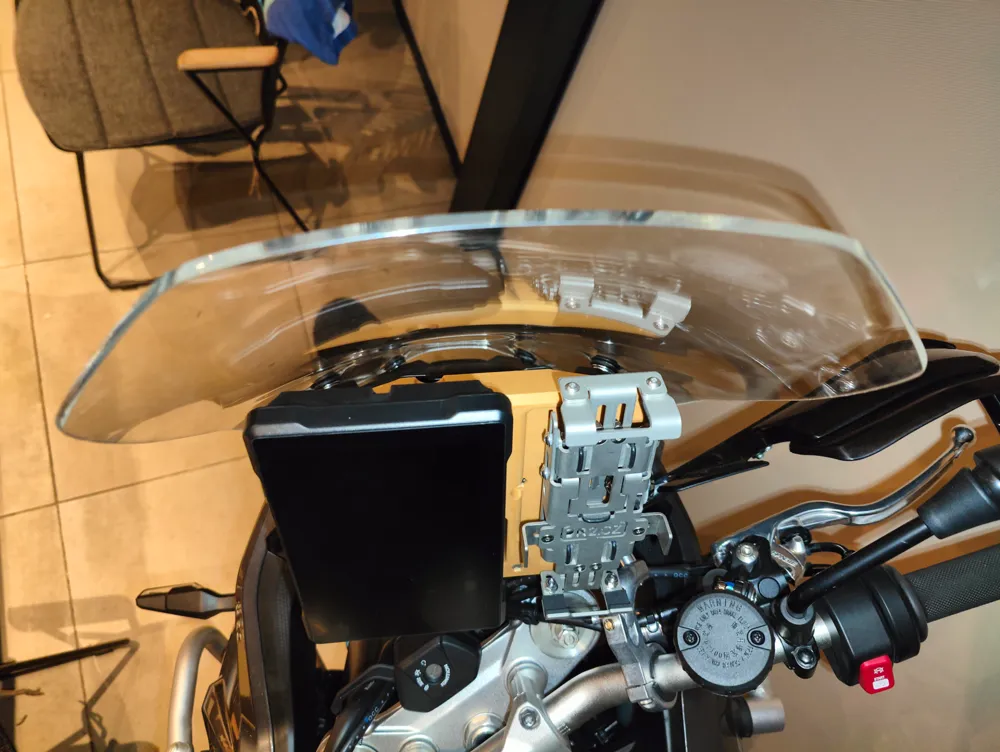

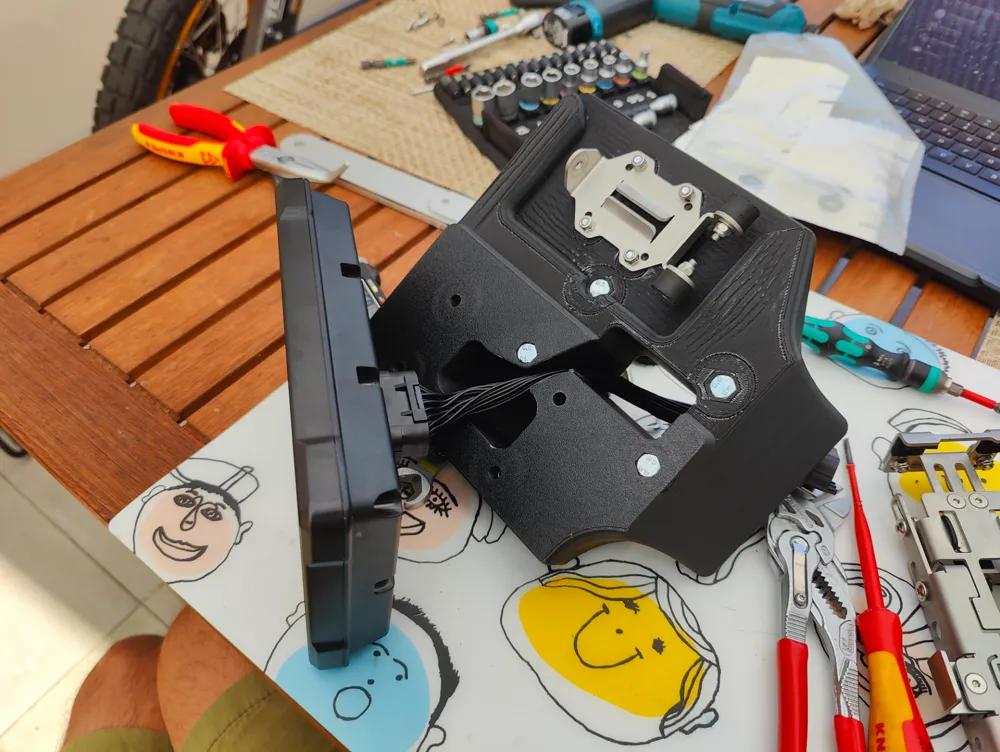

The mount is designed to take the universal phone holder by DRZAK ( https://www.moto-drzak-mobilu.cz ) - which I think is superb. Surely you could modify it to take any other phone mount aswell, easy(ly). It also requires an extension cable for the stock TFT, which can be bought here: https://tinyurl.com/33cz6hb3
Feel free to modify, but let me know, please :)

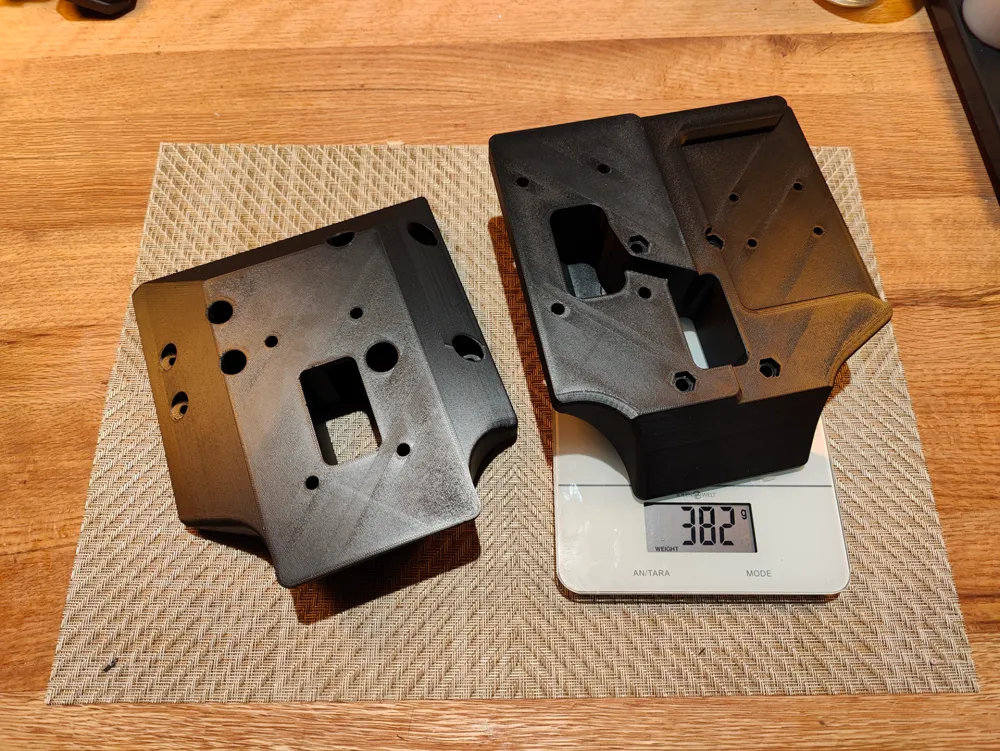

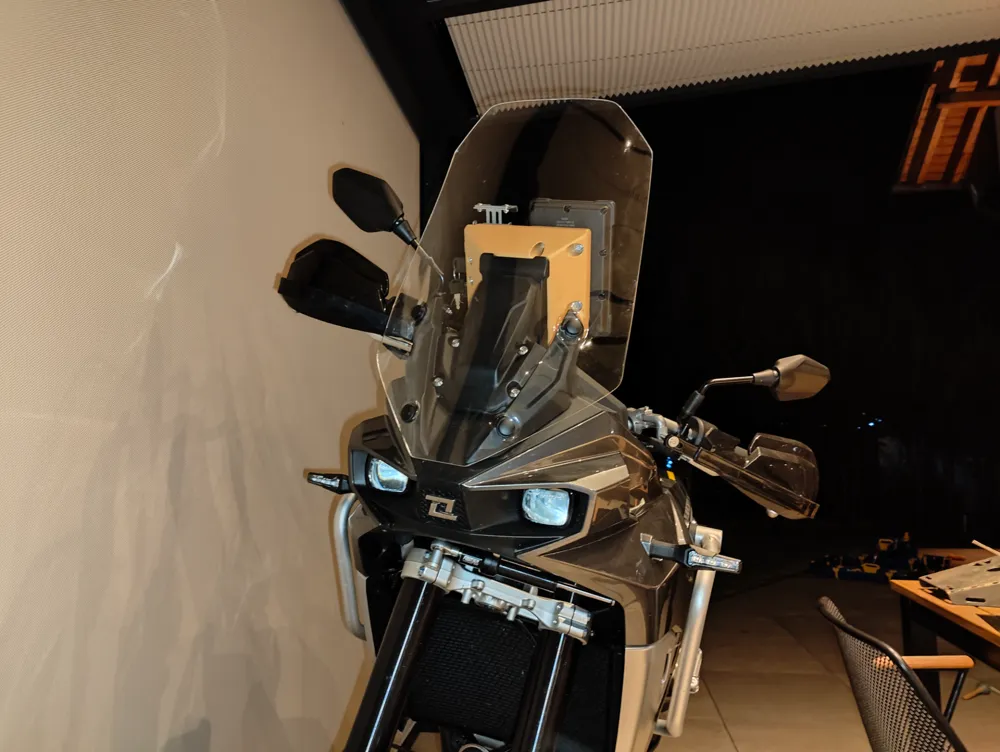

Print in PETG or PA or alike, PLA won't hold up for long. In This case I only had GOLDEN filament left, black will integrate with the bike much better ;) As You can see, it fit's with stock small windshield aswell as the larger ones (55cm in this case) sold on Aliexpress.
You will need some bolts and washers to mount everything, but i think it is quite obvious so I refrain from listing them here. I would also recommend sticking a layer of self-adhesive closed cell foam to the back side before mounting it and possibly also put rubber under the washers/nuts when bolting to the bike - depending on the amount/type of offfroad you do, this will prevent everything from shaking.

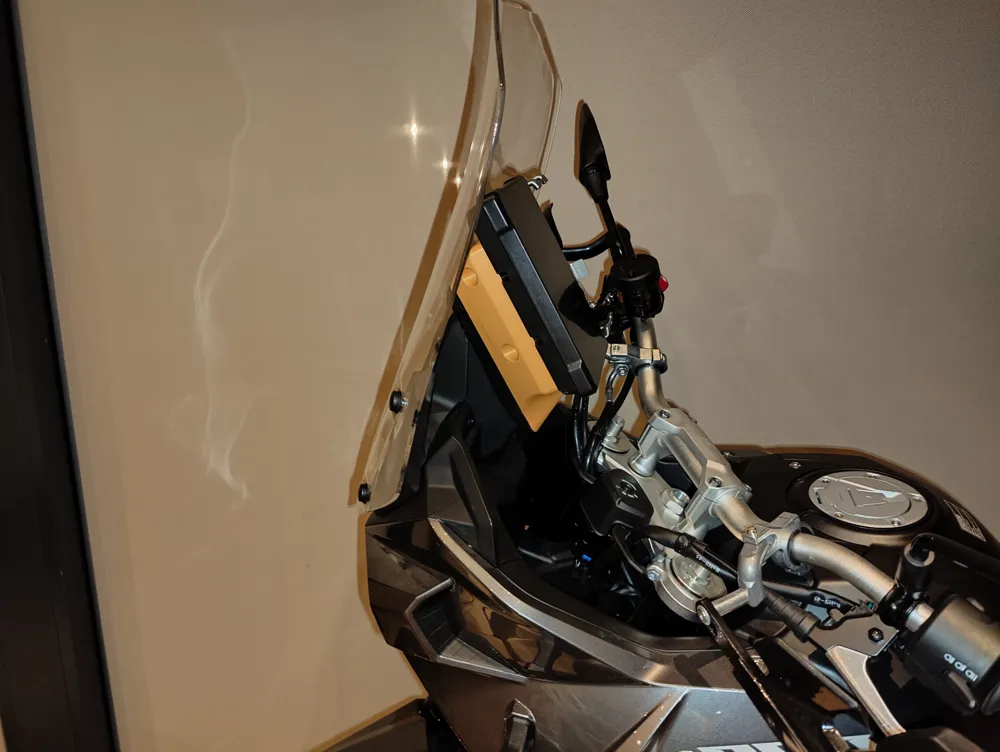

Why did I move the TFT up? Because on full turning circle the handlebar would hit the TFT, especially if you have handguards like bark busters installed. The actual viewing angle of the TFT stays stock, so you should have no problems reading it.
