Track (Saw) Wall Mount - Horizontal and Vertical!
Print Profile(3)
Description

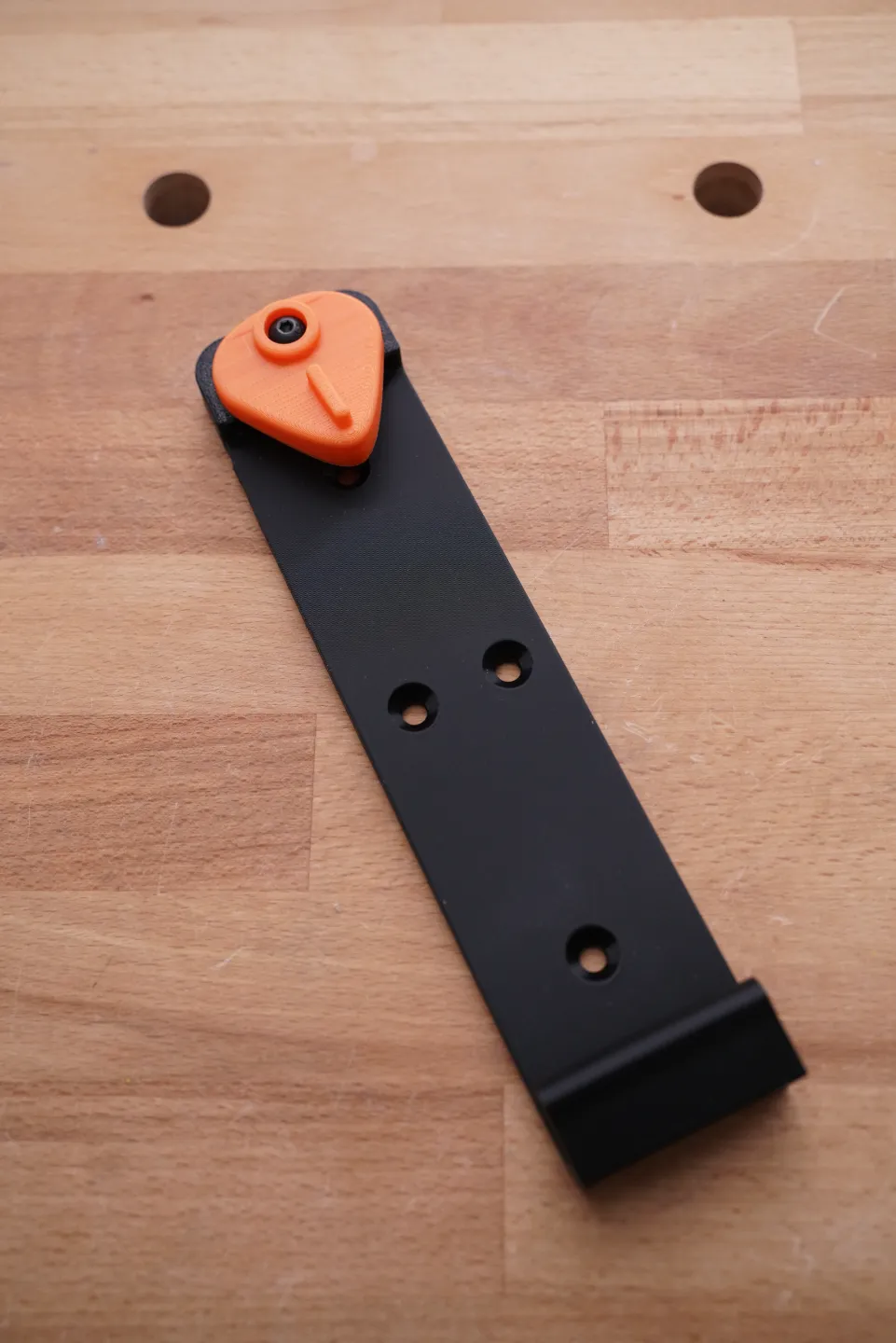

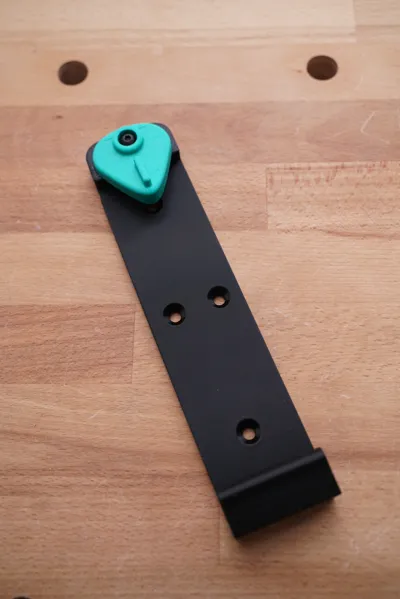

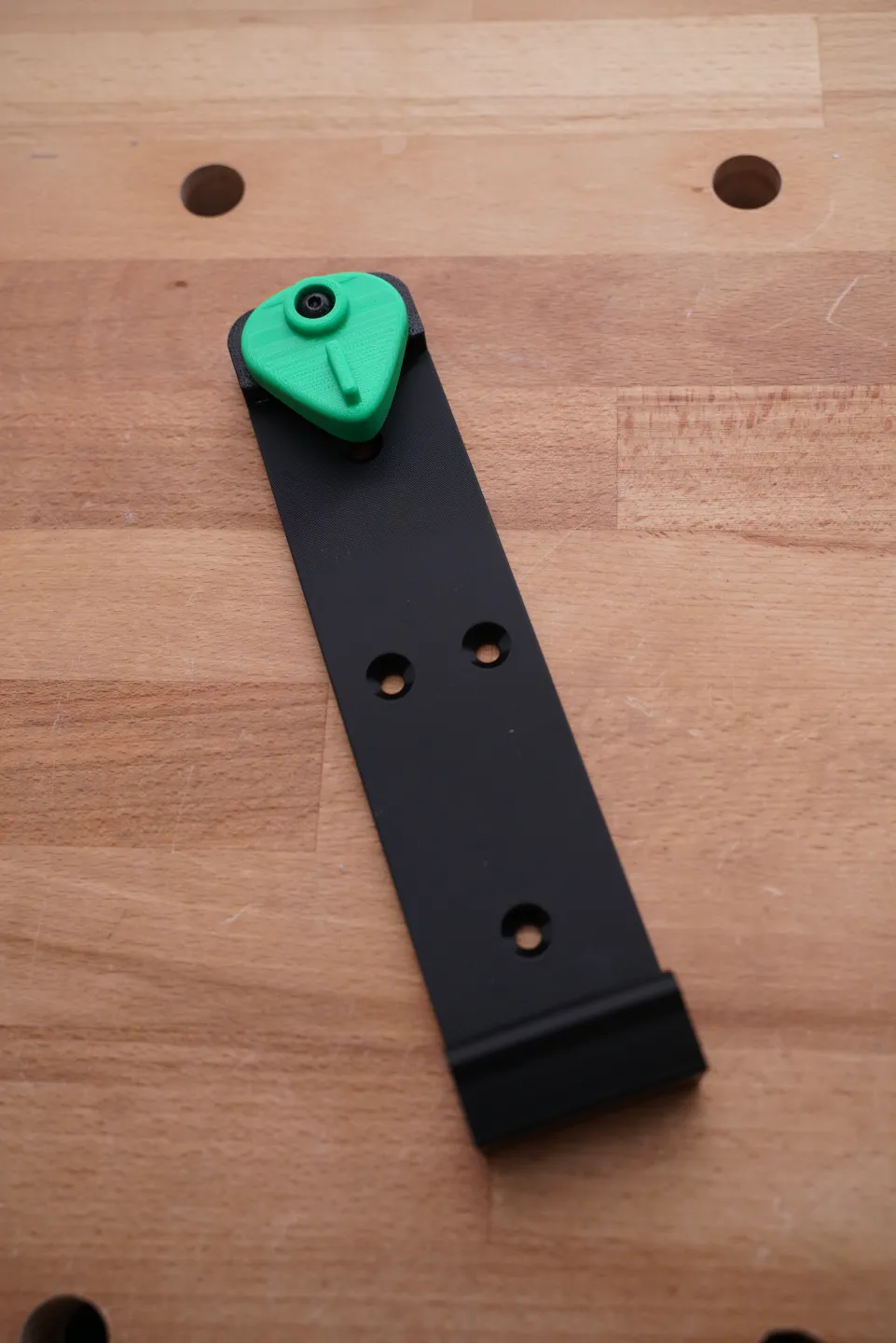

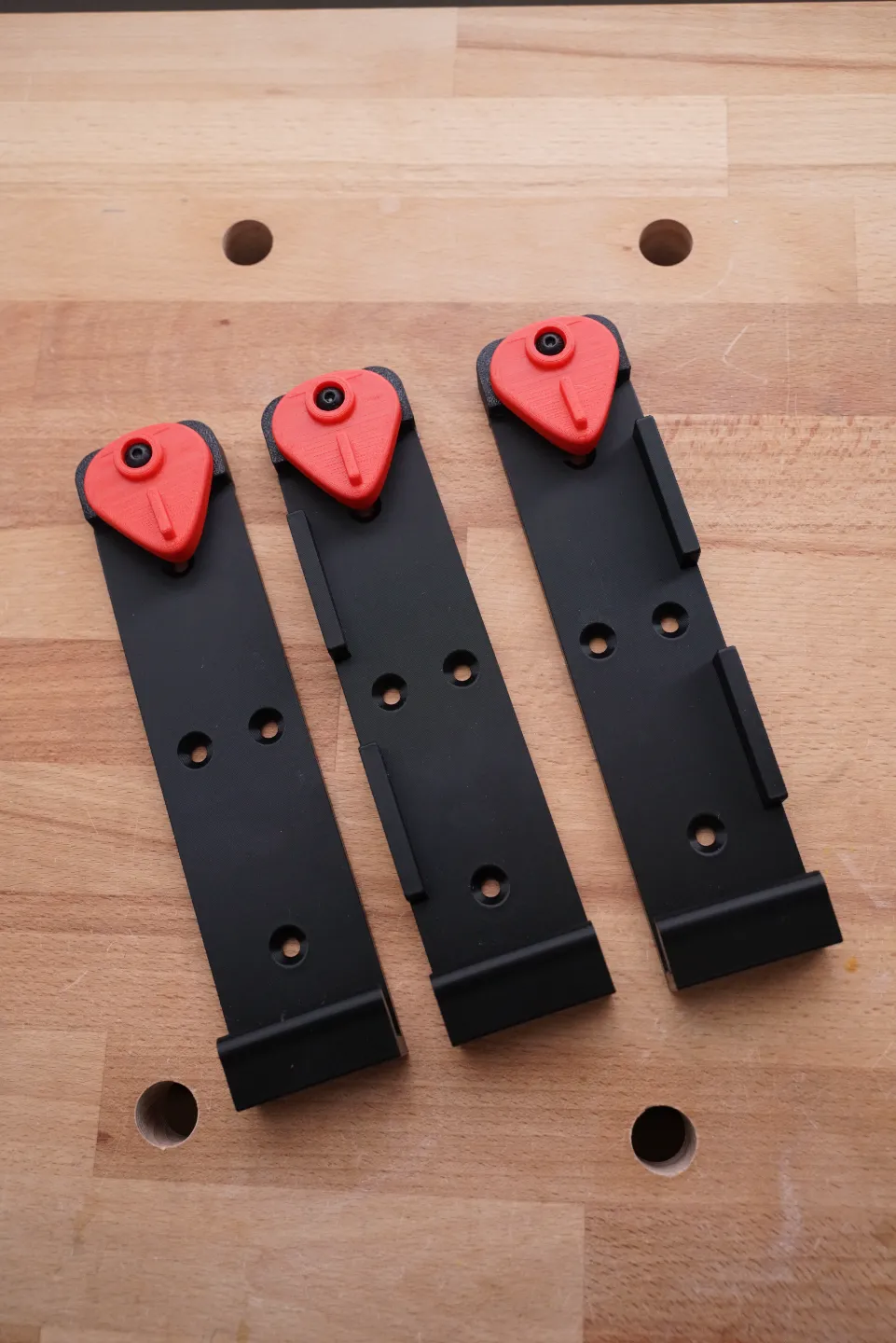

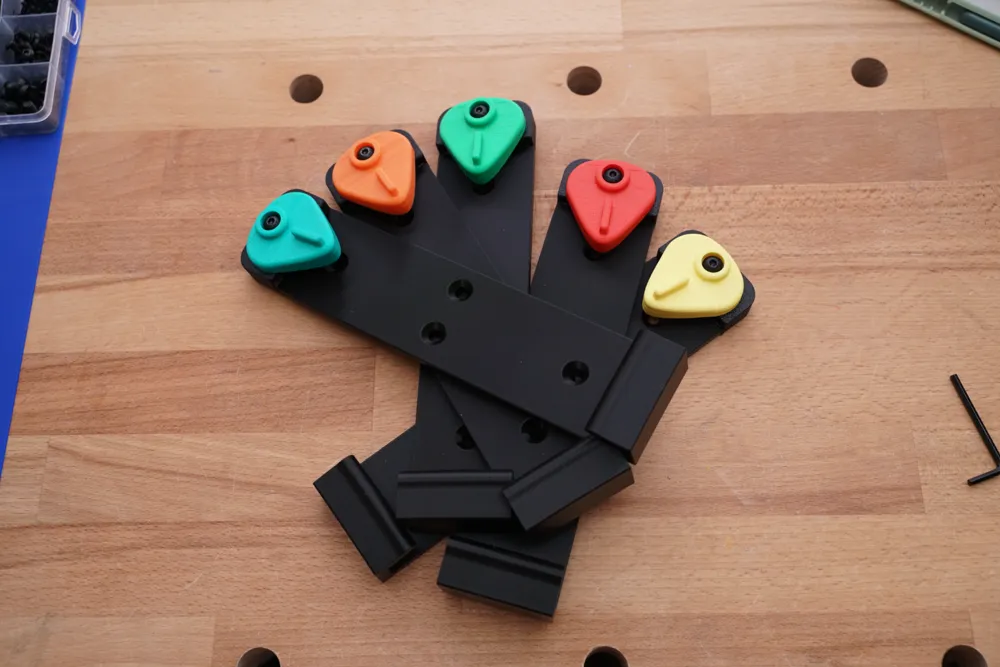

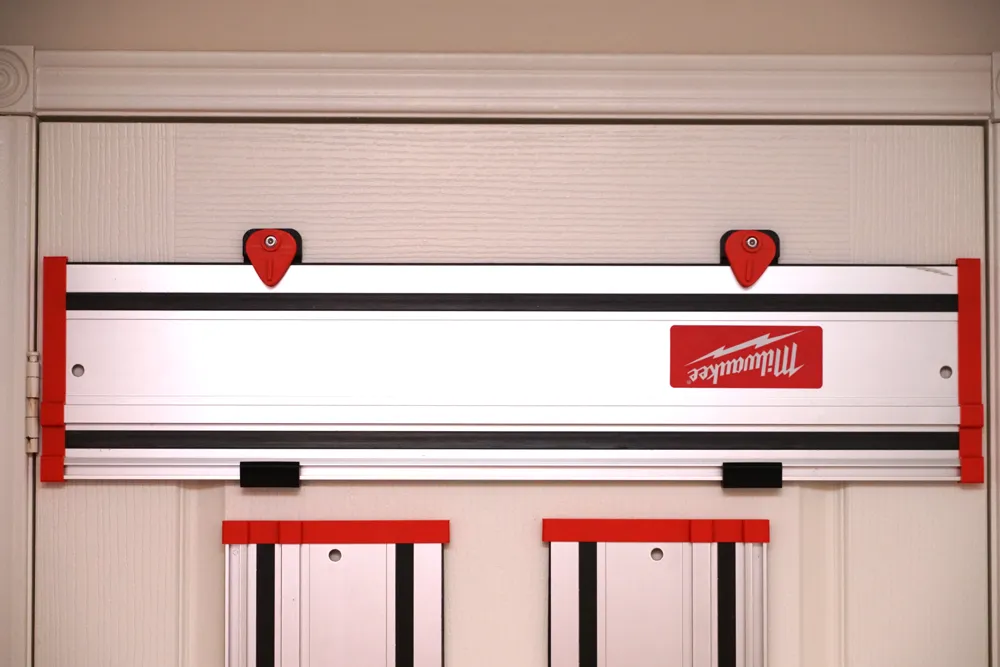

A wall mount bracket system for your saw tracks that let them be hung in HORIZONTAL or VERTICAL position. Huge space saver!

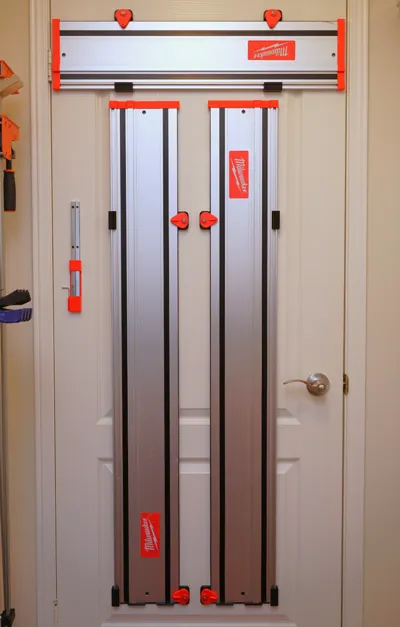

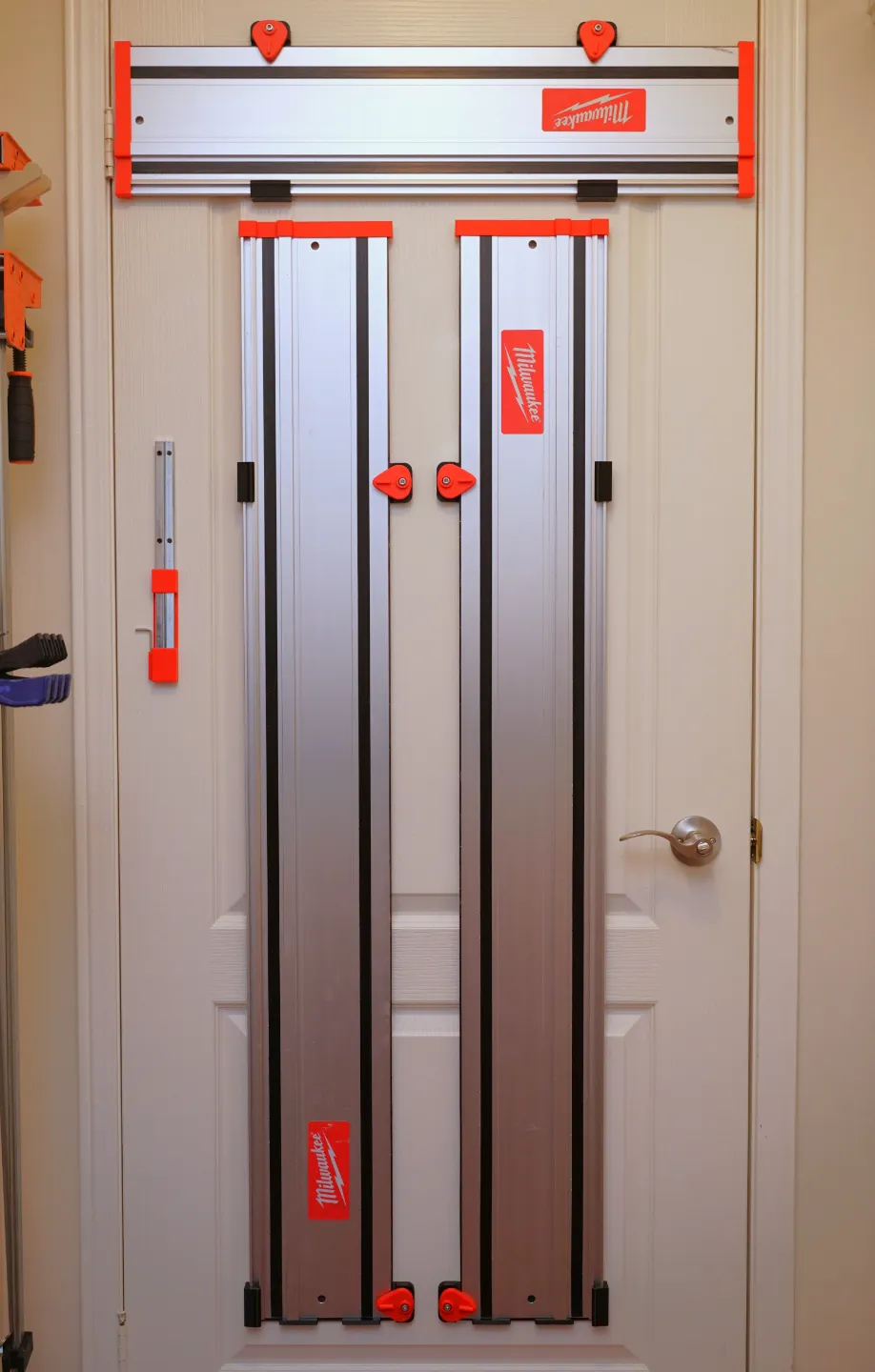

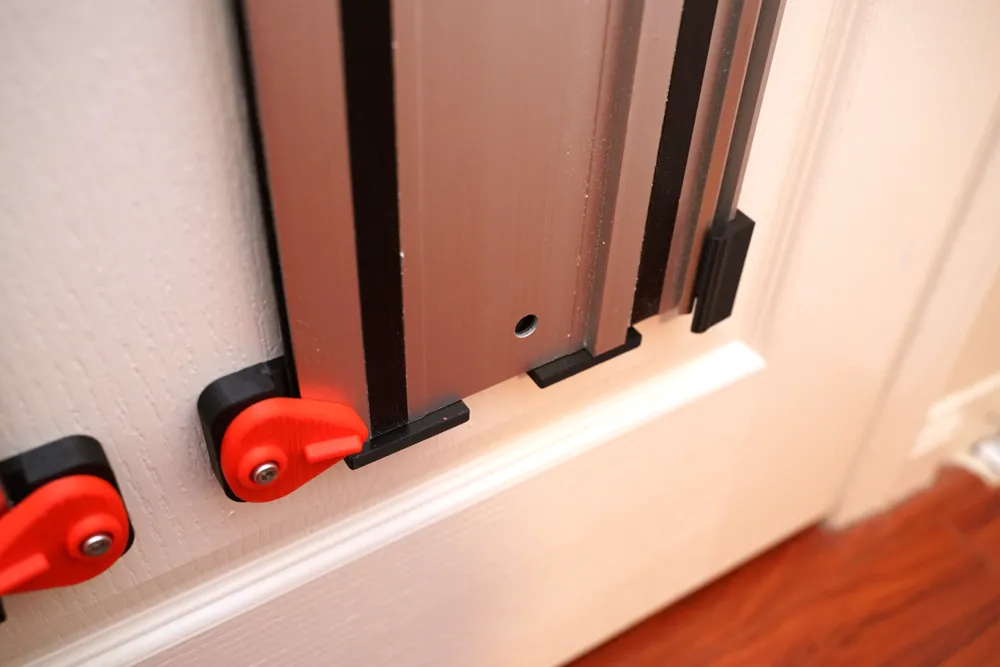

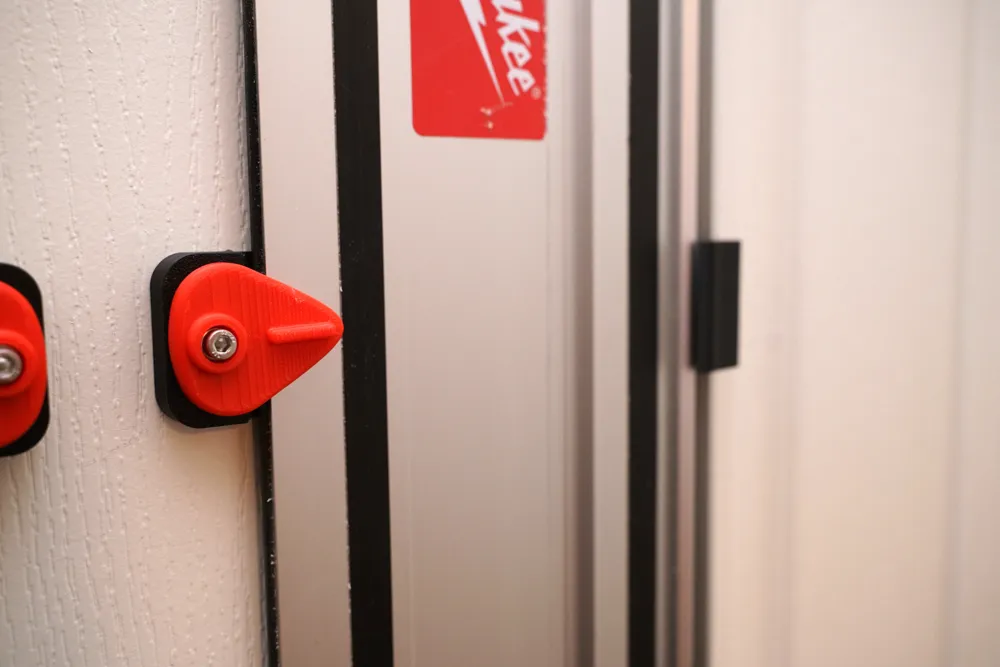

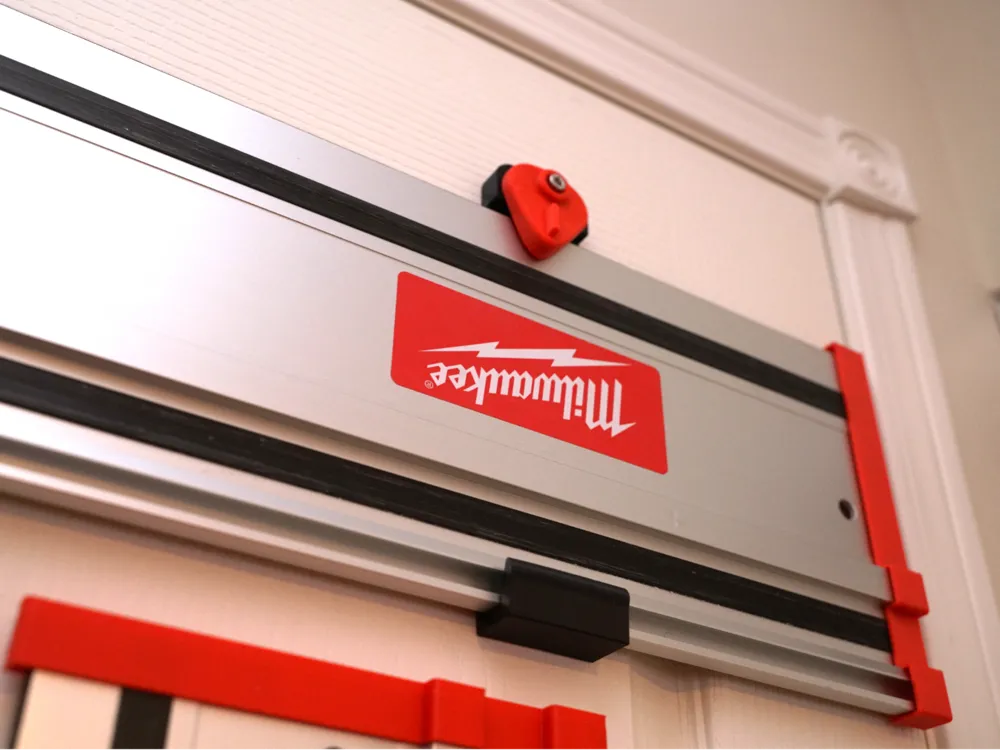

I mounted them on the door to my shop for maximum space savings. The swiveling cam is much more ergonomic than the other spiky designs or semi-circle designs seen in other track mounts.
I've tested these with the Milwaukee tracks but Makita, Festool, Wen, and even DeWalt should fit no problem.
Hardware need to mount the swiveling cam
(1) M5 x 20mm bolt (may be able to get by with 16mm)
(1) M5 washer
(1) M5 nut

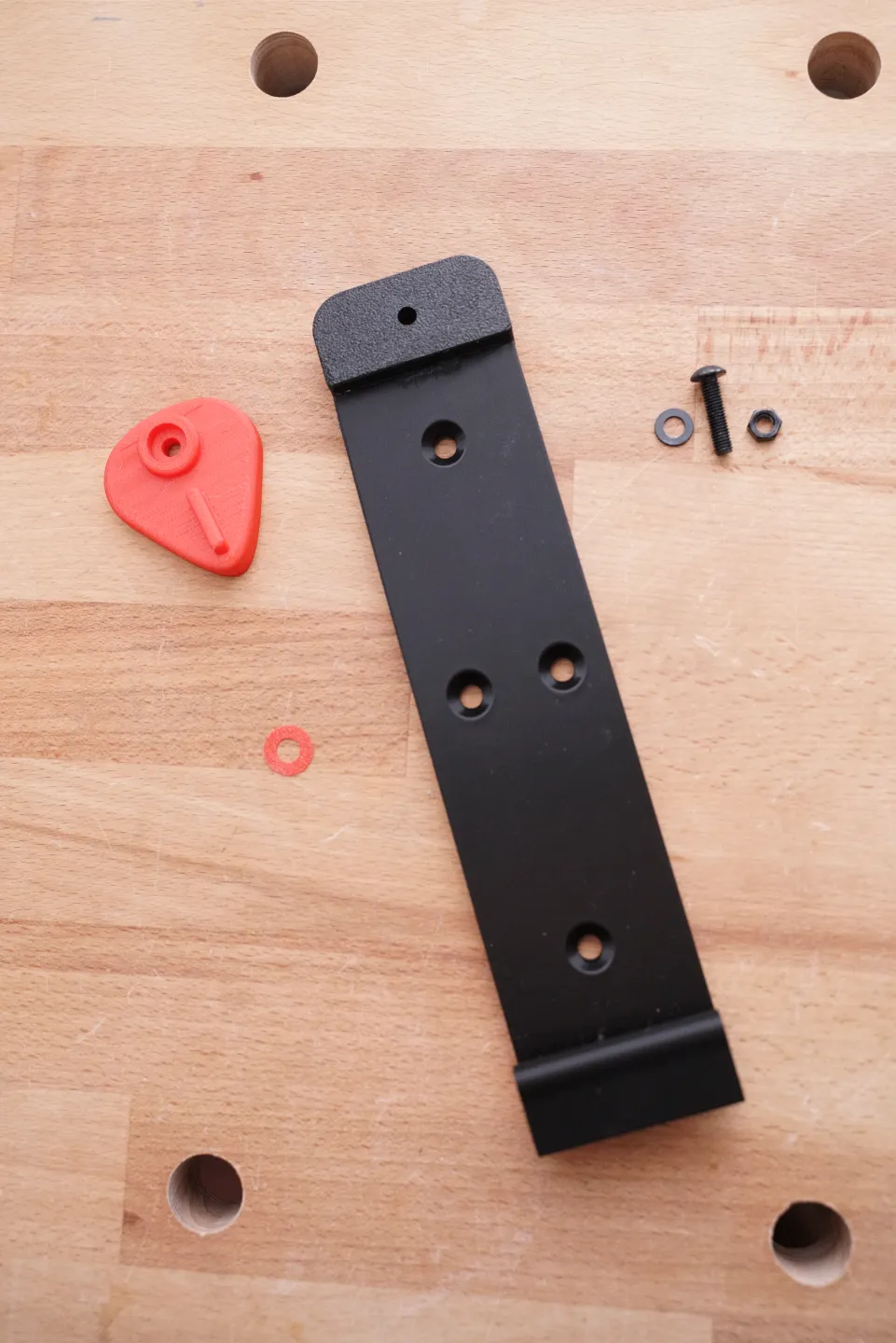

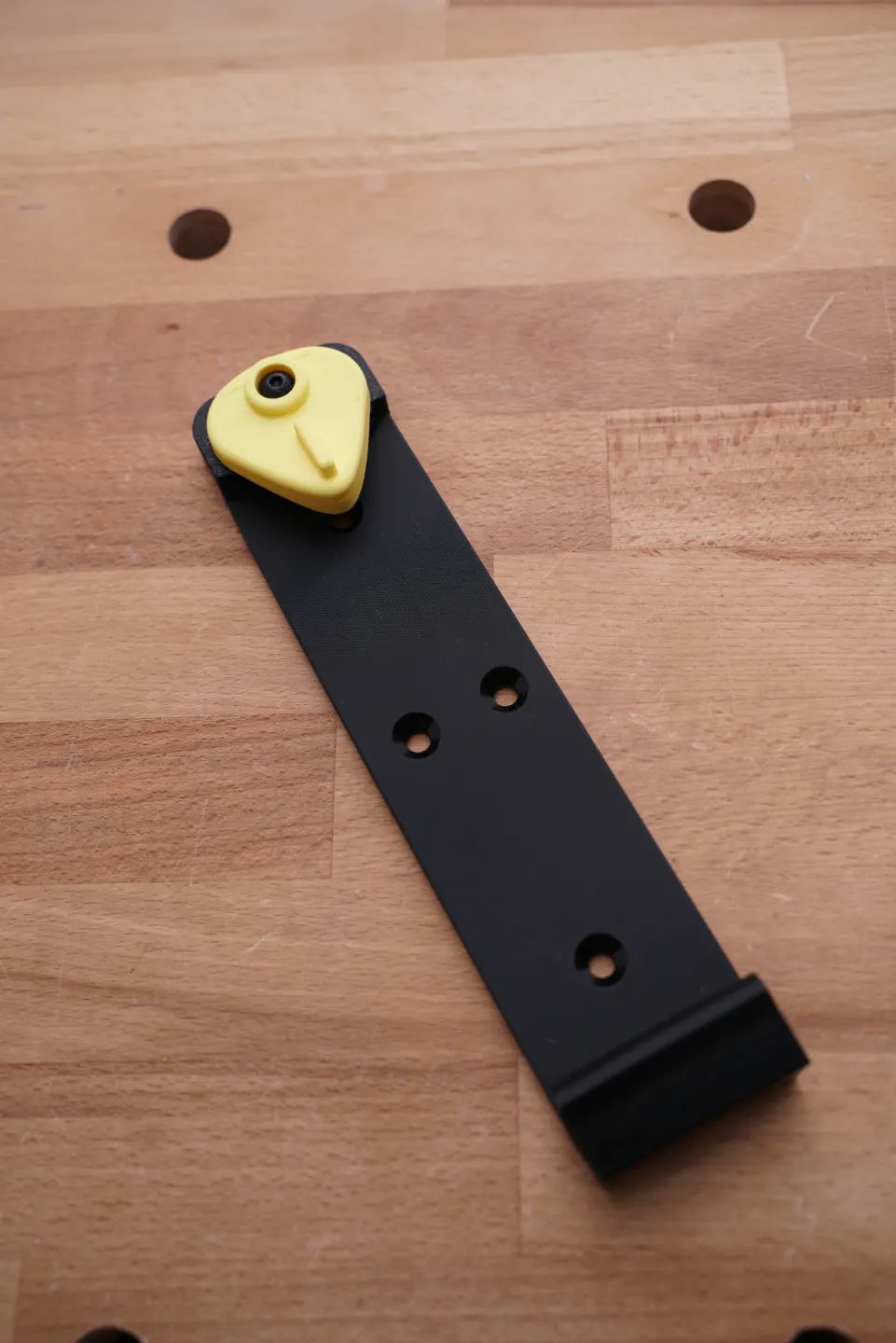

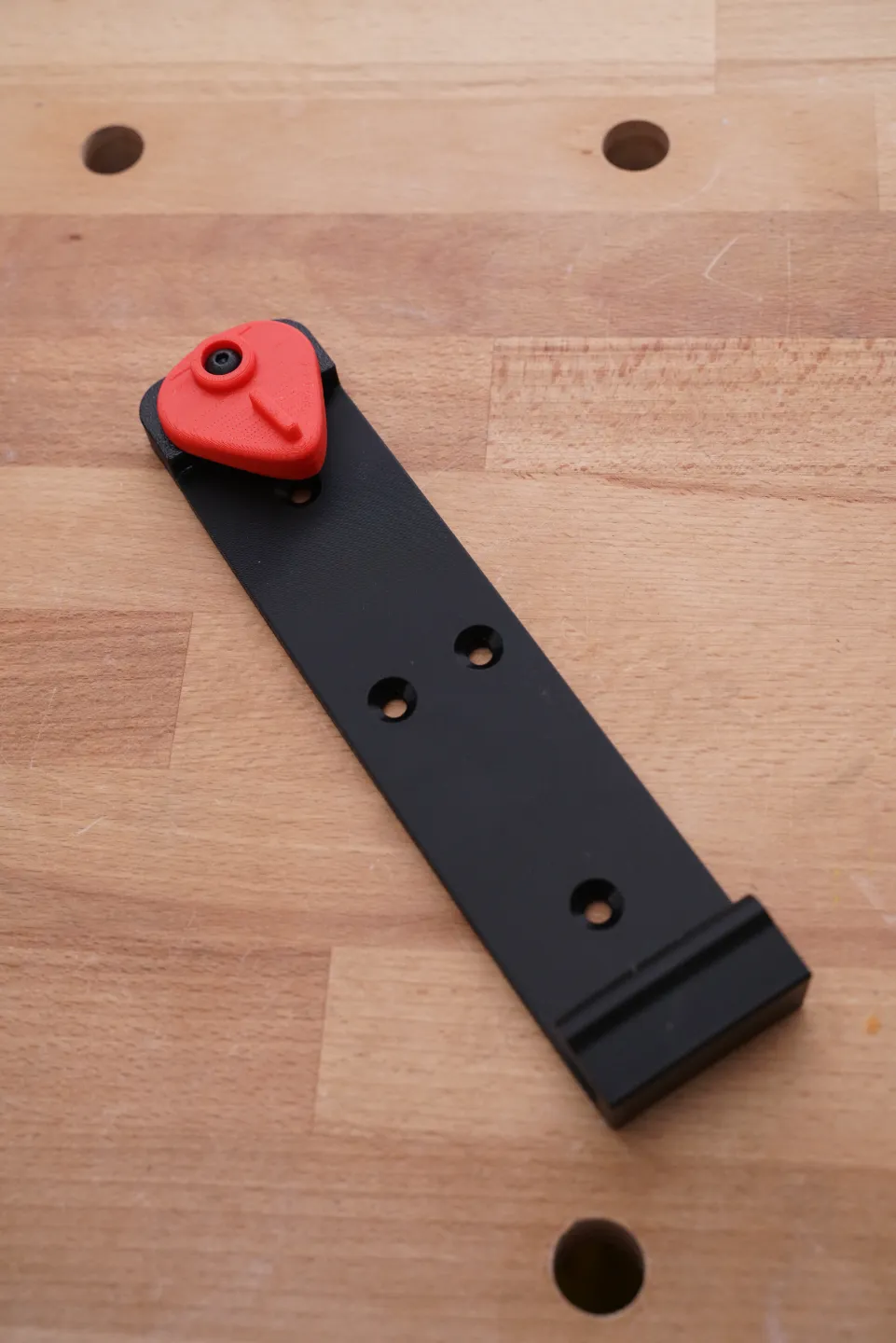

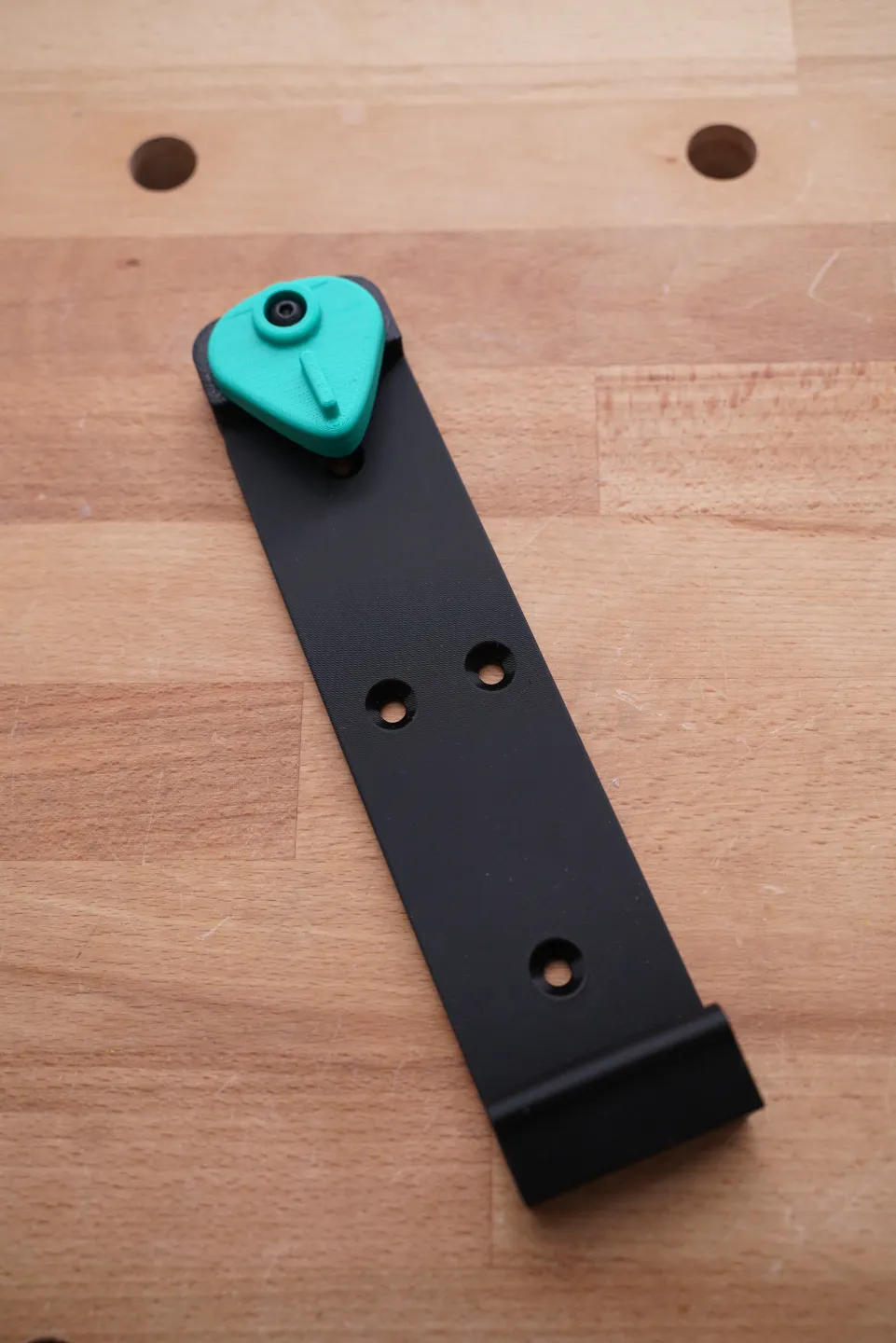

Assembly involves putting the nut and washer through the top of the swiveling cam, printed washer between the cam and bracket/mount body, and nut in the nut slot on the bottom.
A1 mini pre-cut profile also included, simply use CA glue to attach the bracket head to the body (sanding between the areas to be glued helps).
Got the Milwaukee extension guide rails? Check out my guide rails wall mount to keep all your track accessories organized:
https://makerworld.com/en/models/969711
Boost Me (for free)
I enjoy making practical designs for the woodworking shop. I am new at this so appreciate all the support! Thank you!
