Zero Clearance Bosch Professional GTS10XC

Davide Contestabile
Tools>Machine Tools
IP Report

Print Profile(1)

All
P1S
P1P
X1
X1 Carbon
X1E
A1
H2D
H2D Pro
H2S
P2S
H2C
X2D
A2L
0.2mm layer, 6 walls, 25% infill patterns rectilinear
0.2mm layer, 6 walls, 25% infill patterns rectilinear
Designer
4.6 h
2 plates
4.7(36)
Open in Bambu Studio
Boost
206
776
50
32
654
314
Released

Description

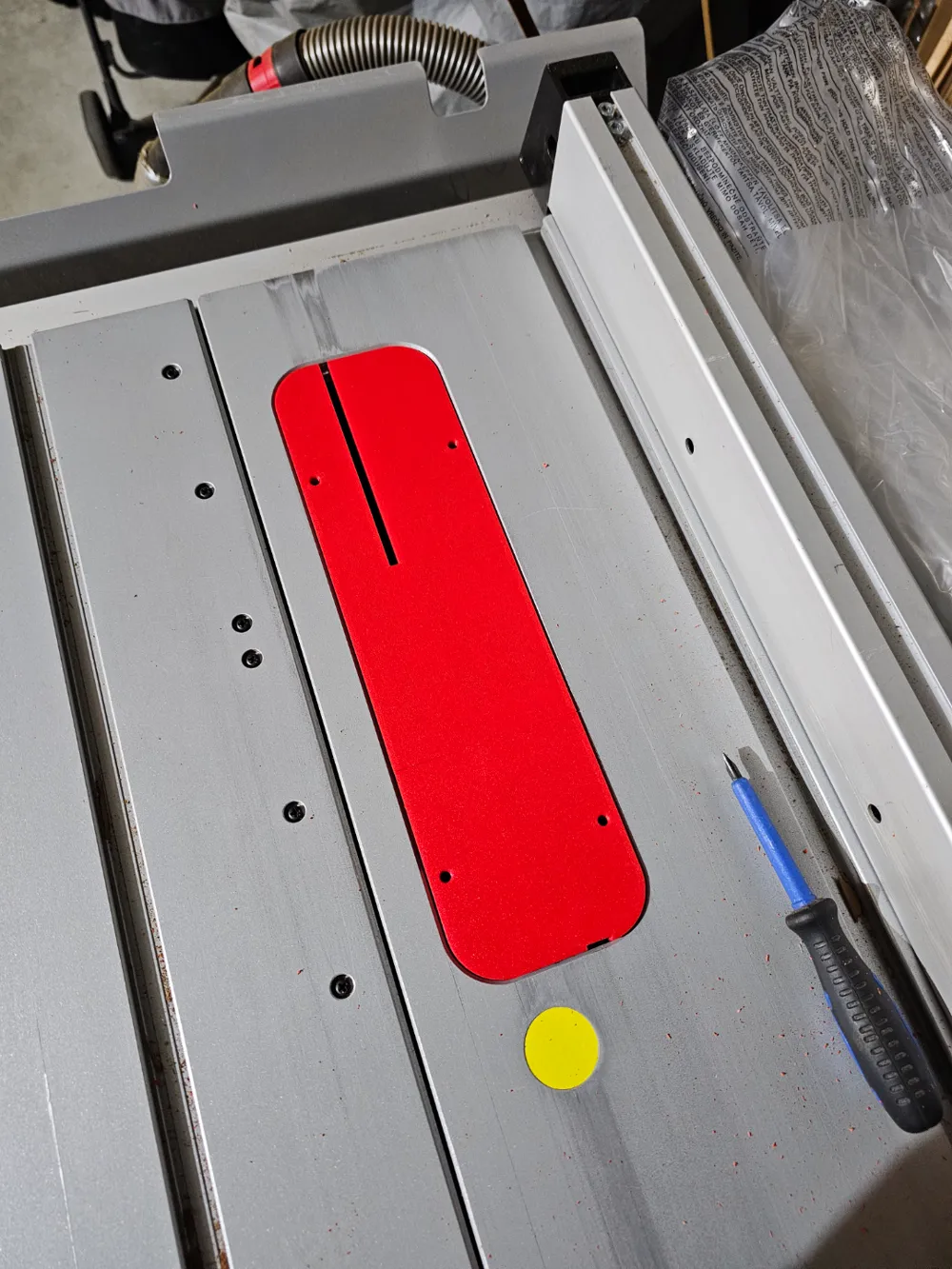

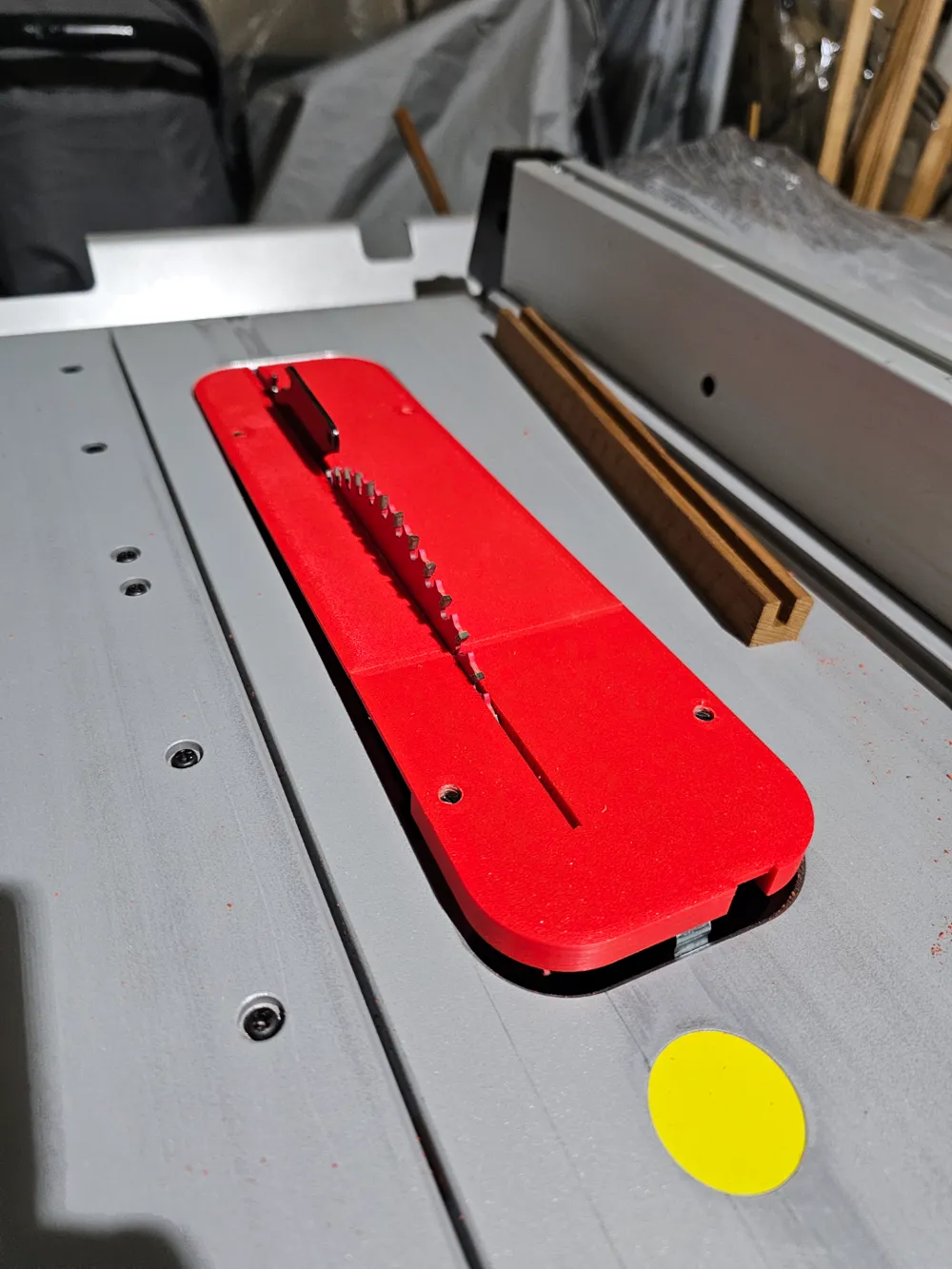

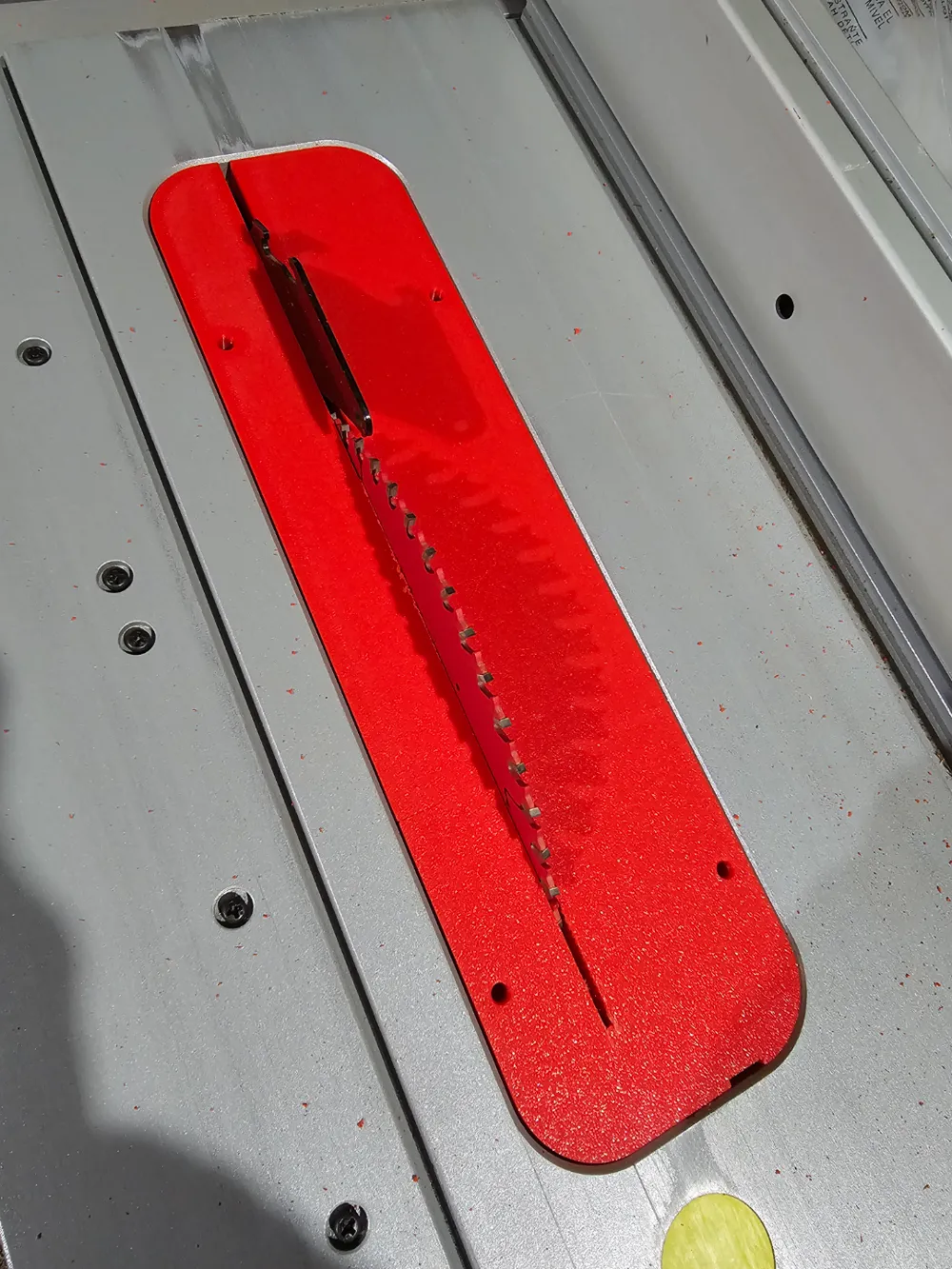

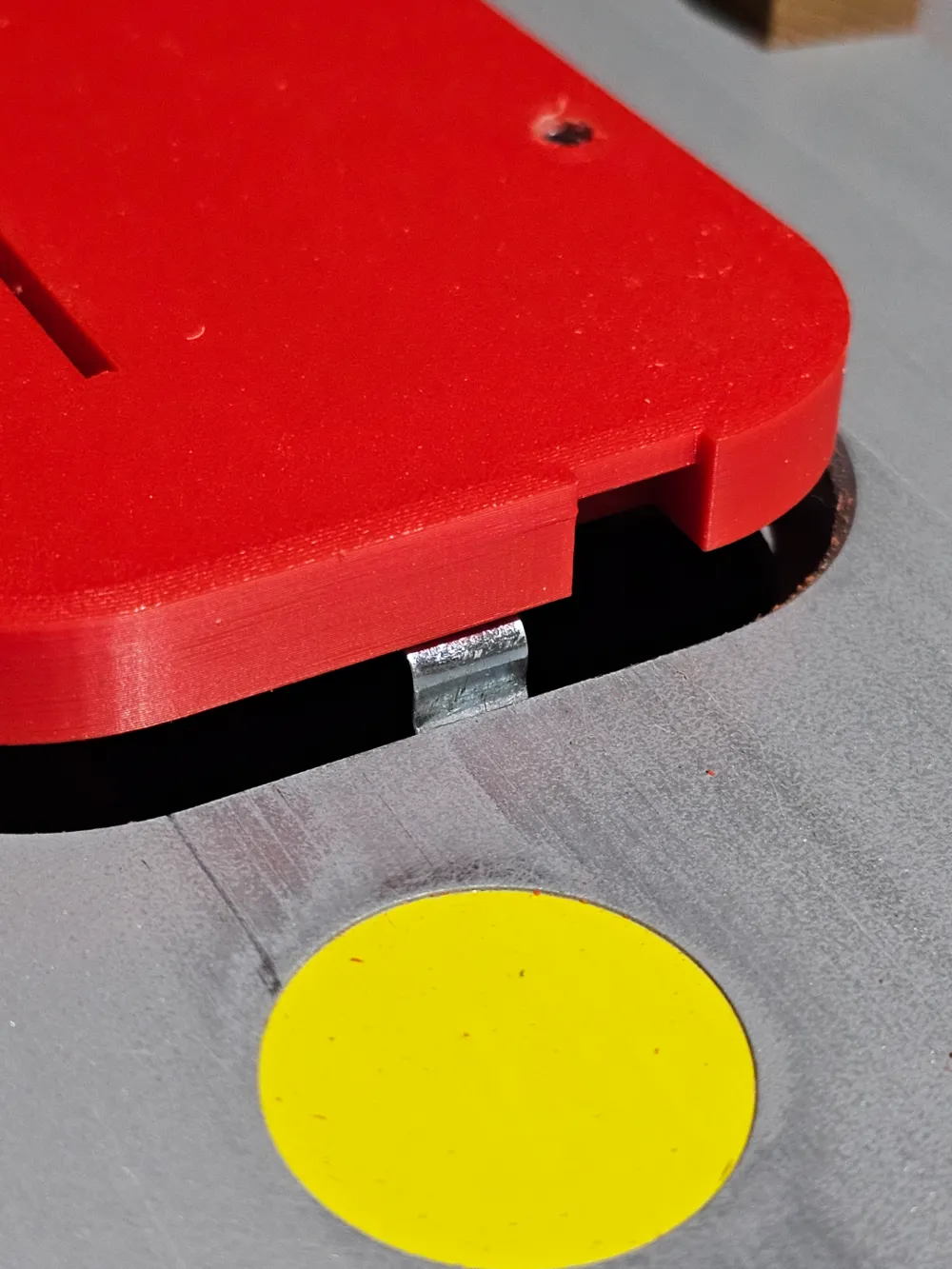

Zero clearance for GTS 10 XC Bosch Professional table saw. The two sides are printed and joined after cleaning the dovetail joint. Insert the original stop and screws into the appropriate holes and place it on the saw table with the blade completely lowered. Being very careful, start the bench and create the notch of the blade.

zero clearance insert
zero clearance
zero clearnce bosch
bosch professional
gts10xc
zero clearance table saw
bosch gts 10 xc 1

Comment & Rating (50)

(0/1000)
@FPVJu
Print Profile
0.2mm layer, 6 walls, 25% infill patterns rectilinear
A good idea but the dovetail joint causes a noticeable offset a different connection would be almost better
The profile uploader has replied
Show original
profile
1
Reply
@davidmaker23
Hello, thank you very much for the feedback I am sorry about the dovetail joint, but my models and those of many others have turned out perfectly Perhaps it is due to the not entirely perfect removal of the support structures
Show original
0
Reply
@davidmaker23
here is the link to the H2 version: https://makerworld.com/en/models/2220537-zero-stop-bosch-professional-gts10xc-for-h2#profileId-2414825
(Edited)
Show original
0
Reply
@Ande87
Hello, is it possible to provide a whole version for the H-models as well? (without dovetail connection) I have already tried to merge it in Bambu Studio but somehow it doesn't seem to close cleanly. Thanks & best regards
The designer has replied
Show original
0
Reply
@davidmaker23
I'll try to do it
1
Reply
@davidmaker23
Replying to @davidmaker23 :
Good morning, here is the print profile for H2 models: https://makerworld.com/en/models/2220537-zero-stop-bosch-professional-gts10xc-for-h2#profileId-2414825
Show original
0
Reply
@florian.buurman
How did you insert the screws? Did you use a thread cutter for this? How did you attach the holder?
The designer has replied
designer
1
Reply
@davidmaker23

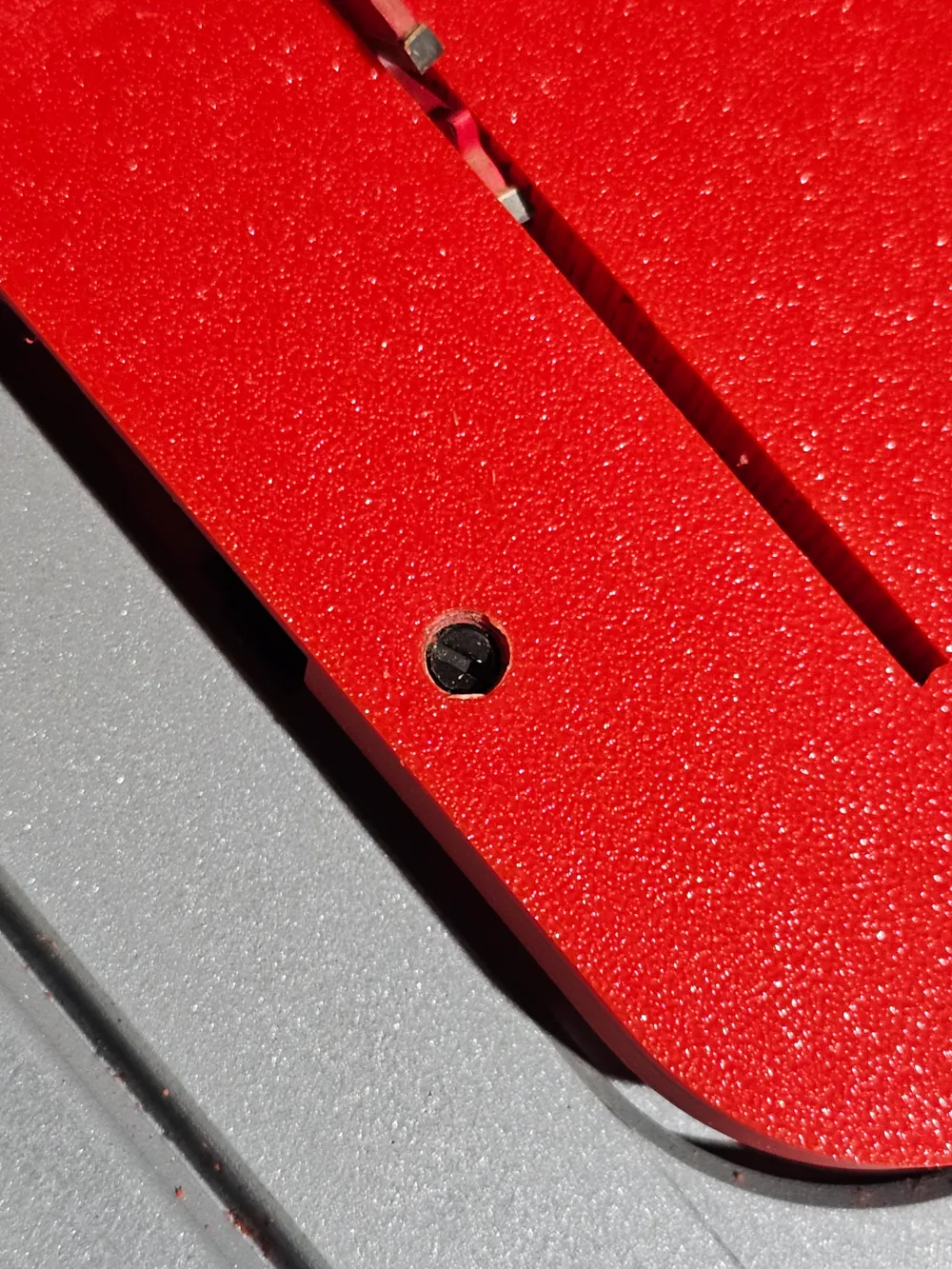

Hello, for the screws it's best to use an M6 thread In what sense should the support be fixed If you mean to the table saw, I used its original clamping system
Show original
0
Reply
@user_2711402225
Boosted
Printed on X1C with PLA Basic, came out perfectly. I recommend using a non-textured plate for a smooth surface.
The designer has replied
designer
1
Reply
@davidmaker23
Thanks!
0
Reply
@akkyy
Print Profile
0.2mm layer, 6 walls, 25% infill patterns rectilinear
Excellent print quality, fits well in the GTS10xc
Show original
profile
1
Reply
@user_3604282073
Great design! Would you mind uploading as 1 piece (no dovetail) for H2D?
The designer has replied
0
Reply
@davidmaker23
Hello, here is the version for H2 series: https://makerworld.com/en/models/2220537-zero-stop-bosch-professional-gts10xc-for-h2#profileId-2414825
Show original
0
Reply
@CH46
Boosted
Print Profile
0.2mm layer, 6 walls, 25% infill patterns rectilinear
Top
The profile uploader has replied
0
Reply
@davidmaker23
Grazie!
0
Reply
@user_3216807868
Print Profile
0.2mm layer, 6 walls, 25% infill patterns rectilinear
Dovetail joint not ideal, would choose a different joint next time, as I now have an edge there
Show original
1
Reply
@Noihl2024
Print Profile
0.2mm layer, 6 walls, 25% infill patterns rectilinear
wonderful addition. had to cut off a little bit of one of the nubs but still works awesome. thank you.
profile
1
Reply
@BastiSchmid91
Boosted
Print Profile
0.2mm layer, 6 walls, 25% infill patterns rectilinear
Printed and installed. Let's see how it performs in practice
Show original
profile
1
Reply
