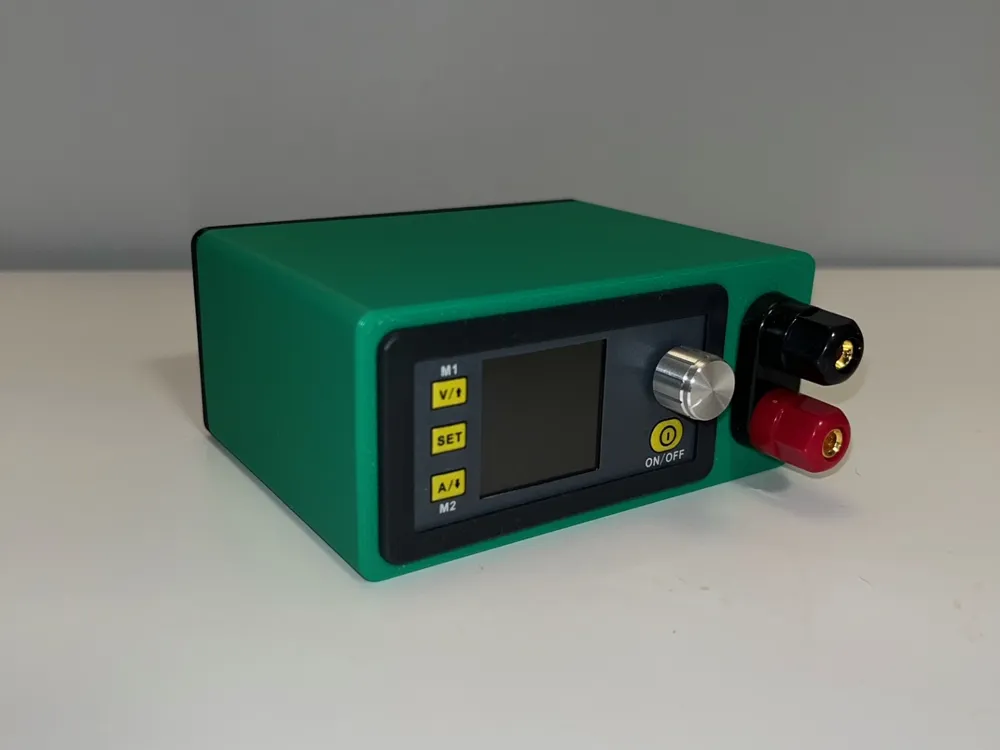

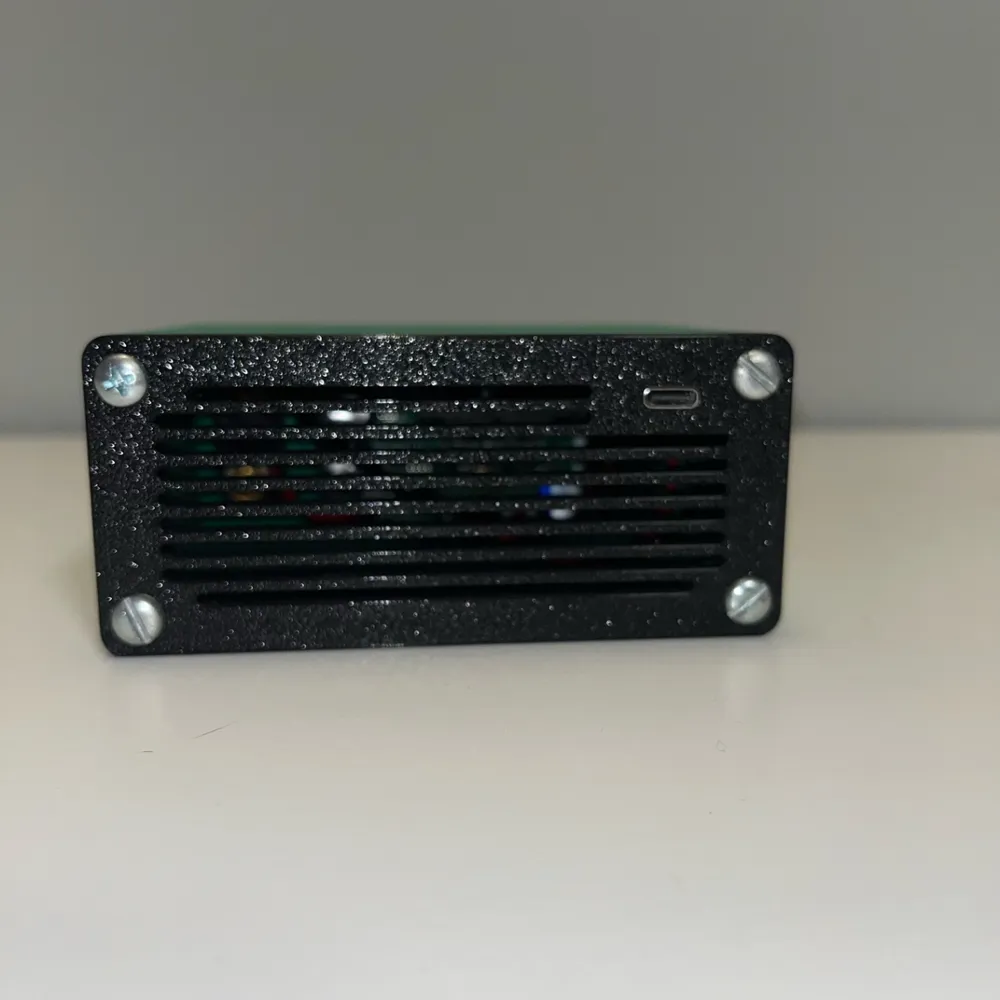

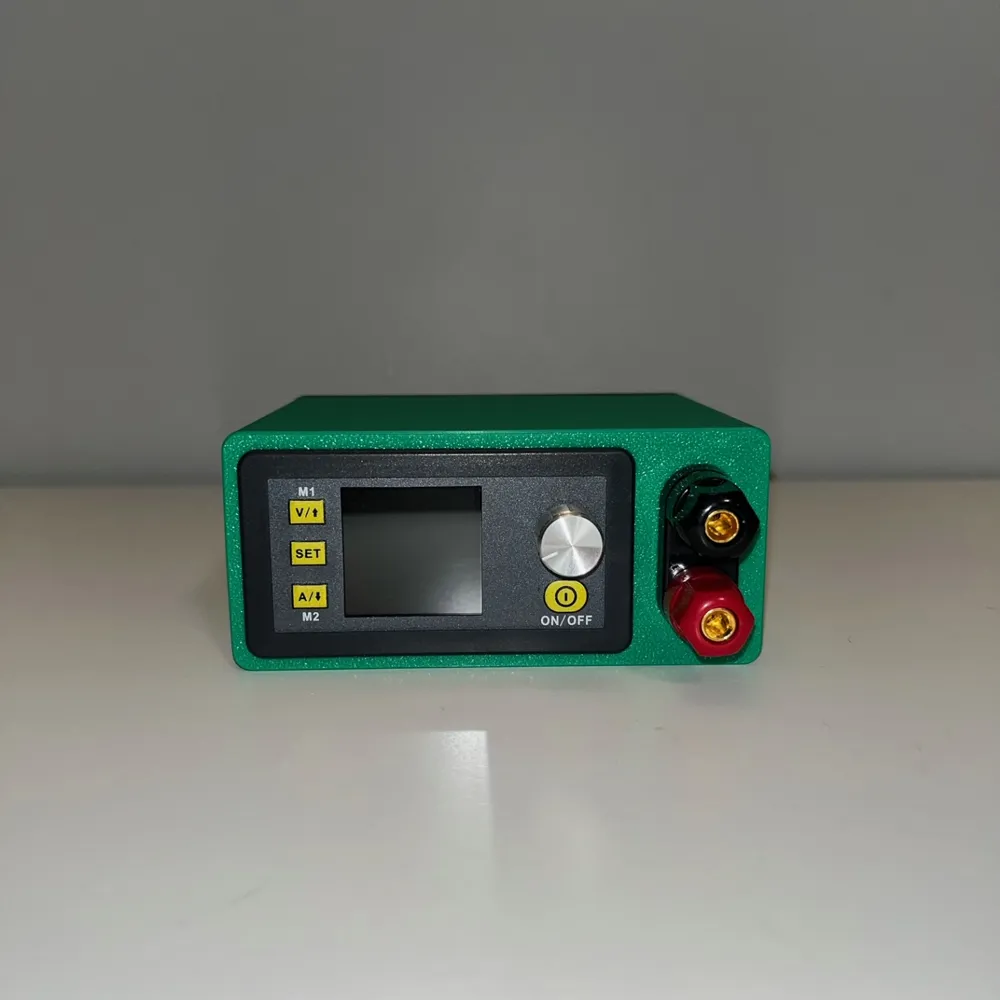

This is a simple enclosure I designed for the DPS3005 mini power supply module. It is by no means perfect, but I had some requests to post the files, so here they are! The parts require no supports to print, and the back plate was designed for a very snug fit with the USB-C PD board.

In addition to the printed parts, you will need the following. Please note these are not the exact sellers I purchased from, but the parts are the same:

DPS3005 Power Supply: https://www.aliexpress.com/item/1005008274325732.html?spm=a2g0o.productlist.main.1.25d4pF66pF66Y6&algo_pvid=1c7df0c0-68c2-4b98-a4ab-a0eb8d37de7c&algo_exp_id=1c7df0c0-68c2-4b98-a4ab-a0eb8d37de7c-0&pdp_ext_f=%7B%22order%22%3A%22-1%22%2C%22eval%22%3A%221%22%7D&pdp_npi=4%40dis%21CAD%2137.49%2129.99%21%21%2125.45%2120.36%21%402101c72a17373168334561797e526b%2112000044446039218%21sea%21CA%210%21ABX&curPageLogUid=s499vhCRN0qt&utparam-url=scene%3Asearch%7Cquery_from%3A

Banana terminals: https://www.aliexpress.com/item/1005008274325732.html?spm=a2g0o.productlist.main.1.25d4pF66pF66Y6&algo_pvid=1c7df0c0-68c2-4b98-a4ab-a0eb8d37de7c&algo_exp_id=1c7df0c0-68c2-4b98-a4ab-a0eb8d37de7c-0&pdp_ext_f=%7B%22order%22%3A%22-1%22%2C%22eval%22%3A%221%22%7D&pdp_npi=4%40dis%21CAD%2137.49%2129.99%21%21%2125.45%2120.36%21%402101c72a17373168334561797e526b%2112000044446039218%21sea%21CA%210%21ABX&curPageLogUid=s499vhCRN0qt&utparam-url=scene%3Asearch%7Cquery_from%3A

100w USB-C PD board: https://www.aliexpress.com/item/1005005977070792.html?spm=a2g0o.productlist.main.3.aed542faQqsNkS&algo_pvid=4e8fc5f5-423f-4a33-8c6b-bb55d7dafa0c&algo_exp_id=4e8fc5f5-423f-4a33-8c6b-bb55d7dafa0c-1&pdp_ext_f=%7B%22order%22%3A%22722%22%2C%22eval%22%3A%221%22%7D&pdp_npi=4%40dis%21CAD%214.58%213.84%21%21%213.11%212.61%21%402101c5a417373169307405177e70c2%2112000038635125512%21sea%21CA%210%21ABX&curPageLogUid=f9mFWobSIkCb&utparam-url=scene%3Asearch%7Cquery_from%3A

4x screws (I grabbed from a big jar I have, but your local hardware store should also have something compatible

Some wire to connect the banana terminals to the DPS3005 module.

You can print this in whatever material you like, I used PLA for the body and PETG for the back plate as it's what I had lying around.
