Model Truss Bridge (OH, OO Scale)

This is a second iteration of my first model with more detail and larger.

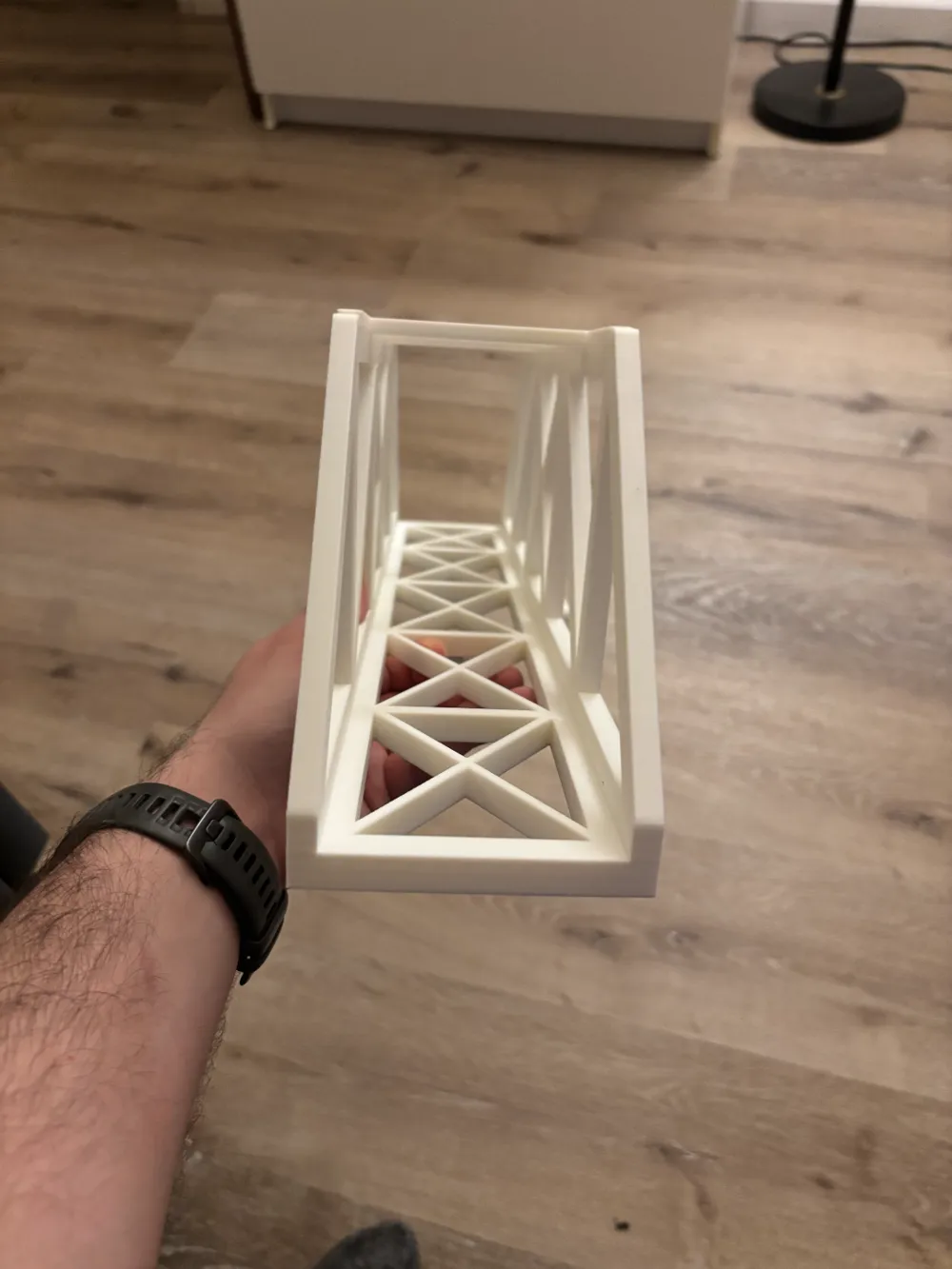

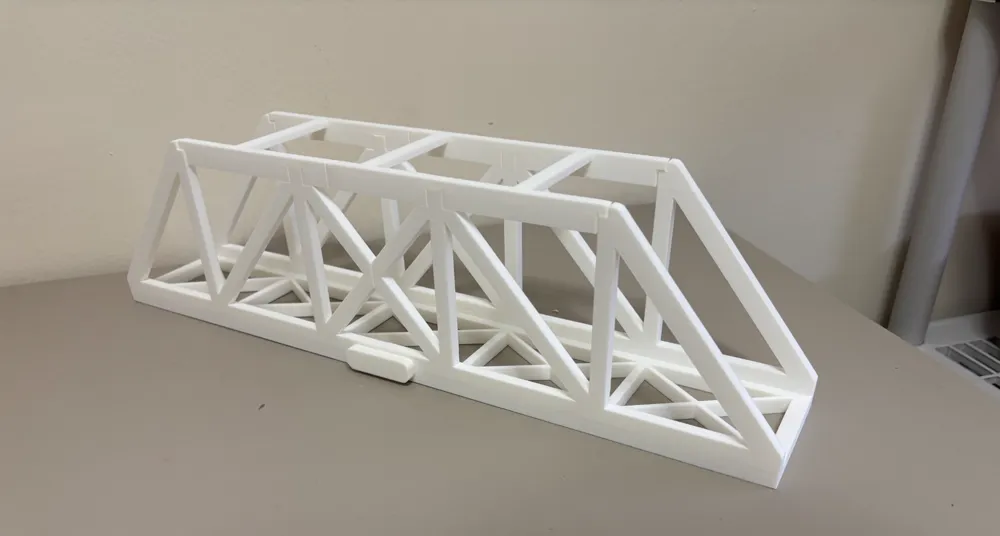

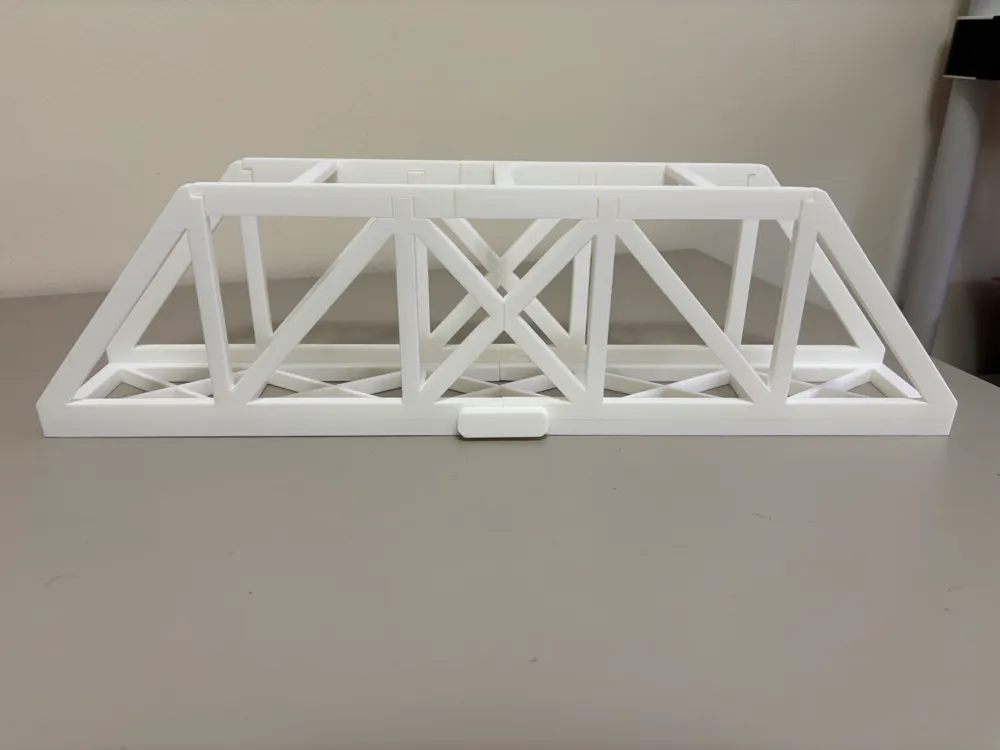

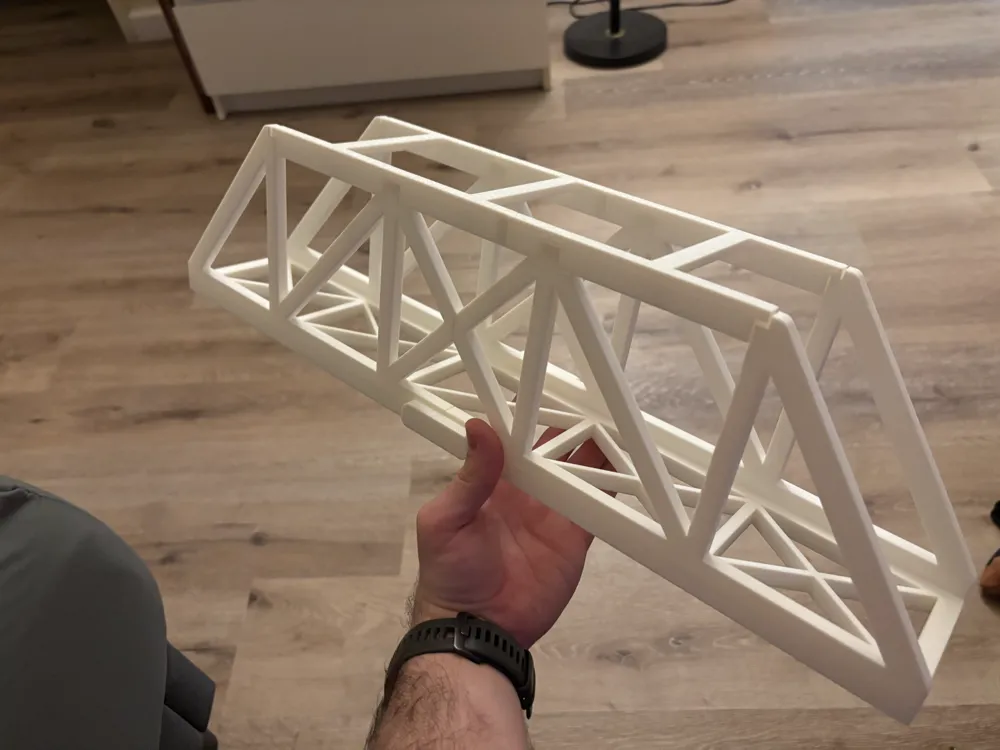

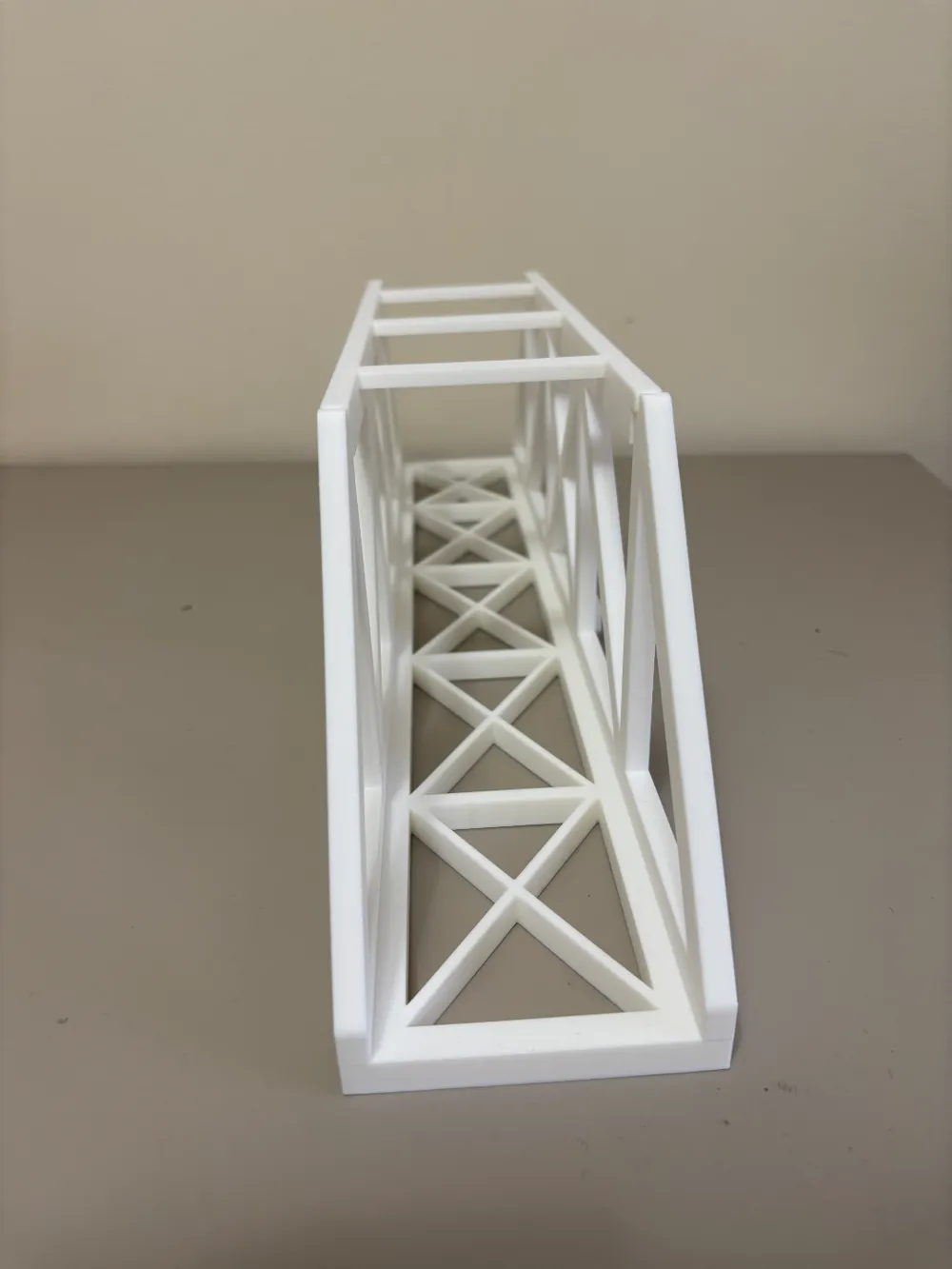

This Model Bridge was designed for OH and OO scale model railways, It is 500mm long and 90mm wide over all.

It is printed in 4 larger pieces with 2 connection pieces. Glueing the top truss pieces is recommended but not necessary for Strength.

Everything needed for this model is printed and can be assembled in a few minutes. Once Assembled it is not recommended disconnecting the pieces, but it can be done (If not glued).

*Warning* The tolerances are very tight so some effort may be required to get the connecting pieces to fit.

This was done to allow better fitment and alignment once the model is under a load.
