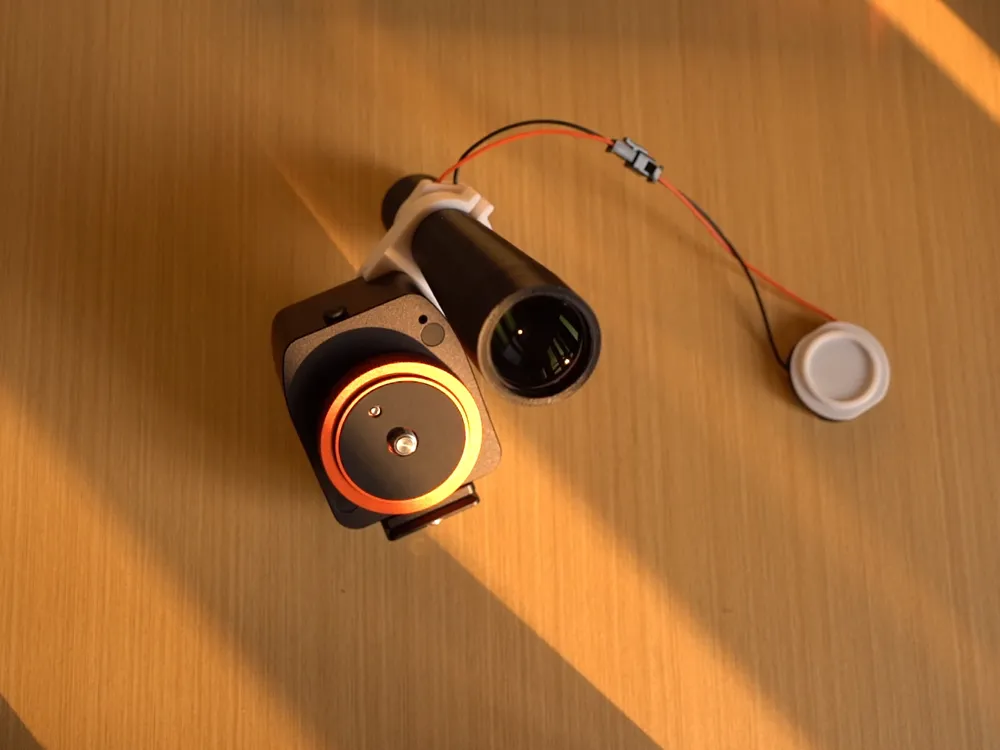

DIY Polar Alignment Scope
Print Profile(1)
Description
Create a polar alignment scope for just 50 yuan?
Yes, this model makes it possible.
Notes:
1 - Send the compressed file contents to the supplier, specifying a transparent background, no holes, and no keychain.
2 - Choose either 'Polar Alignment Tube' or 'Polar Alignment Tube - Adjustable Reticle Position'. 'Polar Alignment Tube' has a maximum triangular parallax error, sufficient for star trackers; 'Polar Alignment Tube - Adjustable Reticle Position' requires separately purchasing an M3x3 screw, printing this version is not recommended unless necessary.
3 - Purchase a red LED and a CR2032 button cell battery.
4 - The front end of the tube has a diameter of 37.7mm, the middle end 28.16mm, and the total length is 180mm. A custom clamping device can be designed.
5 - Refer to the video for detailed assembly instructions https://www.bilibili.com/video/BV1AkwmeqEWS/, please like and support if you enjoy it.
