HiFiBerry Amp 2 & Raspberry Pi Zero 2W Housing
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
1.4 h
1 plate
Open in Bambu Studio
Boost
9
21
3
0
26
13
Released
Description

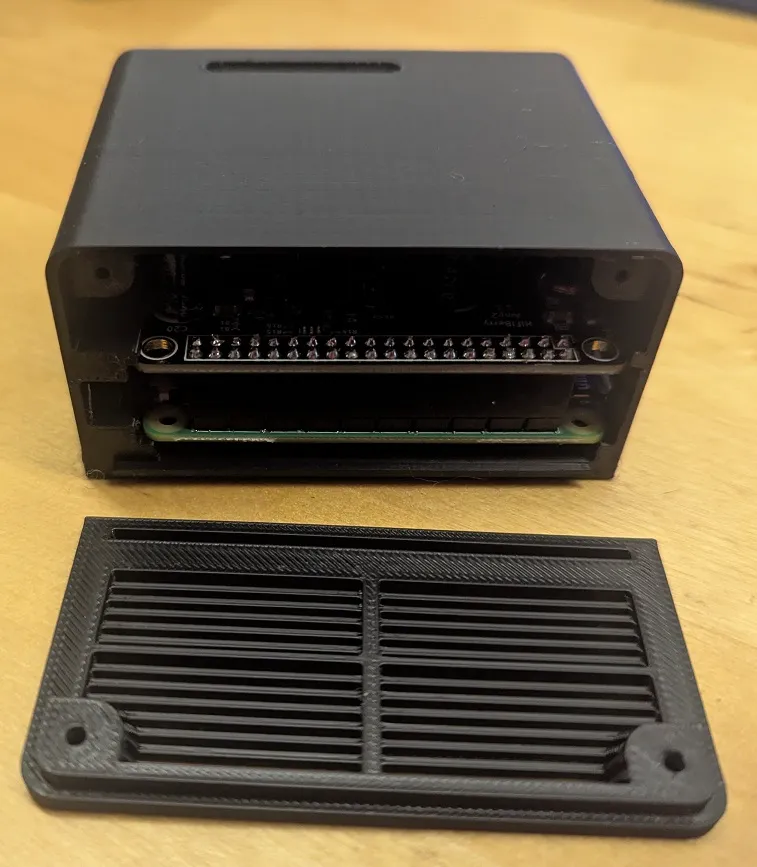

designed this for the Raspberry Pi Zero 2W and HiFiberry Amp 2 I use for PiCorePlayer.

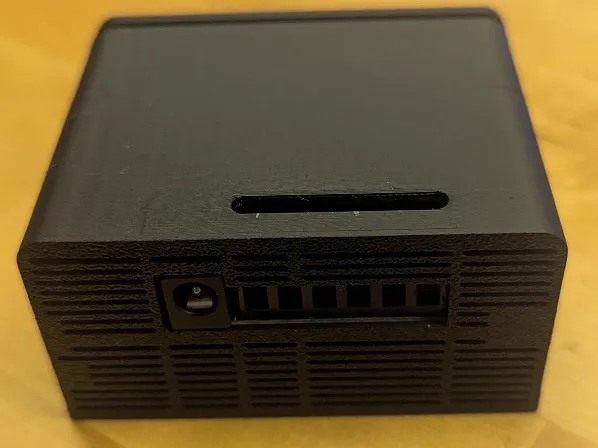

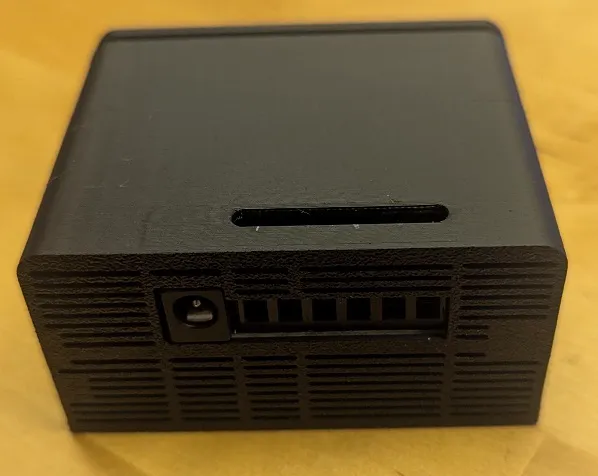

I printed it with cheap no-name PLA and it printed fine. Supports remove very easily. The power is supplied via the Amp so the USB and HDMI ports on the Pi Zero are not visible.

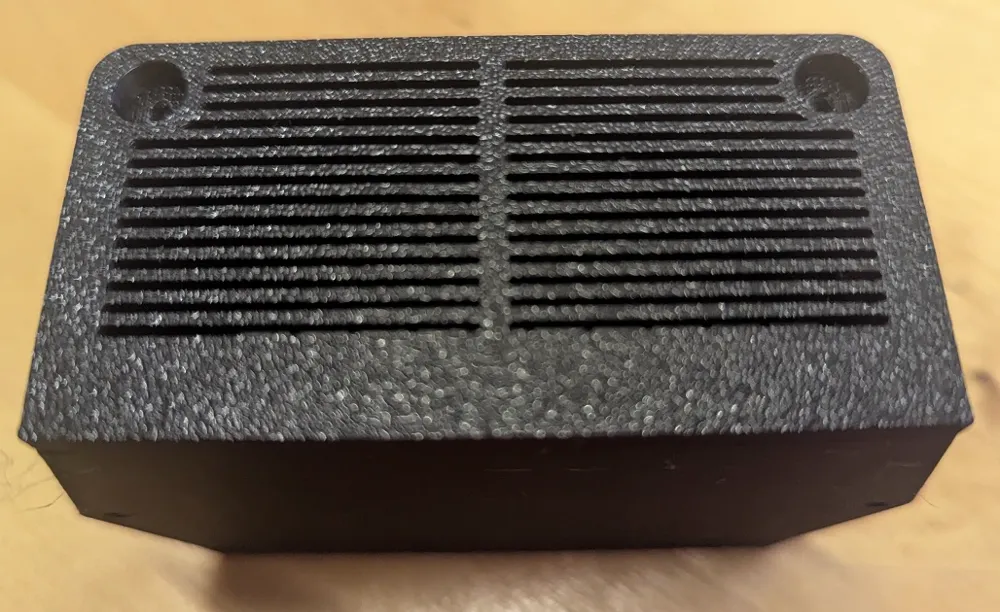

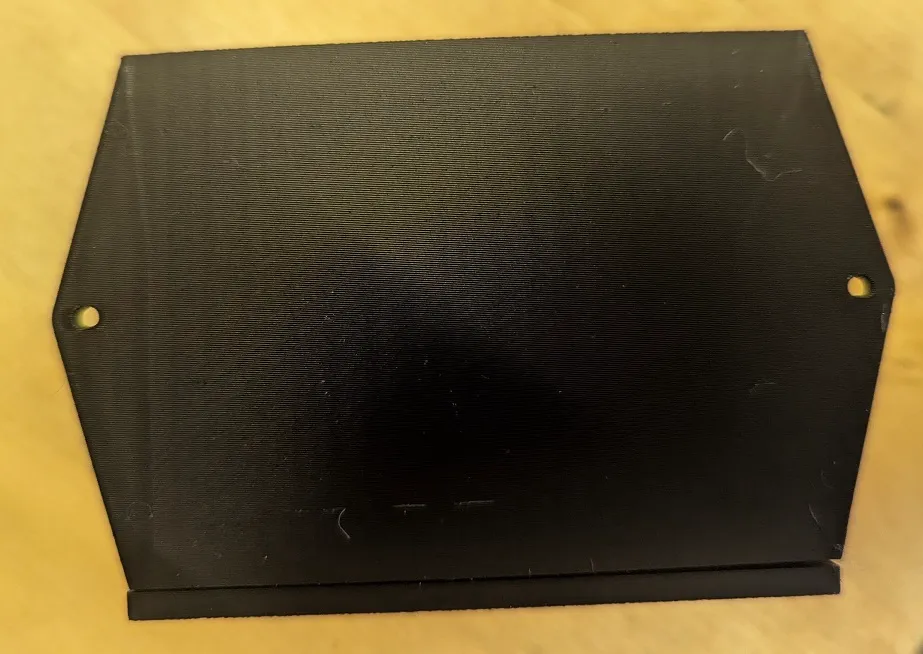

There are two mounting lugs so it can be screwed vertically to a surface to optimise cooling through the slots on the top and bottom.
I udesigned it for the servo screws shown (available from https://www.modelfixings.co.uk/servo_screws.htm)
