Exaggerated Filament Guide Anet A8

English:

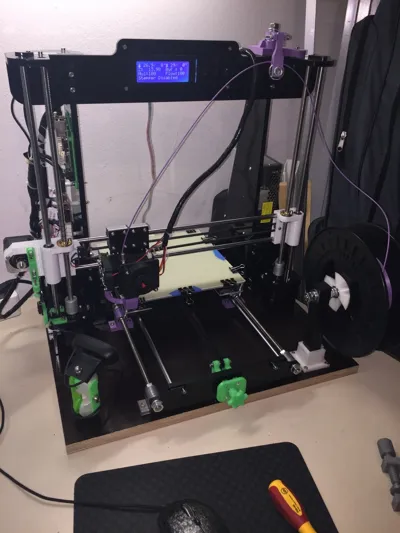

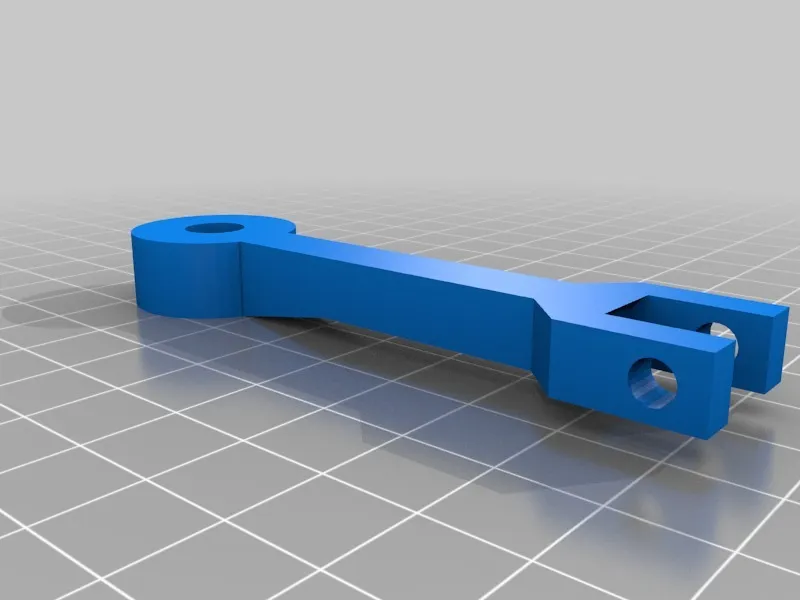

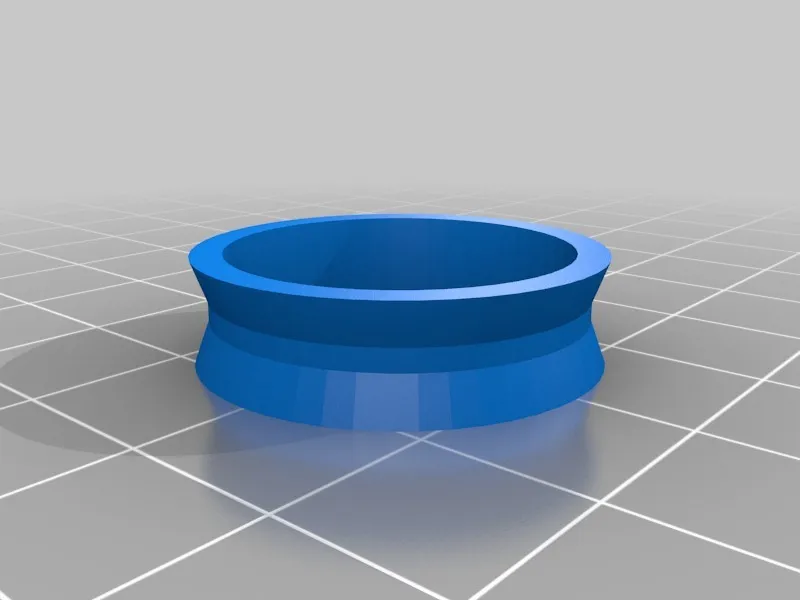

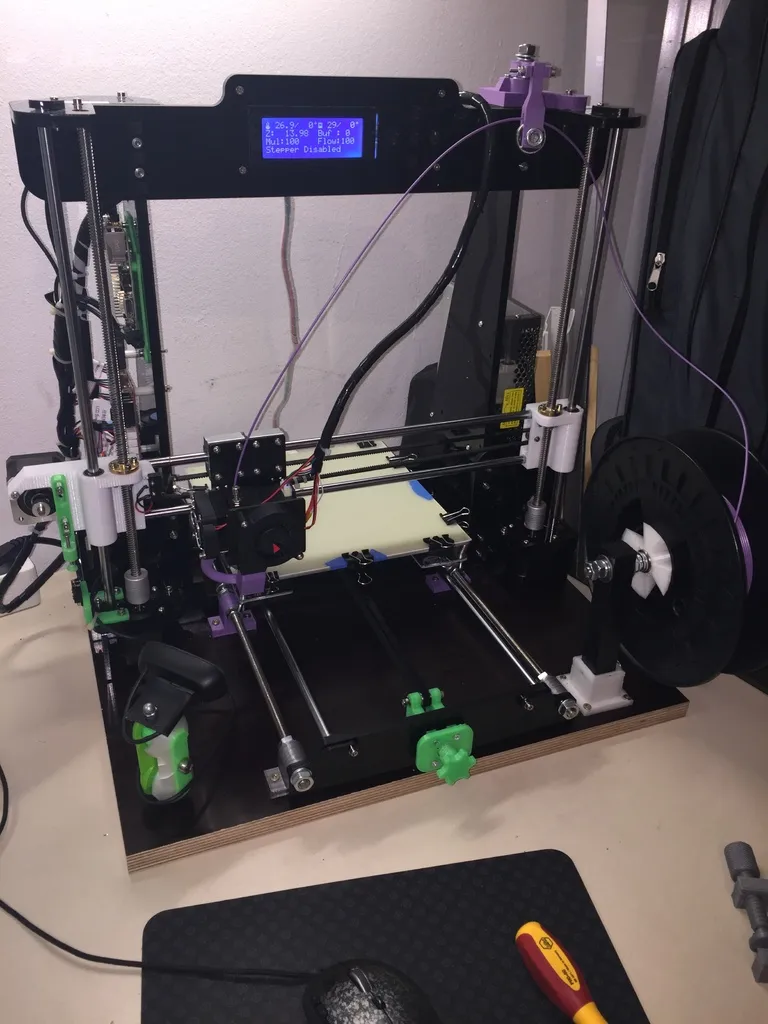

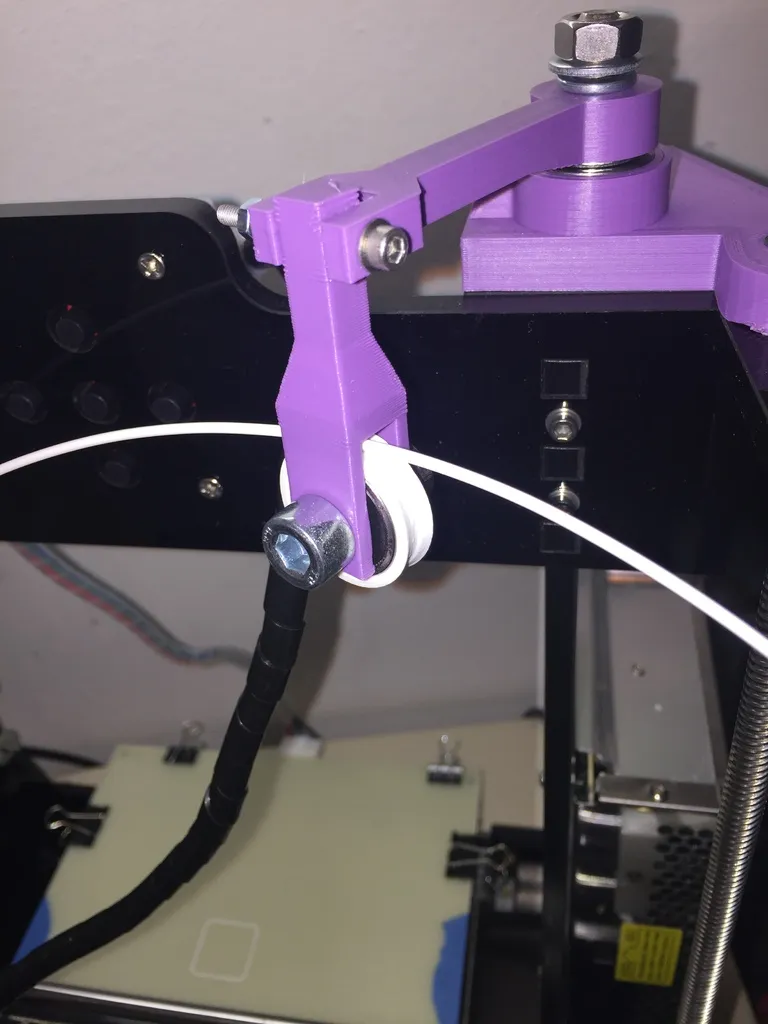

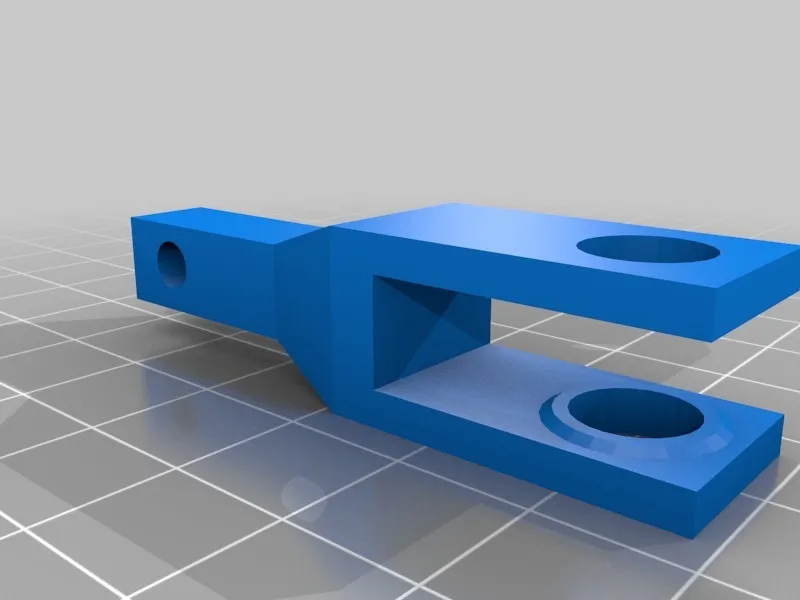

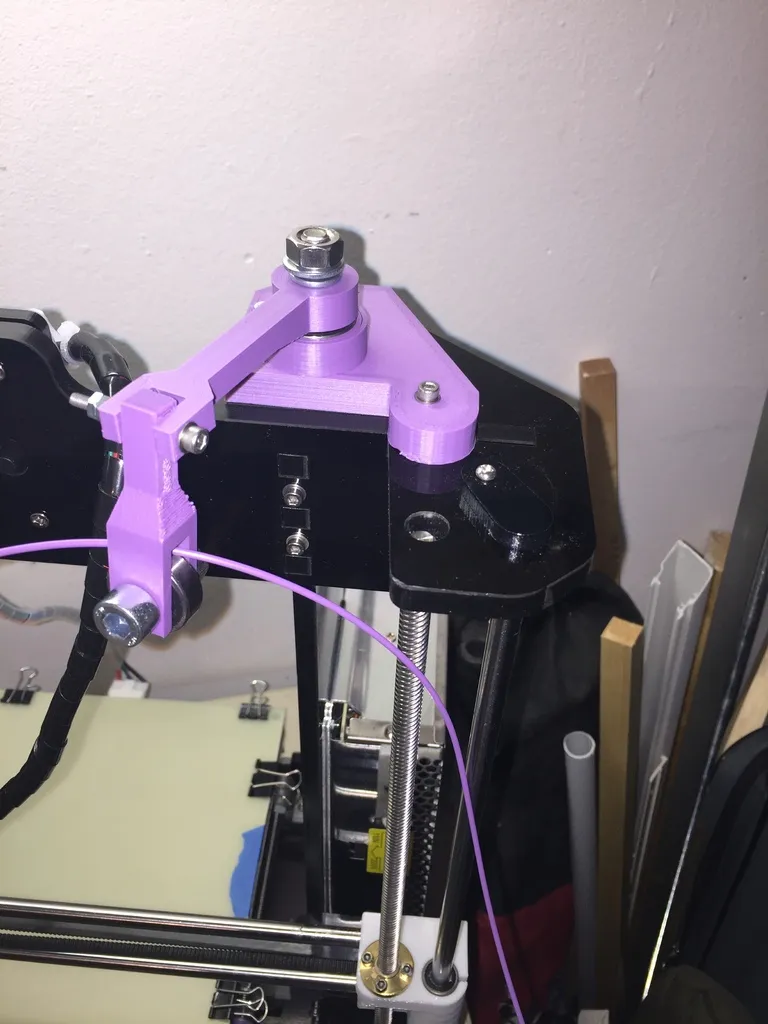

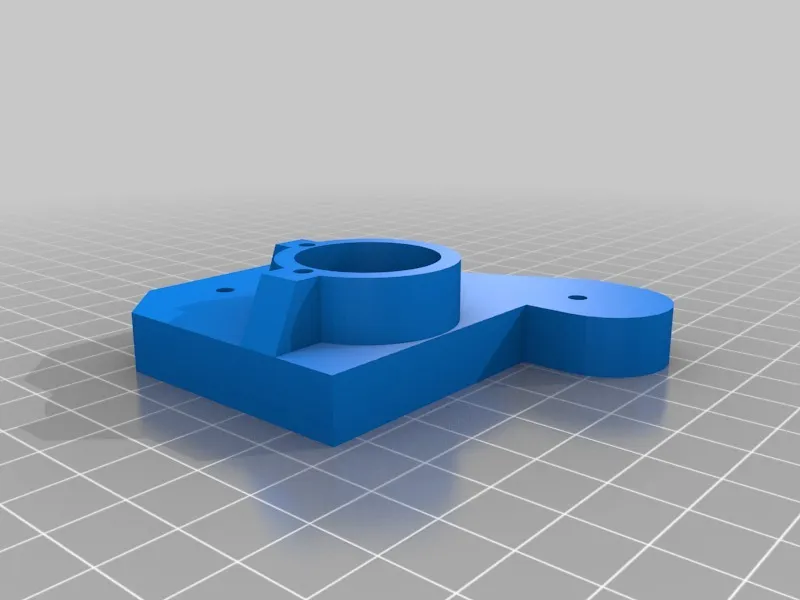

Since I have mounted the spool of my Prusa i3 clone on the wooden plate, the filament needs to be guided upwards to the extruder. Therefore, I designed this movable filament guide. Admittedly, it looks a bit exaggerated, but I like it. To assemble this, you'll need these parts:

2x M3x5

3x M3x30

6x M3 washers

2x M3 nuts

1x M8x40

1x M8x30

2x M8 nuts

3x M8 washers

2 bearings, 22mm outer diameter

German:

Because I mounted my filament spool on the wooden plate of my Anet A8, the filament must be guided in an arc to the extruder. Therefore, I designed this movable filament guide and attached it to the Prusa i3 clone. It looks a little over-the-top, but I like it. For assembly, you will need various parts from your hardware assortment and two ball bearings (22mm outer diameter).

2x M3x5

3x M3x30

6x M3 washers

2x M3 nuts

1x M8x40

1x M8x30

2x M8 nuts

3x M8 washers
