Parametric French Cleat

I designed this simple parametric French Cleat to hang your tools on your pegboard

In addition to the .f3d file which you can download and set the measurements you need directly in the "modify parameters" section of Fusion 360, I have included 12 predefined sizes in the print profiles that you can print immediately from your smartphone

I've noticed that many people in the community use these for very heavy items. I want to state that these types of supports were not designed for such uses, and therefore I assume no responsibility for damages caused to property or persons. Each of you is responsible for how you use them

The immediately available sizes are:

1. 15mm Thickness 50mm Length
2. 15mm Thickness 100mm Length
3. 15mm Thickness 150mm Length
4. 15mm Thickness 200mm Length
5. 19mm Thickness 50mm Length
6. 19mm Thickness 100mm Length
7. 19mm Thickness 150mm Length
8. 19mm Thickness 200mm Length
9. 20mm Thickness 50mm Length
10. 20mm Thickness 100mm Length
11. 20mm Thickness 150mm Length
12. 20mm Thickness 200mm Length

New print profile as requested by a user with 12mm thickness

1. 12mm thickness 50mm length
2. 12mm thickness 100mm length
3. 12mm thickness 150mm length
4. 12mm thickness 200mm length

I have prepared these thicknesses because they are the most commonly commercialized wood panel thicknesses, making it easier for you to have a French Cleat of this size on your wall

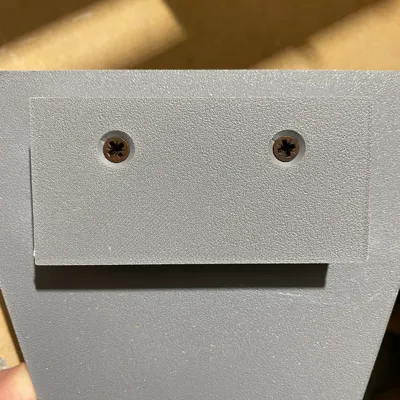

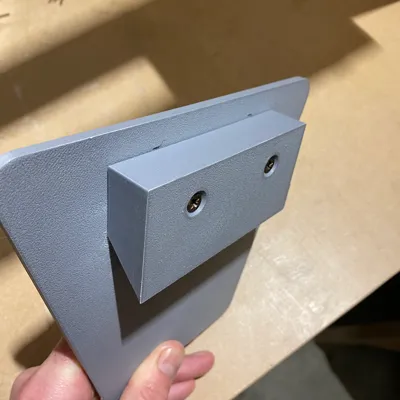

The French Cleats are designed with screw holes and corresponding counterbores

I hope you appreciate this simple yet functional method of hanging things and thank you in advance if you wish to reward my work with a BOOST
