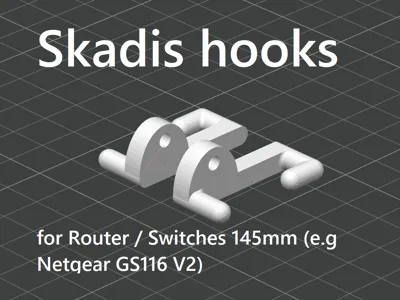

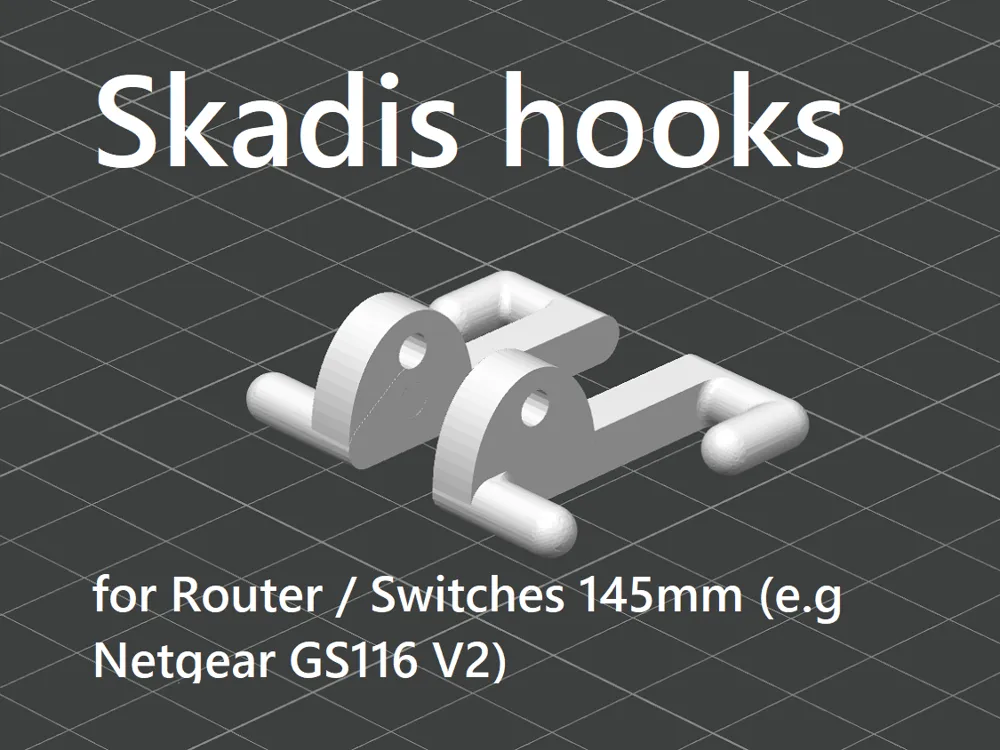

Skadis hooks for switches (e.g. Netgear GS116 V2)

Remixed by

Print Profile(1)

All
A1
P1S
P1P
X1 Carbon
X1E
X1
A1 mini
H2D
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.2mm layer, 6 walls, 25% infill
0.2mm layer, 6 walls, 25% infill
Designer
21 min
1 plate
5.0(2)

Open in Bambu Studio
Boost
14
44
2
2
57
40
Released

Description

Content has been automatically translated.
Show original

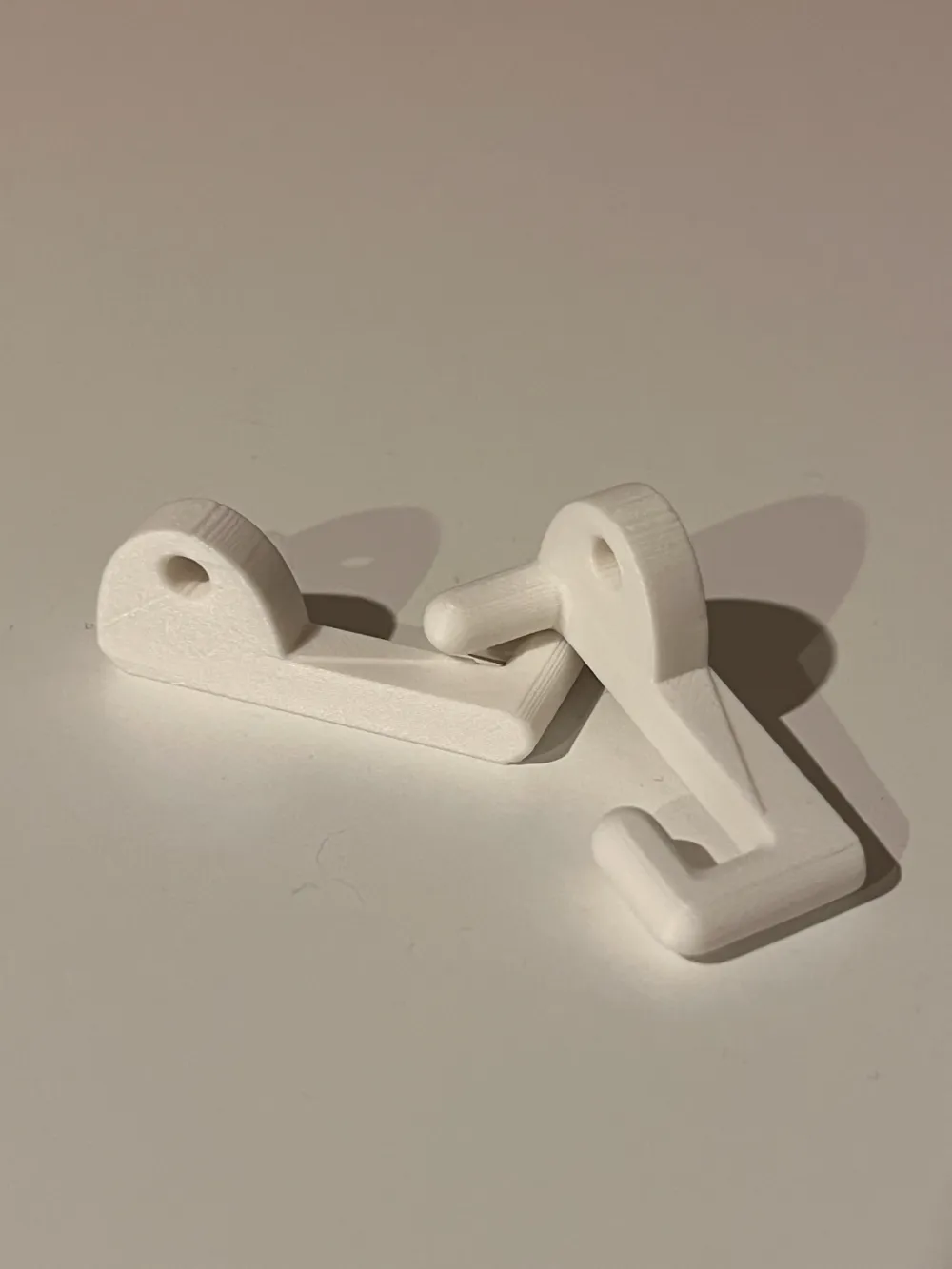

I couldn't find suitable Skadis holders for my Netgear GS116 V2 Switch, so I revised the adapters designed by Steve for smaller Netgear switches.

https://www.printables.com/model/856192-skadis-40mm-to-45mm-width-adaptor-eg-for-netgear-g

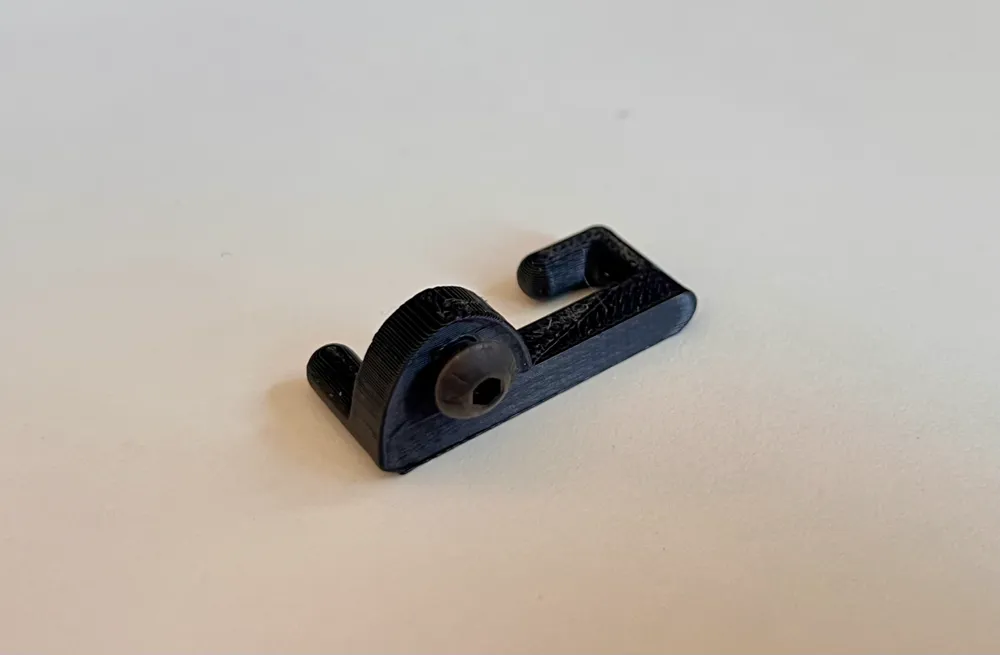

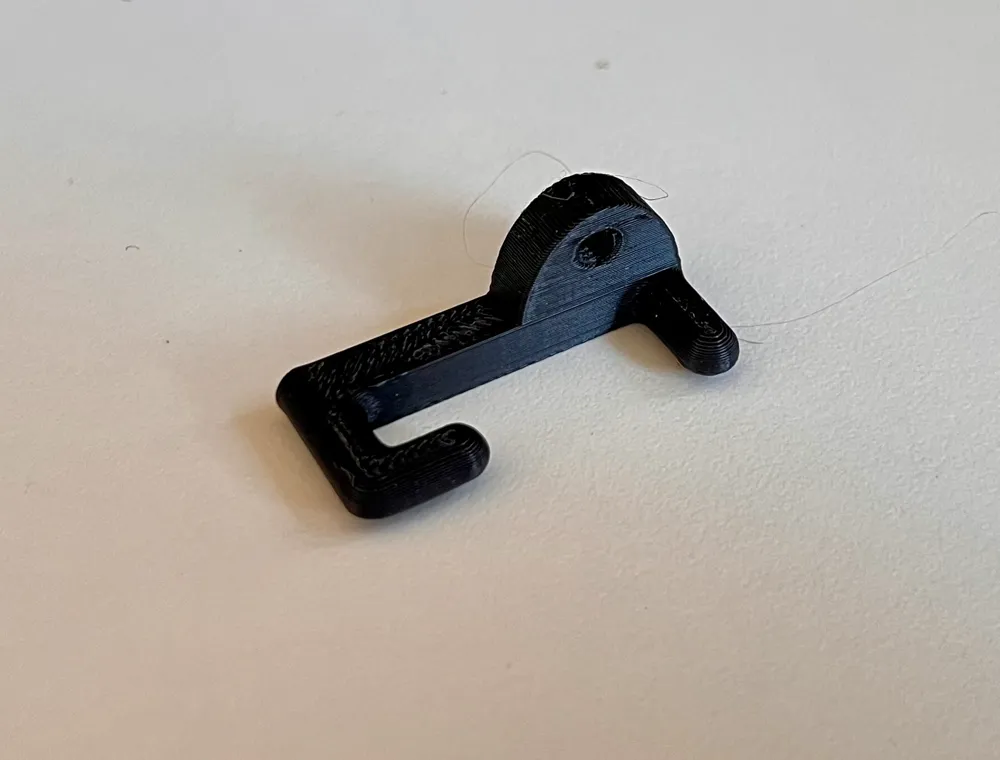

The 3.5mm holes are suitable for directly screwing in M4x8 (or shorter) screws. The adapters allow for a hole spacing of 145mm to attach to the Skadis hole pattern. I use it for the Netgear PROSAFE GS116 V2, but it should also work for other wide routers or switches.

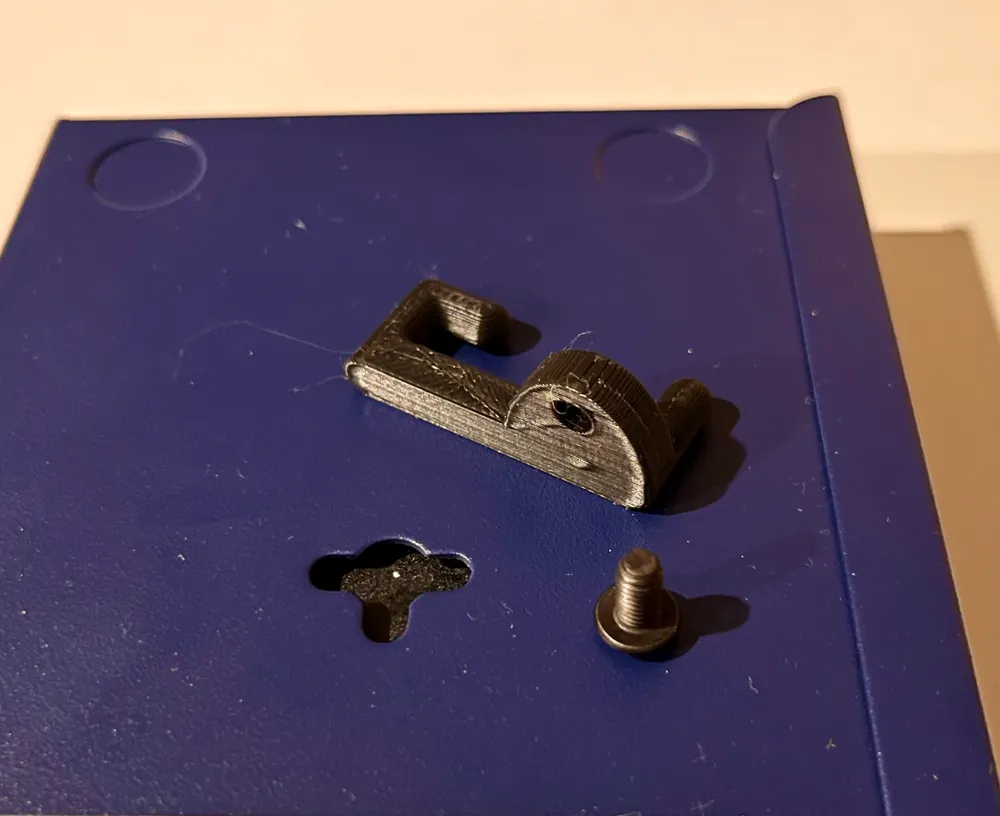

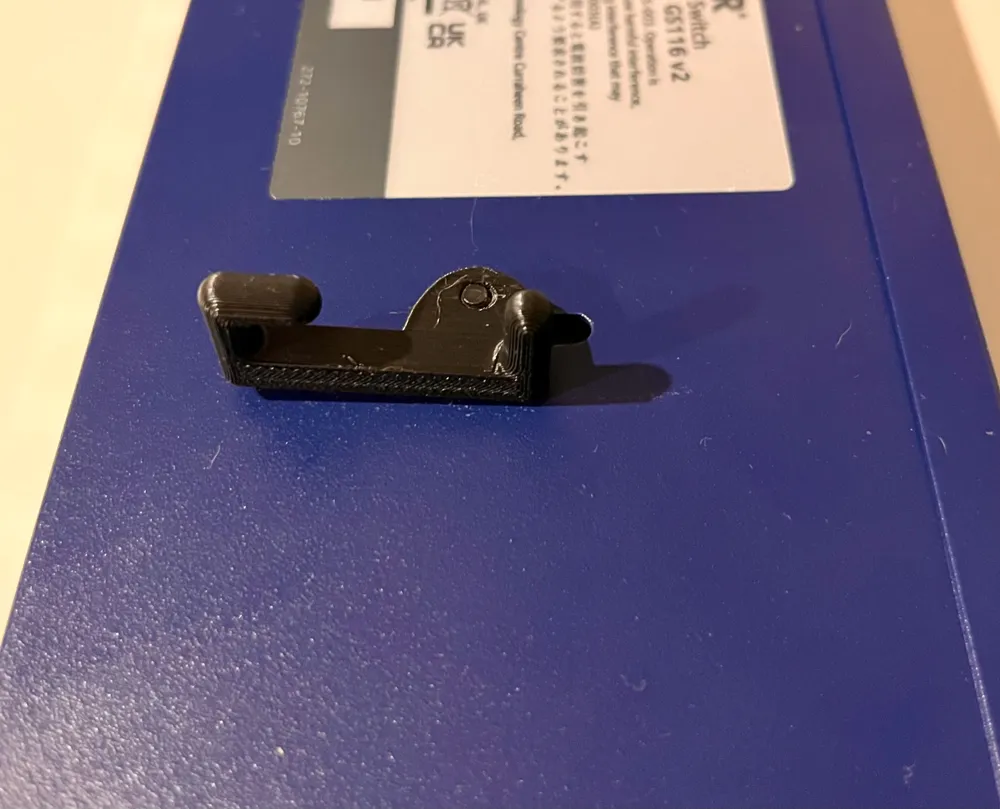

For assembly, first screw in the M4 screws, then hang the hooks in the Skadis board and then insert the switch.
