Crossbow 2.5
Print Profile(1)
Description

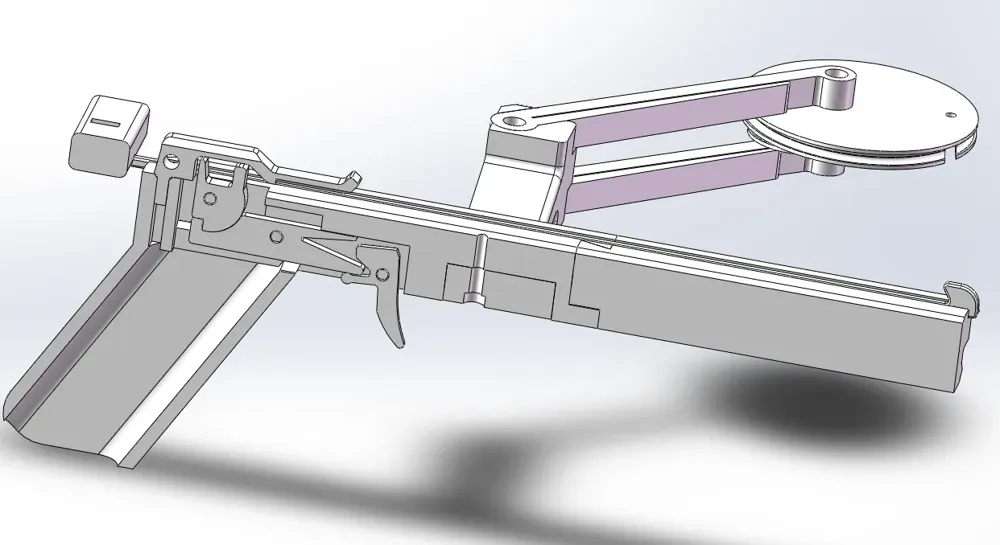

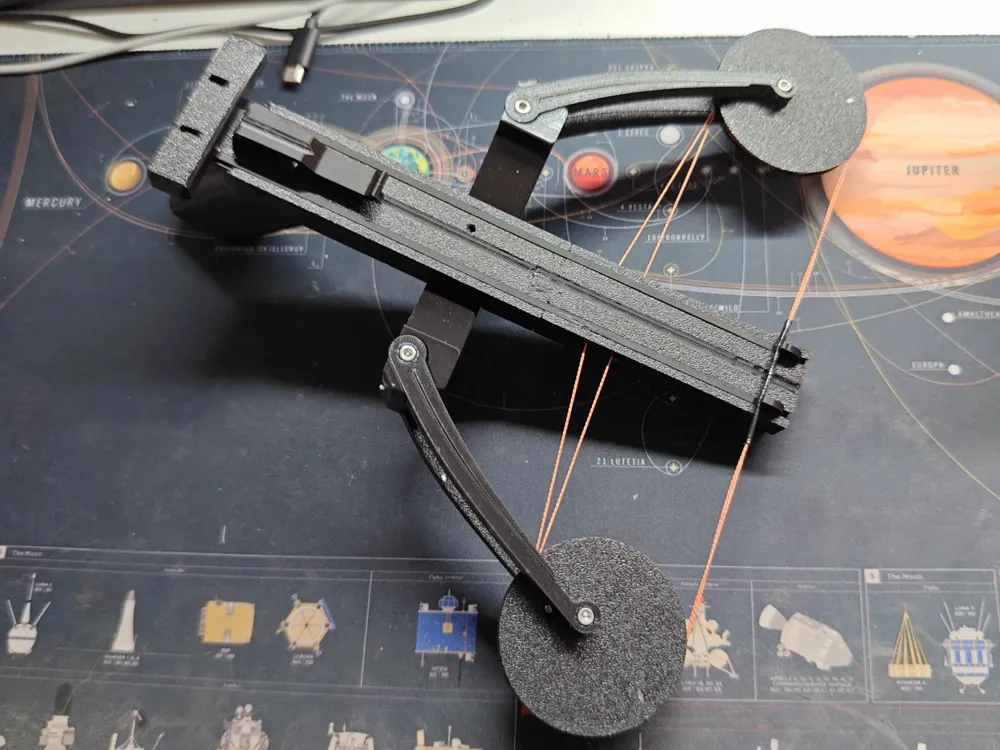

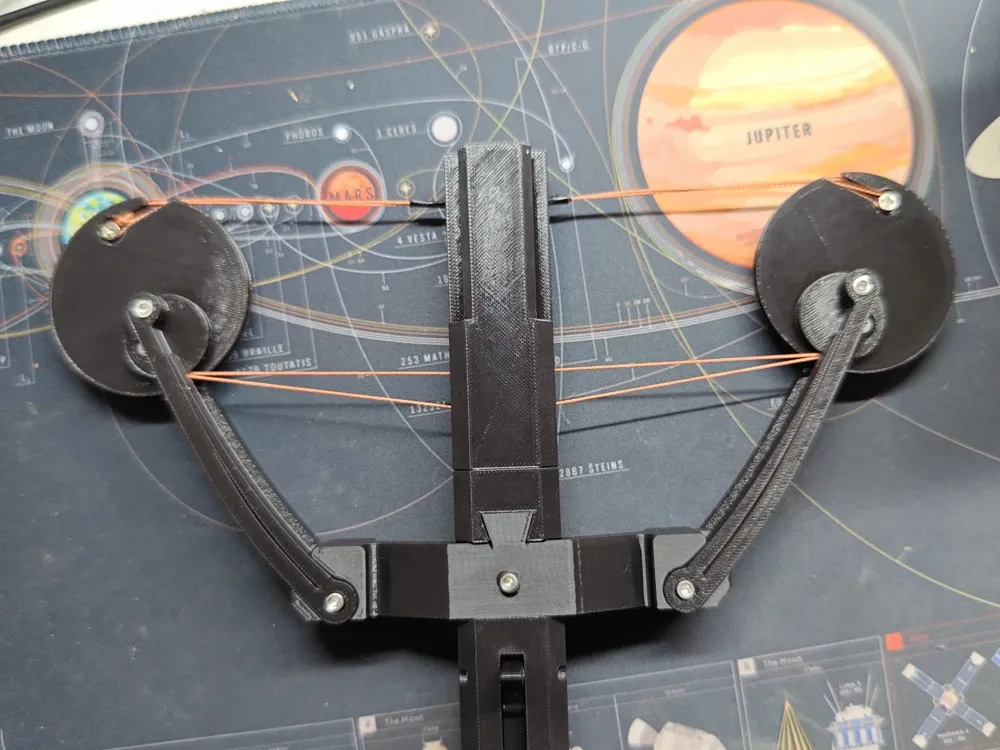

Improved Crossbow Gen 2, reinforced parts. Increased the spacing between the string hook to accommodate fletched arrows; 168 arrows are recommended. The pulley has been changed to an eccentric wheel, reducing the final pull force for easier cocking.

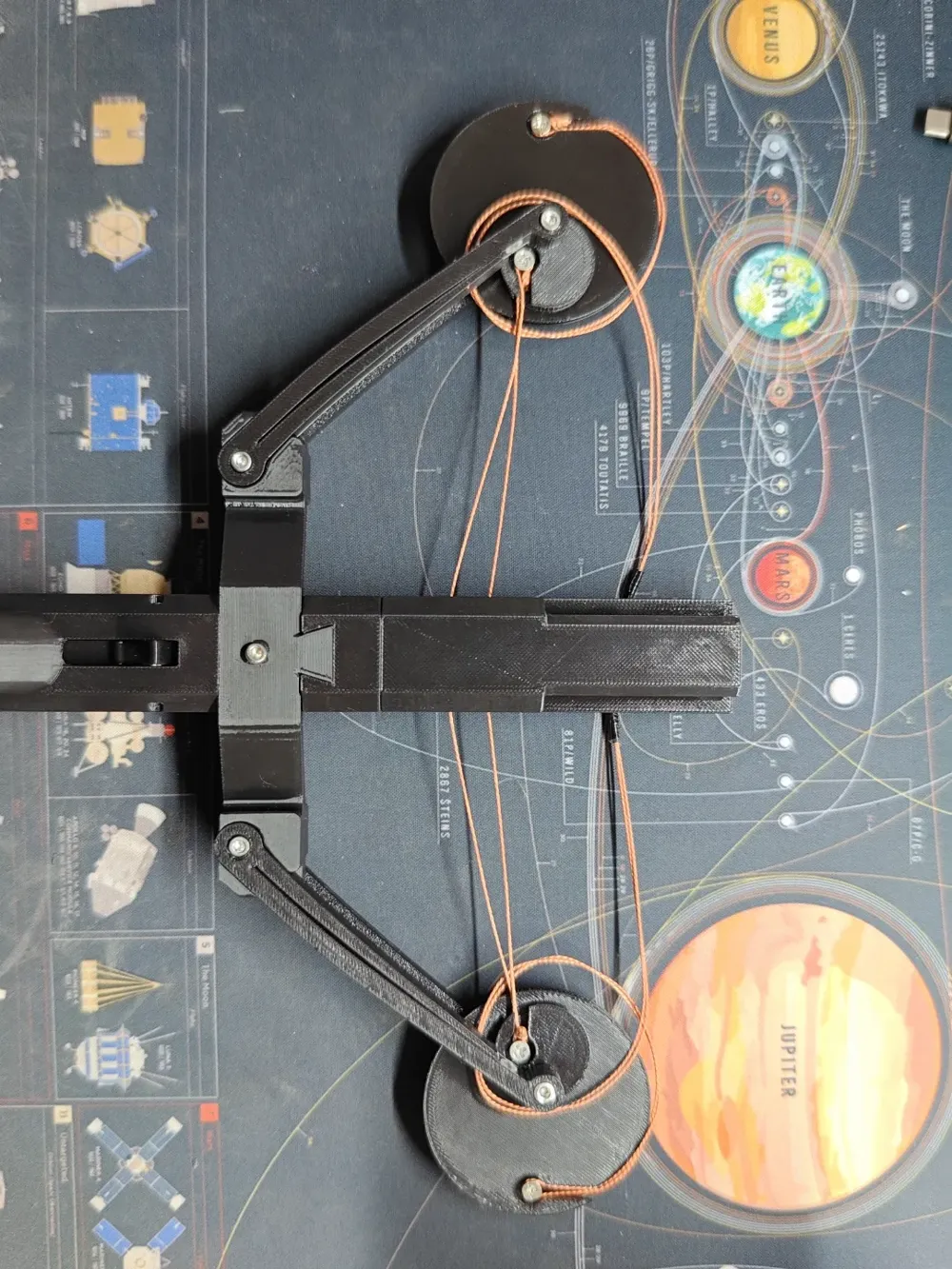

Requires nine M3x10 socket head cap screws and four M3x5 countersunk screws. Use 1mm nylon cord for the bowstring, and secure it with tape in the middle to protect the bowstring and increase the load-bearing area.
【3D Printed Crossbow 2.5 Assembly】 https://www.bilibili.com/video/BV1F8wNe1EJJ/?share_source=copy_web&vd_source=4184100424b6ffb514abd47488d9b603
