Case for the Olimex ESP32-POE-ISO Board
IP Report
Print Profile(2)
Small case with UEXT opening
Designer
56 min
1 plate
Bigger case with room for additional wiring
Designer
2.2 h
2 plates
Open in Bambu Studio
Boost
11
24
2
3
110
73
Released
Description

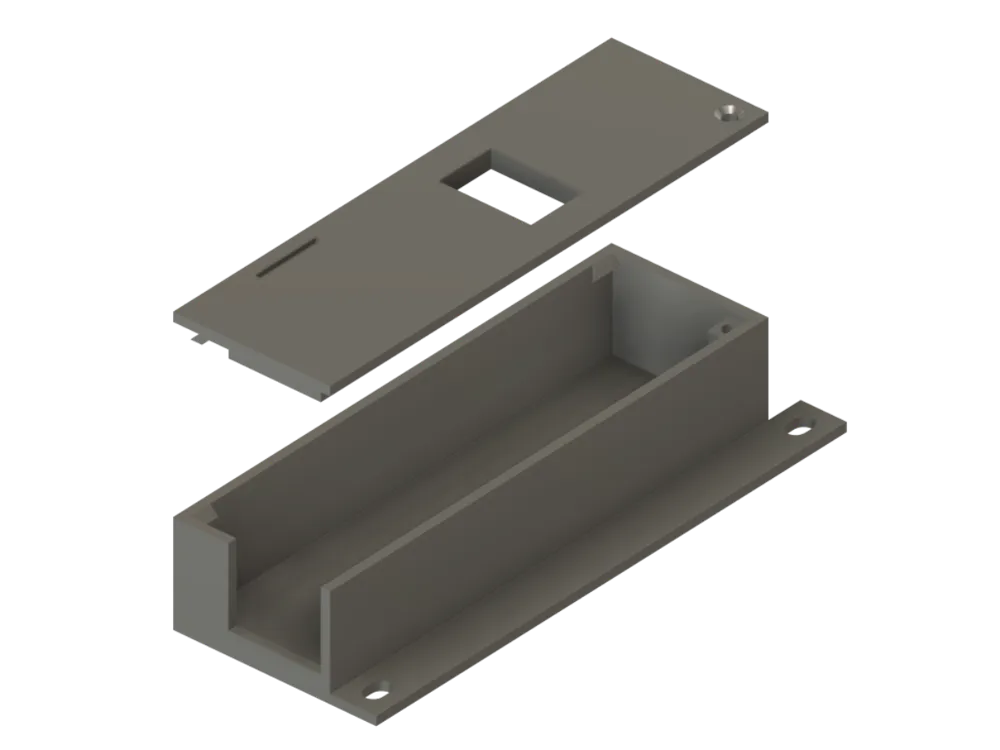

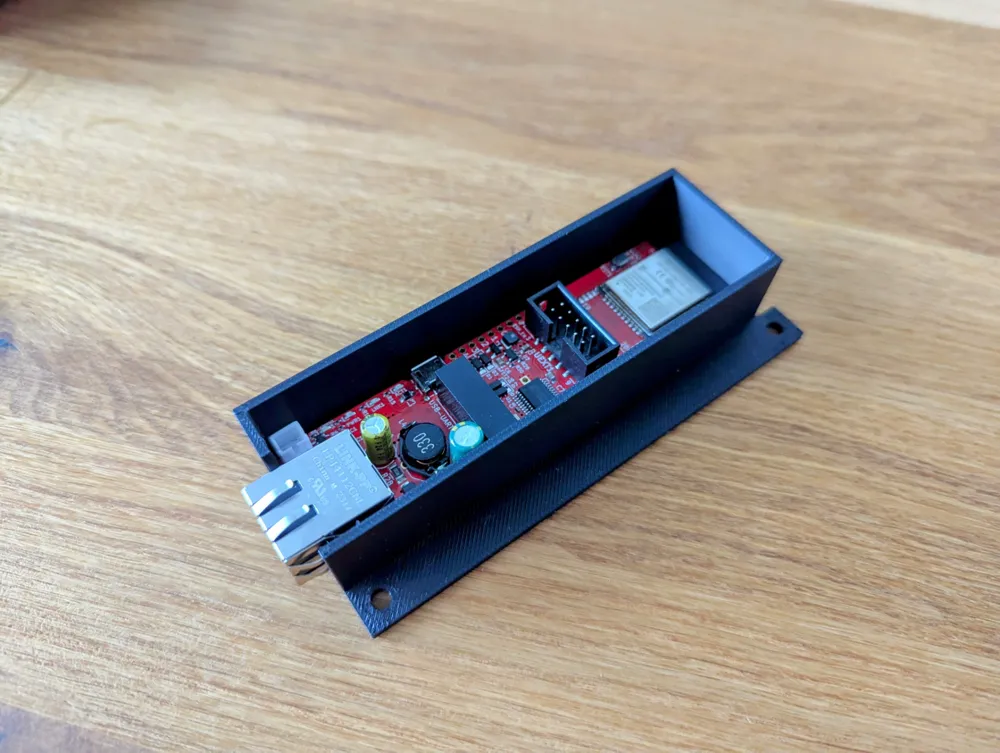

This is an enclosed case for the Olimex ESP32-POE-ISO-IND board (rev. L, should also fit the non-IND and probably the non-ISO variants).
Cutouts for the Ethernet port, the UEXT connector, a small slit to see the LEDs and a hole for a screw.
I recommend using a melt-in threaded insert (M3) to tightly close the case.
