Description

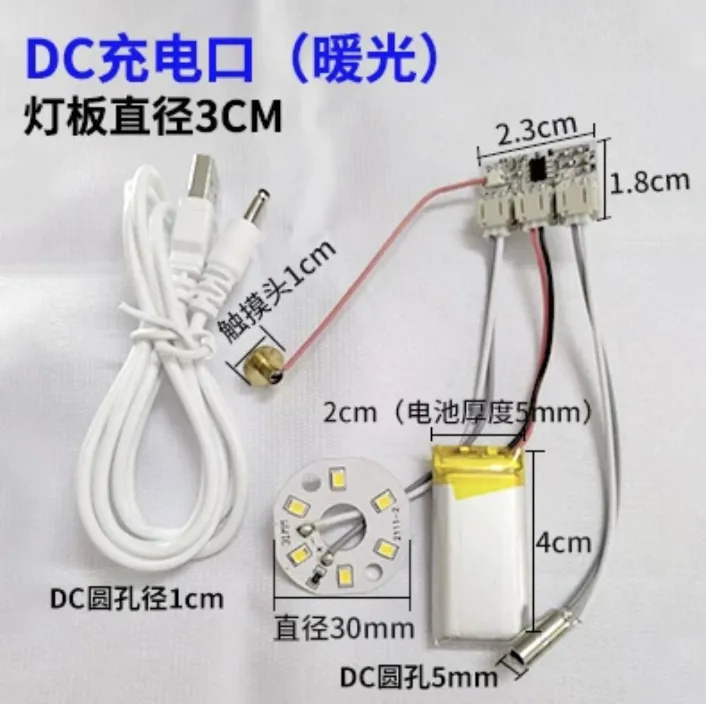

Compatible with the aforementioned touch-sensitive charging LED panel
Generate a 120*154 mm relief using a relief generator (customizable lightbox dimensions)
You will also need four M3*14 hex socket screws, two M3*6 Phillips screws, and eight 6mm diameter * 3mm height magnets for secure attachment (for easy disassembly and portability) Ensure correct polarity during installation

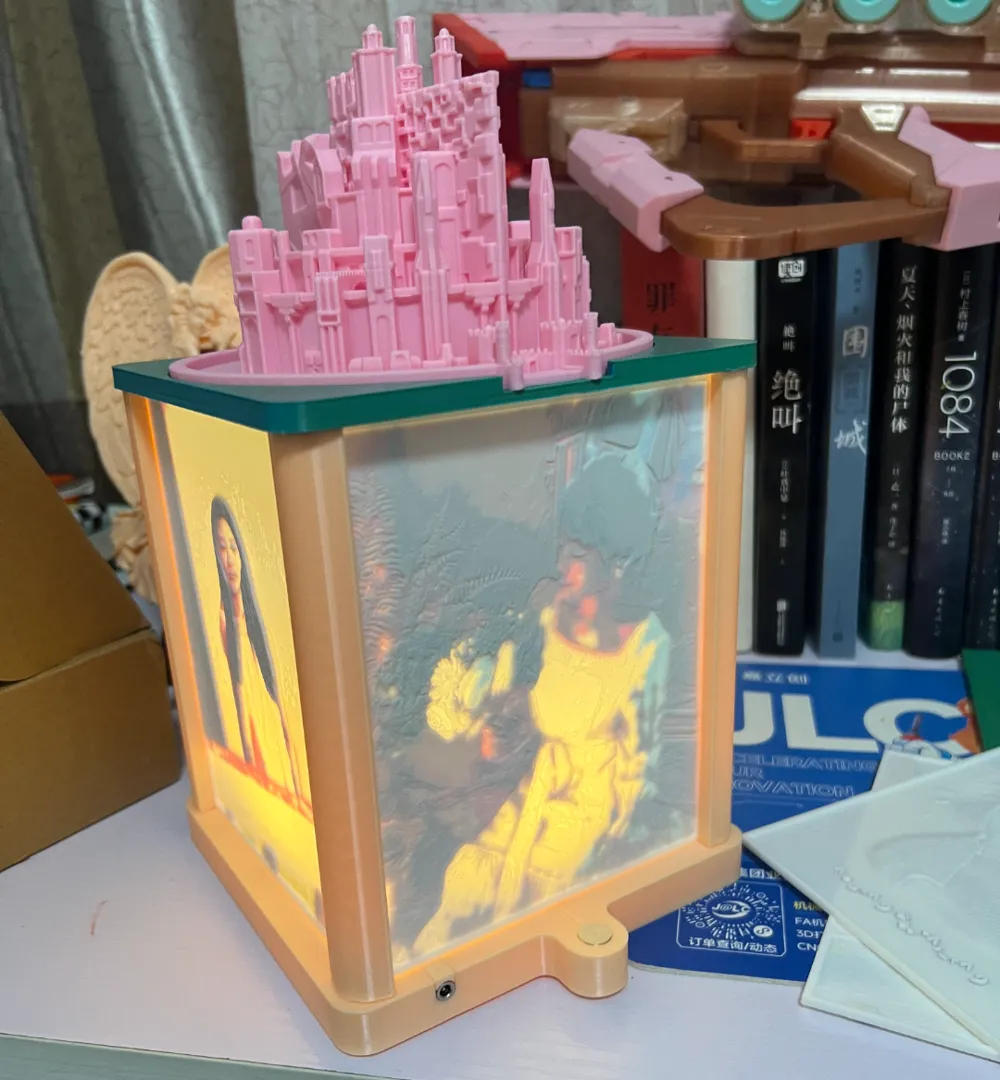

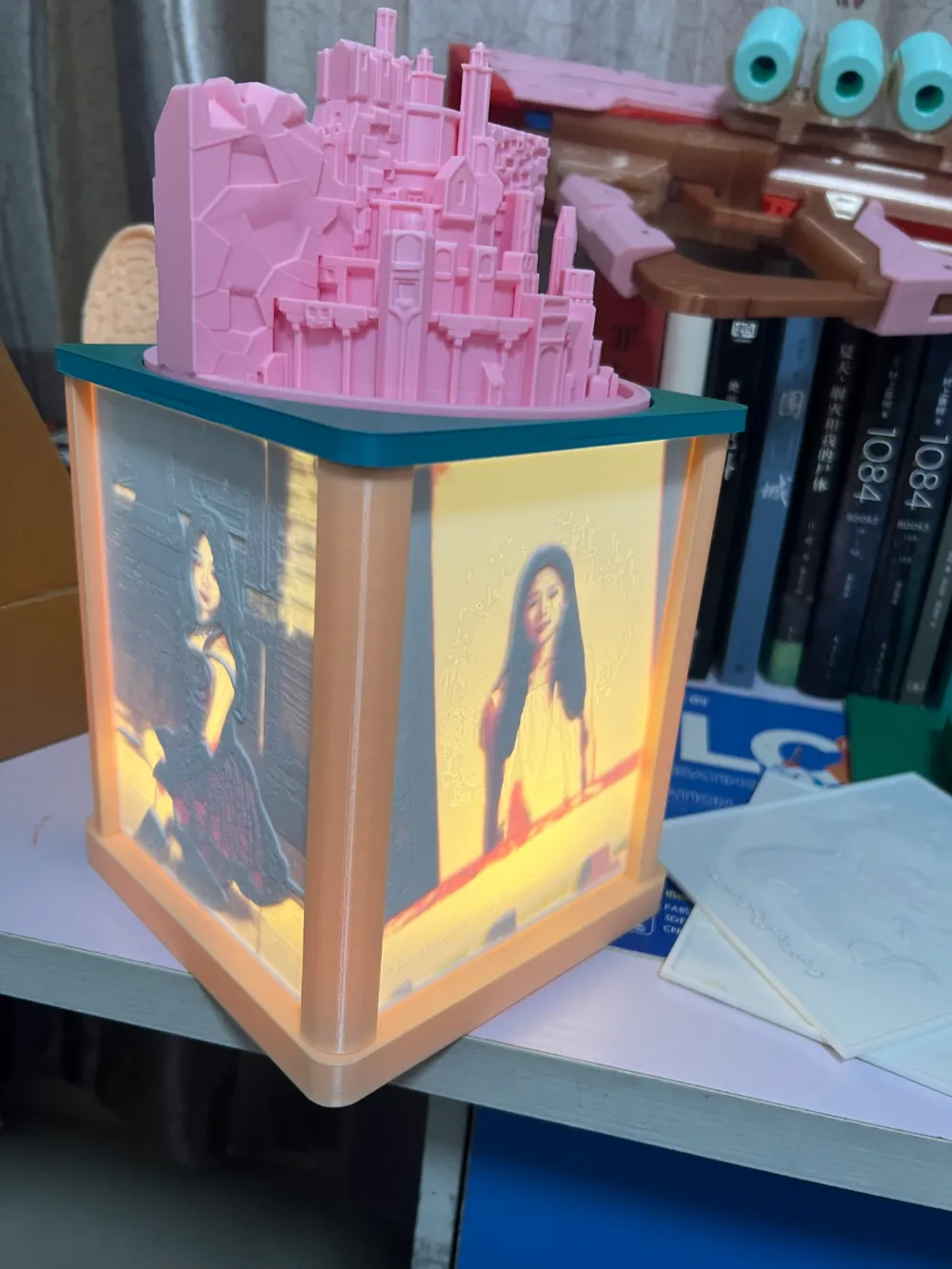

The castle above is the “Minas Tirith - Lord of the Rings” model from the app; I have simply left its placement location

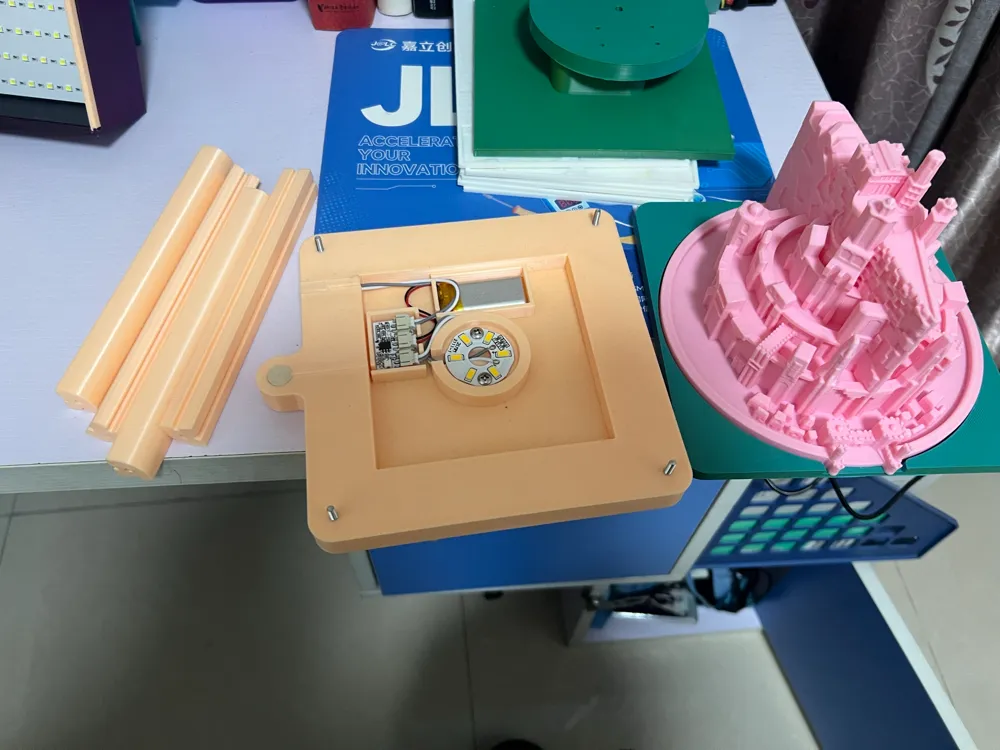

Secure the magnets, castle, and wiring limit switches with 502 adhesive

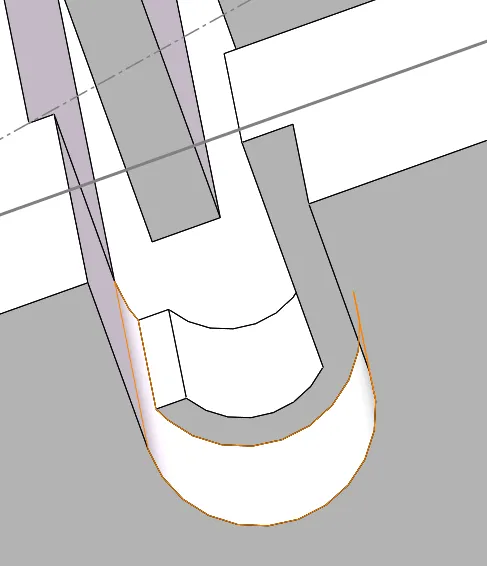

When installing the charging port, be sure to note the half-stop design
Route the wiring along the right side
Handle the touch head limit switch component with care during removal; the touch head retaining ring is fragile

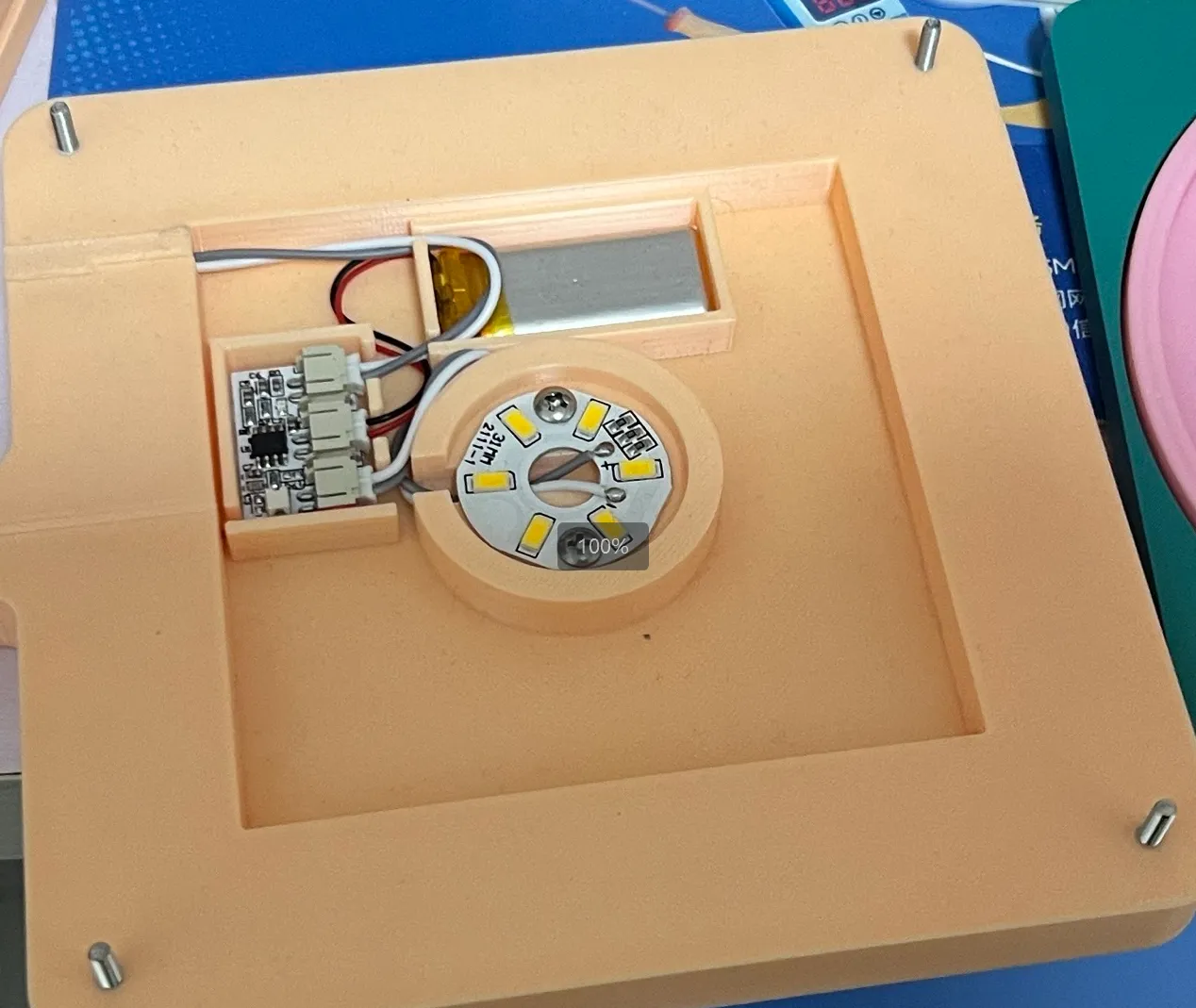

Wiring installation diagram below
