Mini bottle 65mm Container Reuse 2L Cap Pill box

Designed to reuse any 2L soda bottle cap, this little tube has so many uses. Light and simple print, no supports, prints upright.

No fuss with bizarre caps threads, just reuse any 2L soda bottle cap.   Shown printed in Bambu Labs PLA Basic.

Need a cap? Check my 28mm models -> https://makerworld.com/@user_3808593899/collections/4546564

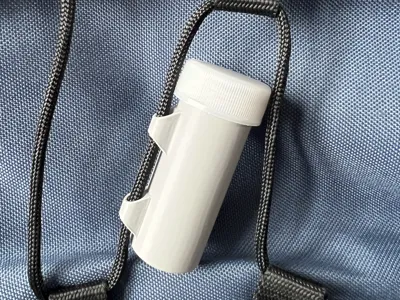

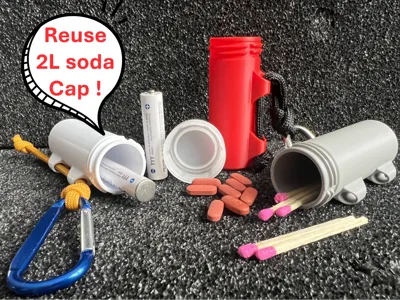

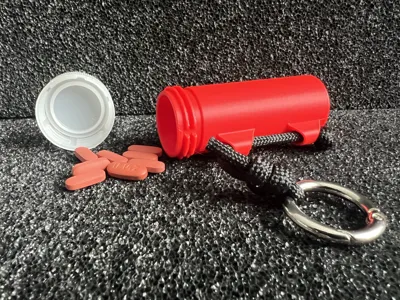

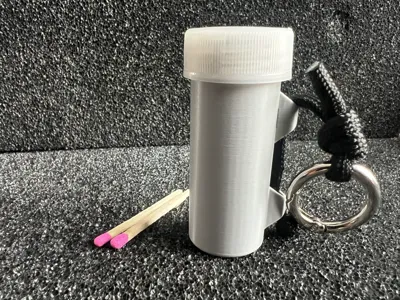

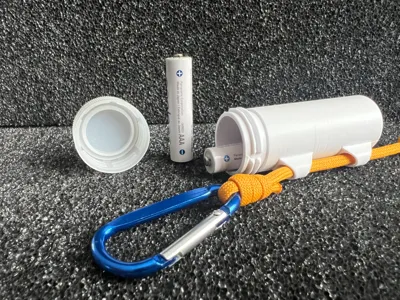

Sturdy eyelets, solid and redundant attachment eyelets with ⌀5.5mm holes to fish a cord or a small carabineer. Use both, only one, upside down, you choose.   Useful for backup and on the go items like medicine pills, spare batteries (1xA and 2xAA), matches, folded dollars or a mini first aid kit.  Tie a small rope and a key ring, attach it to your back pack or just drop it in your purse.

At less then 15g, ideal print to use the remainning of the the of end of spools (see tips below  on how to "print by objects”)

Feedback / comments : This little container has so many uses, I can't list them all ! I'd like your feedback on my free models and what you use them for. Thanks for sharing your positive experiences and other ideas are welcome.

What a custom tagname to go with it -> https://makerworld.com/en/models/979811#profileId-953293

No AMS ? No problem, this print is a 1 solid color.

Dimensions :

65mm tall x ⌀21.5mm inside.

Rope holes are 5.5mm⌀ (for an easy slide of a 4mm paracord type 550).

With the eyelets, the width is 33.5mm and round external body is ⌀27mm outside.

Keychain ring knot :

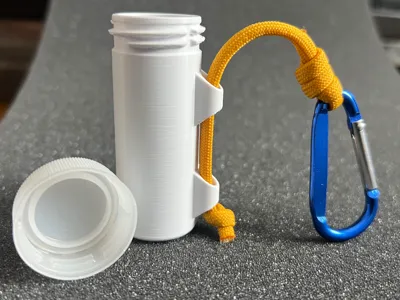

You like the knot shown in the pictures ? The knot used for the carabineer is a Multiple overhand sliding / scaffold knot if you would like to reproduce a similar knot.

Reuse your soda pop bottle cap : The pouring neck has vented threads for a typical soda bottle cap commonly found on the 2L bottles (The exact type of cap is PCO-1881 (Newer version of the PCO-1880). The opennings in the threads will vent the contrainer (if ever pressurized) when uncrewring the cap.

Printing: No supports needed, to be printed flat on the bottom the bottle upright with the threads up. If you encounter 1st layer adhesion for moving beds, add a brim to help hold it down.

Print by objects : No sure your spool was enough filament left ? No problem, if you print "by objects", the Bambu labs machine will print each model one my one.  It needs more space between the models on the bed space, but the machine will print the objects one after the other.   Wiki on Print-by-objects : https://wiki.bambulab.com/en/software/bambu-studio/sequent-print
