RC Plane Snow Ski Set for Turbo Timber Evolution

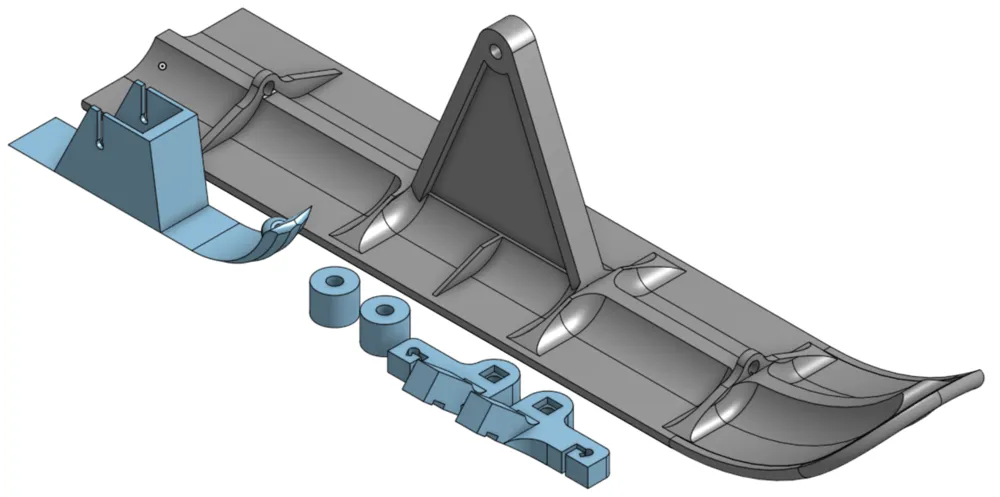

Designed in Onshape: https://cad.onshape.com/documents/1aa0421e7e95712550ae17f8/w/833f77d04a06cf5db1c963e0/e/325a6aa2d01f6c2ee82e4dd8

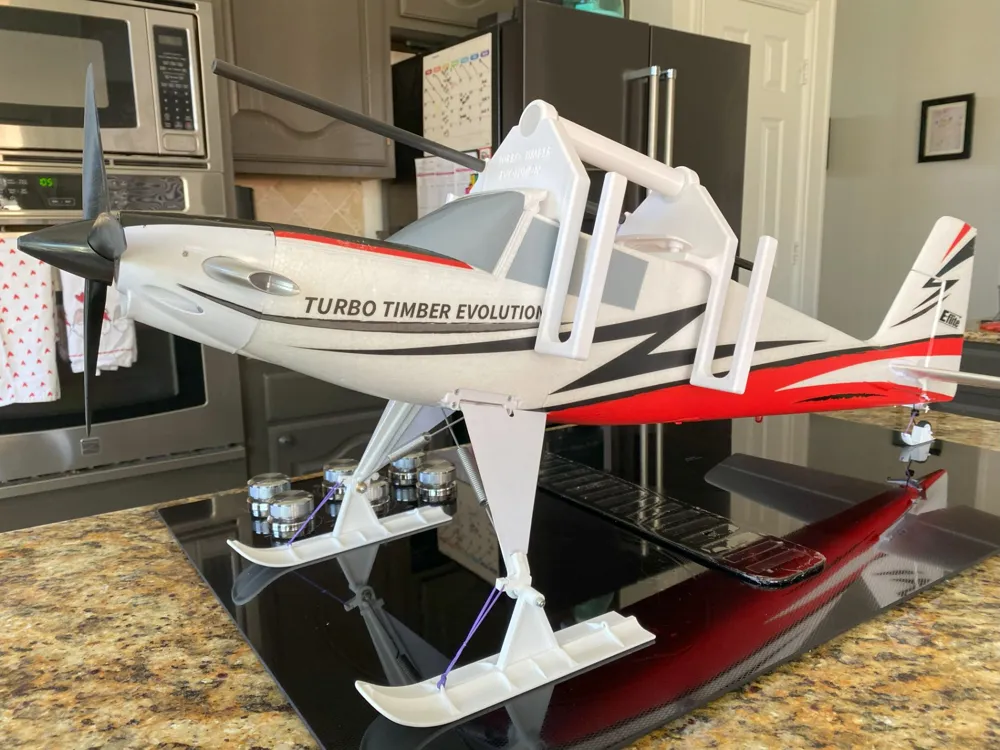

• The mounts are designed to fit the Turbo Timber Evolution and are attached using a zip tie like the picture shows.

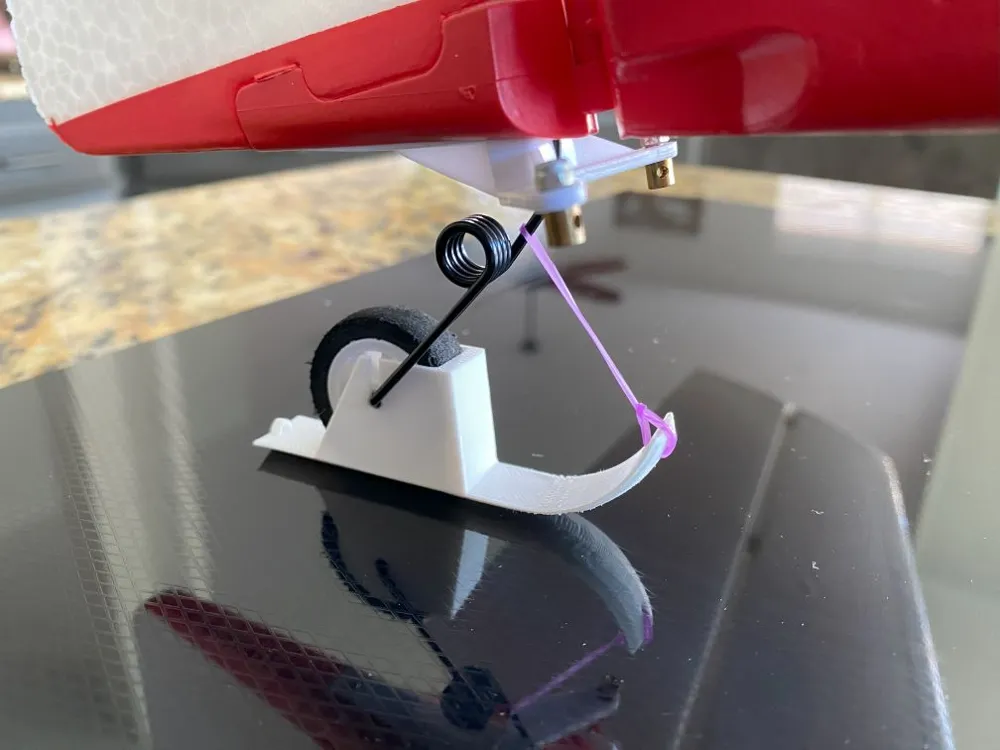

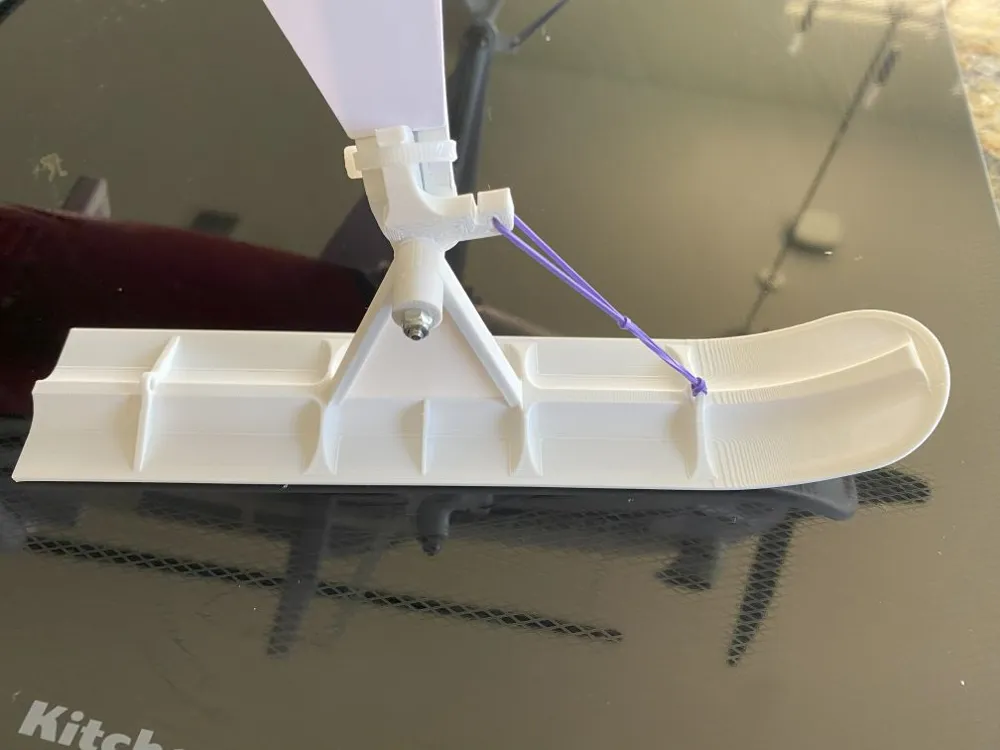

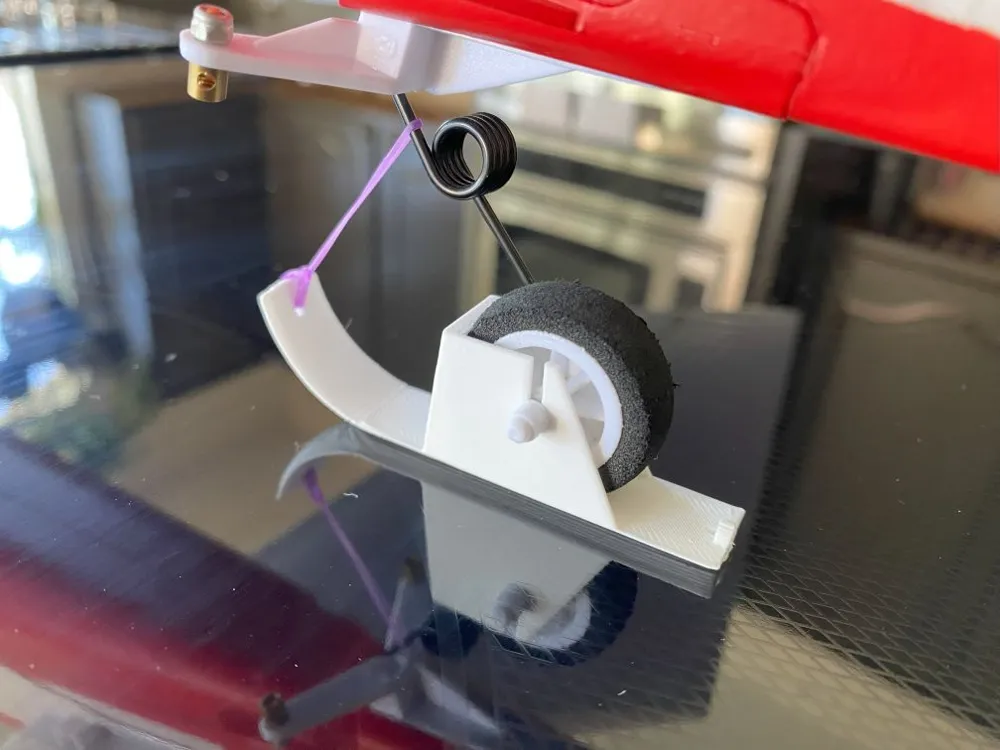

• With the mounts the sks are held in an angle while in flight by the rubber band.
• If the mount is incompatible (other models than TTE), the skis can be attached with a rubber band to the front of the fuselage and a wire to the rear of the fuselage. This will keep them in a desired angled direction for landing.
• The ski surface can be made to glide better on wet snow by melting candle wax on it. This added about 2 gram per ski.
