Switch Cover Plate for 16 mm Ø light in Dashboard

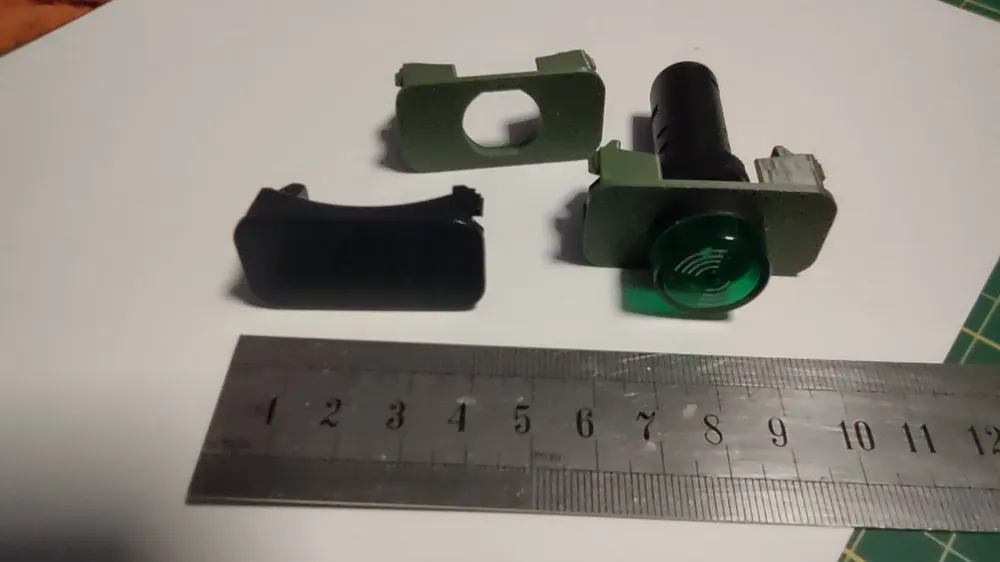

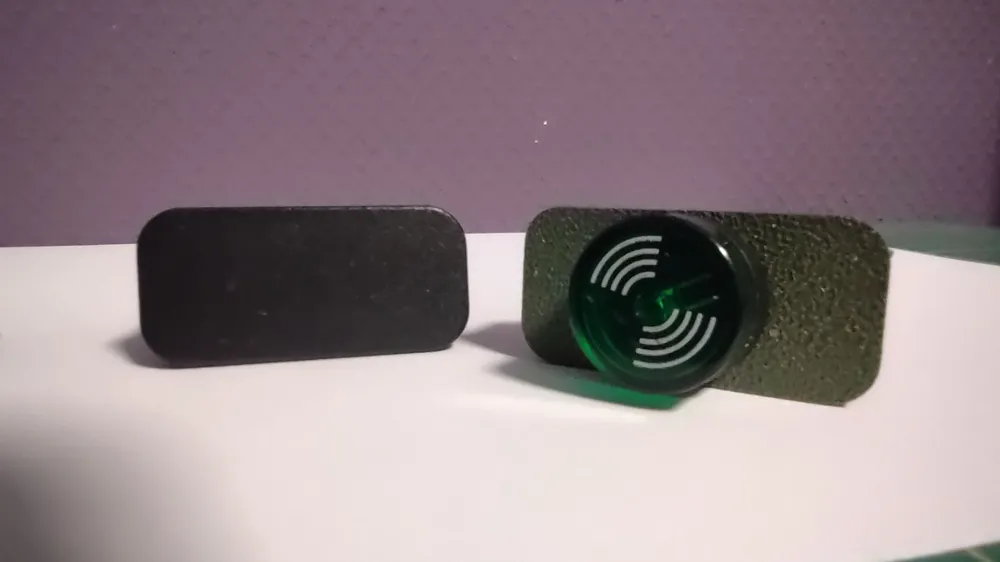

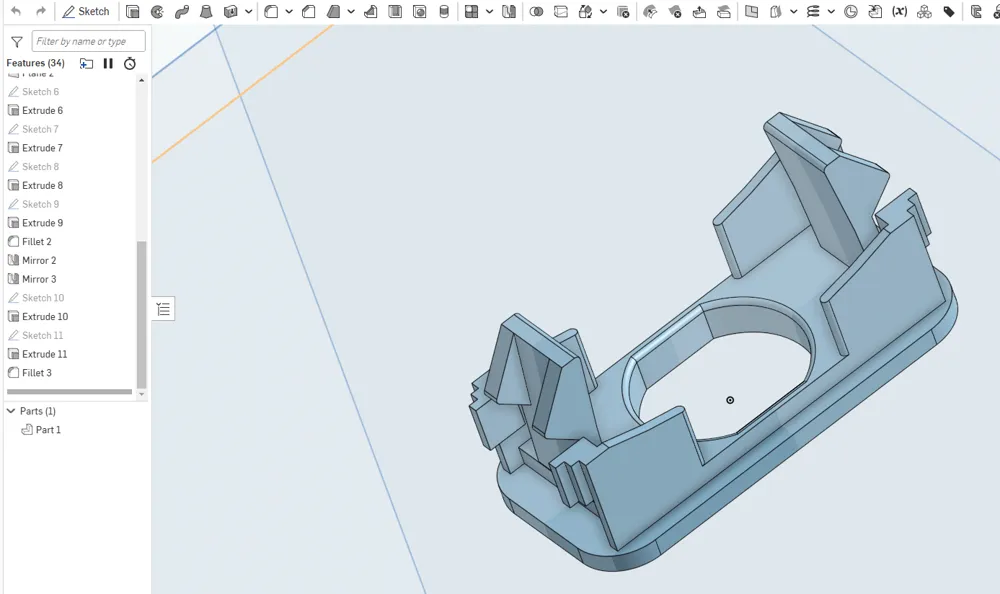

This is a variation on the blank cover plate I reverse engineered, to fit in my T1N ex-firetruck.

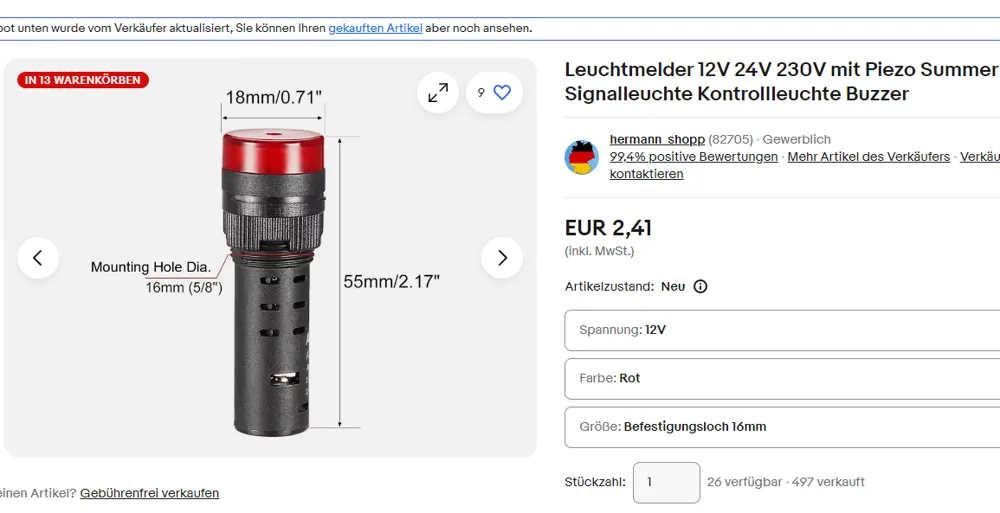

This one had a 16.5 mm hole to fit a 16 mm (LED) warning light (with buzzer).

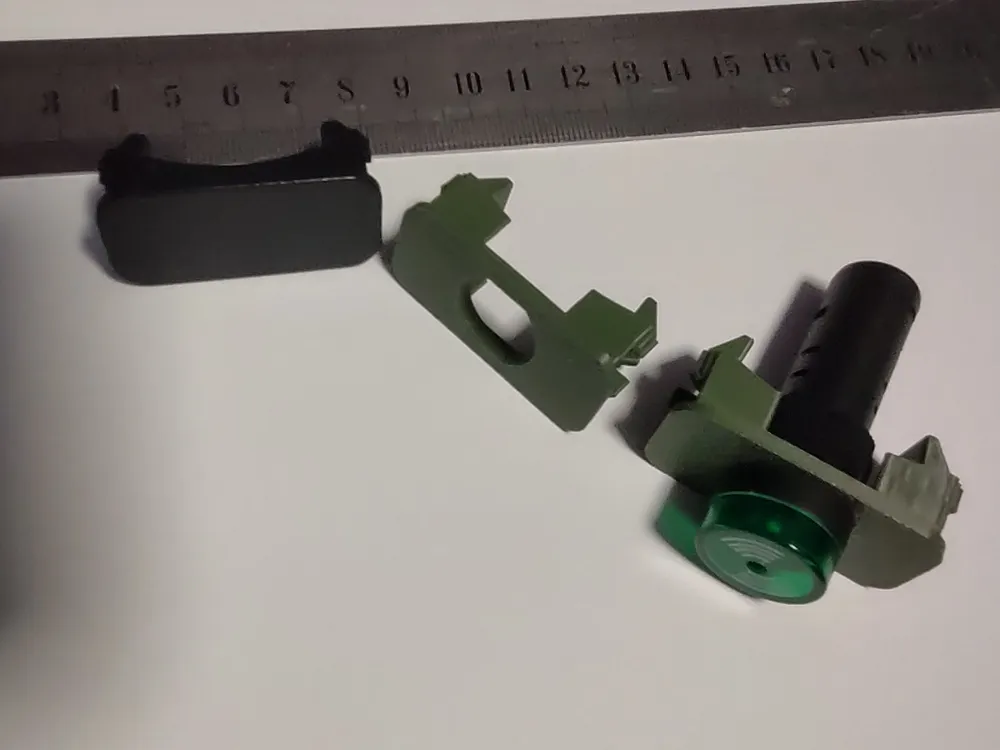

Since the plastic nut is 18.5 mm Ø , I removed a part of the wall of the plate, so that the light can be tightened securely.

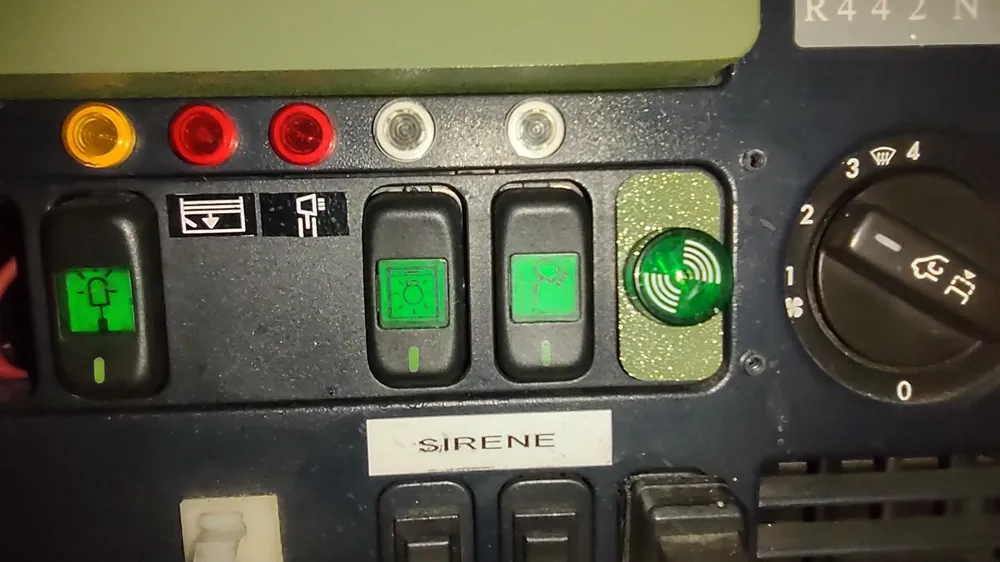

Test fitted in the dash for photo, not fully (“click”) inserted, as it will need some wiring done first.
