Hole Pattern Cards
Print Profile(1)
Description
We all know the problem... Something is designed and a hole diameter of 5mm is needed. After printing, we find that the printed hole is too small. We make it a bit larger in the drawing and print it again. Then we realize it's too small again because we chose the offset too small.

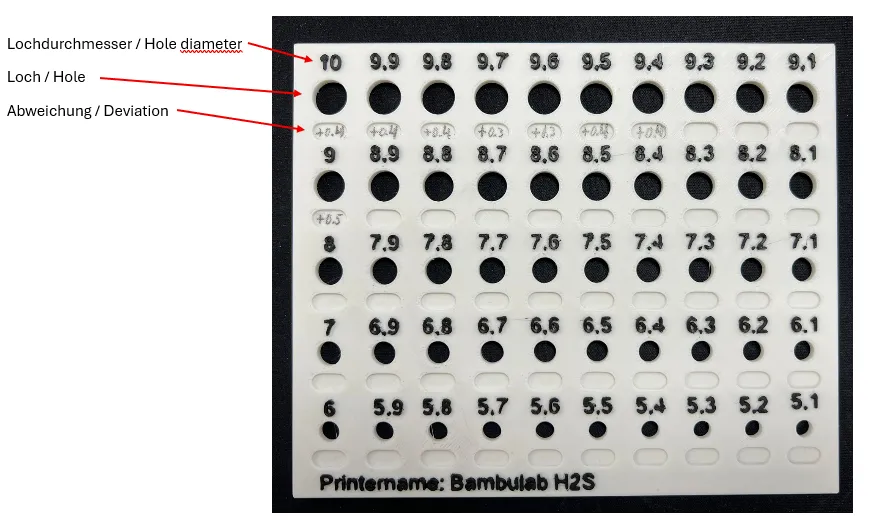

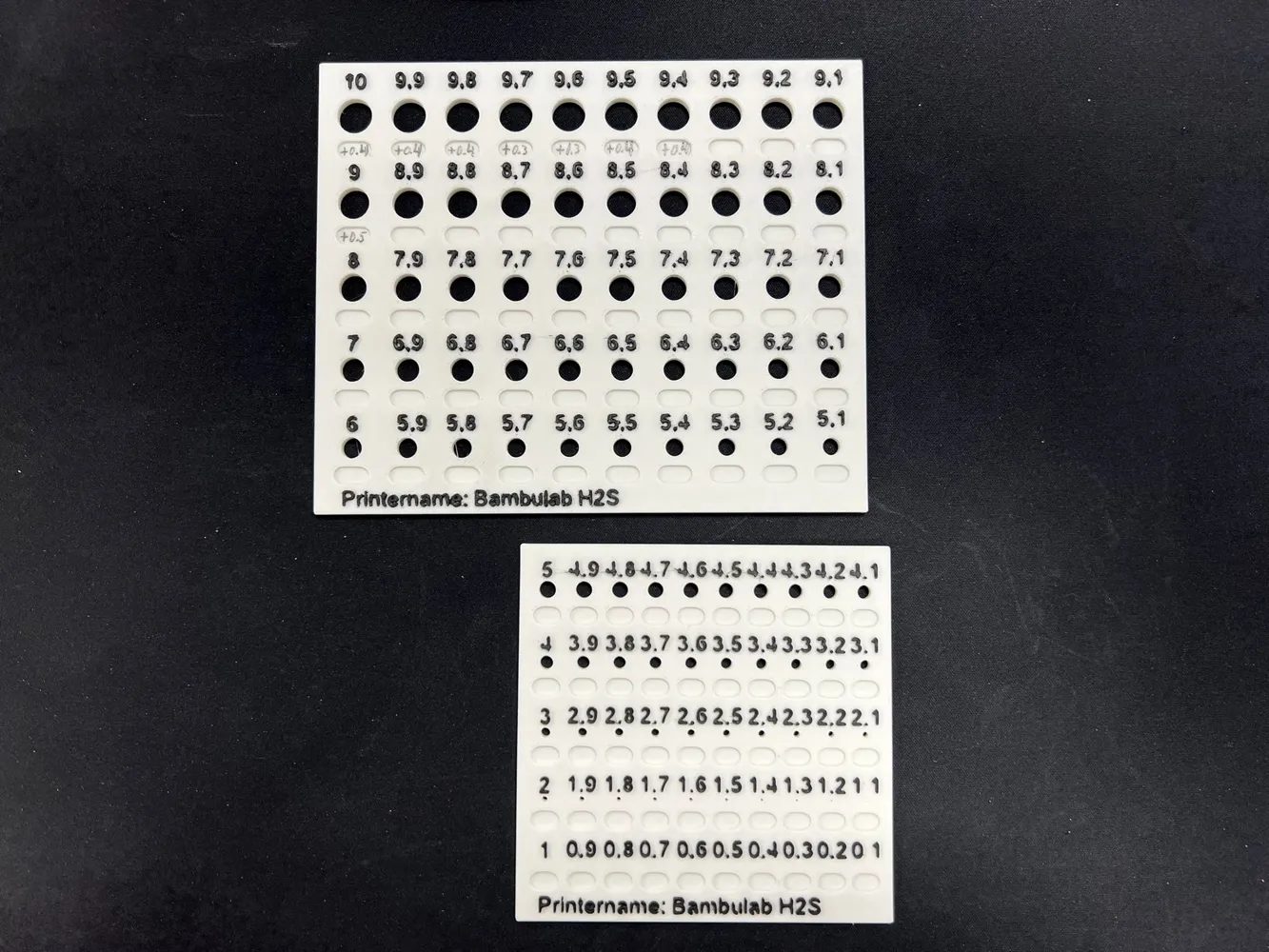

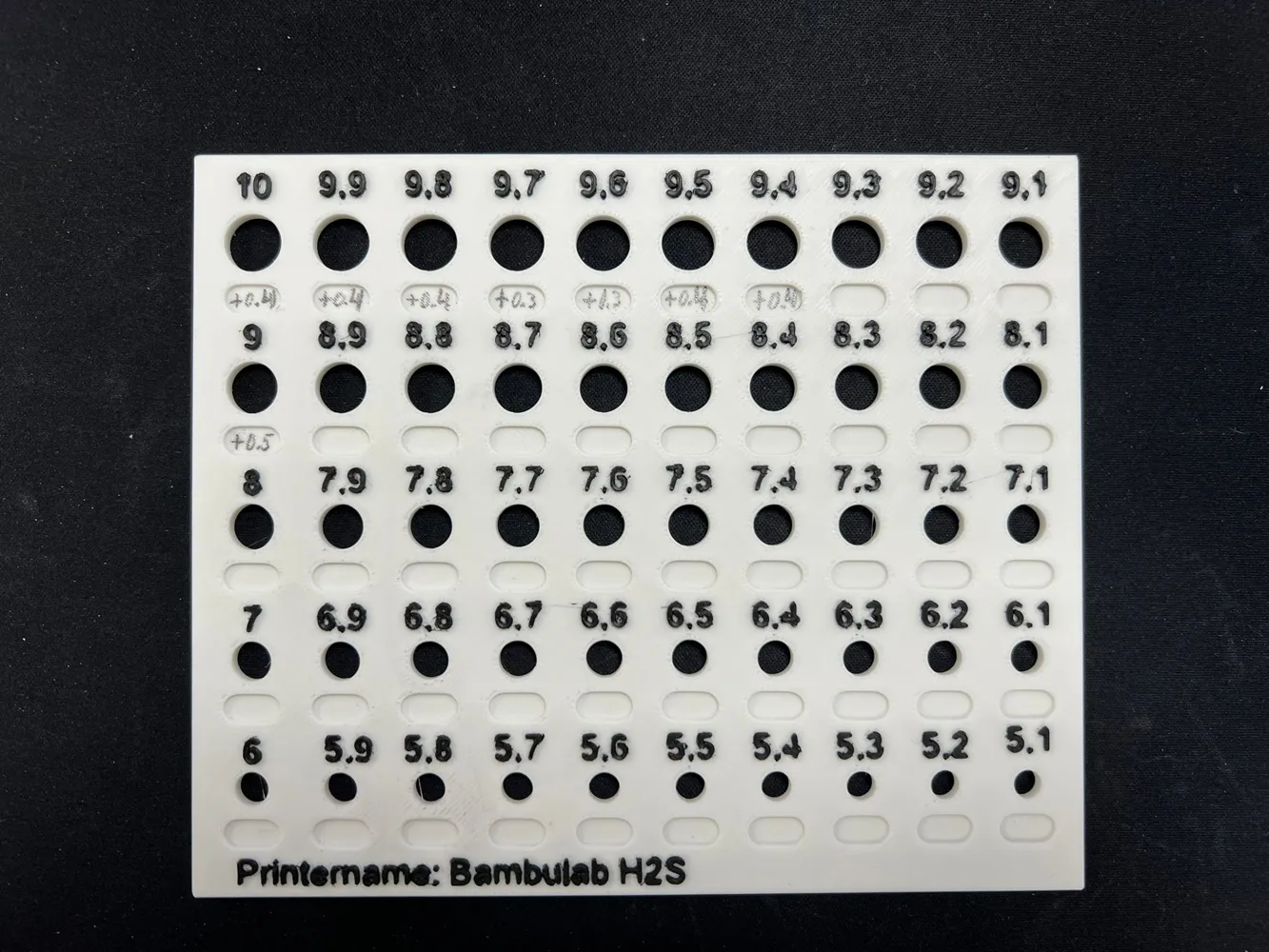

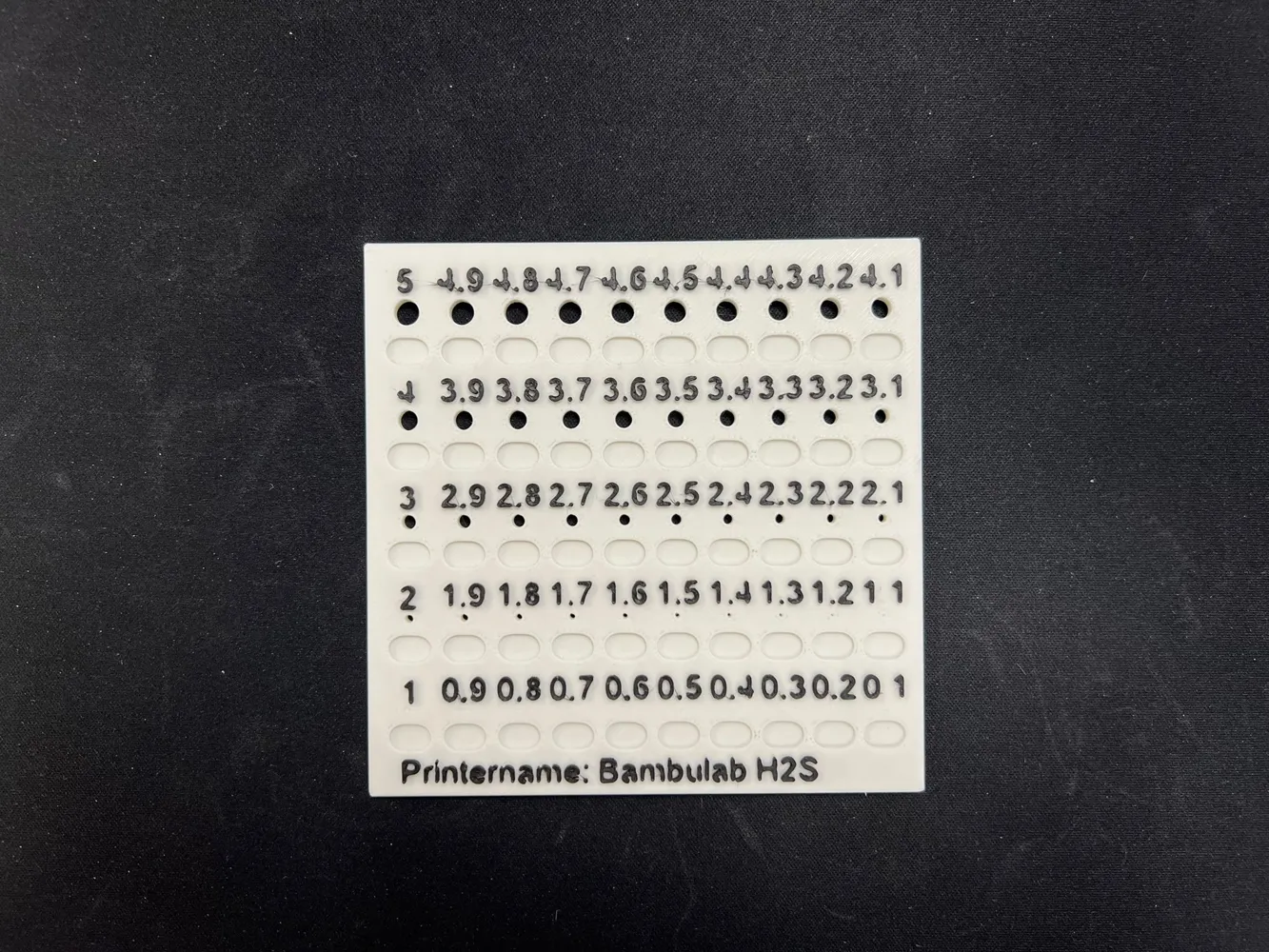

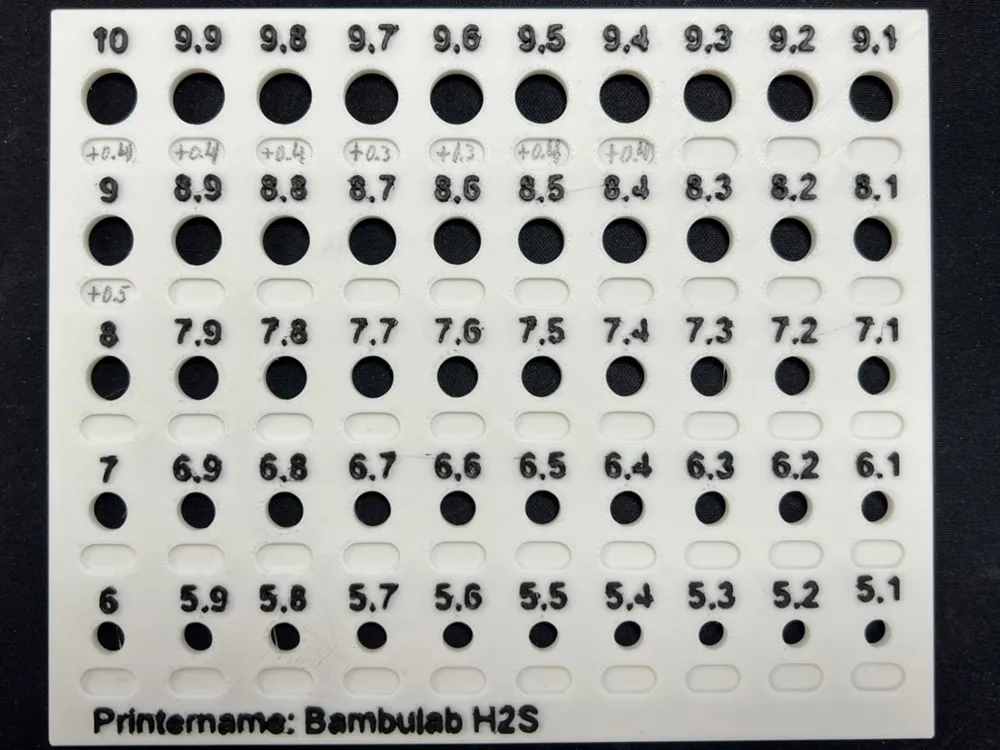

To make things easier for myself personally, I created a hole pattern card that always reduces by one tenth, and I have the option to write the direct offset value below it.
IMPORTANT: When you print the hole card, remember that it only applies to the printer with which you printed it. Identical / Different printers always have different tolerances, even if they are very close in comparison.
Of course, there are already many such cards, and mine is not entirely perfect, but I simply missed the ability to write the direct offset value below it so I don't have to rethink it every time.
I will also make this more compact and publish it here. So feel free to follow me so you don't miss it.
I am open to wishes and suggestions and will try to implement them.
