[BaBo duo] riser honeycomb (HSW) module

Links to my collection:

• BaBo collection
• BaBo duo collection
• BaBo inserts

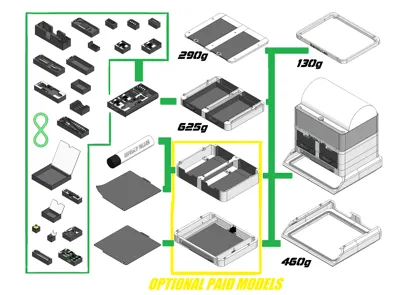

Create your BaBo organizer! A system created to store them all!

Description:

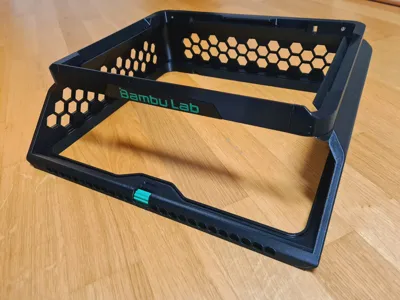

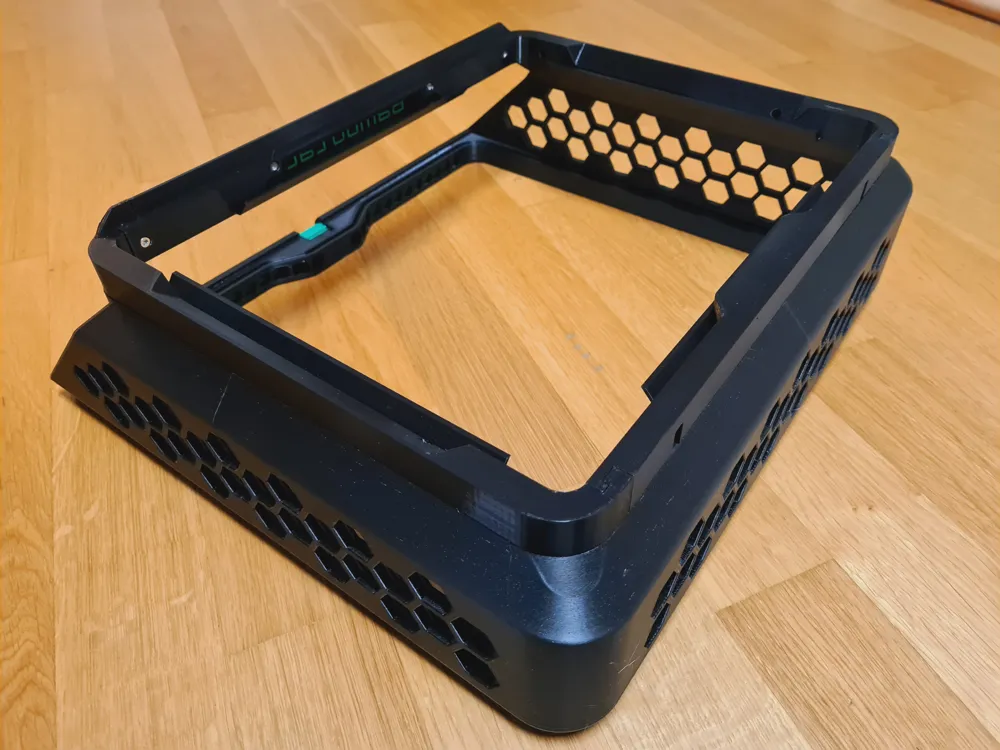

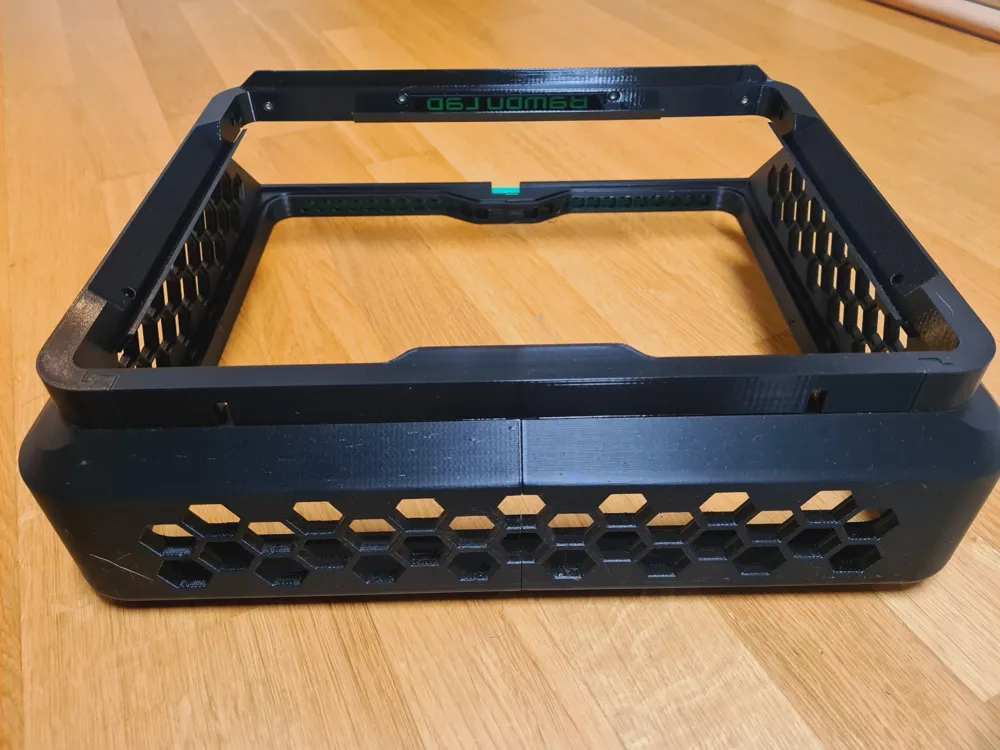

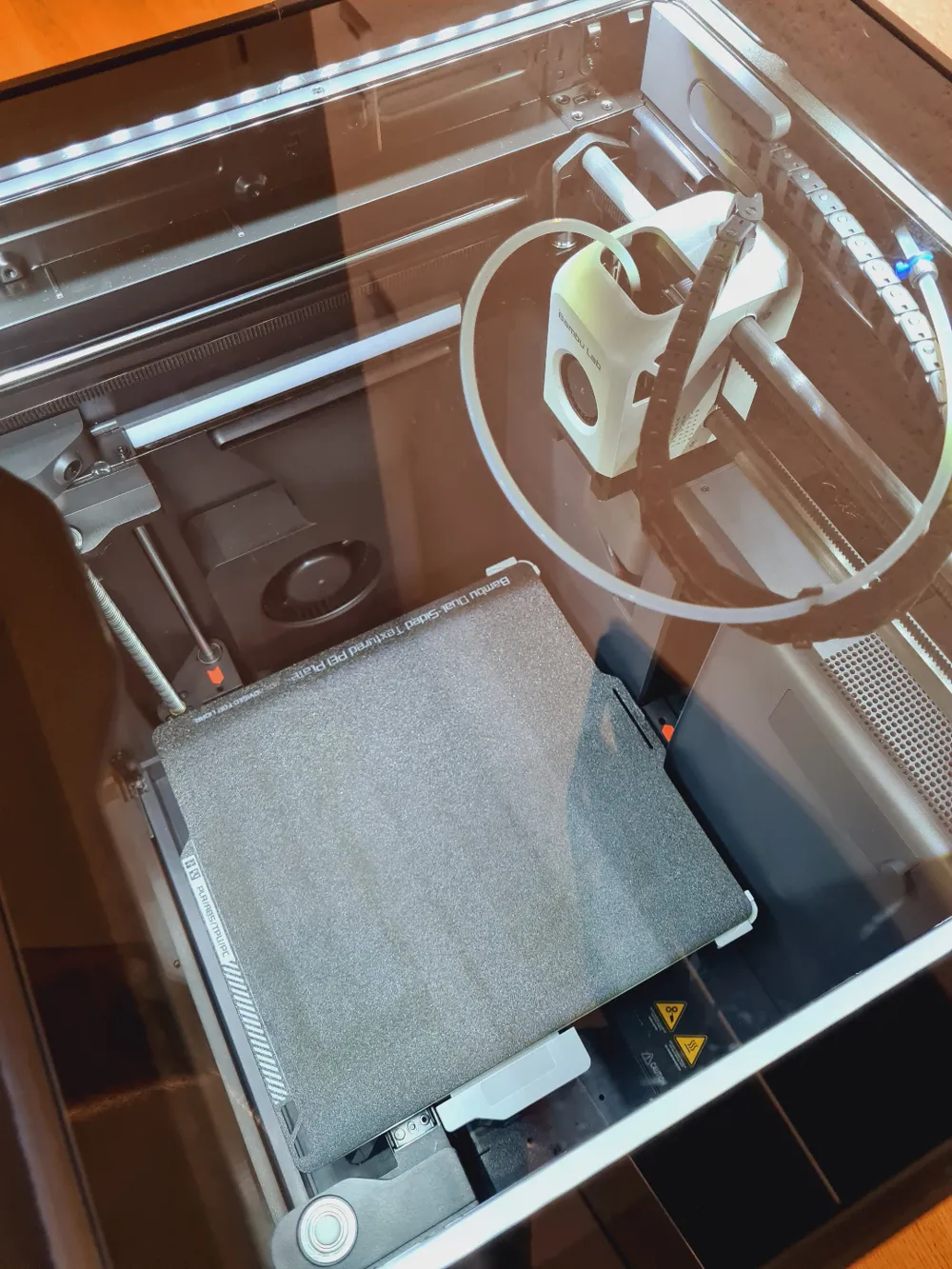

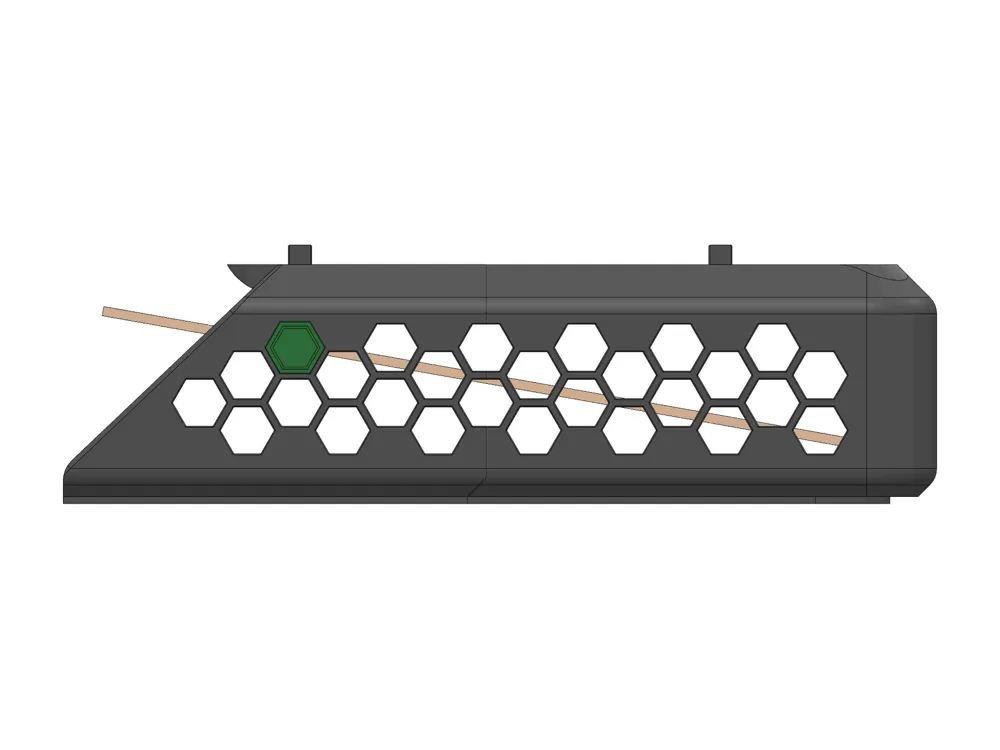

This is the BaBo duo riser honeycomb (HSW) module. The purpose of this riser is the possibility of ventilating the printing chamber with the help of a rotating closure in the front as well as better visibility in the chamber and the possibility of installing LED strip for lighting. In addition, this version offers HSW compatible walls. A large number of accessories can be attached to this. As well as this spool holder.

Compatible with X1 and P1 series.

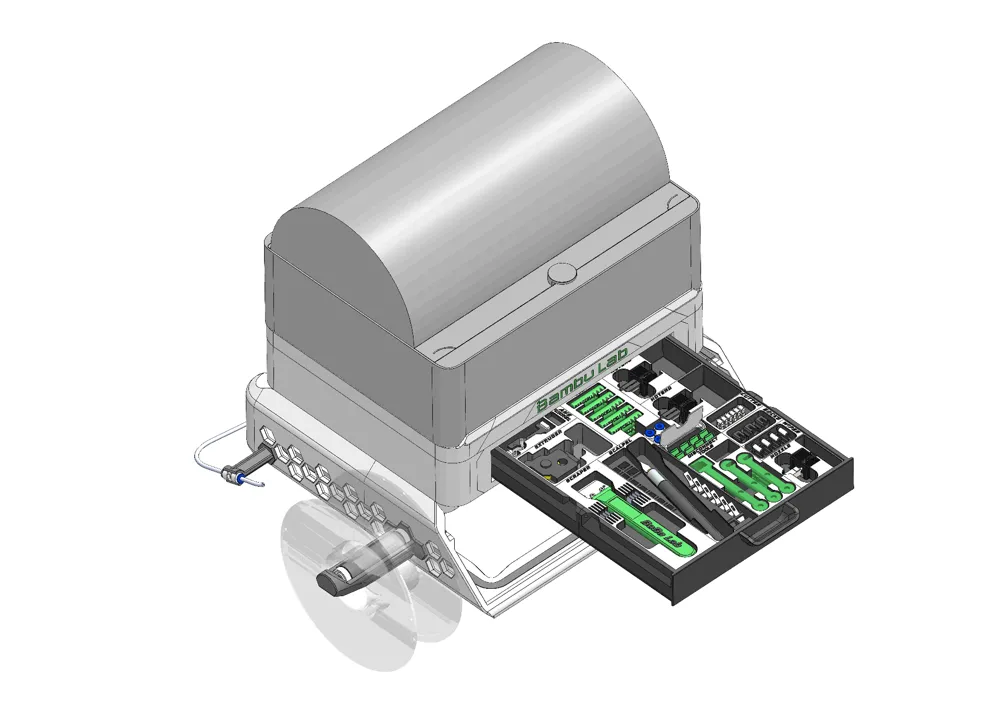

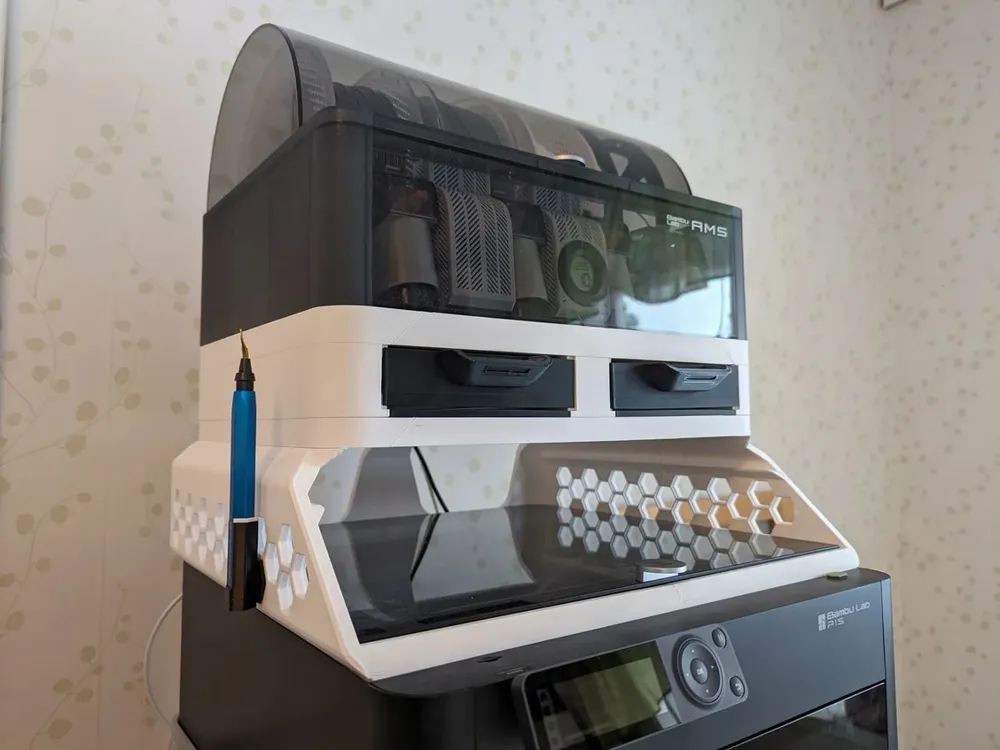

This riser can be mounted and combined with the BaBo Duo modules to create an individual organization system or just as an AMS riser. Build your riser according to your wishes and adjust it if necessary later.

If you only want to use it as a AMS riser without the drawers or plate holder etc. then you need at least the AMS adapter module.

BaBo organizer is a stationary, very flexible system to store your tools, spare parts and even printing plates. The design is based on the iconic look of the Bambu Lab X1 printer. The entire system uses only 1 type of screw, M3x8 countersunk screws.

Update:

(29/11/24)

• Added version for 10mm and 12mm LED stripe

Printing:

Layer height: 0.2

Supports: Yes

Brim: No

Material: all (PETG recommended)

Assembly:

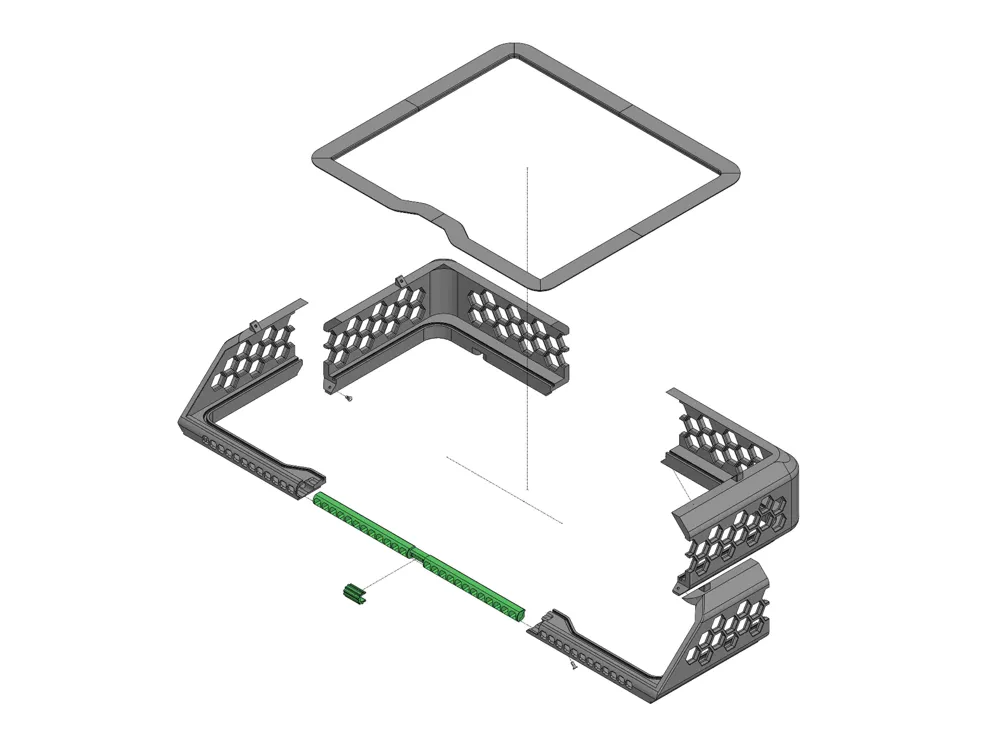

Follow the instructions in the picture.

• printed parts
• 4 x M3x8 countersunk screws
• 8mm LED strip
