Definitive Filament Swatch ReMix with Label

Visit My Collections:

Multiboard Collection

   Super Bambu Cart

If you want infos on filaments used or other stuff presented in photo or description please PM me, I will share them with pleasure.

Use My suggested Profile suggested

Model completely redesign. what is in my remix published in makerworld:

• Angled upper corner instead of round
• lenght improved
• revostructed bridges
• remade holes
• thickness different
• reconstructed overhangs
• rebuilt grip zones

this remix definitive is made by me and it is online since 2022 https://www.thingiverse.com/thing:5350310

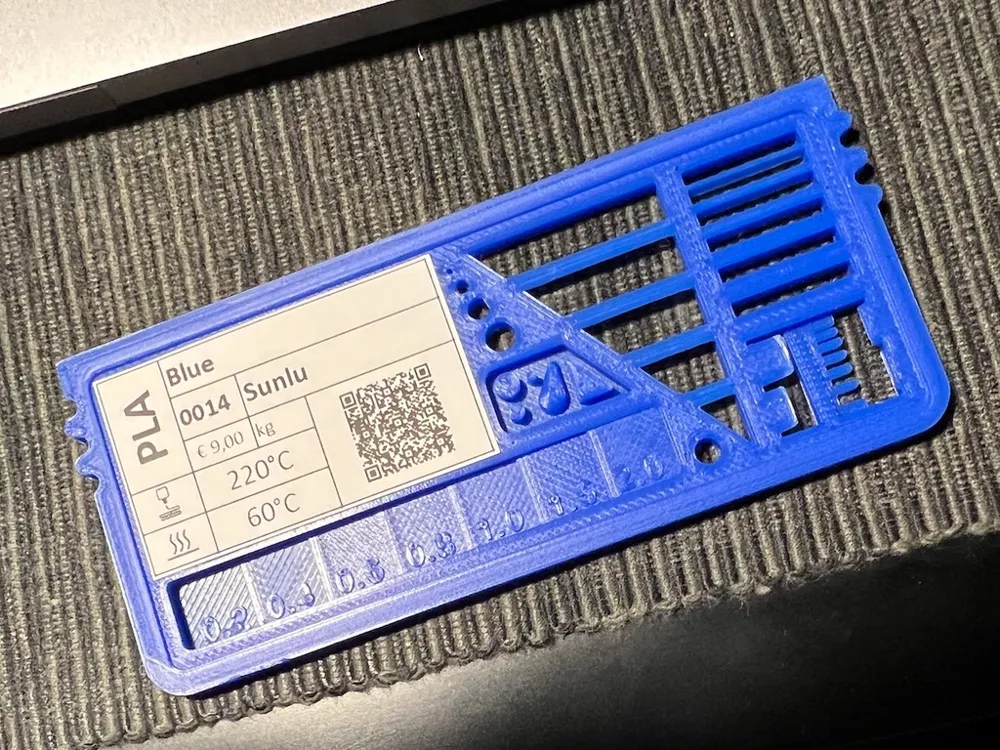

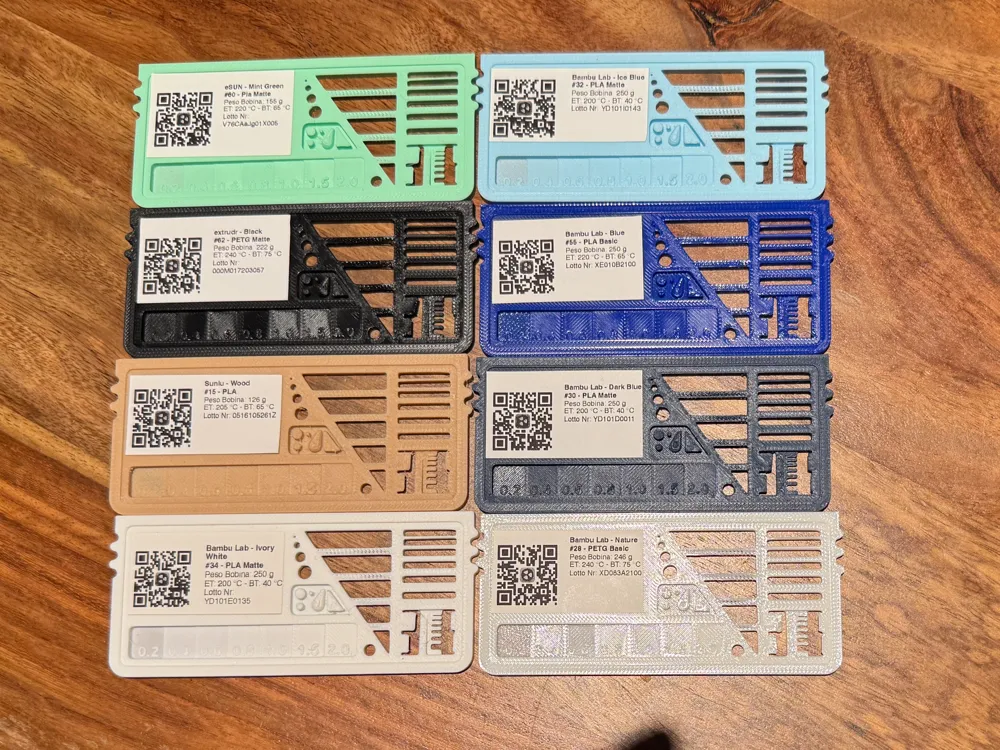

Make a filament swatch to see how a filament looks printed and how your printer handles the filament with the embedded mini torture tests.

This is my make on a filament swatch, based on my model on Thingiverse.

Designed from scratch in SketchUp, using the original model as a starting point, adding my own touch.

Features:

• Thickness/transparency test
• Overhang test
• Gaps test
• Wall thickness test
• Hole diameter test
• M3 screw size hole
• Posts diameter test which doubles as stringing test
• Sharp inside and outside corners test
• A smooth feature
• A slope feature
• Square Up Angles
• Measures on layers 0,2 - 0,4 - 0,6 - 0,8 - 1,0 - 1,5 - 2,0
• The grip features on the side double as bed adhesion test. It now also fits another swatch next to it as a tolerance test or just good for fidgeting with them :)

INCLUDED LABEL FILE FOR BROTHER P-TOUCH SOFTWARE.

File LBX

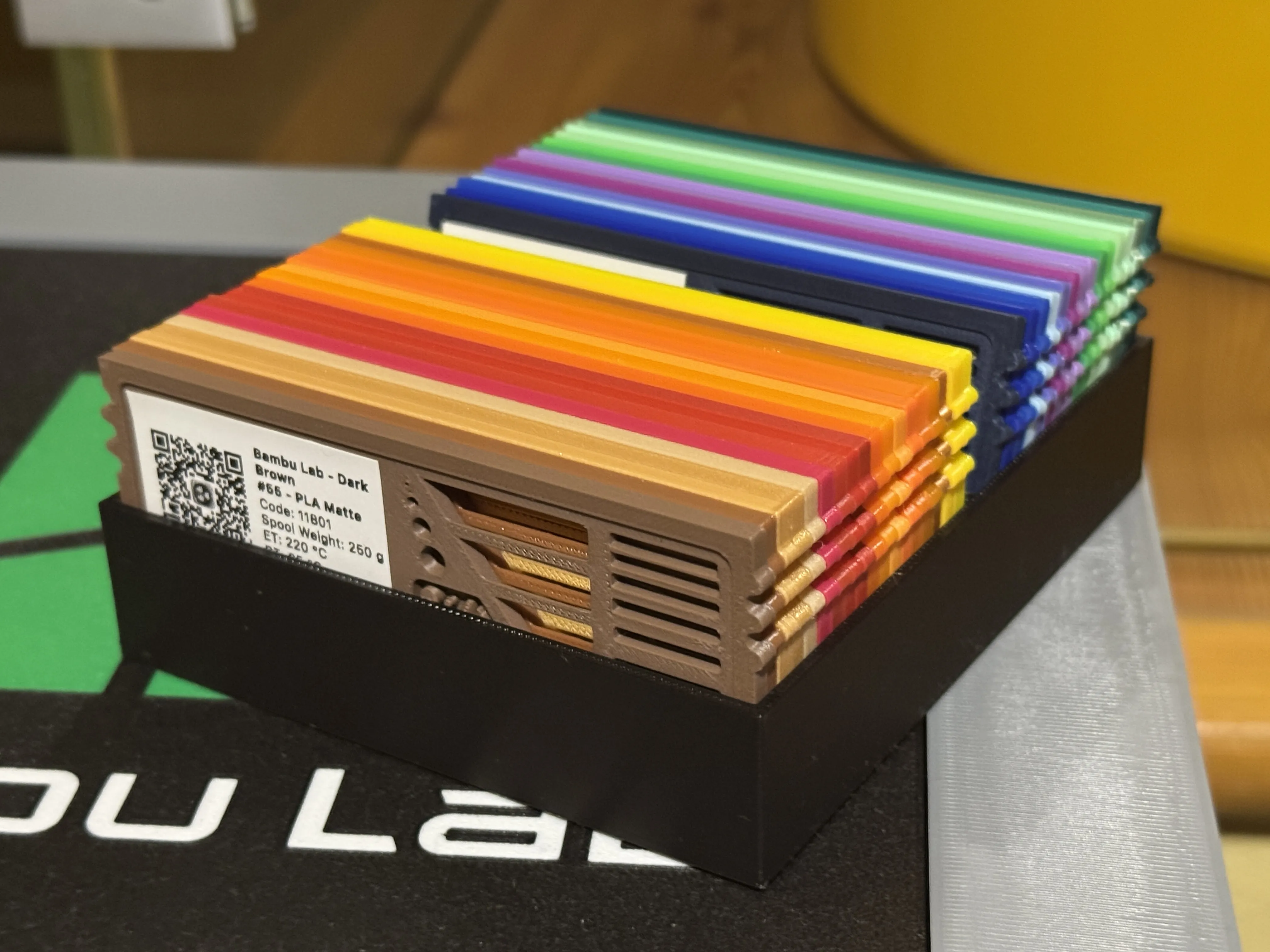

Here the New Box:

Try also my Swatch Board and my Filament Swatch
