Hello

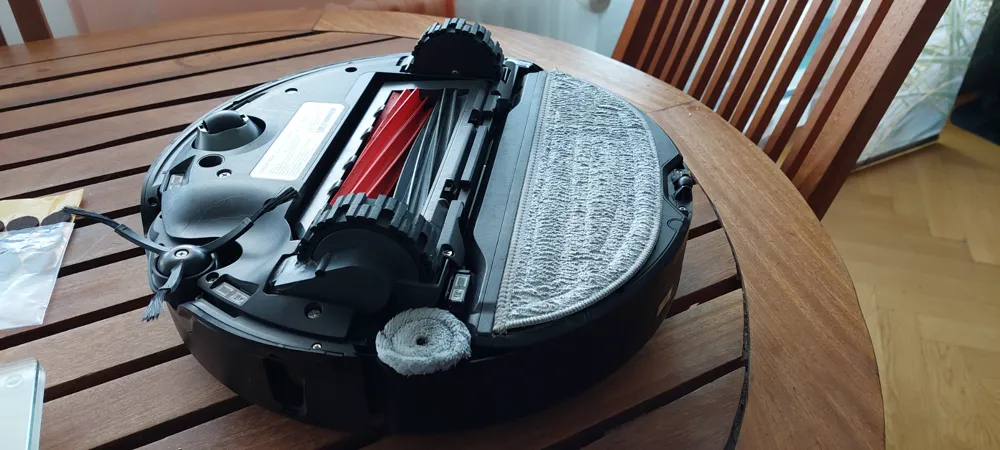

My first attempt to clean a Roborock robot was confronted to the turret protrusion. This is not very stable and will damage the robot.

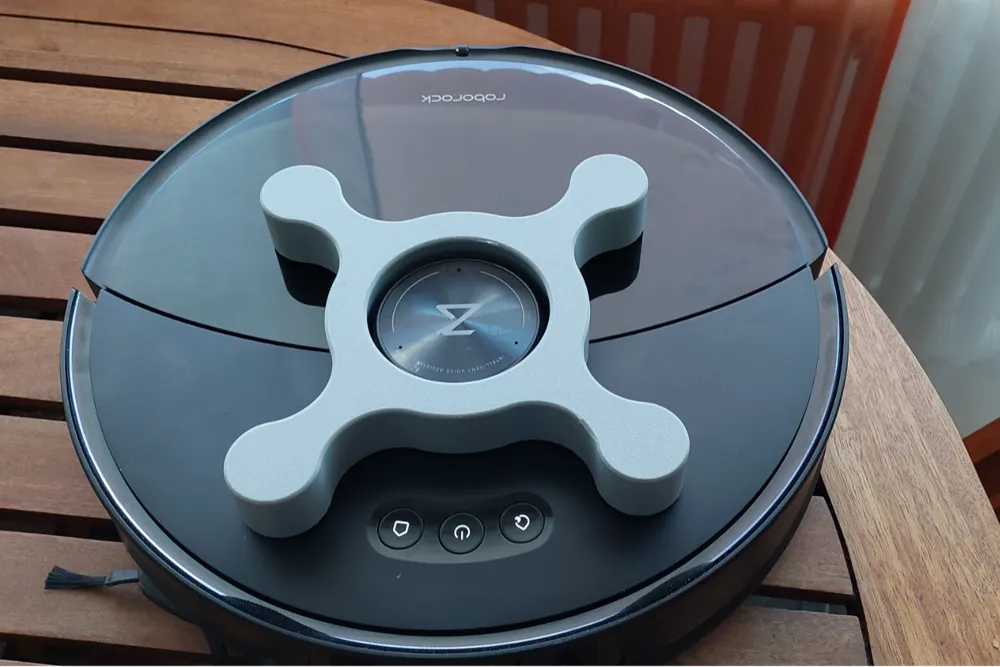

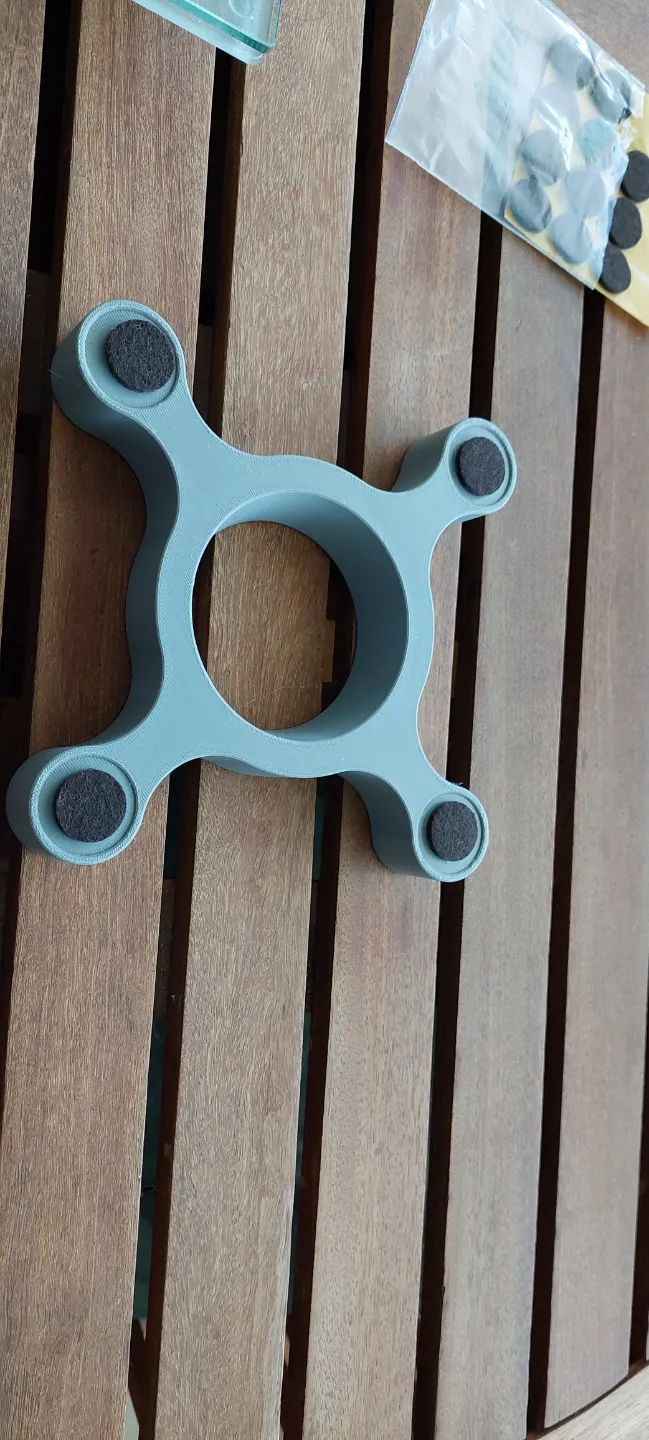

Using this adapter, adding smooth pads (by exemple for furniture feets, embossed diameter is 30 mm), you will be able to dismantle and clean the robot effortless.

If you don't felt pads to glue, use the second plate, print the pads them with TPU and glue them. Thanks to @Suva for the tips !

Global size is reduced to be printed on every bambu printer (180 x180 mm)

Special extension to use the magnets of the cover as a help to manipulate the support ;-)
size of magnets can vary

Hole is for a max 80 mm turret but you can scale up if the turret on your robot is bigger, maybe xiaomi or roomba ?

I also made a tool to extract this damned front wheel without efforts. It's there and less than 10 minutes print.

https://makerworld.com/fr/models/983649#profileId-957826

have a look on the roborock brush support

https://makerworld.com/fr/models/1040671#profileId-1025506
Cleaning of filter could be better with that simple stuff

https://makerworld.com/fr/models/1166587-roborock-filter-cleaner#profileId-1174050

The Dreame L10 PRO has a dedicated support there because of the big turret
https://makerworld.com/fr/models/1200400-dreame-robot-stand#profileId-1213418

Another way to clean the filter without a vaccum

https://makerworld.com/fr/models/1342941-roborock-filter-cleaner-s8-max#profileId-1383876

Boost Me (for free)

If you have some boost to support me, don't hesitate ! Thanks

Enjoy and don't hesitate to ask for modifications or improvements

Christian
