Ultimate Keychain Reinforcement System
Print Profile(1)
Description
Tired of printed rings breaking
This model allows a metal clip to be integrated into the part during printing, creating an anchoring point much stronger than any hole or printed plastic ring
The file is designed to use 25 mm metal office clips, although it can be easily adapted to other sizes by scaling the model
Advantages
Much stronger than a printed ring
Hidden system inside the part
Compatible with any keychain or pendant
Easy to integrate into existing designs
No special parts required
Uses inexpensive and easy-to-find office clips
How to use it
Import the 3MF or STL file into Bambu Studio
Configure the part as a negative object
Insert the void into your design

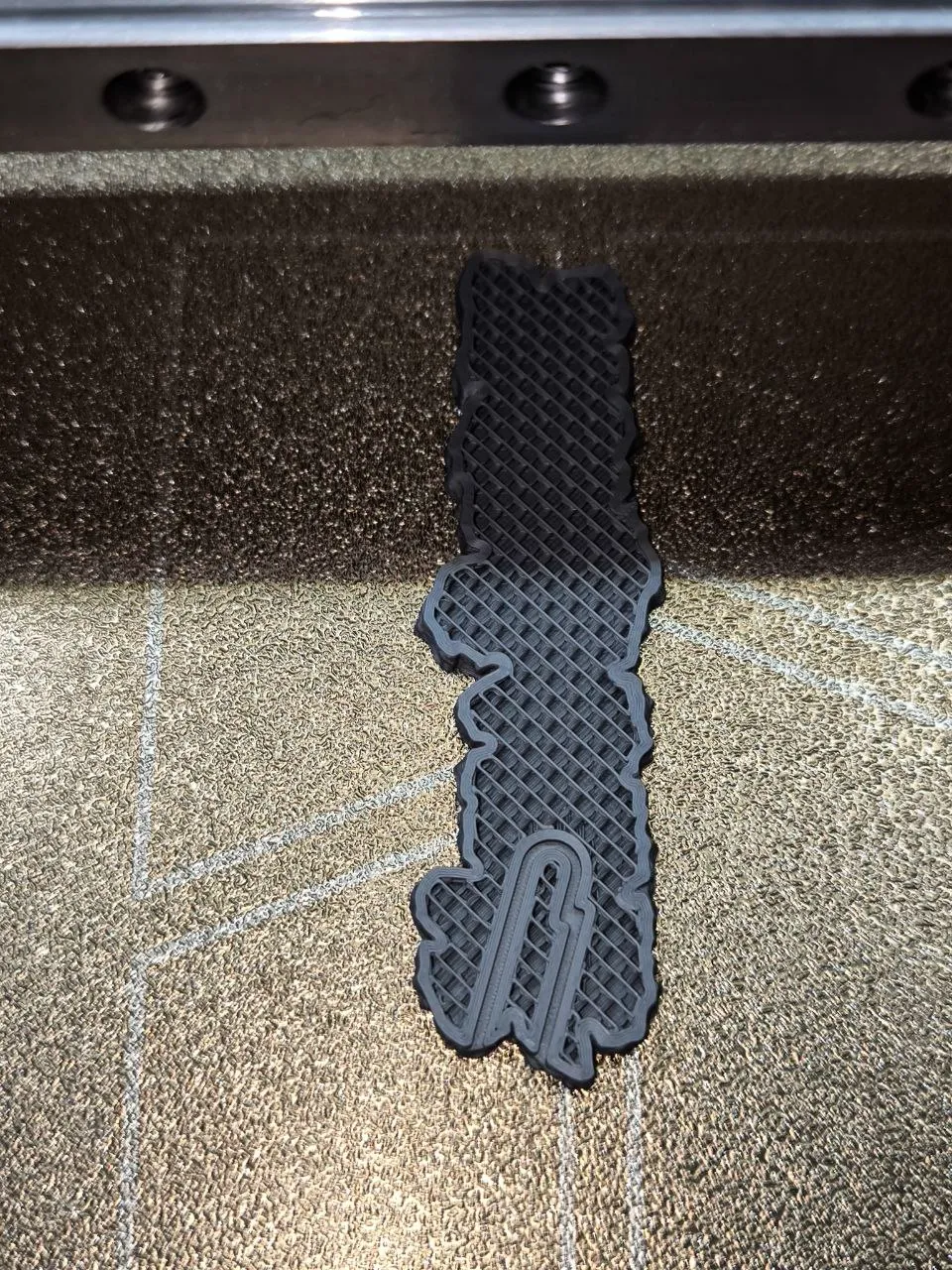

Add a pause in the last layer before closing the housing

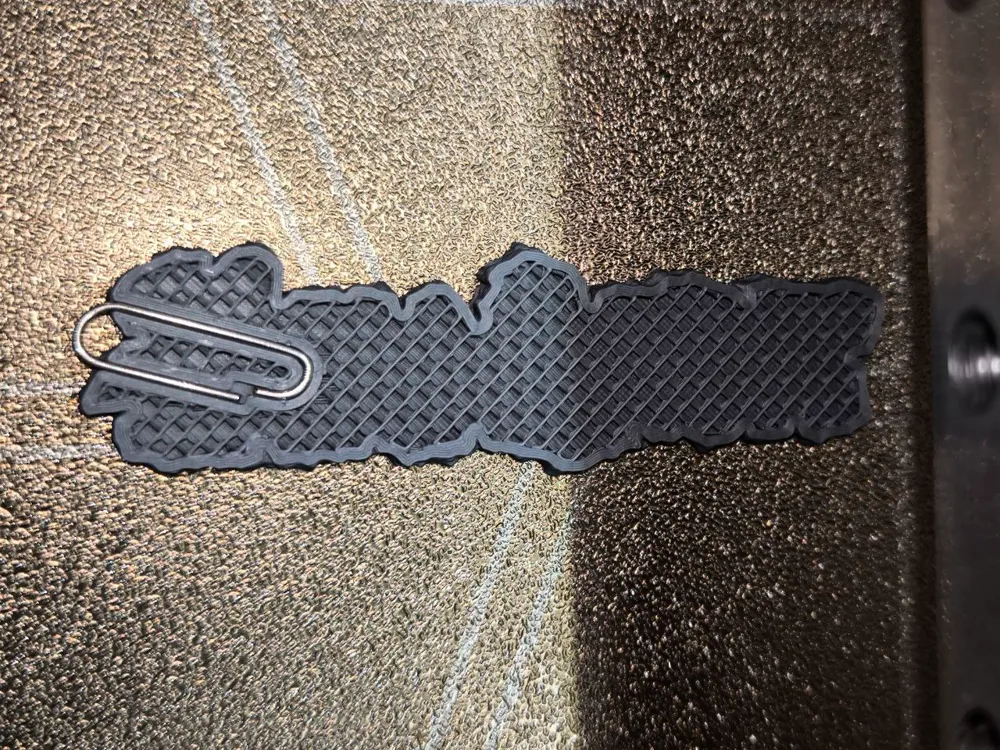

Insert the metal clip
Resume printing

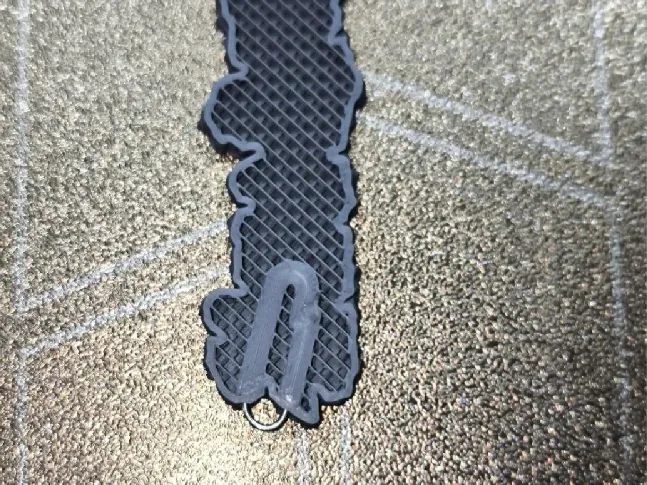

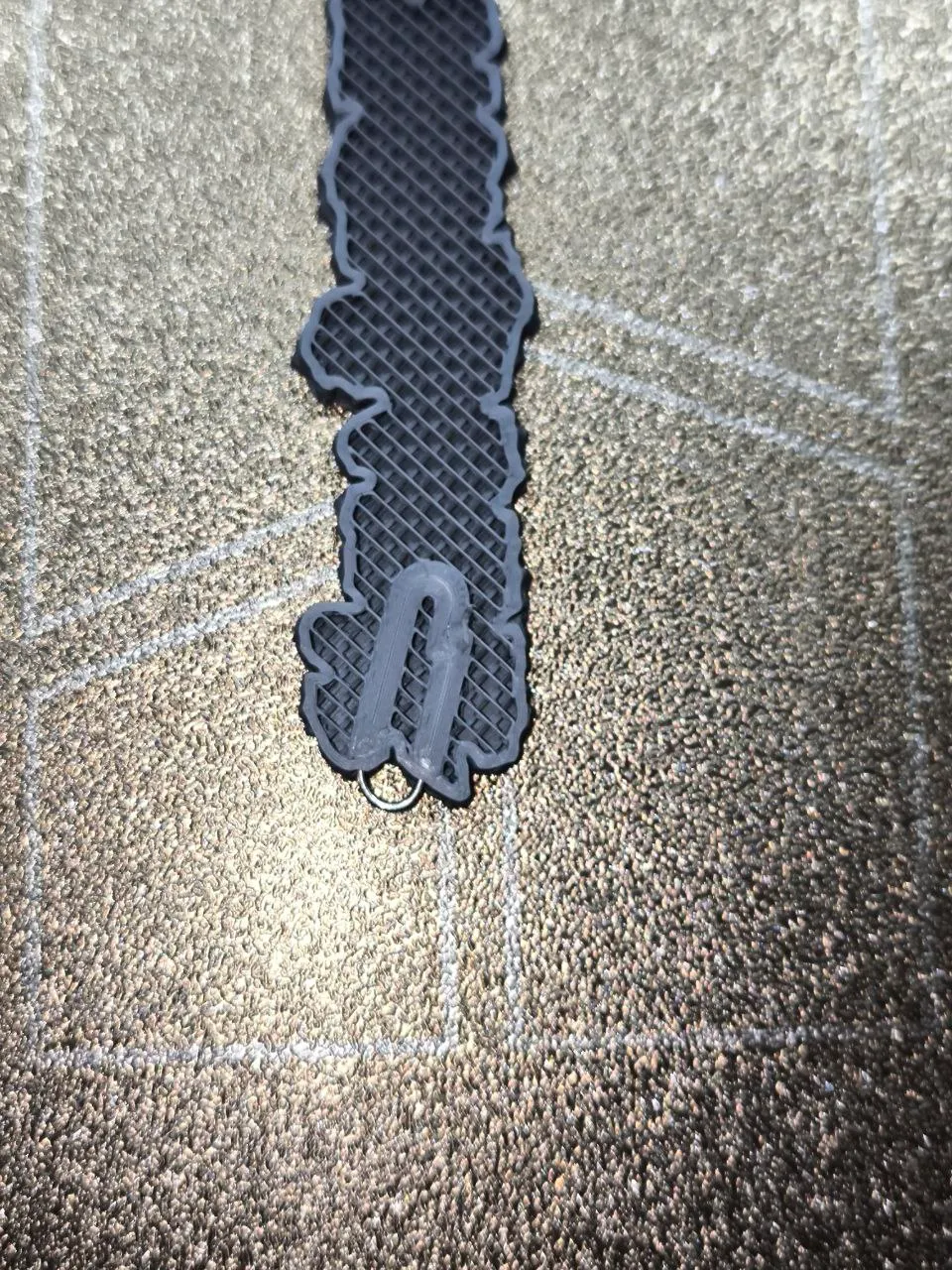

The part will be encapsulated within the model, creating an extremely resistant ring
Versions with different tolerances are included to better adapt to different printers and materials

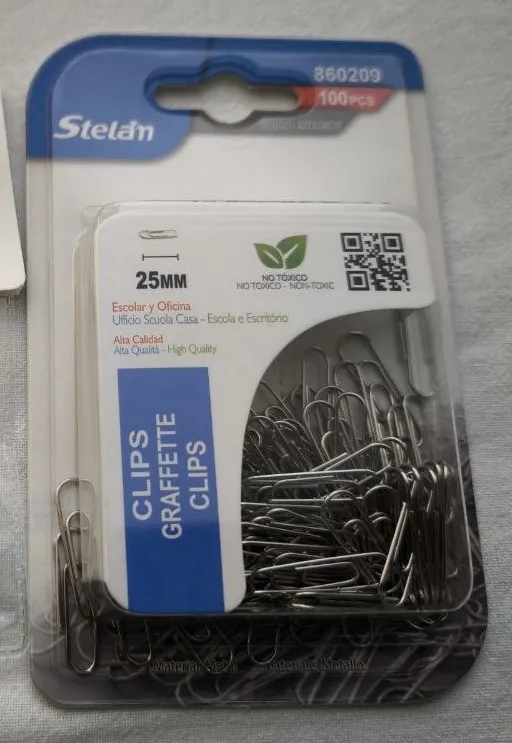

Type of clip it is designed for, although it can be scaled

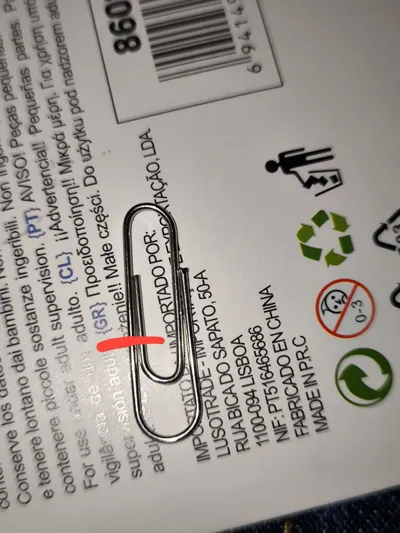

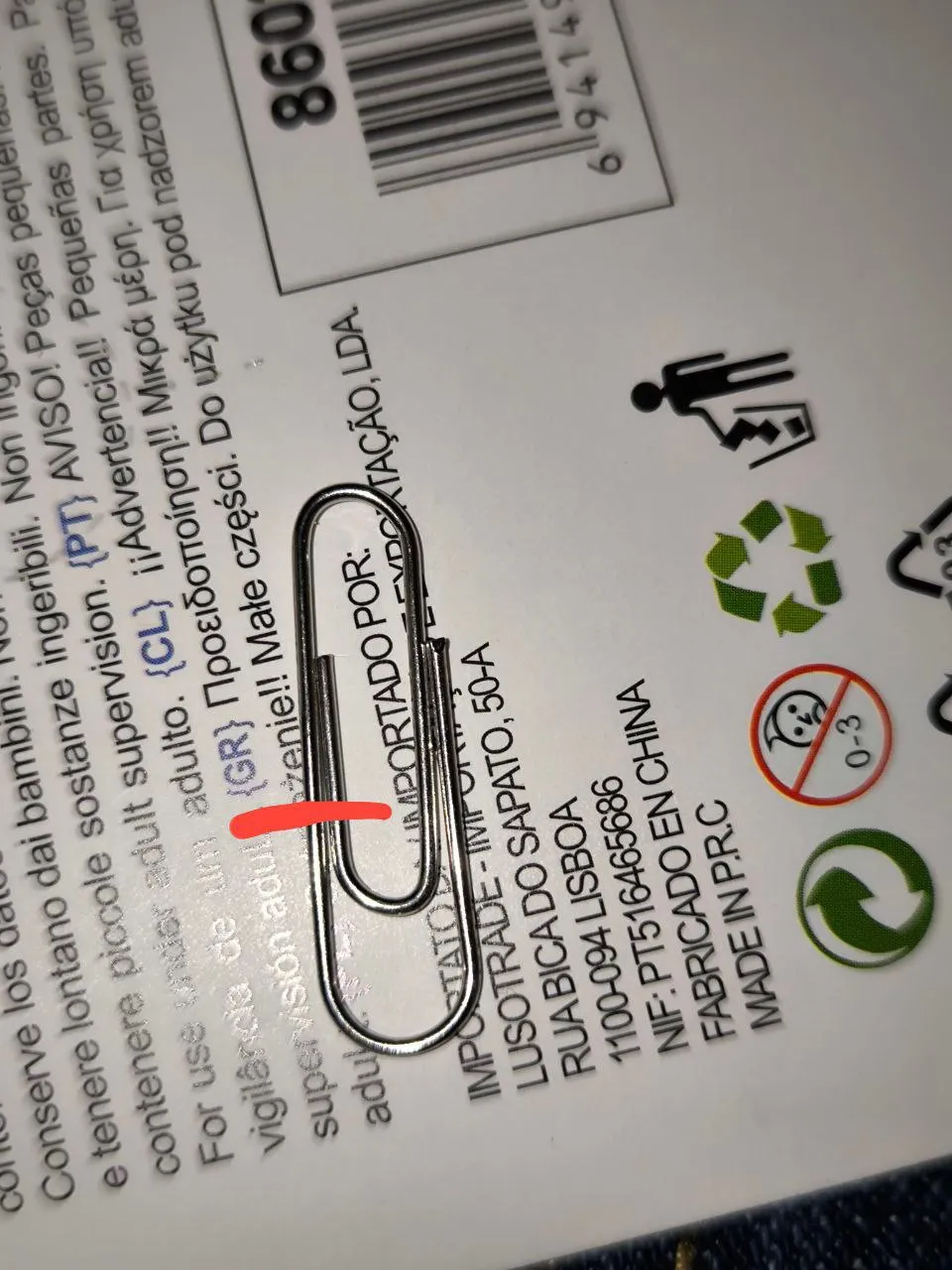

Place where to cut the clip
VIDEO:
