RACK SPOOL POOR
Print Profile(1)
Description
RACK Poor Spool

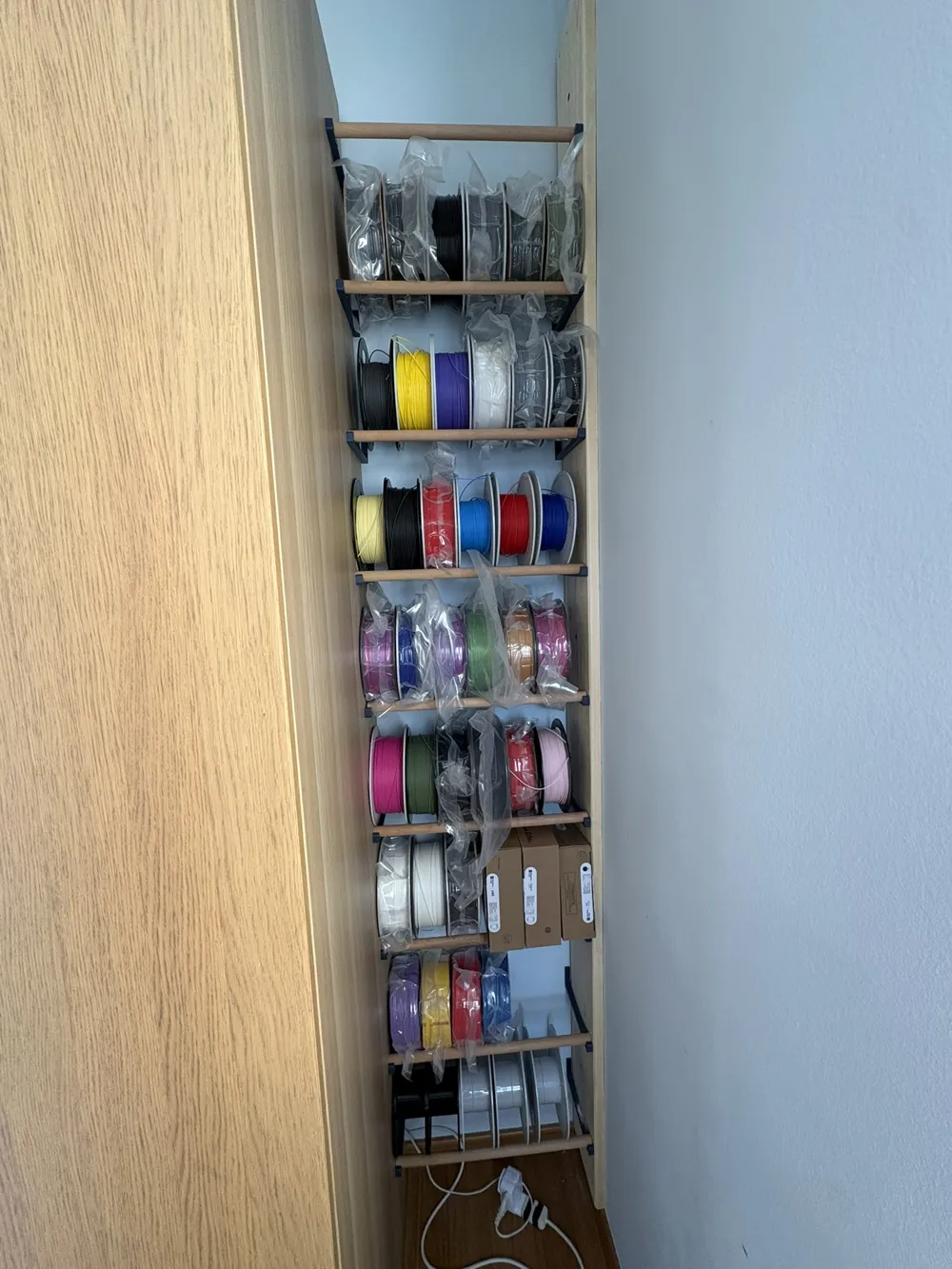

When the need is simply to arrange the spools and tidy up the room, using materials you have at home and putting in as little effort as possible (in terms of time/material), this is the model for you, that's why it's 'Poor'
Too often, more is spent on the structure than on the main component Here is the simplest and most basic solution
Designed for 200mm spools that rest directly against the back wall

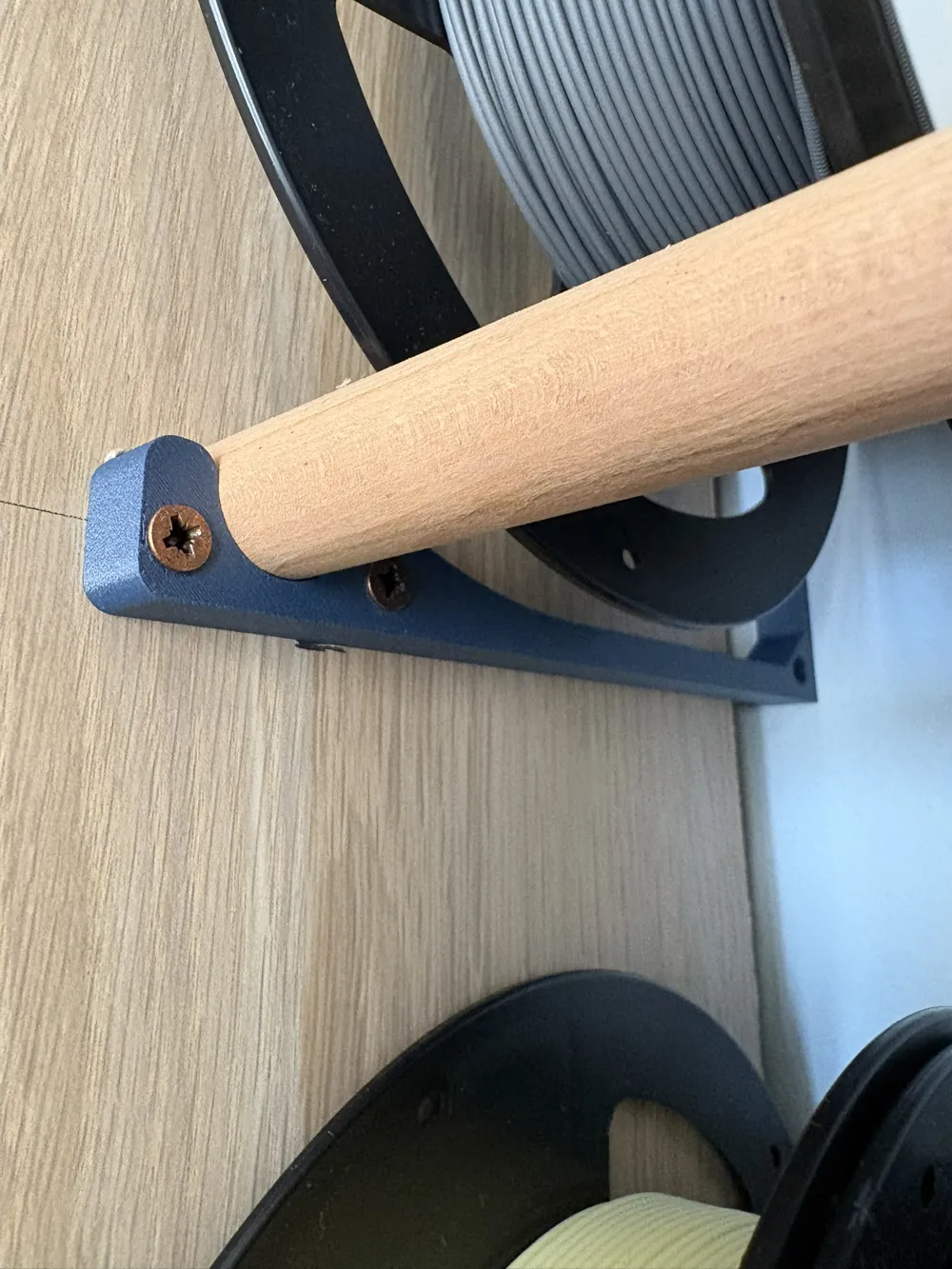

No second support, the 90° upward tab will help you align it more easily with the wall, thus ensuring easy positioning
It is recommended to keep 250mm from the base of the component to ensure about 20mm of clearance/space for inserting or removing spools
REQUIRED:
WOOD SCREWS 4X30mm
(I already had wooden sides at the ends; in case of direct fixing to the wall, use fischer SX PLUS 5X25)
RODS Diameter 20mm (WOOD, PLASTIC)
Boost Me (for free)
I hope to be of help!
Click on Boost and you will help me! :) Thank you!
