Four Bar Linkage Claw Game: Can You Master the Mechanism?

Description:

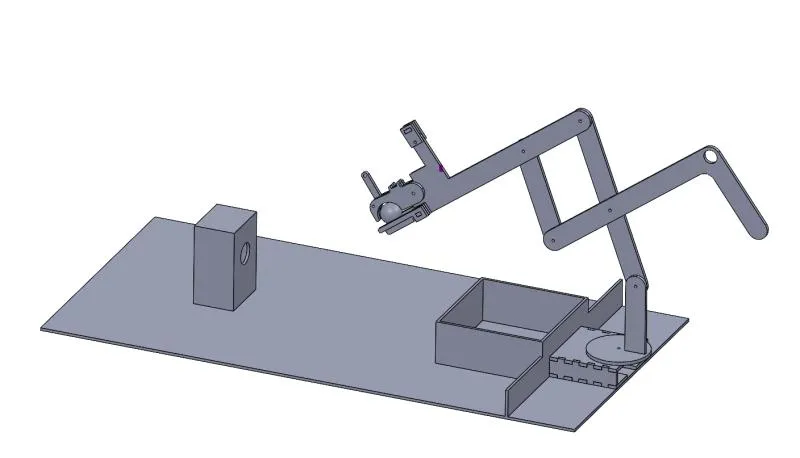

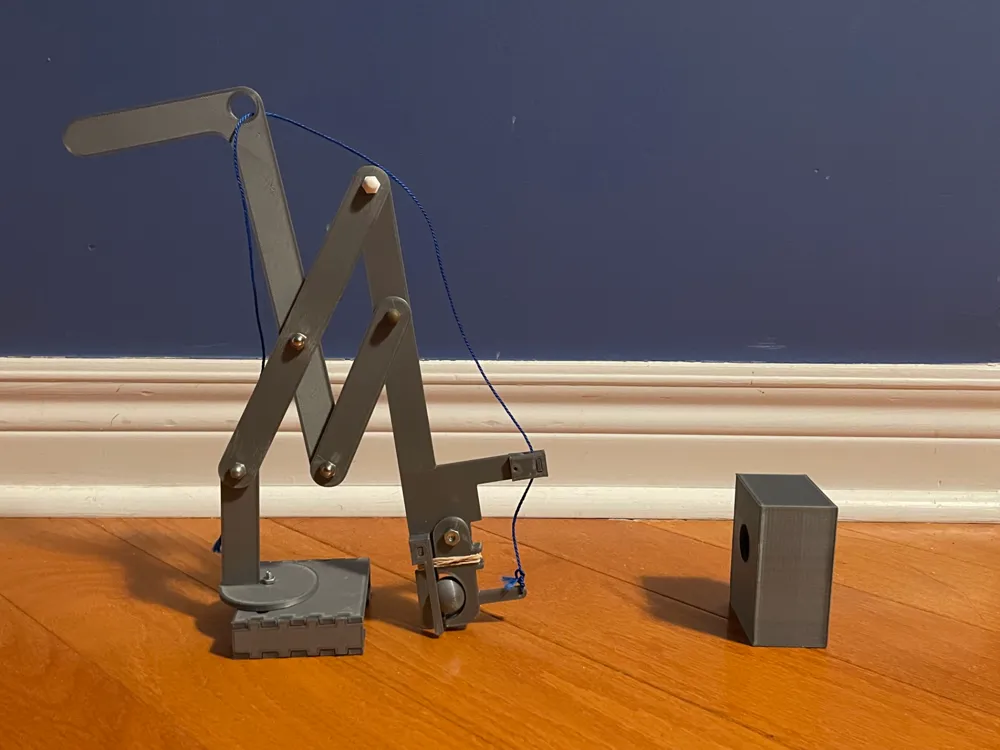

Put your skills to the test with this fun and interactive Four Bar Linkage Claw Game! Using the provided 3D model, your objective is simple yet challenging: use the claw mechanism to pick up balls and place them into the box as efficiently as possible.

You can play the game however you like, but the original challenge was to transfer 5 balls into a box located 12 inches away. Think you can beat the record time of 38 seconds?

Key features:

• Engage with Real Engineering: Experience the functionality of a 4-bar linkage system in action.
• Challenge Yourself: Customize your own rules or take on the original timed challenge.
• Fun for Everyone: Whether you're an engineer or just love mechanical puzzles, this game offers endless entertainment.

Ready to take on the challenge? Download the model, print it out, and let the game begin!

Parts:

Arm 1 x 1

Arm 2 x 1

Pully Arm x 1

Arm Grim x 1

Base x 1

Wheel x 1

Top Dowel Pin x 1

Base Dowel Pin x 2

Wall x 2

Claw x 2

Claw Spacer x 1

Ball Holder Insert x 1

Ball Wall x 4

Pully Top x 1

Pully Wall x 2

Ball x 2

Box x 1

Assembly Instructions: Four Bar Linkage Claw Game

1. Connecting the Arms:
   • Use screws, wires, or similar materials to secure the arms in place.
2. Securing the Dowel Pins & Wheel:
   • Glue the top & base dowel pins to the designated wall to stabilize the mechanism.
   • Attach and glue the wheel to the base.
3. Attaching the String:
   • Tie a string to the claw mechanism to control its opening motion.
4. Using the Elastic Band:
   • Attach an elastic band to keep the claw closed when not in use.
5. Aligning Components:
   • Use the pre-drilled holes to align all parts properly for smooth operation.
6. Securing the Top & Base Dowel Pins:
   • Clamp the top & base dowel pins to a table or a block of wood to ensure stability during use.

Additional Notes:

• The provided pictures should be sufficient for assembly. However, if further guidance is needed, let me know, and I can create a detailed guide.
• All parts named in the instructions are exactly the same as the model names.
