Description

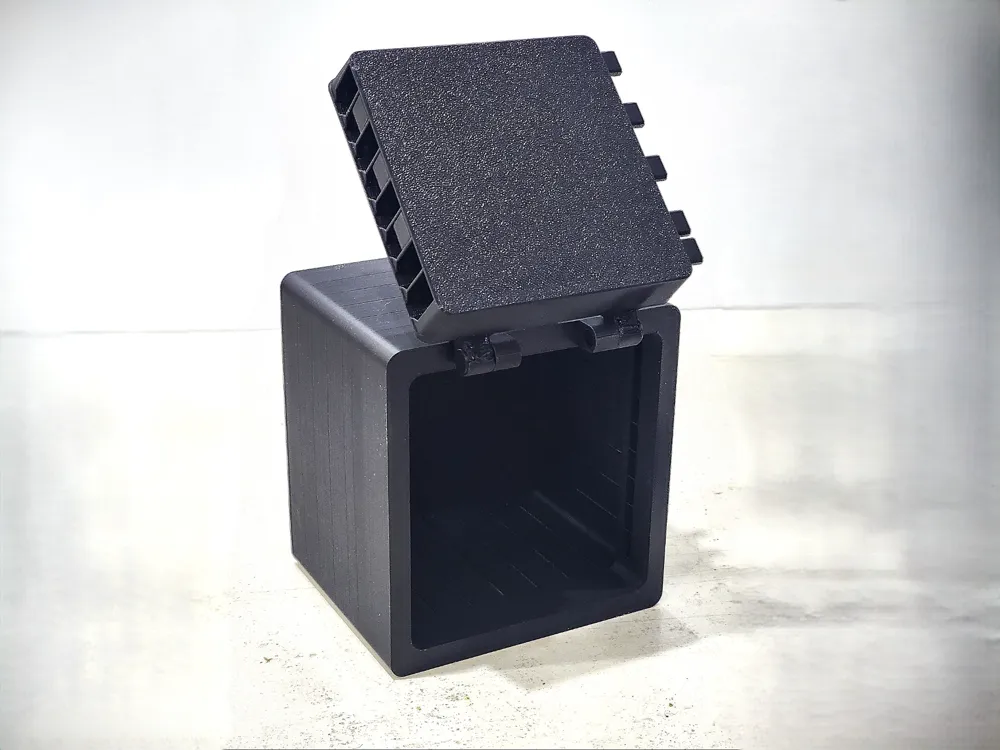

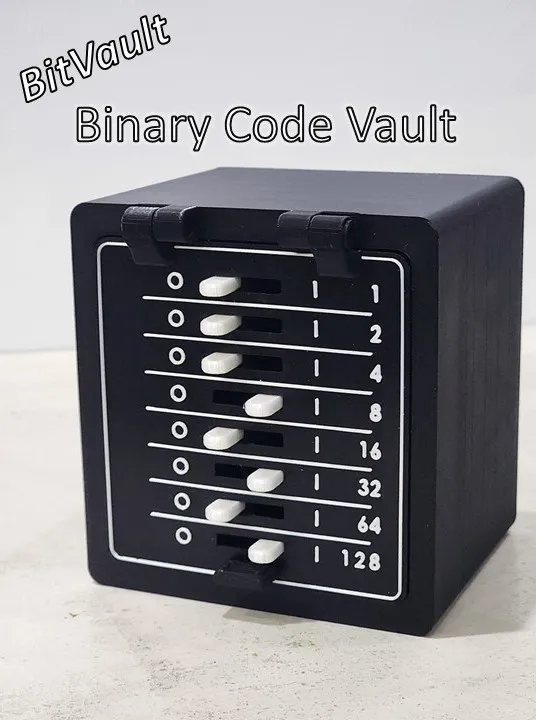

Introducing "BitVault" - A vault that opens with binary code.

Code is customizable and easy to change.
Handles are fidget-like and fun to play with.

All parts are printed.
Almost zero support needed

Two plates are available: one with two colors, and the other with just one color.

Hope you like the design. Feel free to drop a comment, share your prints (and/or a boost if you like it :) )

Boost Me (for free)

Assembly Instructions:

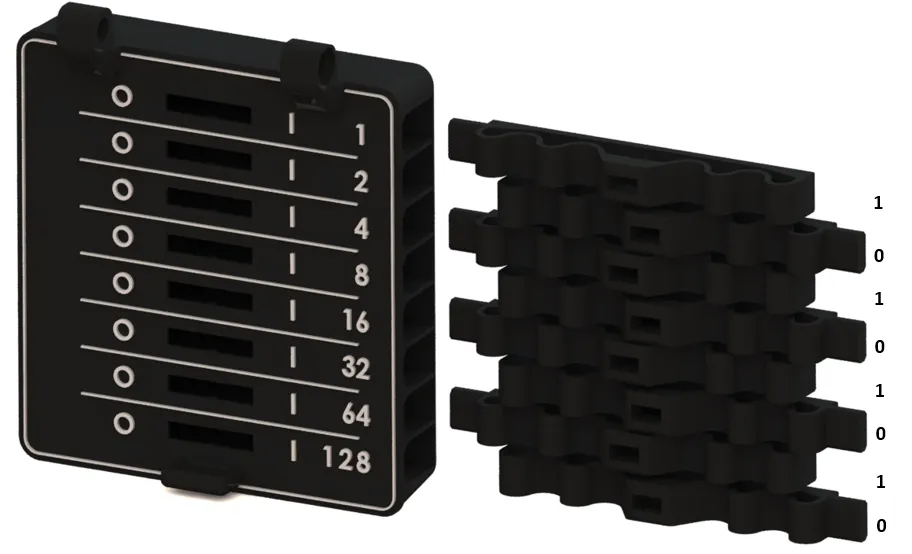

Insert lockers to the door
For example this code is “10101010”:

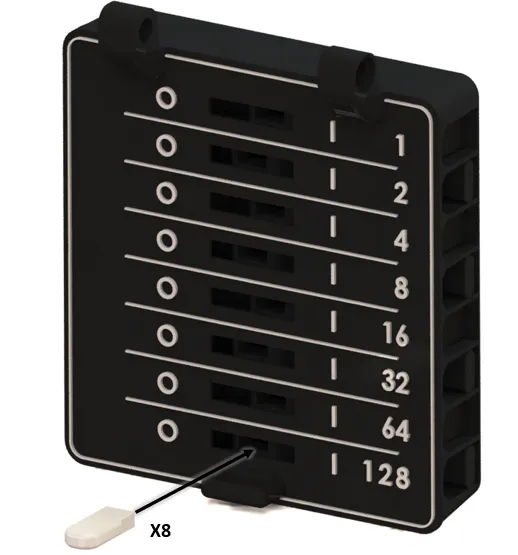

Insert the 8 handles to the lockers:

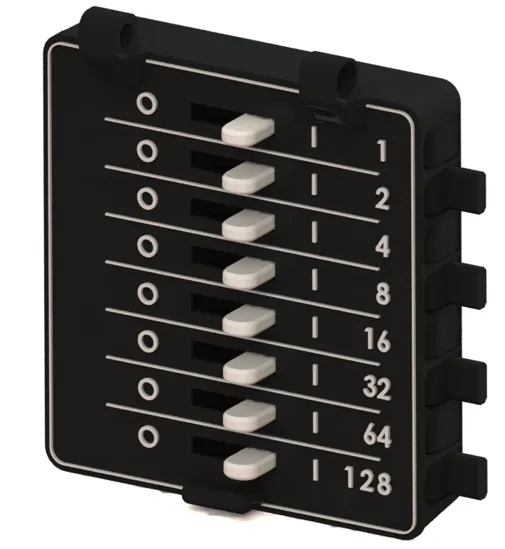

Door assembly now completed:

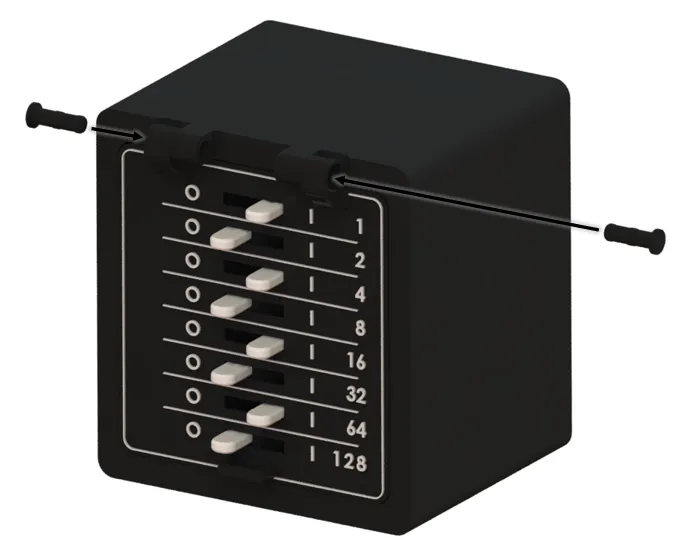

Attach door assembly to vault box
and insert 2 door axis:
Assembly now completed:

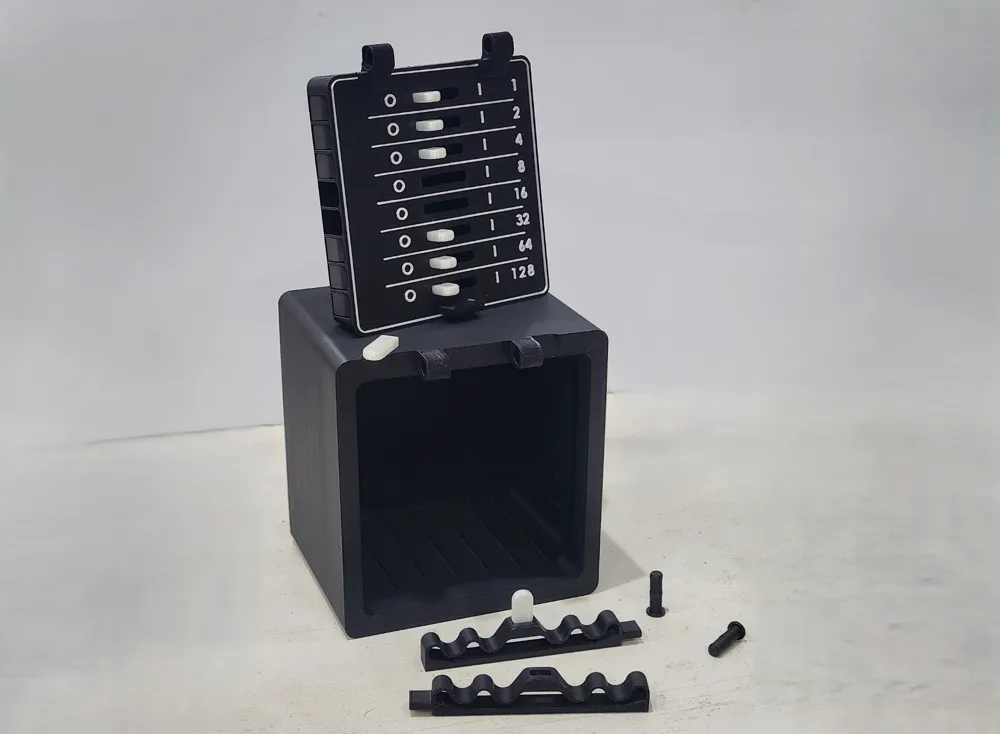

In order to change the code:
