Dremel Adapter for Dremel stand Heat inserts
IP Report
Print Profile(1)
0.16mm layer, 4 walls, 30% infill
1.9 h
1 plate
Open in Bambu Studio
Boost
68
177
35
16
205
134
Released
Description

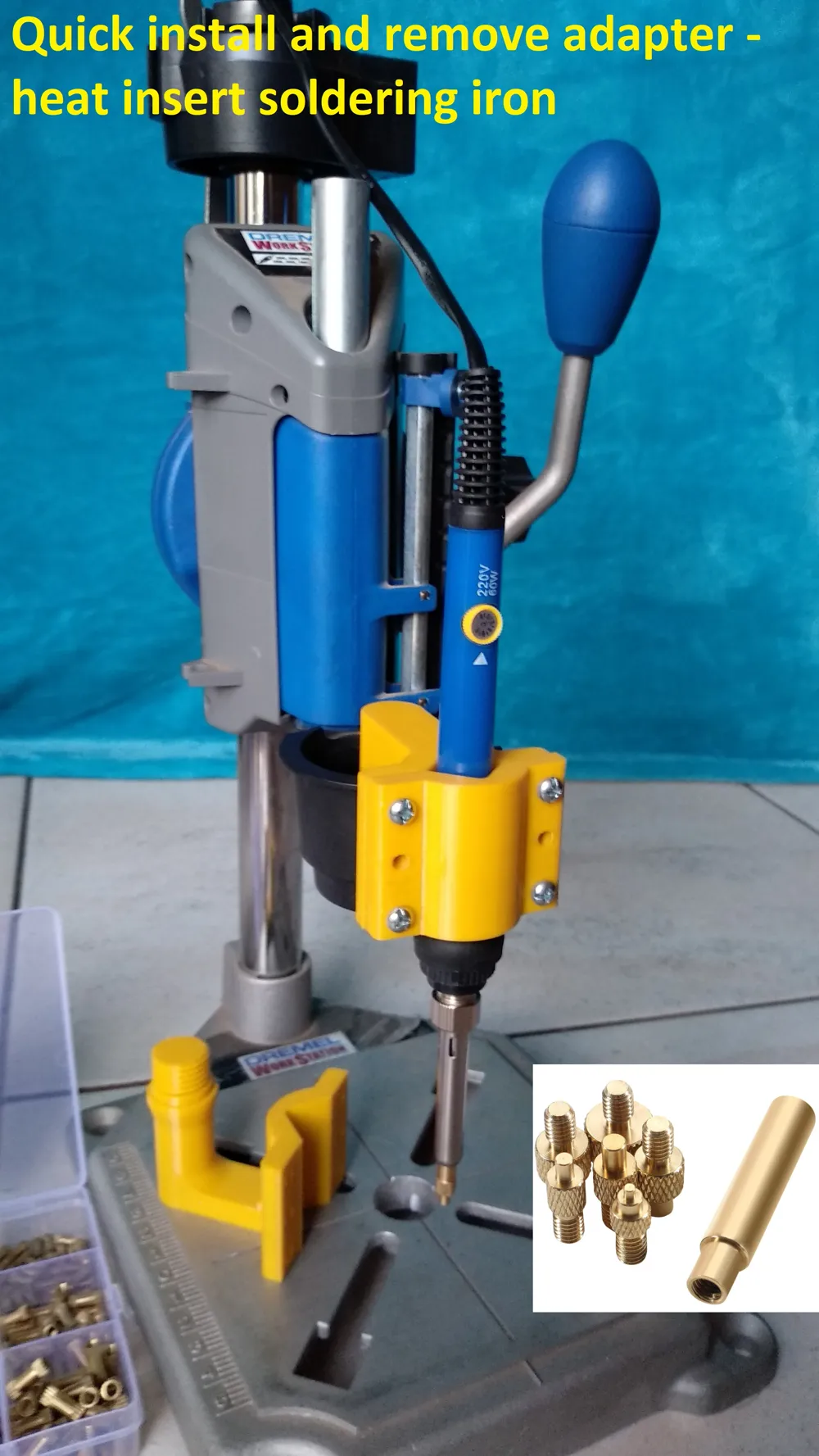

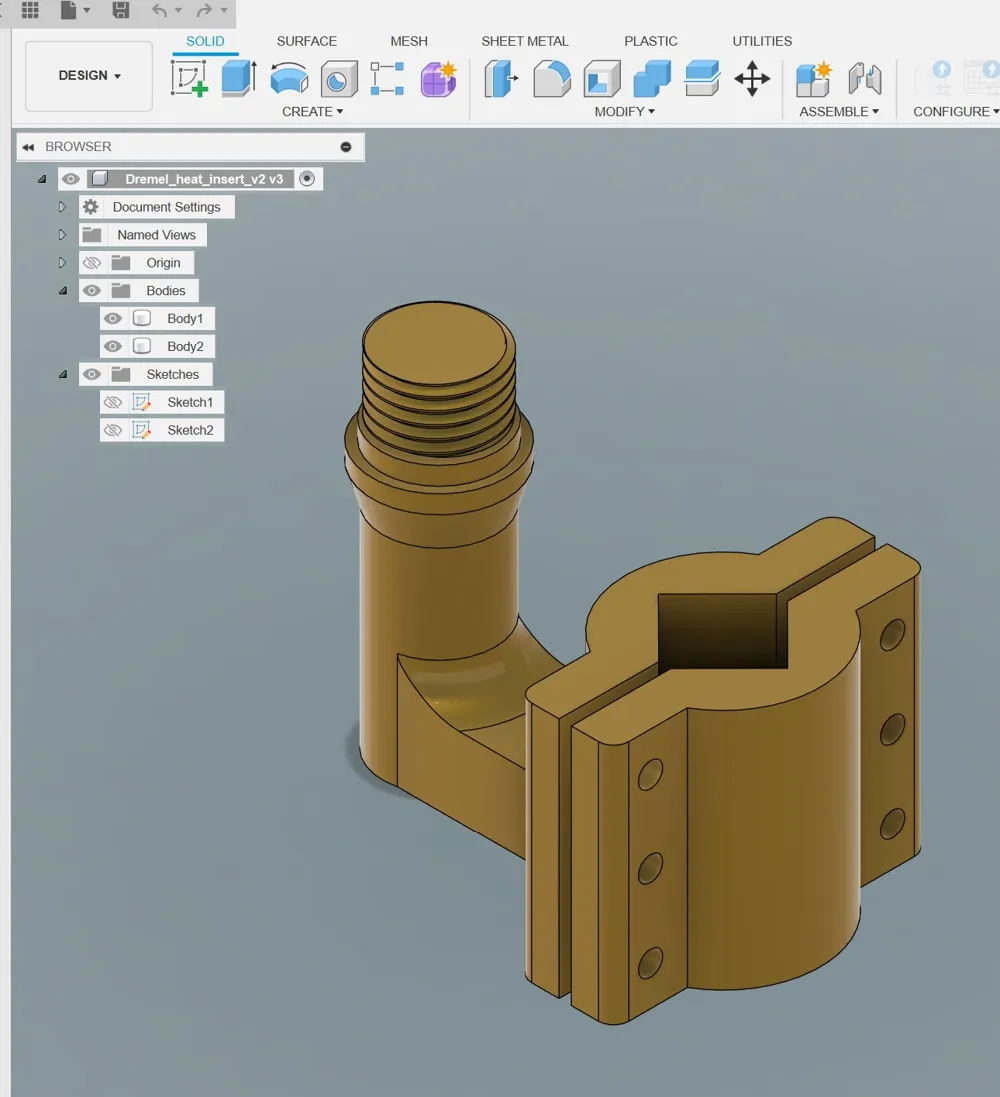

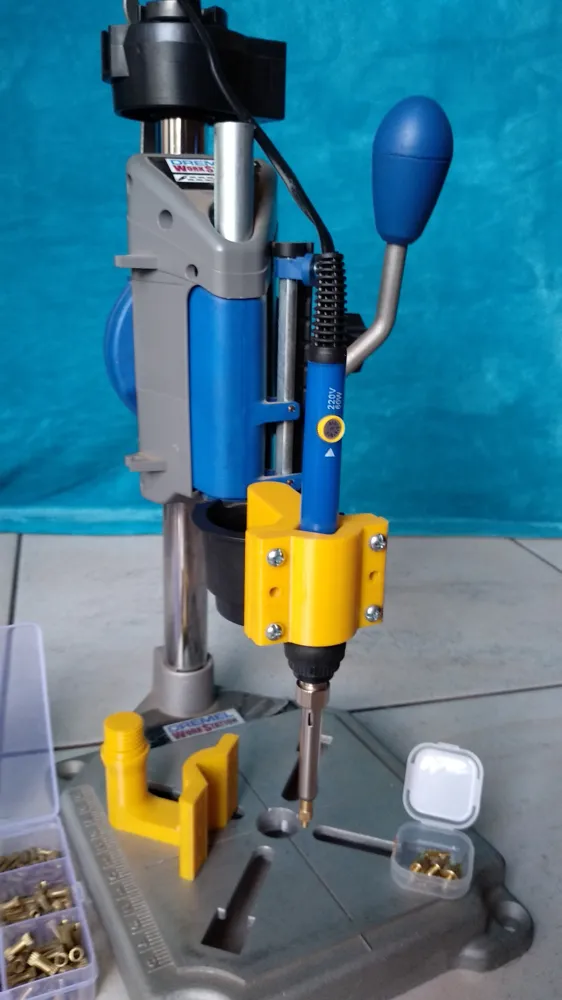

Quick adapter for Dremel for soldering Iron for Heat inserts for soldering iron diameter 14mm and larger.

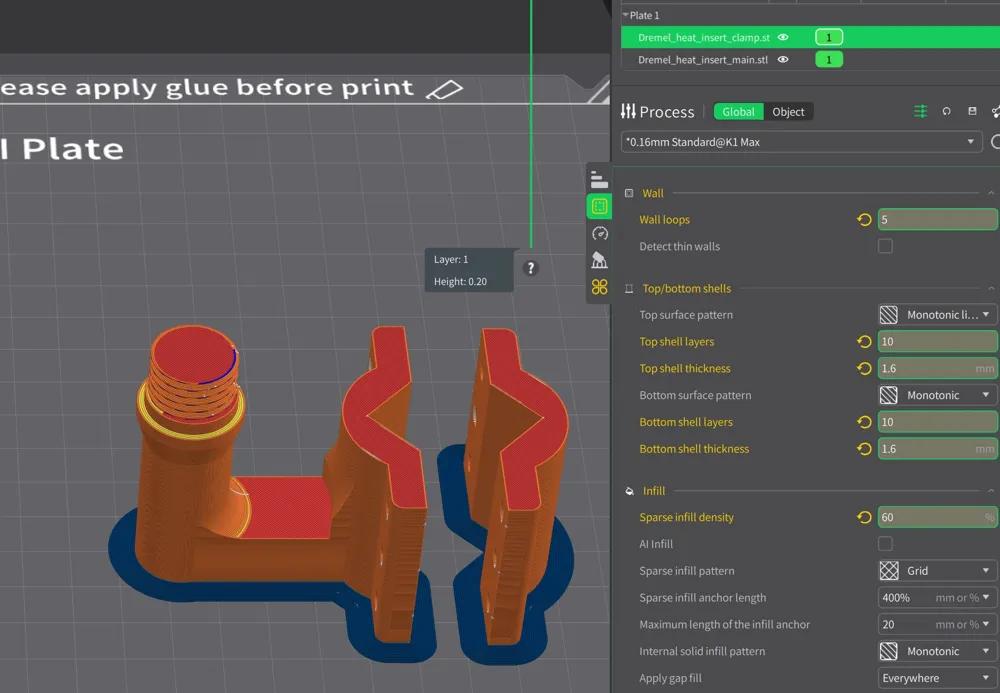

Printed with PETG with 5 outer layers and 60% infill to eliminate it from flexing and layer height 0.16 mm to cater for the thread, printed on Creality K1 Max.

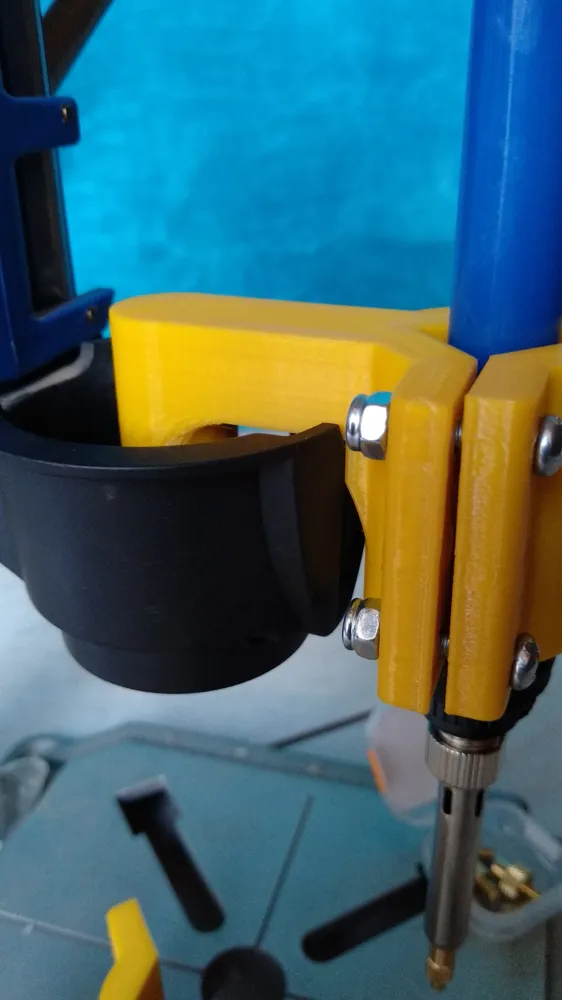

4mm holes for M4 bolts and nuts, choose length according to the thickness of soldering iron
Wanted it to be easily installed and removed to be still able to use stand for Dremel drill.

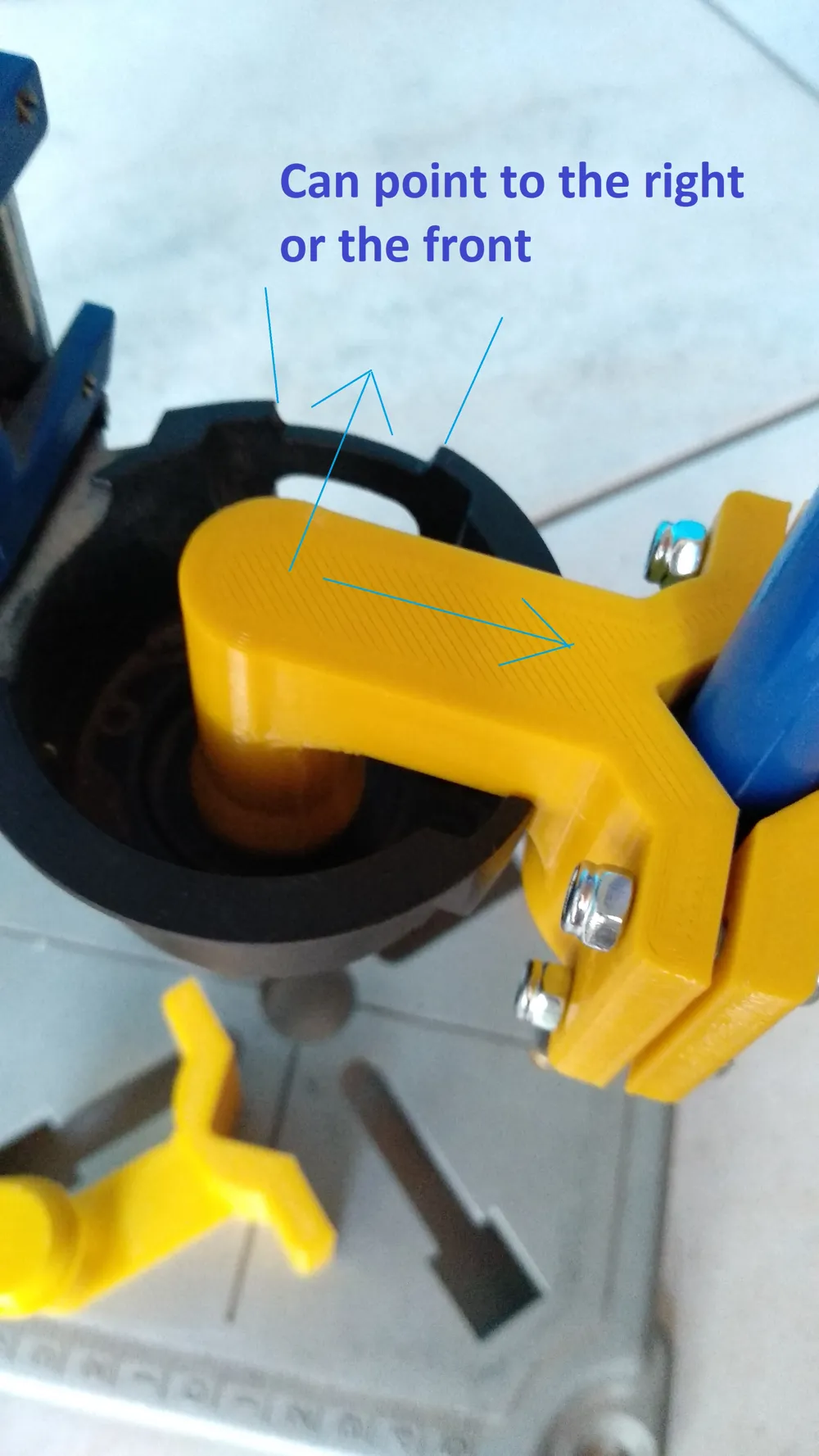

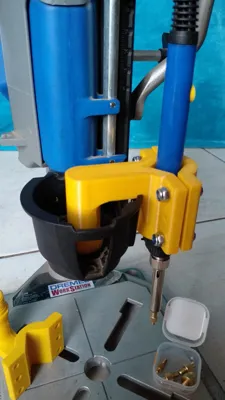

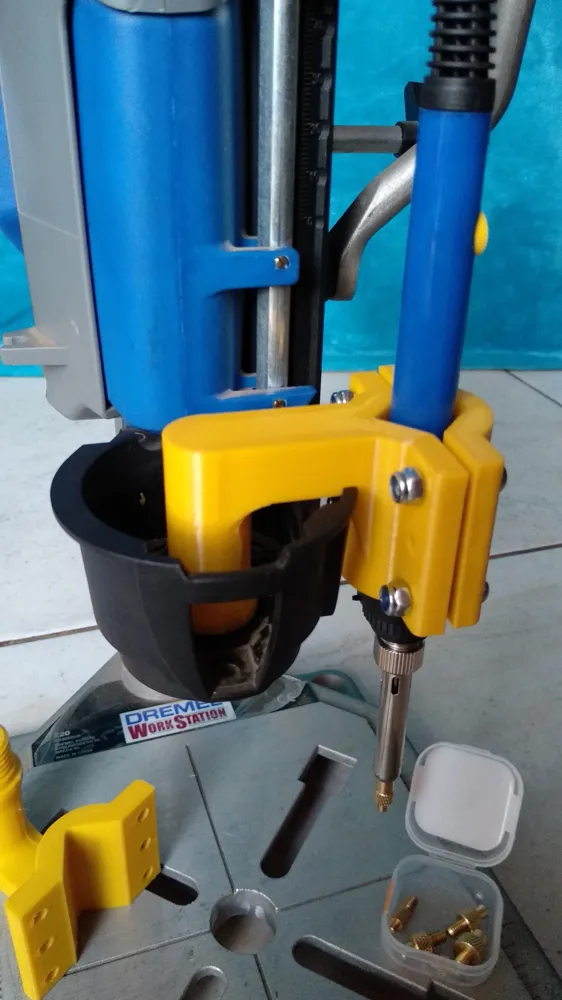

Can be installed to the front or the right in the indent of the top layer of the Dremel holder
