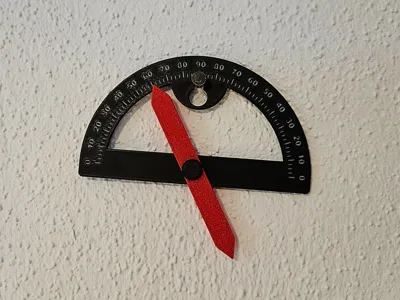

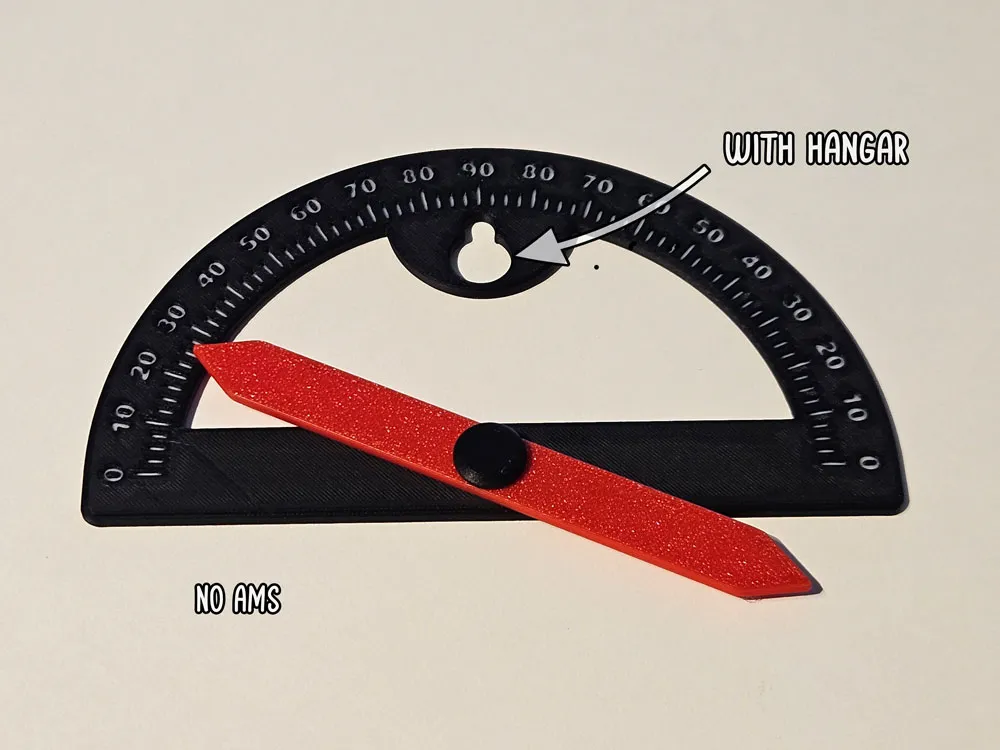

Protractor

This is ahandy protractor. It is designed to be print very small (only 10 cm long), but can be upscaled in Bambu slicer easily, of course.

To measue the angle just use main tool and the needle, which can be put against your objects. The other side of the needle will show you the precise angle. To be even more precise on common angles (typically e.g. 17,5°, 25°,…) and be well printable on a 0.4 nozzle, I decided to make three lines between 10°. So every small line represents 2,5°.

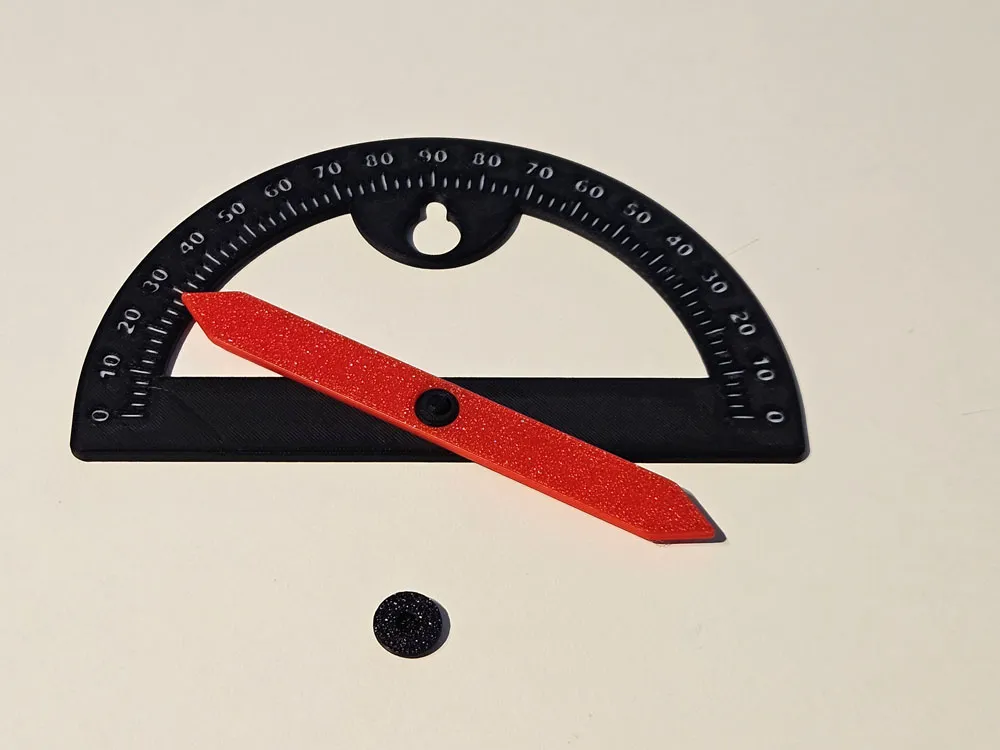

To assembly just add the the needle on the axis and clip the cap on it. It should hold itself, however, of course you can use some glue. But ensure, that you don't glue the needle. 😉

Tested successfully with PLA, no brim and no supports required.

The colors I used:

• black: Bambu Lab PLA Basic Black 10101
• white: Bambu Lab PLA Basic White 10100
• red: Bambu Lab PLA Basic Red 10200
