Released
Bill of Materials
List other parts
- M3 screw (at least 12 mm long thread) x 12: use them to screw the clams to the base
- M3 nut x 12: use them to screw the clams to the base
- M4 screw (30 mm long thread) x 2: use them to screw the base to the picatinny rail
- M4 nut x 2: use them to screw the base to the picatinny rail
- M4 washer x 2: optional, you can place it under the M4 screw head
Description

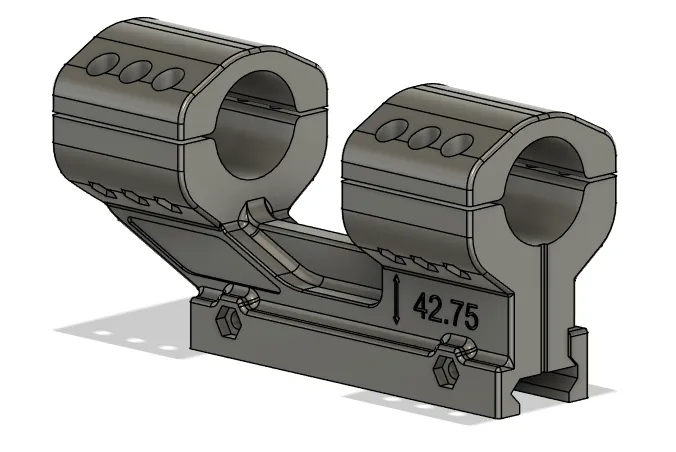

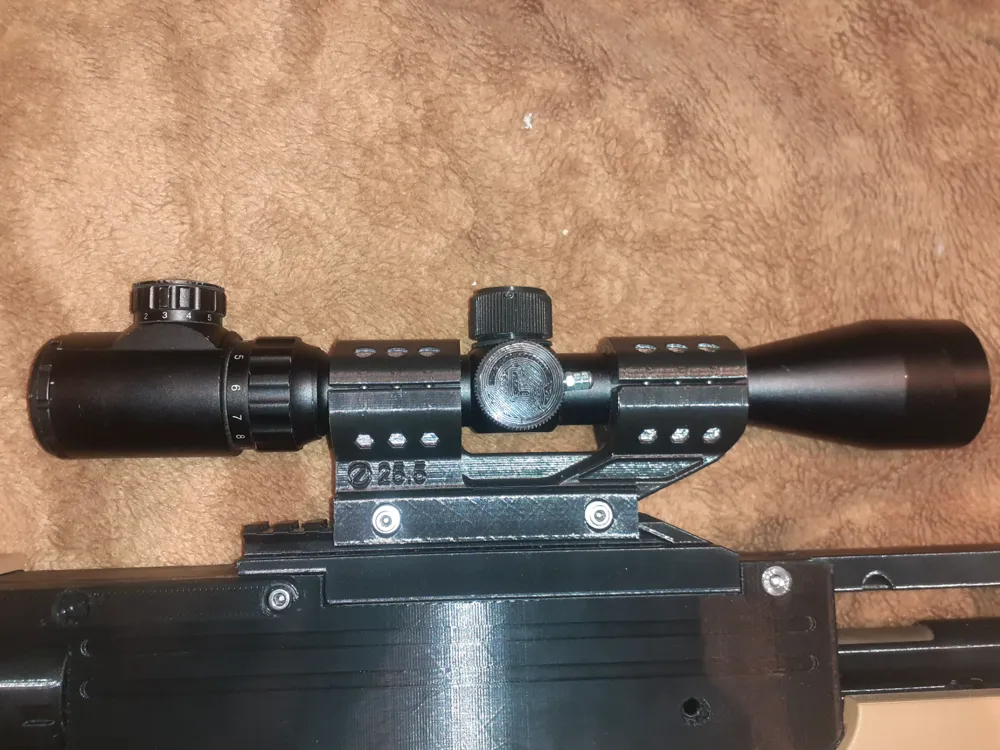

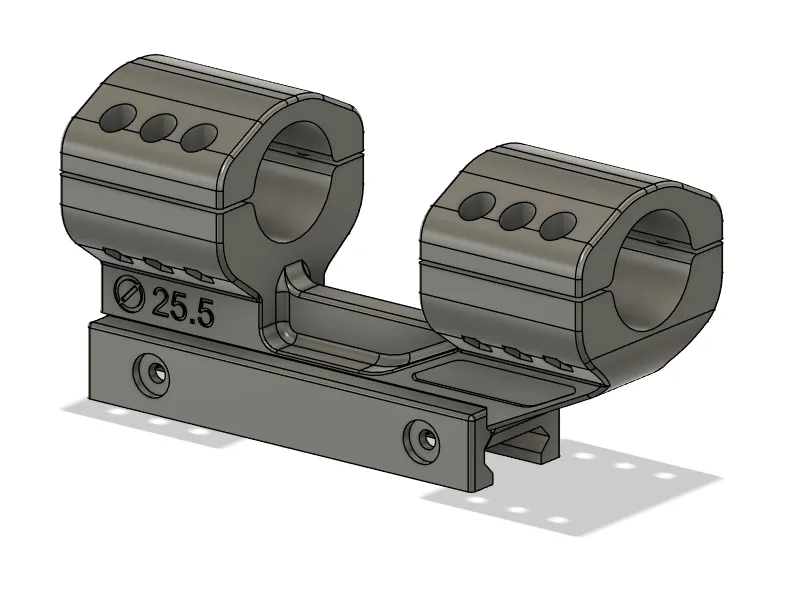

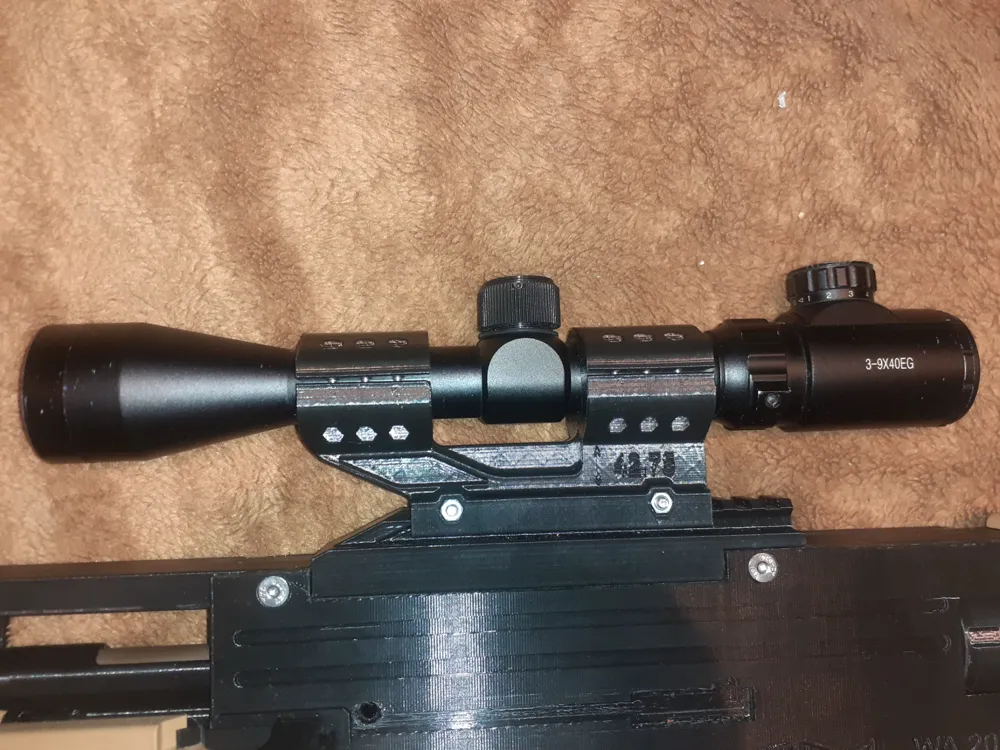

Simple scope mount, pretty high one. It fits scopes with 25.5 mm tube diameter. You can mount it on standard picatinny rail. There is a 42.75 marking on the left side, it means that the scope axis is placed approximately 42.75 mm above the picatinny rail. I don't think it's so useful you need to have it there but it looks cool :) If you wonder about keeping zero: I didn't notice any issues with AEG but I'm pretty sure it will work with GBB, it's a really sturdy scope mount.
