iPhone holder

This model is designed as a universal phone holder, primarily for the iPhone 11 with a case, but it is also compatible with other models, such as the iPhone 13 Pro. The holder consists of two parts: the Front Part and the Back Part, with the back part available in two versions.

Model Components

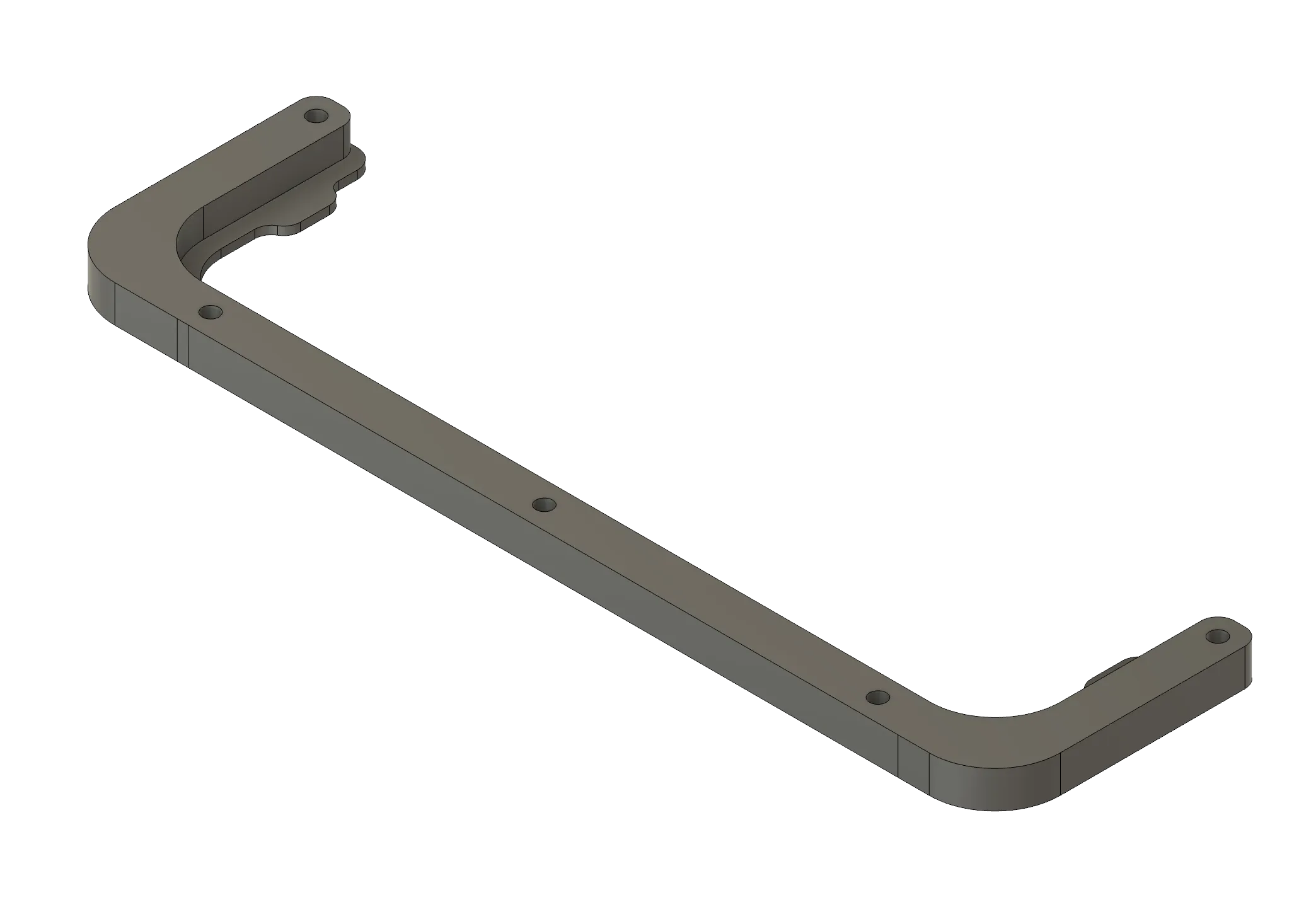

Front Part:

• Designed in a single universal version.

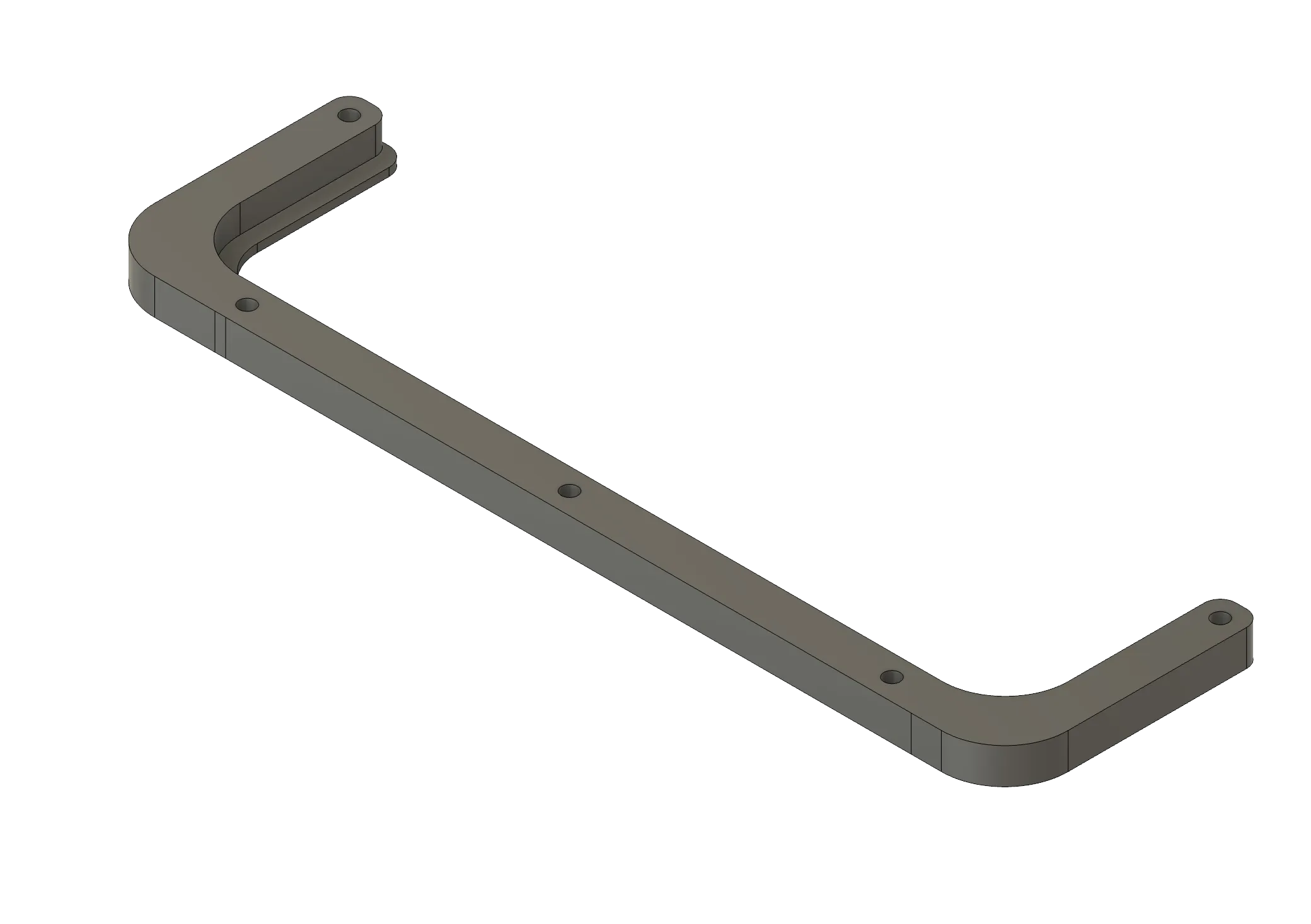

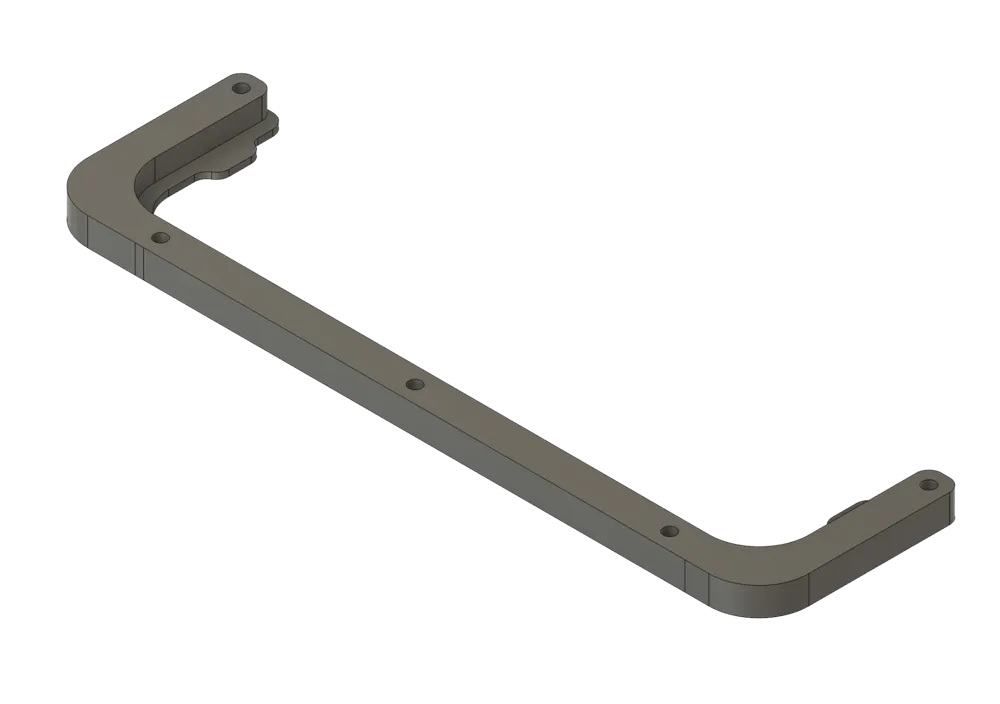

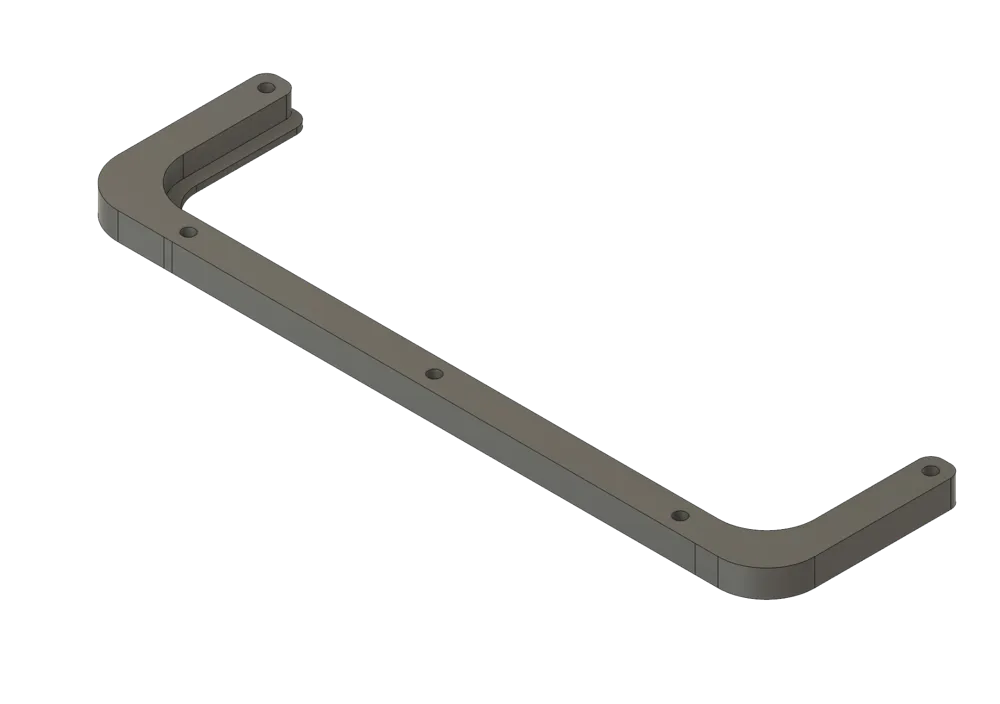

Back Part:

• Available in two versions:

  1. Standard Version: Without rear stabilizers, suitable for larger phones like the iPhone 11 or iPhone 13 Pro.

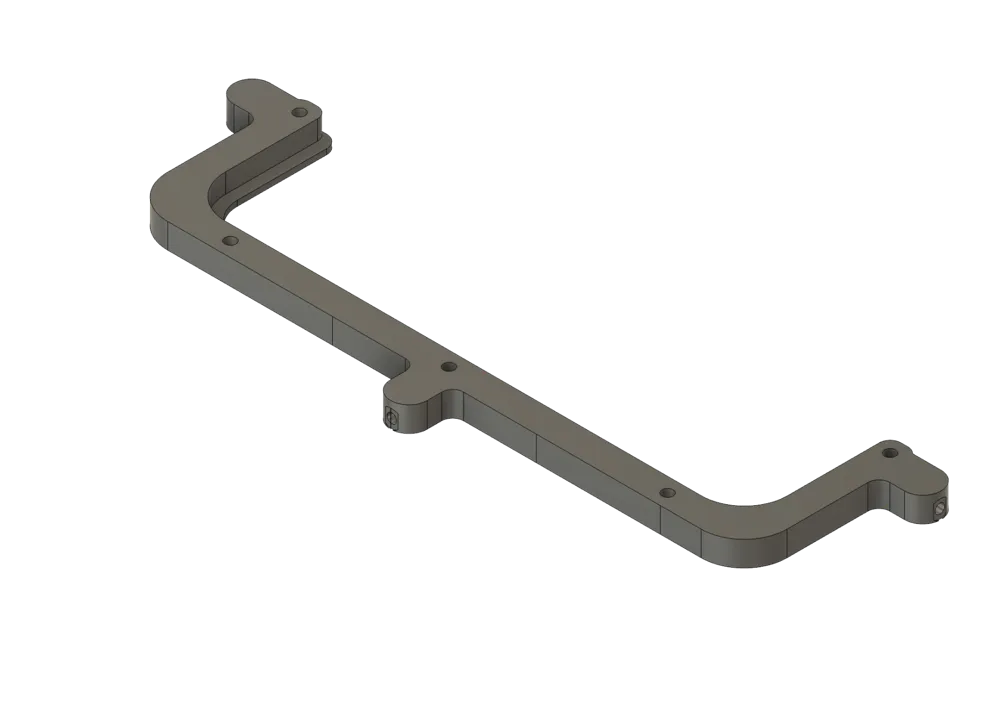

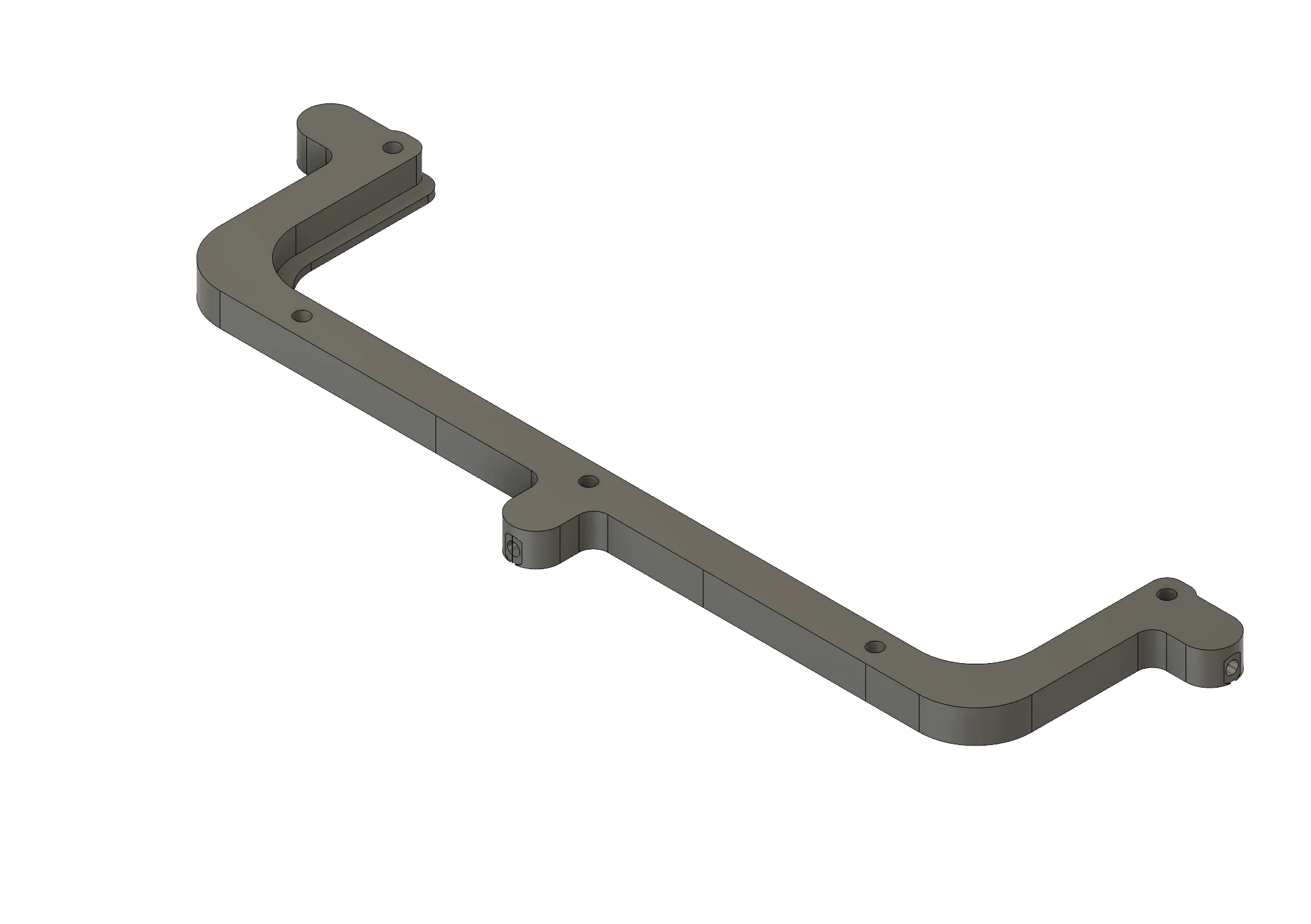

  2. Extra Version: Includes rear stabilizers to ensure stability for smaller phones.





Required Items:

• Required components:
  • 5 pcs threaded inserts (M2 × 3 × 3.2) – used to attach the back part.
  • 5 pcs screws (M2 × 2.5 × 8 mm) – to secure the back part to the front part.
  • 3 pcs suction cups (diameter 5.6 mm) – allow stable attachment of the holder to smooth surfaces.
  • 3 pcs screws (M2.5 × 12 mm) – to fix the suction cups into the front part.
  • 3D model of the front and back parts (designed according to the selected version).
  • Allen key (size 2.5) for assembly.

Usage:

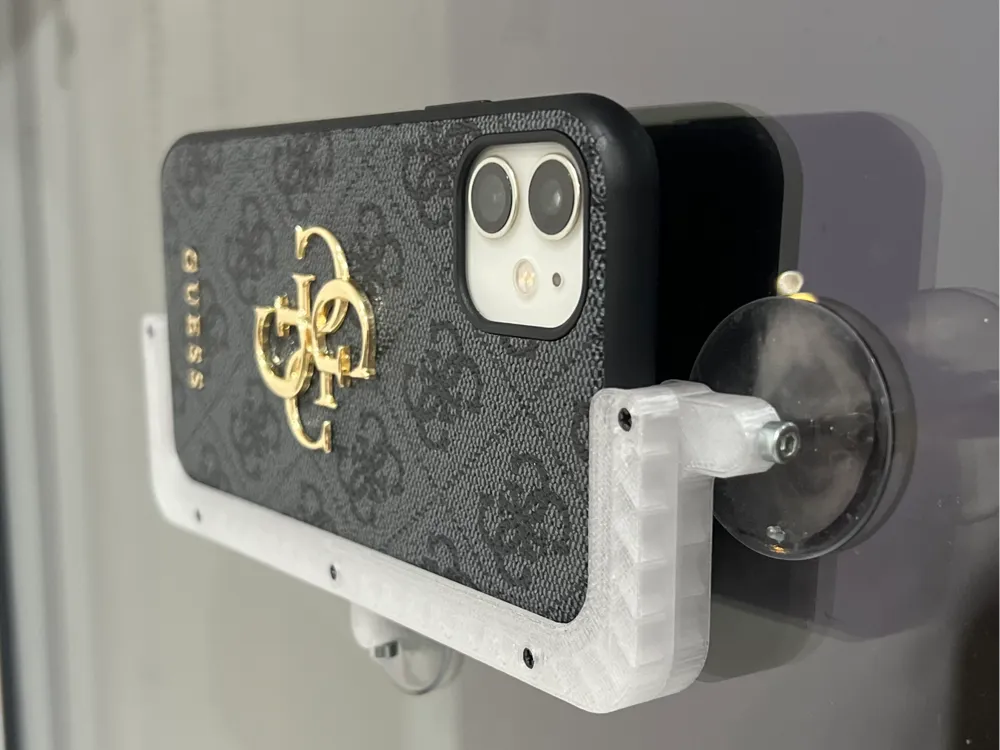

The holder is ideal for securing a phone to smooth surfaces using suction cups. The front and back parts are firmly connected with screws, ensuring stability and versatility for various phone sizes.
