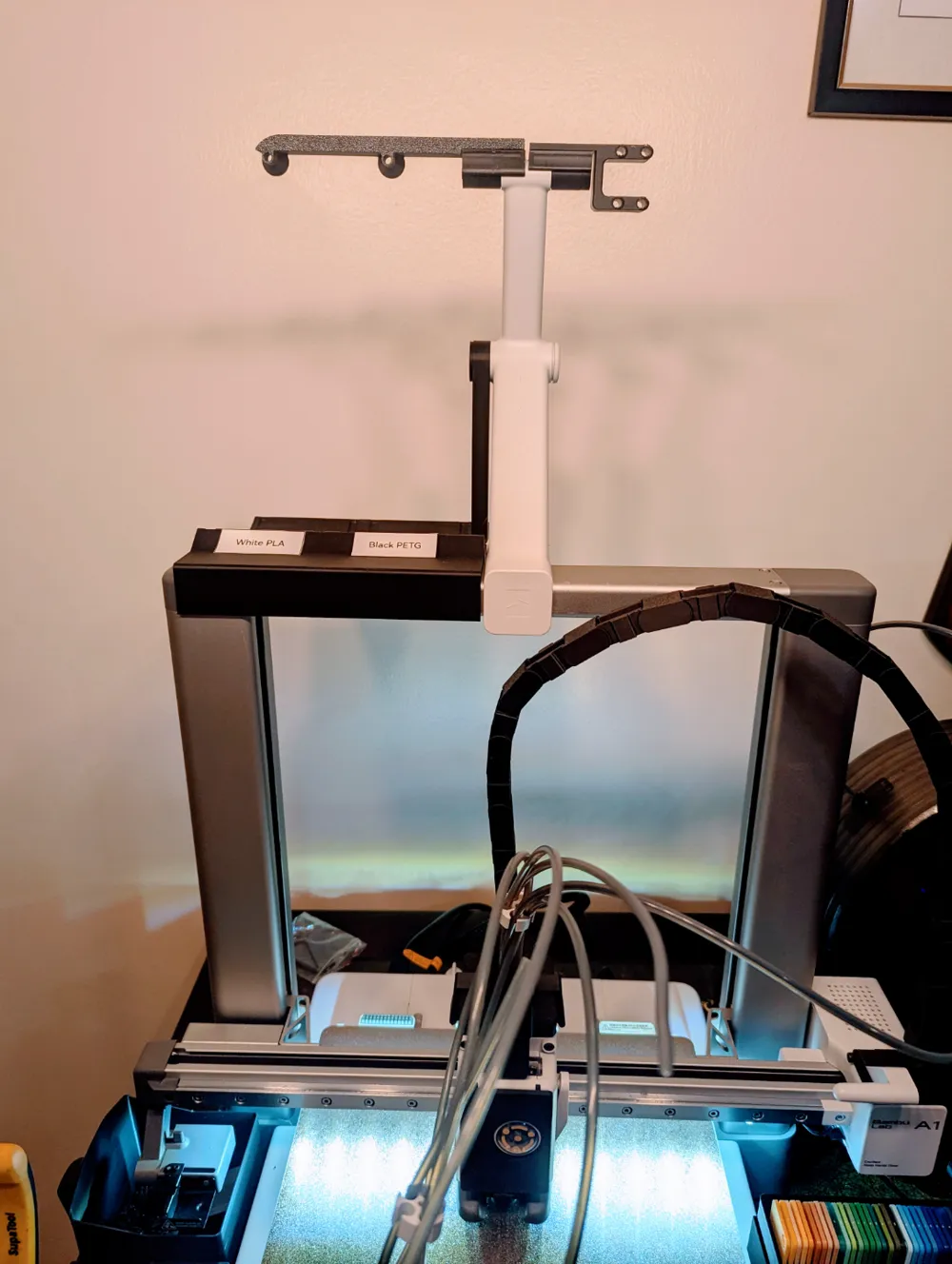

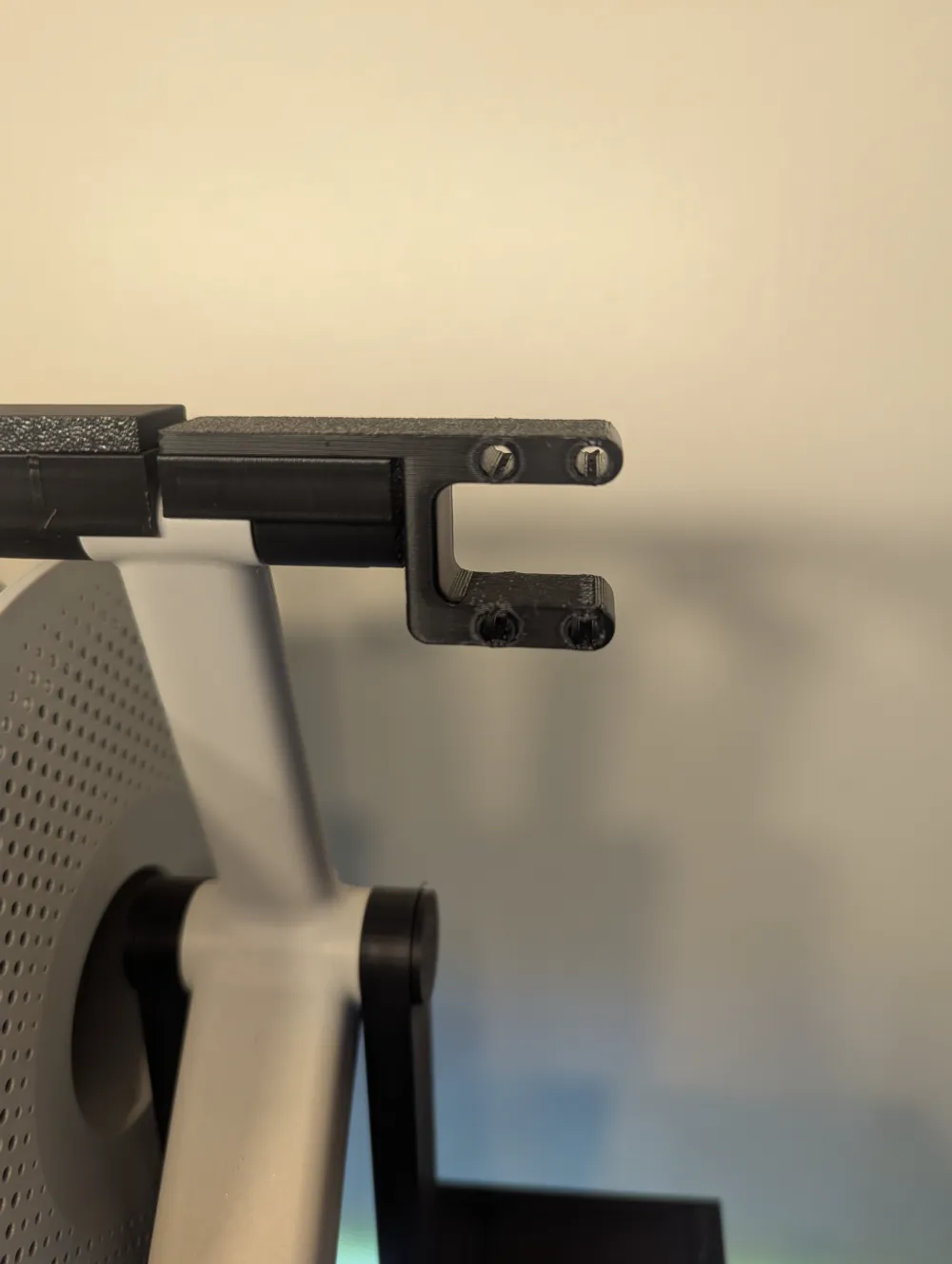

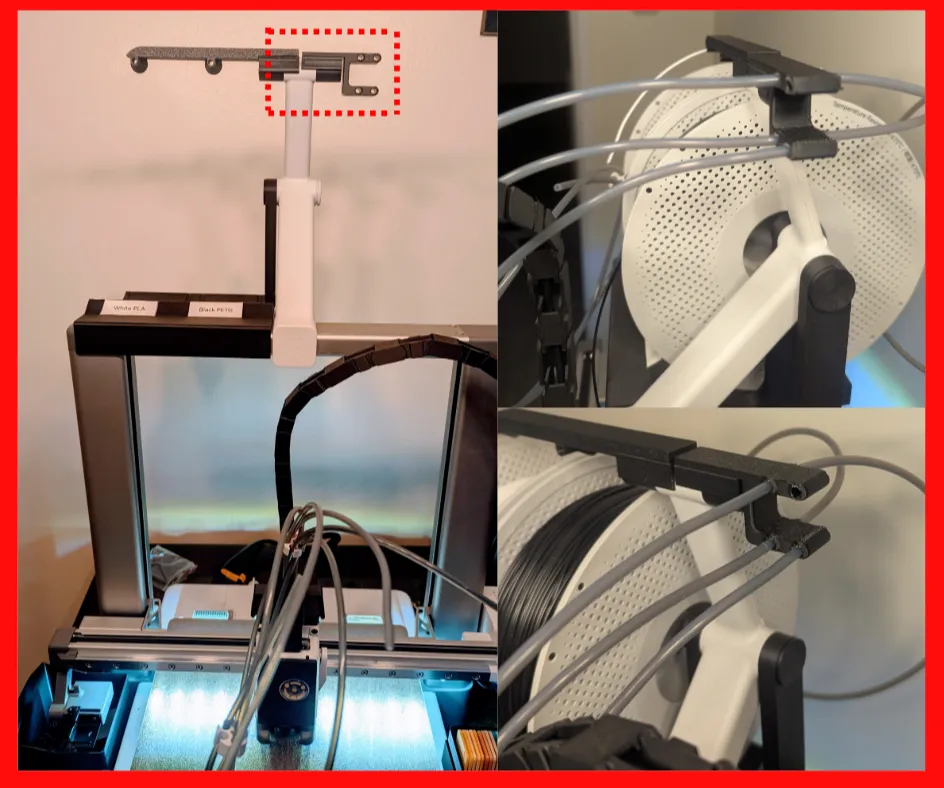

I have designed this model to align and organize PTFE tubes on the A1. It is ideal for routing the PTFE tubes between the AMS system (or dryer) to the extruder head. It is easy to install and uses the spool holder arm that comes with the printer.
Can be fitted to either the left or right of the spool holder.
If you want the arm to be extended or me to increase tube capacity, please comment below.
Installation Instructions:

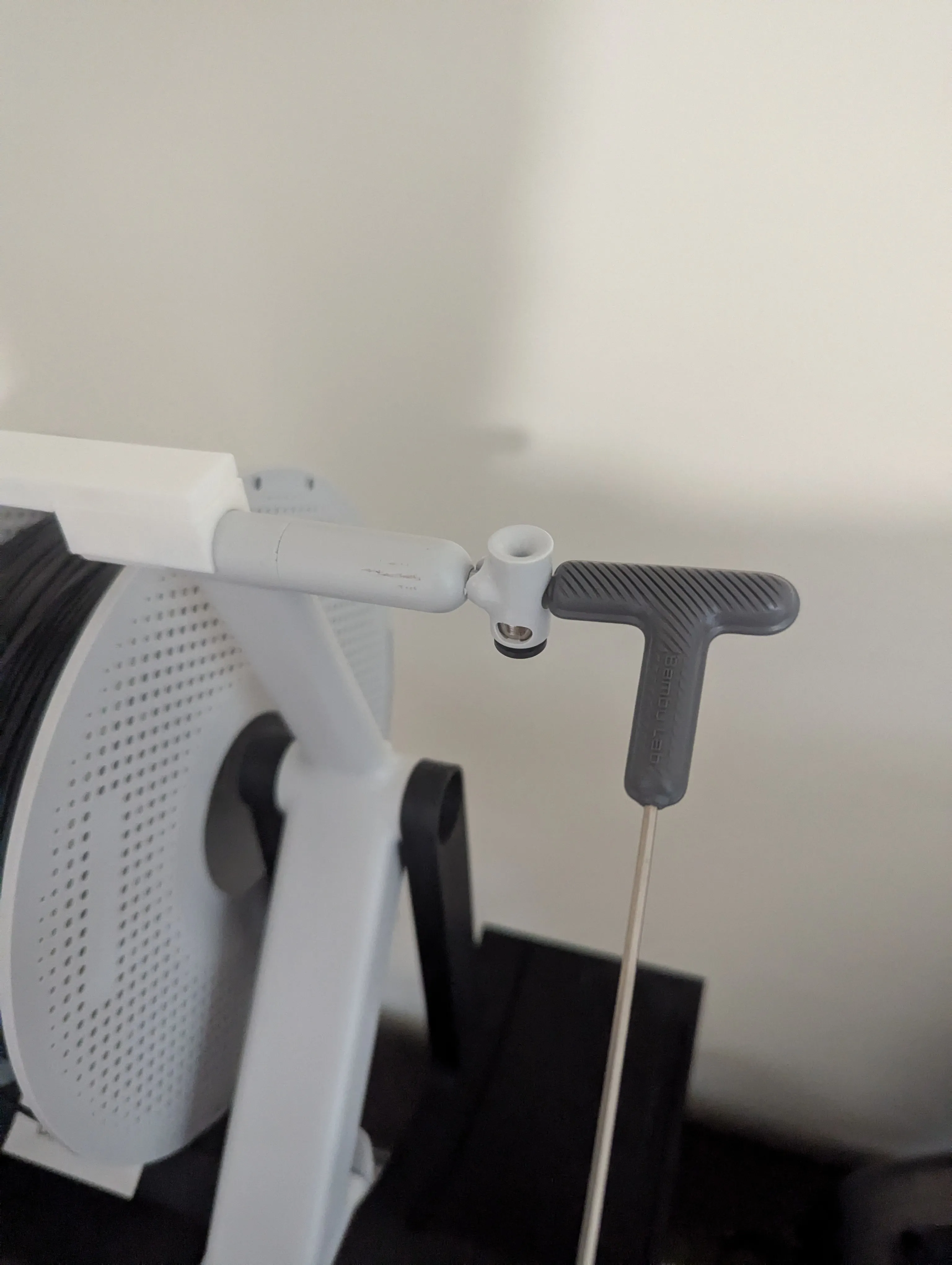

Remove the Bambulab installed filament/ptfe guide. To do this take the larger of the two allen keys supplied with your printer and insert into the end and unscrew.
2. Take the 3d printed body and screw it to the spool holder using an M3*30 bolt.

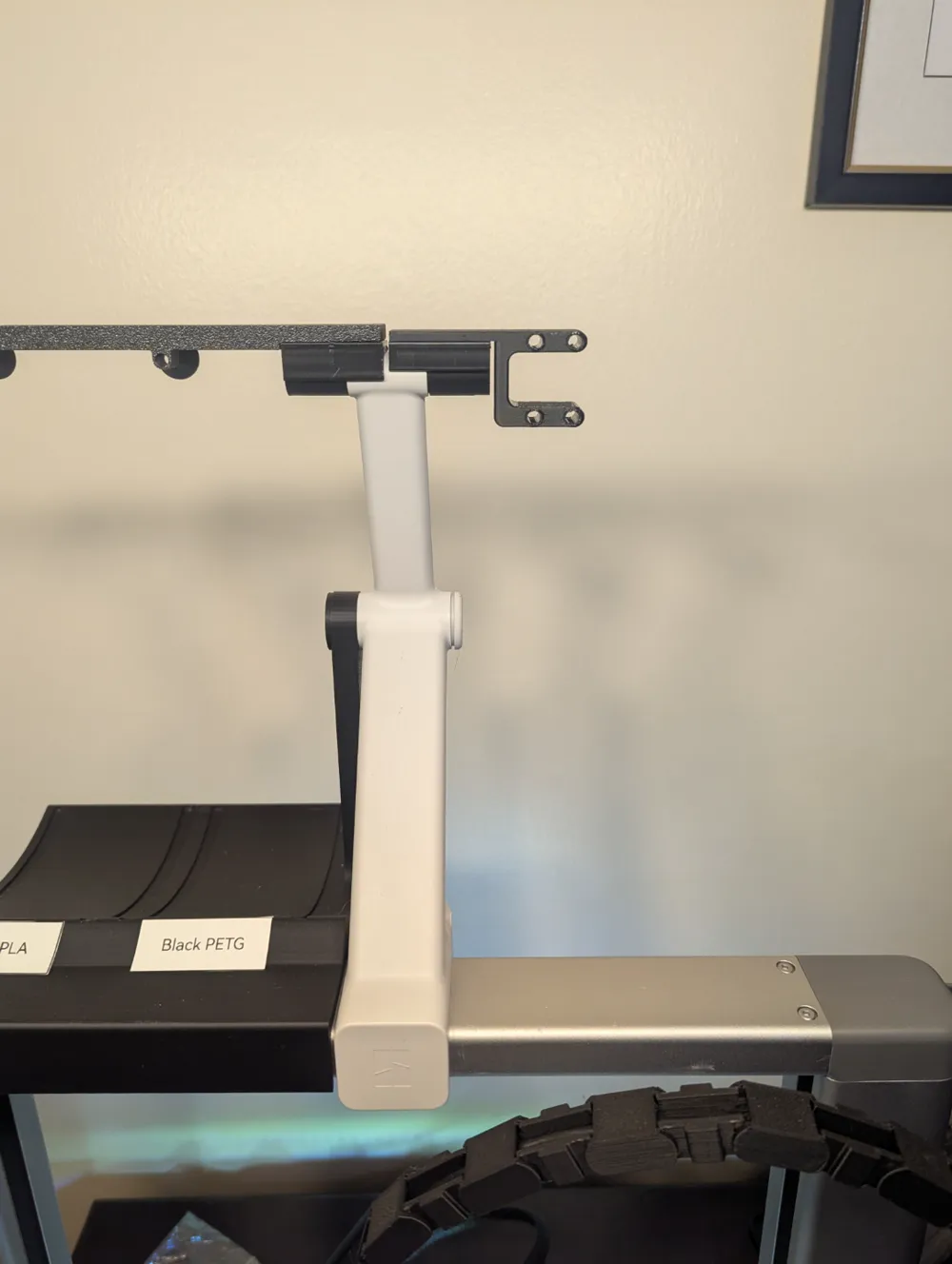

3. Slide on the 3d printed arm.

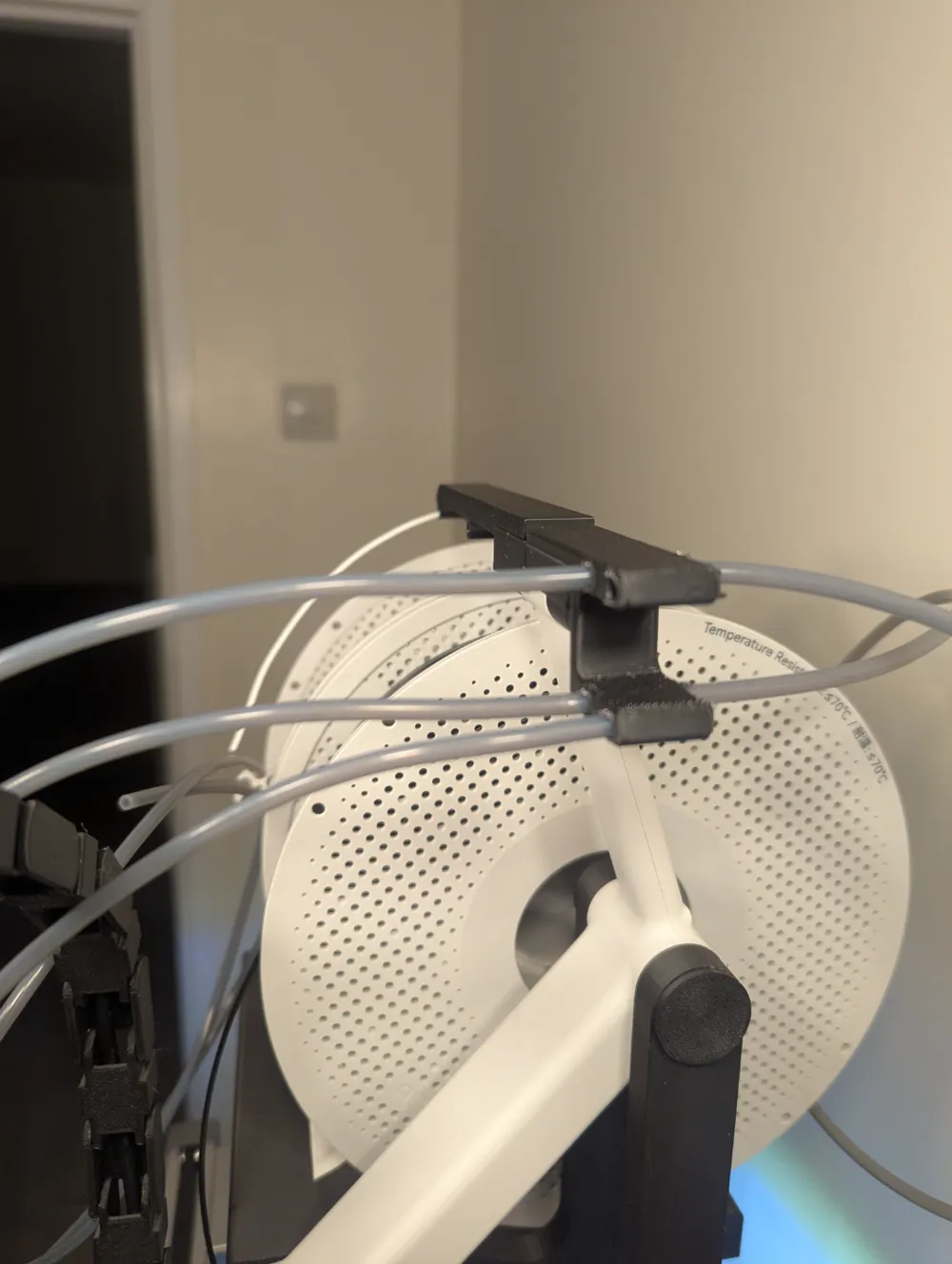

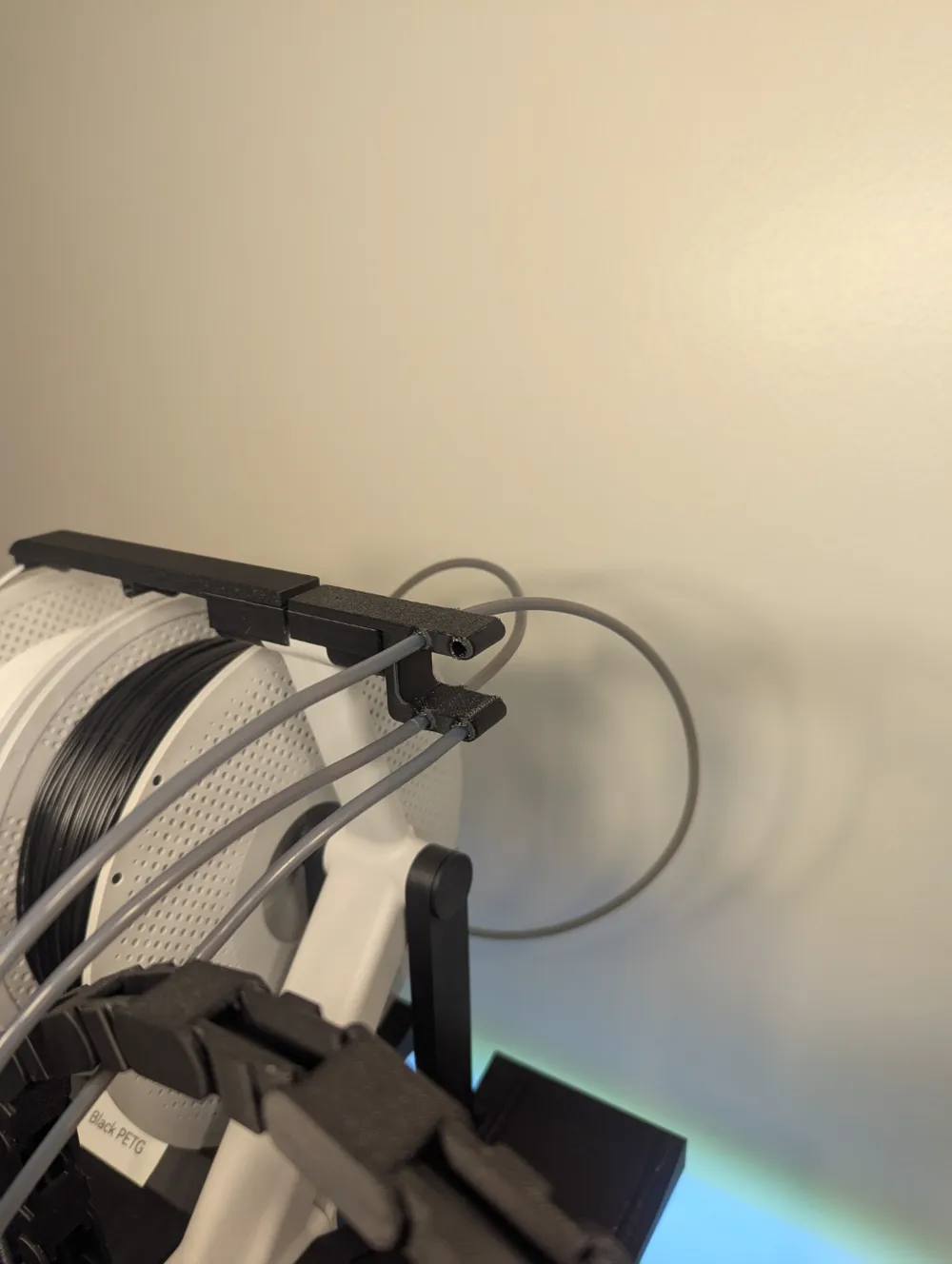

4. Attach the PTFE tubes.
5. Enjoy!

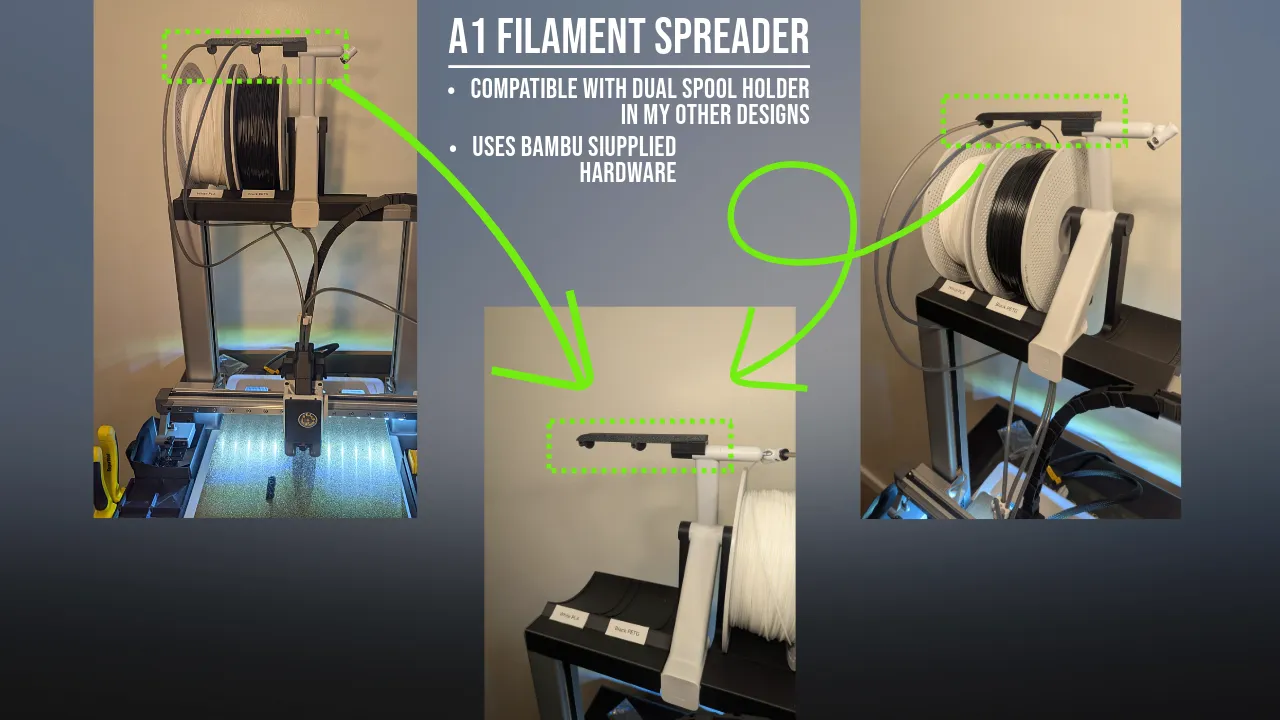

Also seen here is the A1 Spool Holder Extension Spreader/Guide Arm:
