Dillon XL650 XL750 Bullet Feeder V2

Support me by Buying Me A Coffee

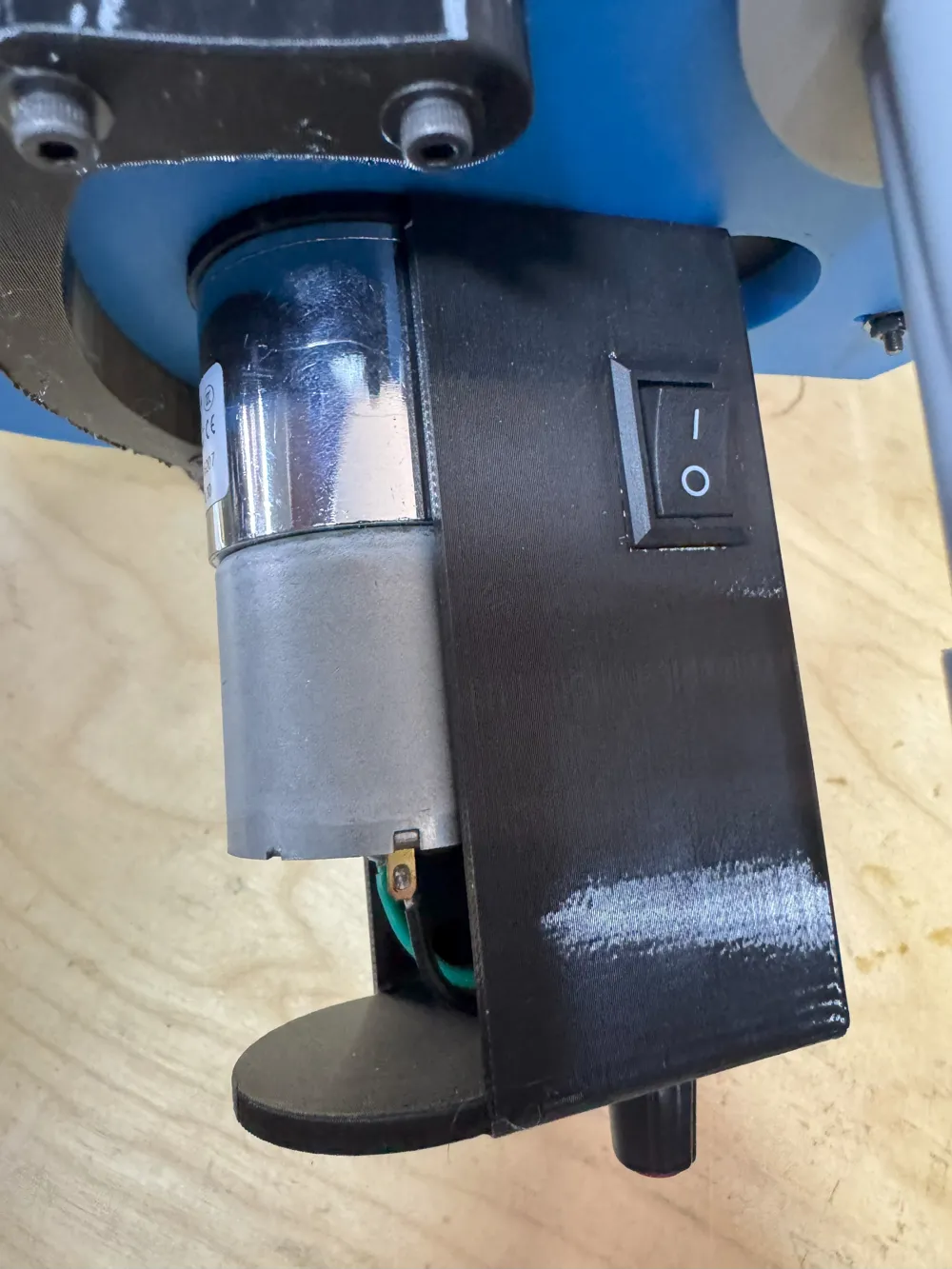

Update 9.28.25 - Updated the motor shield to include an on/off rocker switch to control the Optical Bullet Feeder. There are now 2 versions of the motor shield (one with a lens for the led on the speed controller if you have translucent filament and one that does not have a lens).

Current Users -

If you are upgrading from my old bullet feeder you only need to print a couple of files to convert to the updated design.

• Print the motor mount from this download and add the headphone jack
• Print the new updated nose guide for improved performance

Don't forget to download the matching Optical Bullet Feeder Sensor Switch. If you don't want to use the Optical Switch, I have a drop tube that will accept a proxmity sensor instead but you'll need to figure out how to control the motor.

This is a remix of the design found at dewz.pro. The bullet feeder has been tested with 9mm and .223. I have added a file for .45 ACP but I have not tested it yet.

This feeder works great when paired with a DAA Mr. Bullet Feeder die and DAA Powder Funnel.

I have made some improvements over my last bullet feeder.

• Updated motor mount

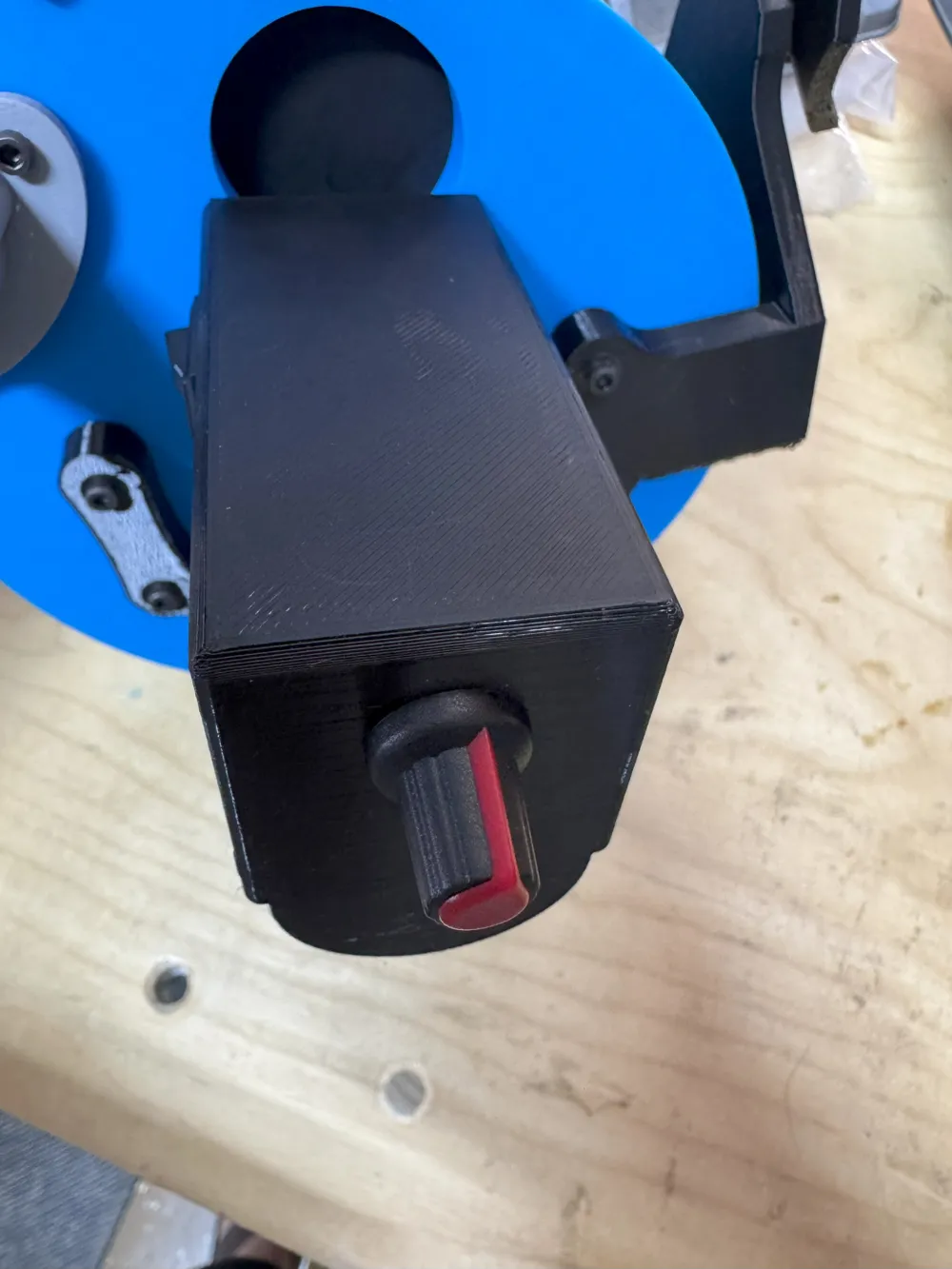

  • Now includes the motor controler (no longer needs a separate controller box!)

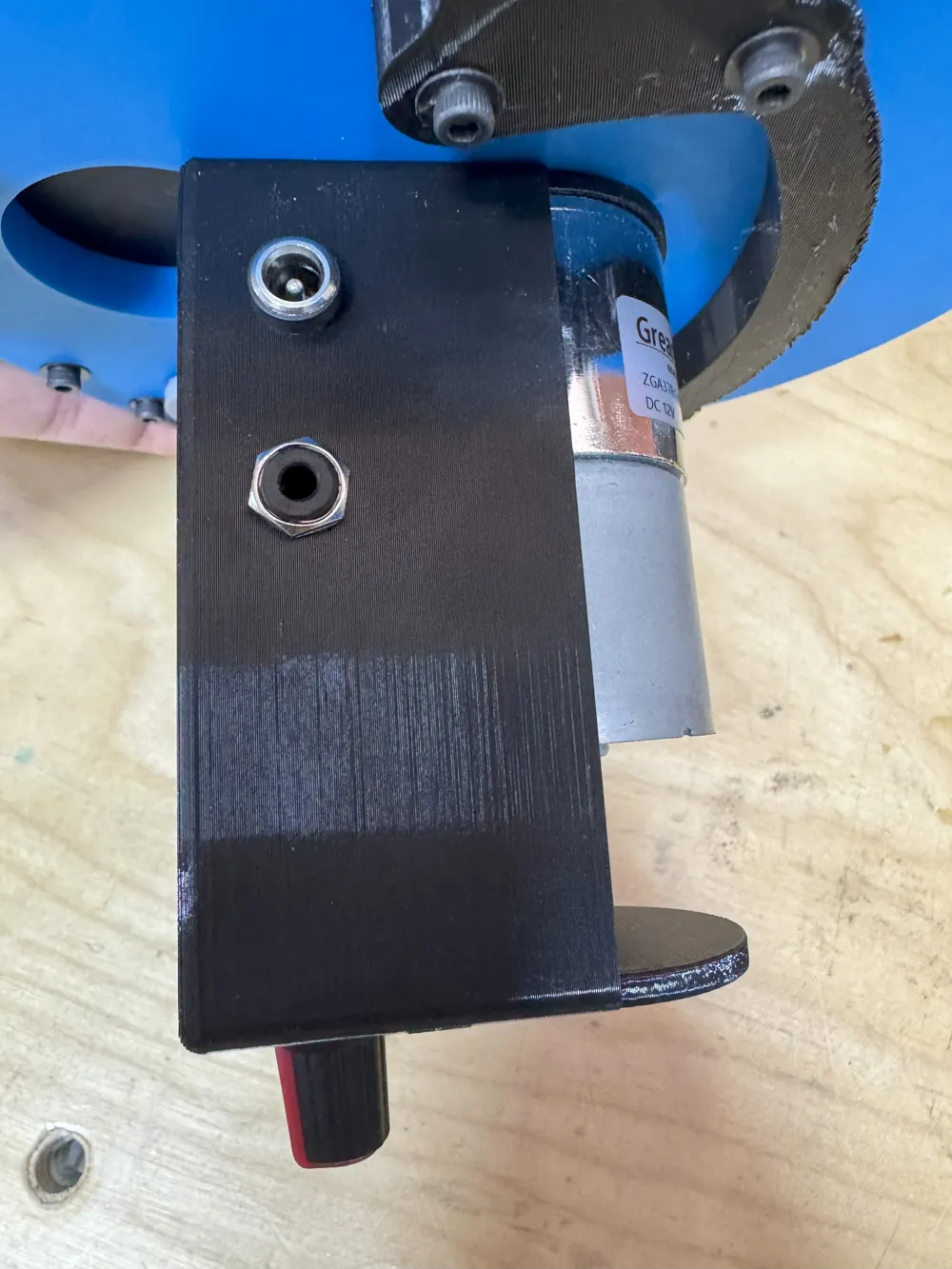

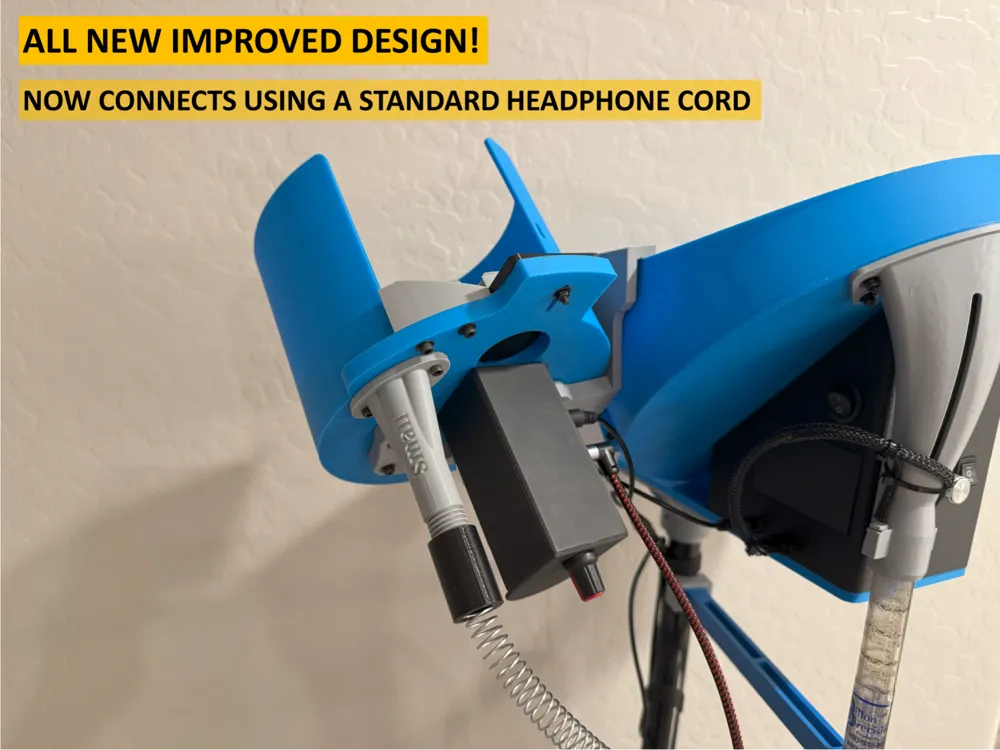

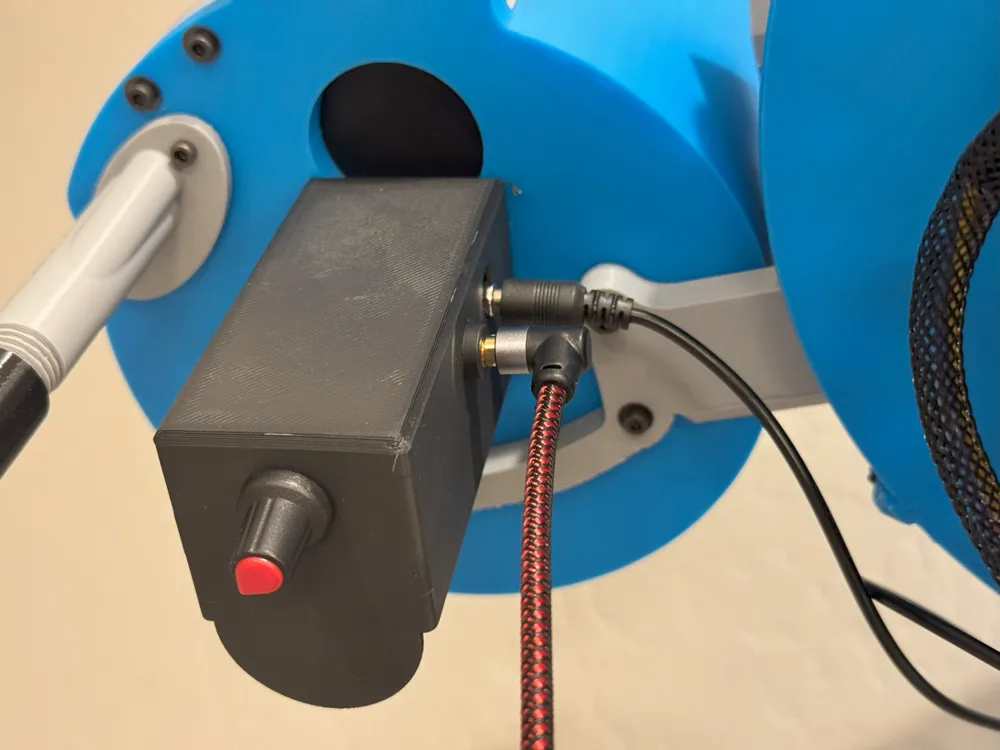

  • Now uses a 4-pole headphone cord to connect to the optical swith (no longer needs delicate JXT connectors!)
  • Improved nose guide

All files needed are included here.

• Dillon adapter added in case you do not have a case feeder to hang the Bullet Feeder from
• Holder has been modified to fit GolluB's case feeder bowl (https://www.thingiverse.com/thing:3607034/files)

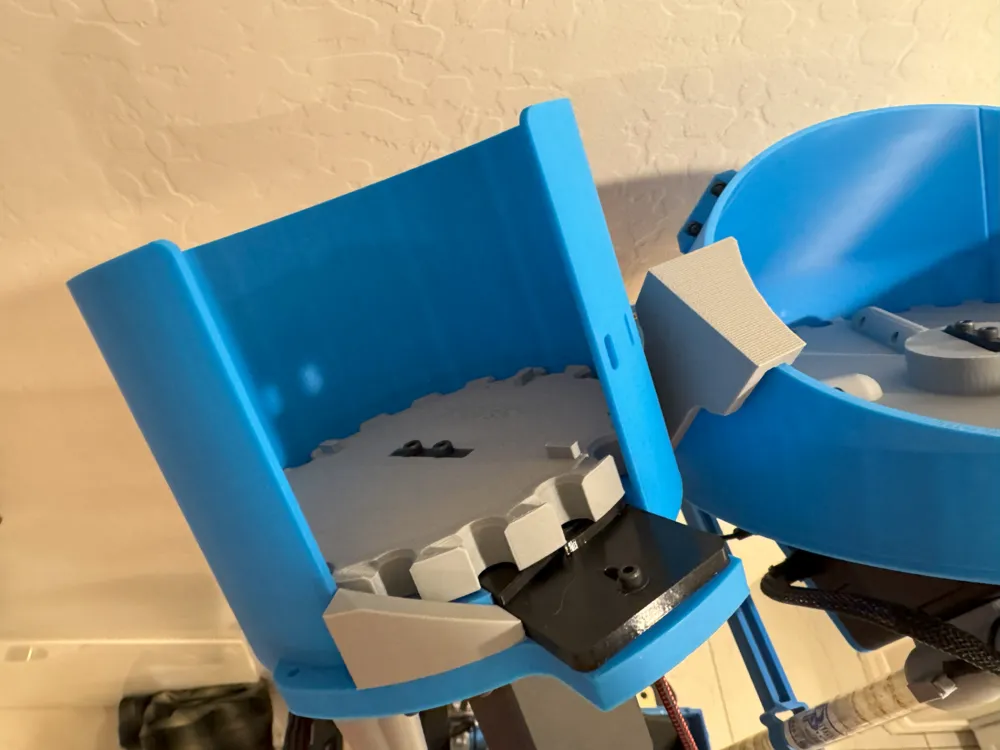

• Feeder plates have been modified so they are easier to switch out
• Added a shield to protect the motor

Parts I used:

• On/Off Rocker Switch - https://www.amazon.com/dp/B07Y1GDRQG
• 12v Motor (10 rpm) - https://www.amazon.com/gp/product/B089GTHGPZ
• Motor Controller - https://www.amazon.com/dp/B0CXPJZJNY
• Drive Shaft Hub - https://www.amazon.com/gp/product/B08334N261
• Taps for Drive Shaft Hub - https://www.amazon.com/gp/product/B07KT1VM7G
• Power Adapter - https://www.amazon.com/gp/product/B077PW5JC3
• 12V Power Barrel Socket - https://www.amazon.com/dp/B01N8VV78D
• M3 Screws - https://www.amazon.com/gp/product/B078V3YCF6
• M3 Inserts - https://www.amazon.com/gp/product/B08BJD3W4X
• Threaded Inserts - https://www.amazon.com/gp/product/B08BJD3W4X
• 10mm Slinky for .223 - https://www.amazon.com/gp/product/B08BJC5JPF
• 12mm Slinky for 9mm - https://www.doublealpha.biz/us/mrbulletfeeder-output-spring-and-extension-adaptor
• Headphone Jack - https://www.amazon.com/dp/B06XG3YTC4
• Headphone Cord - https://www.amazon.com/gp/product/B08KSTBQ27
• Mr Bullet Feeder Die - https://www.doublealpha.biz/us/mr-bulletfeeder-die-assembly
• DAA Powder Funnels - https://www.doublealpha.biz/us/mr-bulletfeeder-powder-funnel
