Stackable can dispenser

New Version V2 available:

https://www.printables.com/model/445924-stackable-can-dispenser-v2

-------------------

Stackable can dispenser

I've uploaded different dispensers:

• Ø58x115mm (250ml)
• Ø58x146mm (330ml)
• Ø67x124mm (355ml)
• Ø54x134mm (250ml redbull)

There is a "short version" of each dispenser so you can print it on a 200x200 bed

Edit 2017/03/18:

I've uploaded a "short version" of the dispenser. This should fit onto a 200x200 bed Edit 2017/04/07:

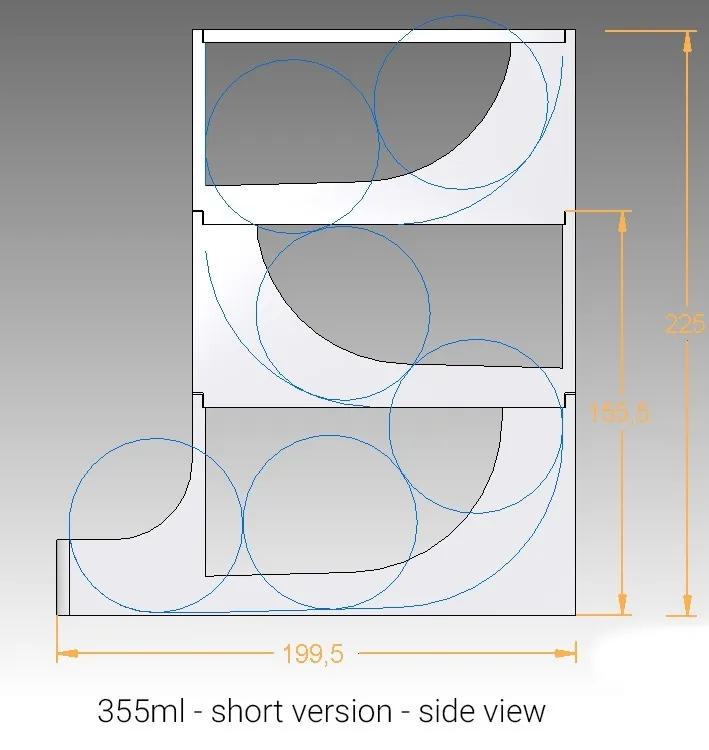

Added .stl-files for the 355ml cans. I've also uploaded a screenshot so you can see how many 355ml cans fit into the dispenser. Edit 2017/08/22:

Added .stl-files for the 250ml redbull cans as requested in the comments. Files are named 250rb / 250rb_short

I've only printed the 250ml version but the others should work as well. (Let me know if anybody tested it)

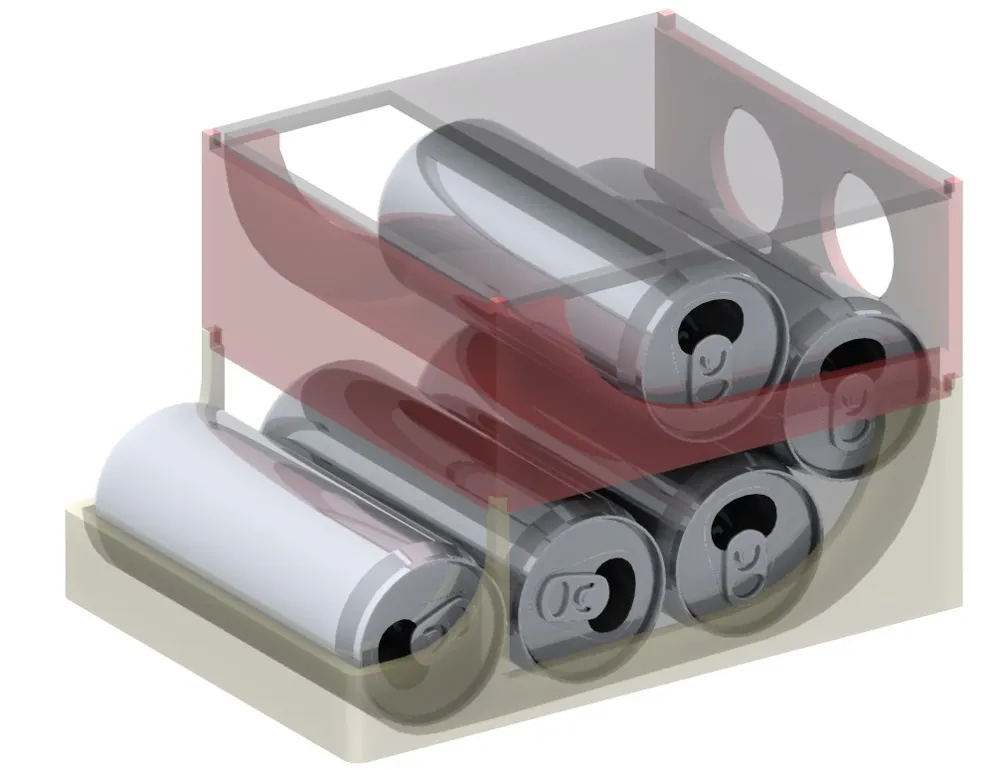

I used the following can model in the above renderings: https://grabcad.com/library/coke-can-2012

Print Settings I used

Printer:

CTC

Rafts:

No

Supports:

Yes

Resolution:

0,2mm

Infill:

15%

Notes:

If you print the parts with a resolution higher than 0.2mm the cans probably won't roll down.
